Aura Fireball-6.8 DSP 8 channel amplifier

External wiring controller (purchased separately) AC-1

Introducing the Aura Fireball-6.8 DSP Amplifier : Experience the Future of Sound Engineering

Elevate your audio experience with the Aura Fireball-6.8 DSP Amplifier, where cutting-edge technology meets unparalleled performance. Designed to meet the demands of audiophiles and professionals alike, this DSP amplifier redefines excellence in sound engineering.

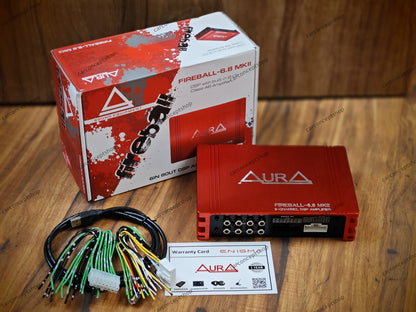

Accessories

• DSP Amplifier – 1 No

• Wiring Harness – 2 No

• PC USB Cable – 1 No

• Instruction Manual – 1 No

  1 YEAR BRAND WARRANTY



  AUDIO
  RMS Power:	25W RMS * 8CH @40HMS : 50W RMS* 8CH@ 20HMS
  Frequency Response:	20Hz~20kHz
  DSP Processor:	Cirrus Logic
  Signal Converter A/D :	Cirrus Logic
  Signal Converter D/A:	Cirrus Logic
  Bluetooth :	Built in Bluetooth 5.1
  High level speaker input:	6CH
  Low level AUX input:	2CH
  High level speaker output:	8CH
  Low Level RCA Output	8CH
  DSP RCA output:	8CH (RMS 2V)
  High input impedance:	13 Ω
  Low input sensitivity:	0.5-2.5V
  High input sensitivity:	4-10V
  Optical Input:	Yes
  Sampling Rate:	24Bit/192KHz ADC/DAC
  EQ/Delay:	31Band EQ/15ms
  Filtering Crossing Point:	20-20KHz
  PC connections:	USB 2.0
  Software/PC requirements:	Microsoft Window (32/64bit): (XP, Vista, Windows 7, Windows 8, Windows 10)
  Operate temperature range:	-30~70?
  Size:	195(L)x131(W)x46.5(H)mm
  Weight (Kgs)	1.3 Kgs

Advanced Connectivity Options

• Versatile Inputs: With 6 High Level inputs, 2 RCA inputs, Optical input, Bluetooth, and USB connectivity, the Fireball-6.8 ensures compatibility with a wide range of devices, from traditional audio sources to modern digital platforms.

• Precise Input Voltage Management: Experience optimal signal reception with input voltage ranging from 0.5V to 10V for High Level inputs and 0.5V to 5V for RCA inputs.

Exceptional Output Capabilities

• Powerful Output: Delivering unparalleled performance, the Fireball-6.8 offers 8 High Level outputs and 8 RCA outputs, capable of handling up to -10Vrms on the amplifier output and 2Vrms on RCA outputs.

• High-Fidelity Amplification: Utilizing Class AB amplifier technology, this amplifier provides a robust power output of 8x25W @ 4 OHMS and 8x50W @ 2 OHMS, ensuring crystal-clear sound reproduction.

State-of-the-Art Signal Processing

• Intelligent Signal Conversion: Equipped with Cirrus Logic Smart HiFi 3-core DSP, the Fireball-6.8 ensures precise AD & DA signal conversion, maintaining fidelity at every stage of audio processing.

• Enhanced Sampling Rate: Experience audio in its purest form with a sampling rate of 24Bit/192KHz ADC/DAC, delivering unparalleled clarity and detail.

Customizable Audio Control

• Fine-Tuned Equalization: Tailor your audio experience with a 31-band EQ and 15ms delay, offering precise control over frequency response and time alignment.

• Flexible Filtering Options: Choose from Butter, Bessel, and Link filters with adjustable crossover points and slopes, ranging from 6dB/oct to 48dB/oct.

Seamless Integration and Control

• Intuitive User Interface: Seamlessly navigate settings and presets with the Aura Fireball-6.8 PC software, Android, and iOS apps, adorned with our brand logo for easy identification.

PC SOFTWARE/IOS & ANDROID APP- 31-Band EQ/X-Over/Master Volume Control/ Time Delay

Aura PC Software and Mobile App Logo

• Effortless Bluetooth Connectivity: Stream your favourite music wirelessly with Bluetooth 5.1, ensuring stable connections and high-quality audio playback.

Reliability and Convenience

• Robust Construction: Engineered with high-quality components, the Fireball-6.8 boasts a signal-to-noise ratio of 87dB for power amplification and 85dB for RCA inputs, delivering pristine sound quality.

• Efficient Power Management: Operate within a wide voltage range of 9-16V, with a static current of just 0.45A and a working current range of 0.5-18A, ensuring efficiency and reliability.

LCD Remote DSP Controller ( Optional- To Be Purchased Separately): Select source selection, FF/RW Tracks, Change mode are some of function which can be operated through the remote controller..

Illuminate your audio journey with the Aura Fireball-6.8 DSP Amplifier and immerse yourself in a world of unparalleled sound quality and performance. Experience the future of audio technology today.
