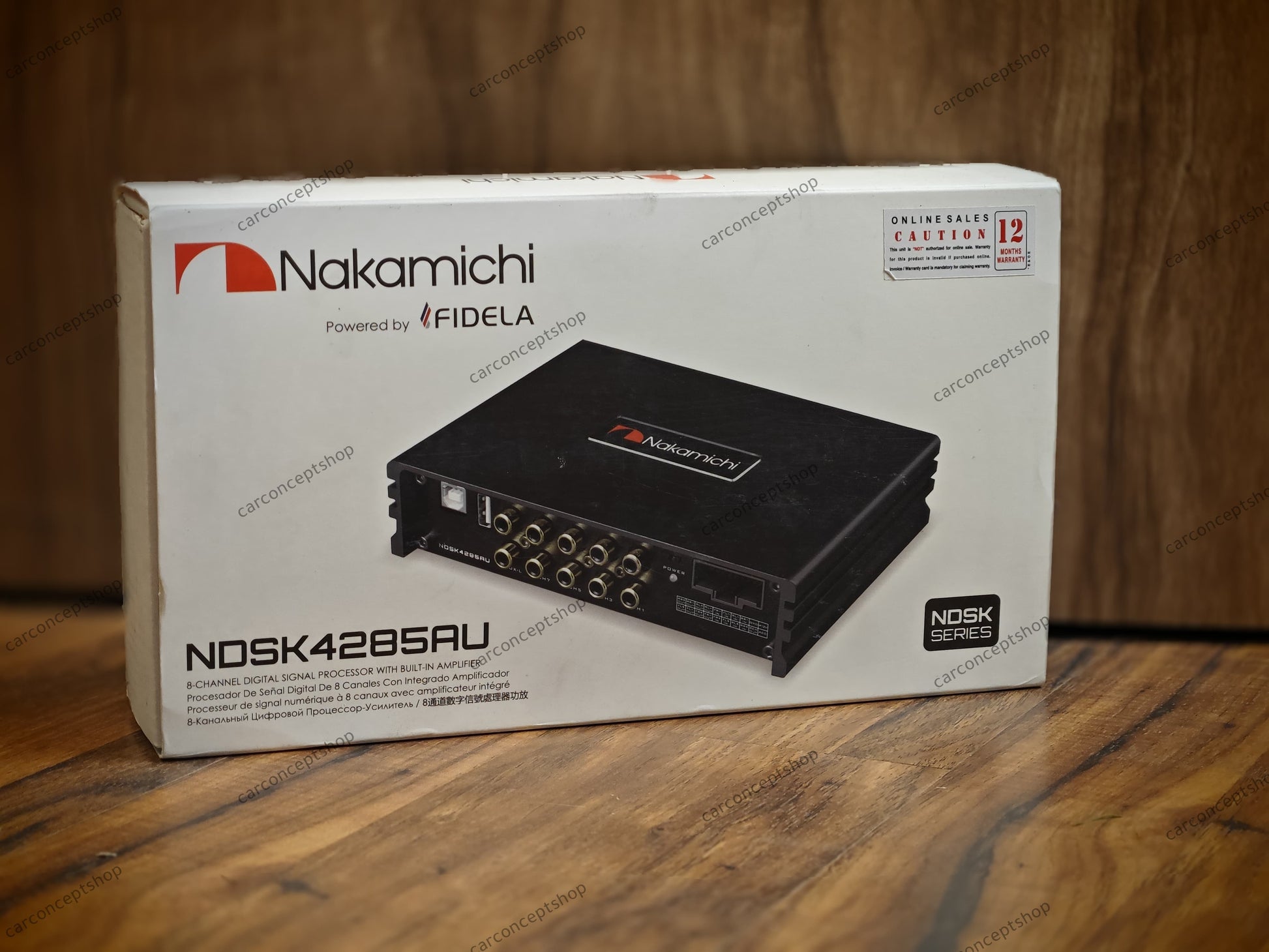

Nakamichi NDSK4285AU Dsp Amplifier

Nakamichi NDSK4285AU Dsp Amplifier

Rs. 11,999.00
Rs. 11,999.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Same Day Dispatch,Delivery Time 3 To 5 Days

NAKAMICHI NDSK4285AU

PRODUCT DATA

Signal Input
 RCA Input:8Vpp;High Level:26Vpp
Output Range RCA Output:12Vpp;N-Power Output:4x35W,Max
power:4x70W
Power DC9V-16V
REM Input High Level Input Signal:FR+/FR-or ACC control cable
REM Output +12V Startup Voltage Output
Standby Power ≤0.1W
Net Weight Approx. 0.7kg
Box Dimension(L×H×W) 174.5×120×40mm

TECHNICAL SHEET

Input Signal Type

2 Channels low level,4 Channel high level,supports internal Bluetooth and USB

Output Type

8 Channels low level,4 Channels 70W power

Output Gain

Gain range:Mute,-59dB~6dB

Output Signal EQ

31-band EQ for every channel,
1.Frequency Range:20Hz~20KHz,1Hz Accuracy
2.Q value(Slope):0.404~28.85
3.Gain:-20.0dB~+20.0dB,0.1dB Accuracy

Output Signal Crossover

 Equipped with high and low pass filters.

1.Professional filter type:Butter-W, Bessel,Link-Rill

2.Filtering Crossover Point: 20Hz~20kHz, Resolution 1Hz

3.Filter Slope setup:6dB/Oct ~ 48dB/Oct

Output Phase and Time Alignment

Adjust phase and time alignment for every output channel :

In Phase or Out Phase(0°-180°);

Time Alignment: 0.000 to 20.000 milliseconds, 0 to 692 cm,0 to 273 inch.

Presets

Save 6 presets into the device.
