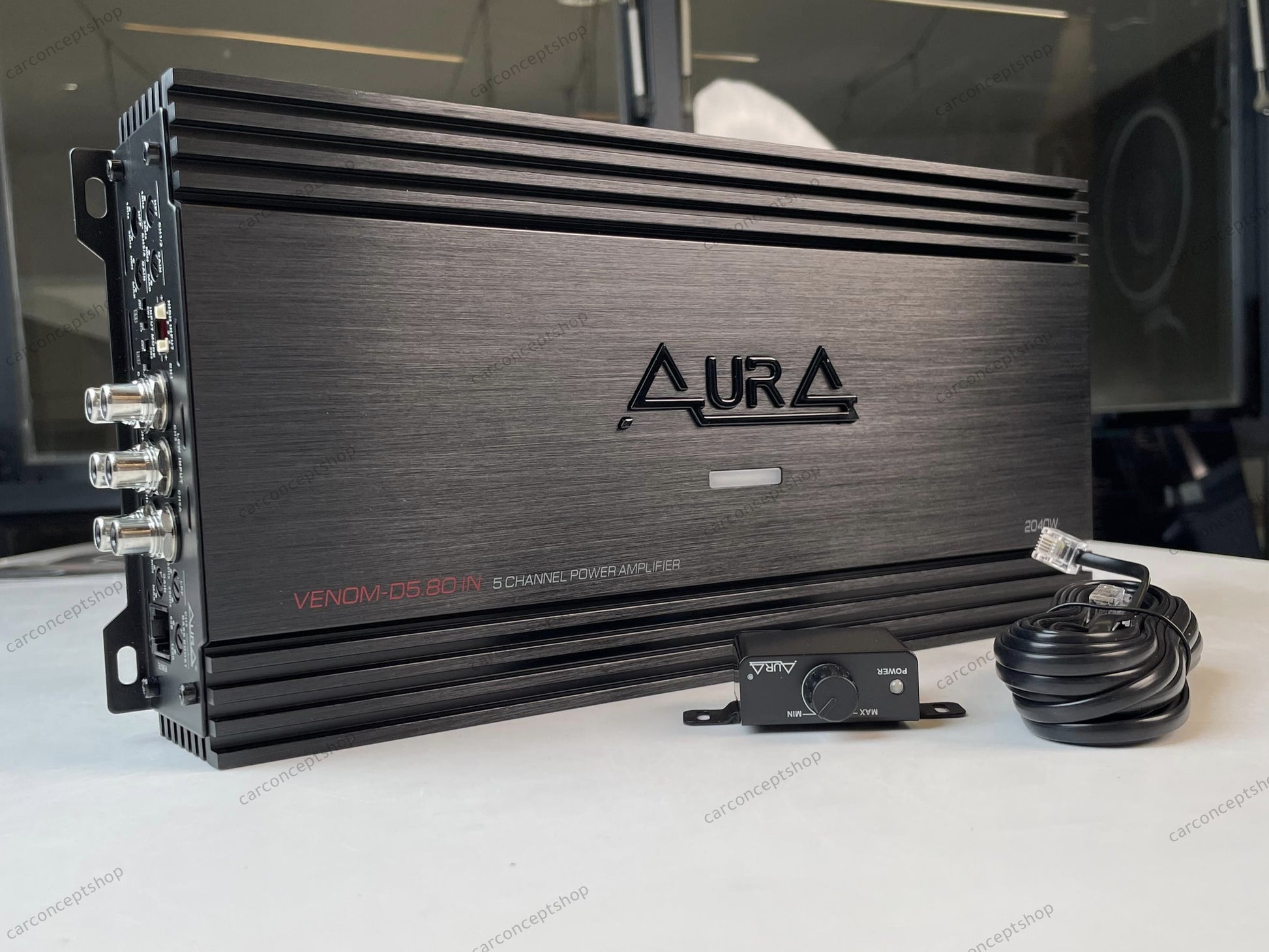

Aura Car Audio Venom D5.80in

Product Overview

The Venom Series class Damplifier is Small and Compact Powerhouse Amplifiers. Engineered and developed by Aura sound engineers, It is most Powerful Amplifiers in its category. Each Amplifier designed keeping in mind with the requirements of Car Audio enthusiast and High End Installers Adjusting Gain, HPF/LPF, Bass Boost are some of the features with High End Tiffany RCA terminal Now control your bass with easy Remote control.

Technical Specifications:

• Model No : Venom-D5.80 IN
• Amplifier Class : Class D
• Channels : 5 Channel
• RMS Power @ 4 Ohms: 80W X 4 + 190W X 1
• RMS Power @ 2 Ohms: 130WX 4 +320W X 1
• RMS Power @ 1 Ohms: 500W X 1(CH5)
• RMS Power @ 4 Ohms(Bridged): 260W X 2
• Working Impedance 2 Ohm Stable(CH1-CH4), 1 Ohm Stable(CH5)
• Input Sensitivity : 6V-0.2V
• Low Pass Filter: 35Hz-250HZ
• High Pass Filter : 15Hz-3KHz
• Subsonic Filter: N/A
• Bass Boost : 0-12dB
• Frequency Response: 10Hz-250Hz(CH5), 15Hz-30KHz(CH1-CH4)
• Signal to Noise Ratio : >85dB
• THD @ 4 Ohms : <0.1%
• Damping Factor : >150
• Working Voltage : 9V-15V
• Fuse Rating : 80A
• Dimensions (Inches) : 12.85 L X 5.87 W X 2.05 H



  The Venom-D5.80 IN is a Class D 5 Channel Power Amplifier with stable 2 Ohms load for CH1-CH4 , Stable 1 Ohms load for CH5, High Speed Mosfet power supply in a small compact size.. Delivering 80WX4@4 Ohms and 500WX1@1Ohms, this 5 Ch Amplifier is an ideal amplifier for a 2 pairs speakers and subwoofer setup in a cost effective solution. The Small size makes it ideal for user who is looking at 5 Channel set up in space constraint environment.

  The Venom amplifiers uses High grade PCB parts such Tiffiany RCA unlike the traditional white and Red RCA.

  High Grade PCB CircuitTiffiany RCA

  The Venom-D5.80 IN Amplifier has High Level and Low Level inputs with gain & bass boost controls. The low & High pass frequencies has a variable frequency selection from 35Hz to 250Hz and High Frequency of 15Hz-3KHz thus capturing the low & High frequencies.

  The 5 Ch Amp has a protection mode blinking for any clipping. It has built in 80A fuse.



  The Aura Venom Amplifier is ascetically one of the best amplifiers with Aura Logo prominently visible on the hairline finish look heat sink and Red Illumination.



  The VENOM amplifiers includes Remote Control , gloves for Installers ,Aura, Venom stickers, Allen key, High input Level cable, Manual and Warranty Card in a beautiful designed Giftbox which denotes the amplifiers design in the background.





Frequently Asked Questions (FAQ)

Q: What are the advantages of using a 5-channel amplifier over multiple individual amplifiers?

A: A 5-channel amplifier like the Venom-D5.80 IN simplifies your installation significantly. It reduces cable clutter, requires only one main power and ground wire run, takes up much less space, and eliminates the need for distribution blocks or multiple remote turn-on triggers.

Q: Is the subwoofer channel (Channel 5) 1-Ohm stable?

A: Yes! Channel 5 on the Venom-D5.80 IN is stable down to 1 Ohm, delivering up to 500W RMS to low-impedance subwoofer configurations.

Q: Can I use this amplifier with a factory (OEM) radio?

A: Yes. The unit comes equipped with both High-Level (speaker wire) and Low-Level (RCA) inputs, making it compatible with aftermarket head units as well as factory stereo systems using the provided high-level cable harness.

Q: Does it include a remote control for the bass level?

A: Yes, a wired bass remote knob is included in the box, allowing you to fine-tune the subwoofer output on the fly from your dashboard.
