Deaf Bonce Apocalypse Aab-500.1d Atom Mono Amplifier
Product Overview

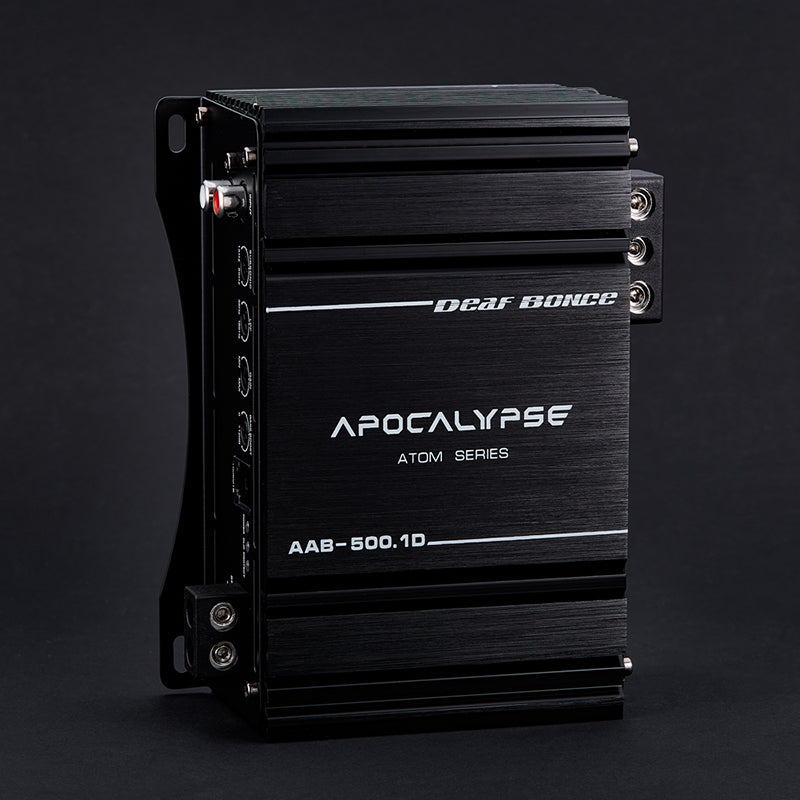

The Deaf Bonce Apocalypse AAB-500.1D Atom is an ultra-compact Class-D Monoblock Subwoofer Amplifier engineered to deliver raw SPL output and precise cone control from a micro chassis. Measuring just $4.92\text{"} \times 6.30\text{"} \times 2.50\text{"}$, this "Atom" series monoblock pushes up to 568 Watts RMS at a 1-Ohm load ($14.4\text{V}$), making it the ideal solution for high-output bass builds in space-restricted vehicles.
High-Efficiency Class-D Topology & High Damping Factor
Built to squeeze maximum efficiency out of your vehicle's standard $12\text{V}$ power system ($9–15\text{V}$ operating range), the AAB-500.1D Atom features a damping factor of $\ge 210$. This exceptional driver control prevents sloppy cone movement and delivers tight, punchy, articulate low-end bass across a frequency range of $15\text{Hz}$ to $180\text{Hz}$.
Precision Sub Stage Controls & Heavy-Duty Terminals

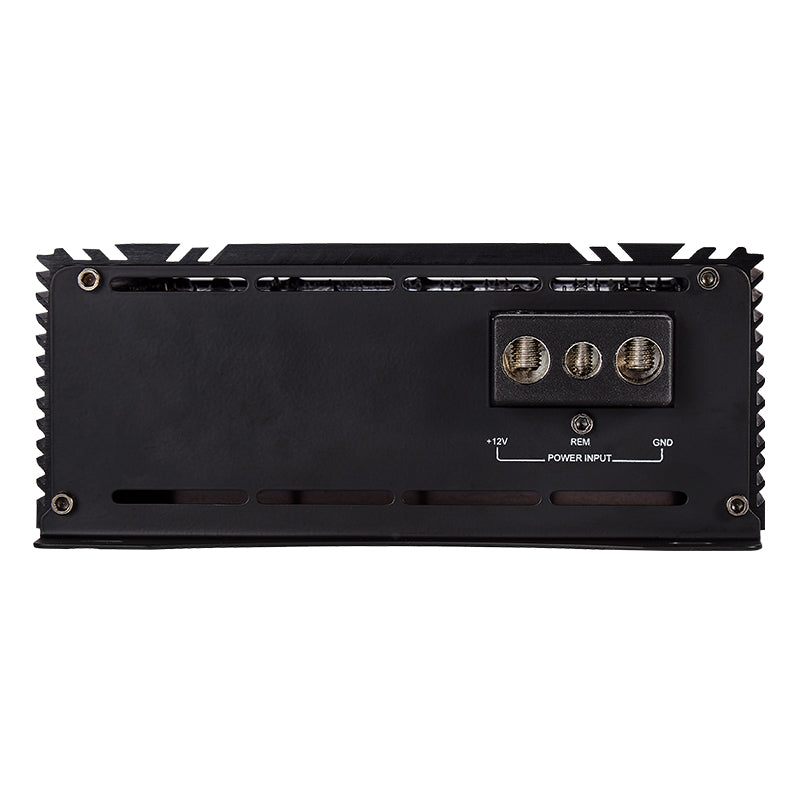

Tuning your subwoofer stage is straightforward using the onboard variable Low-Pass Filter ($35–180\text{ Hz}$ at $12\text{dB/Oct}$) and variable Subsonic Filter ($15–50\text{ Hz}$) to shield subwoofers from sub-audible over-excursion. Secure 4 AWG power input block terminals and 8 AWG speaker output terminals ensure minimal electrical resistance and maximum current delivery.
Specifications
| Model | AAB-500.1D Atom |
| Class | D |
| Number of the channels | 1 |
| Frequency response | 15-180 Hz |
| 1 Ohm RMS Power (14.4 V) | 568 W |
| 1 Ohm RMS Power (12 V) | 502 W |
| 2 Ohm RMS Power (14.4 V) | 331 W |
| 4 Ohm RMS Power (14.4 V) | 205 W |
| Minimum permissible load on the channel | 1 Ohm |
| Input SPL | 0.2 - 6 V |
| Low pass filter | 35-180 Hz |
| Crossover | 12 dB/Oct |
| Subsonic filter | 15-50 Hz |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Damping factor | ≥ 210 |
| Working voltage | 9 - 15 V |
| Signal-to-noise ratio | ≥ 100 dB |
| Size (W×L×H) | 4.92 × 6.30 × 2.50 inch |
Frequently Asked Questions (FAQ)
Q: Can the Deaf Bonce AAB-500.1D Atom safely run at a 1-Ohm load?
A: Yes! The AAB-500.1D Atom is engineered to operate stably at $1\text{ Ohm}$, delivering up to $568\text{W RMS}$ at $14.4\text{V}$. You can wire a single dual 2-Ohm subwoofer or two dual 4-Ohm subwoofers in parallel down to 1 Ohm.
Q: What power wire gauge should I use to connect this amplifier?
A: The amplifier features 4 Gauge power and ground input terminals. We recommend installing a high-quality 4 AWG Oxygen-Free Copper (OFC) power wiring kit with an inline fuse holder (rated around 40A to 50A) near your vehicle battery.
Q: What is the benefit of the high damping factor ($\ge 210$) on this amp?
A: A high damping factor means the amplifier exerts strong electromagnetic control over the subwoofer's voice coil and cone. This stops unnecessary cone wobbling after a bass note hits, resulting in tighter, cleaner, and more precise sub-bass output.
