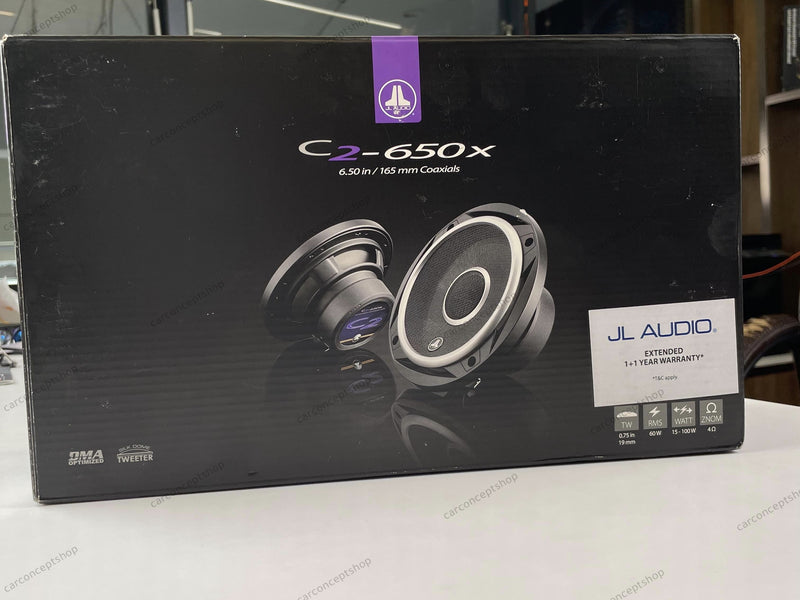

JL Audio C2-650x coaxial speaker
Product Overview
Extended 1+1 Year Brand Warranty
Coaxial Speaker System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
The Evolution C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and precision-engineered woofer designs.
The C2-650x system features 6.5-inch (165 mm) woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
Tweeters are coaxially mounted and built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. The small size of the C2 tweeter minimizes tweeter protrusion, allowing C2 coaxials to fit behind most factory speaker grilles.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Lineart Bottom-View and Side-View of C2-600x Coaxial Speaker with dimension labels A-G
|
Frame Outer Diameter* (A) |
6.5 in / 165 mm |
|
Grille Tray Outer Diameter (B) |
6.84 in / 174 mm |
|
Motor Outer Diameter (C) |
3.15 in / 80 mm |
|
Frontal Coaxial Tweeter Protrusion** (D) |
0.45 in / 12 mm |
|
Frontal Grille Protrusion*** (E) |
0.85 in / 22 mm |
|
Mounting Hole Diameter (F) |
5.56 in / 141 mm |
|
Mounting Depth (G) |
2.44 in / 62 mm |
|
*Does not take into account mounting tabs |
|
General Specifications
|
Continuous Power Handling (RMS) |
60 W |
|
Recommended Amplifier Power (RMS) |
15 - 100 W / Ch. |
|
System Efficiency |
91 dB @ 1 W / 1 m |
|
System Nominal Impedance |
4 Ω |
|
System Frequency Response |
59 Hz - 22 KHz ± 3 dB |
Frequently Asked Questions (FAQ)
Q: Do I need an external amplifier to run the JL Audio C2-650x speakers?
A: No, thanks to their high 91 dB efficiency rating, the C2-650x speakers will play loudly and clearly directly off an aftermarket head unit or factory radio power. However, powering them with an external amplifier (rated 15W to 60W RMS per channel) will significantly improve dynamic range and mid-bass punch.
Q: Will the C2-650x fit into 6.75" (oversized 6.5") factory speaker locations?
A: Yes, the C2-650x system includes a pair of multi-application adapter plates in the box that allow easy mounting into both standard 6.5-inch and 6.75-inch factory speaker openings.
Q: How do the C2-650x speakers compare to the JL Audio C1 series?
A: The C2 Series is a step up from the C1 Series. While the C1 features aluminum dome tweeters and mineral-filled cones, the C2-650x upgrades to pure silk dome tweeters, an upgraded motor assembly, and more sophisticated internal crossover network for smoother, warmer high-frequency response and greater mid-bass authority.
