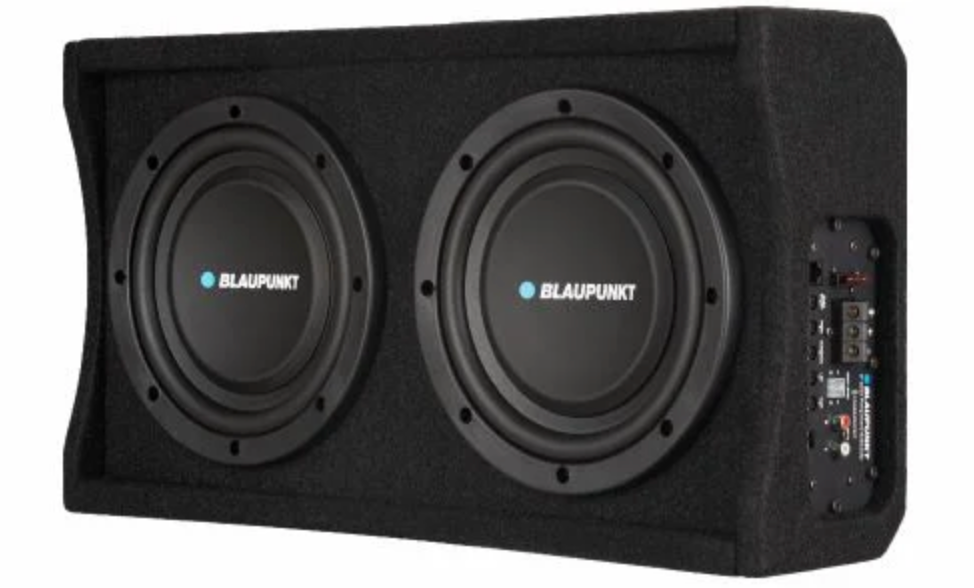

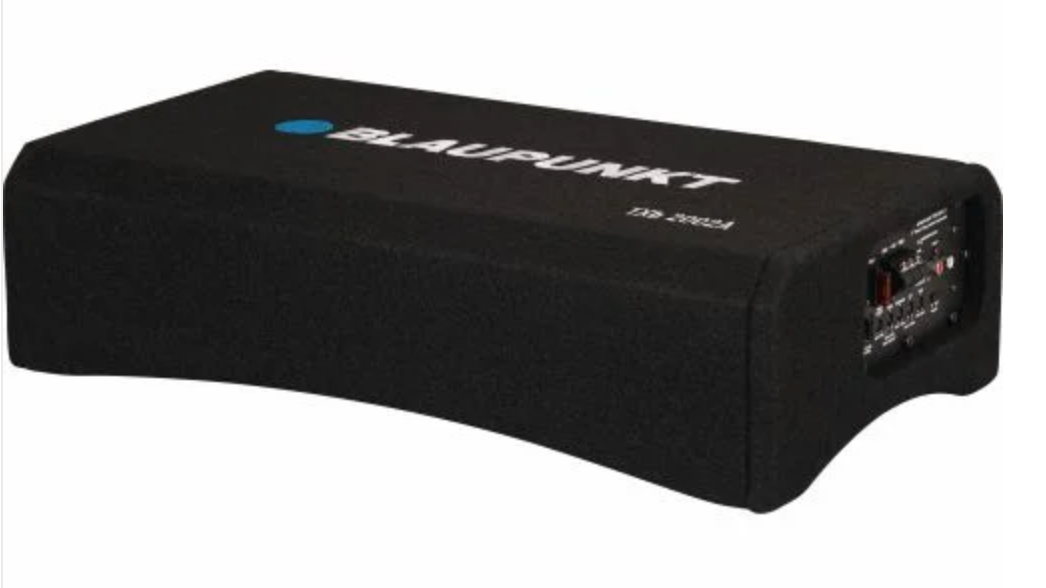

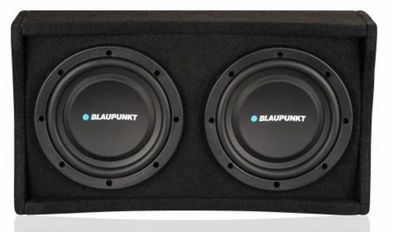

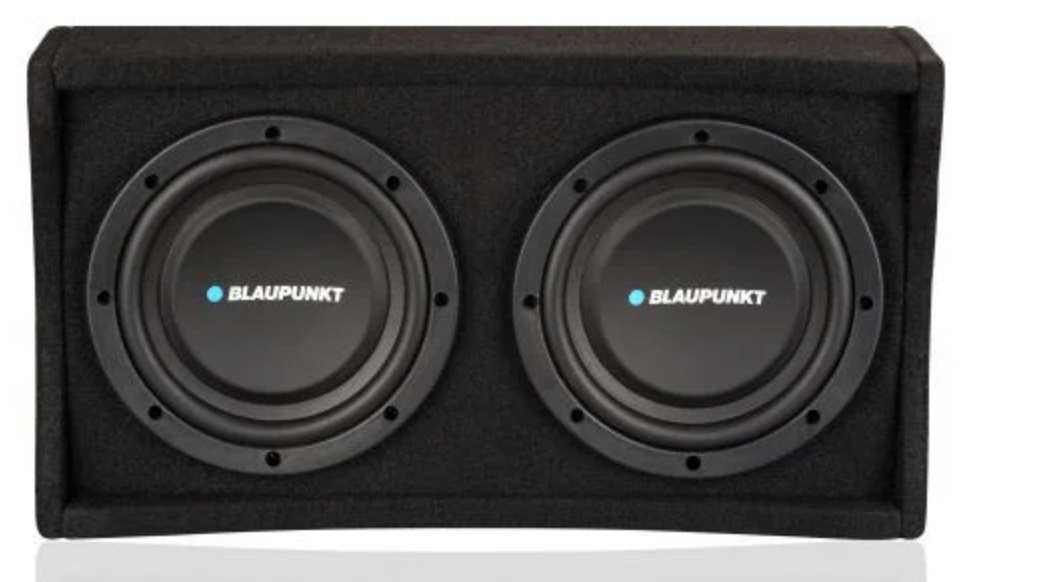

Blaupunkt TXb 2002A | 8" Active Down-Firing Subwoofer (1000W Max / 200W RMS)

The Blaupunkt TXb 2002A is a specialized high-performance audio solution designed for deep, immersive bass without the bulk of traditional enclosures. Featuring a unique Down-Firing Dual 8” Subwoofer Design, this system utilizes an active/passive configuration. By firing toward the vehicle floor, it uses surface reflection to disperse powerful low frequencies evenly throughout the cabin while maintaining a compact, low-profile footprint.

Powered by a built-in 200W RMS Class D Amplifier (peaking at 1000W), the TXb 2002A provides efficient, high-output performance with zero distortion. It is equipped with Smart Power Management featuring DC Detect technology, ensuring the unit only powers up when your system is active to prevent battery drain. Whether you are integrating with a factory head unit or a high-end aftermarket system, this subwoofer offers the versatility and precision control needed for a professional-grade audio experience.

Key Features:

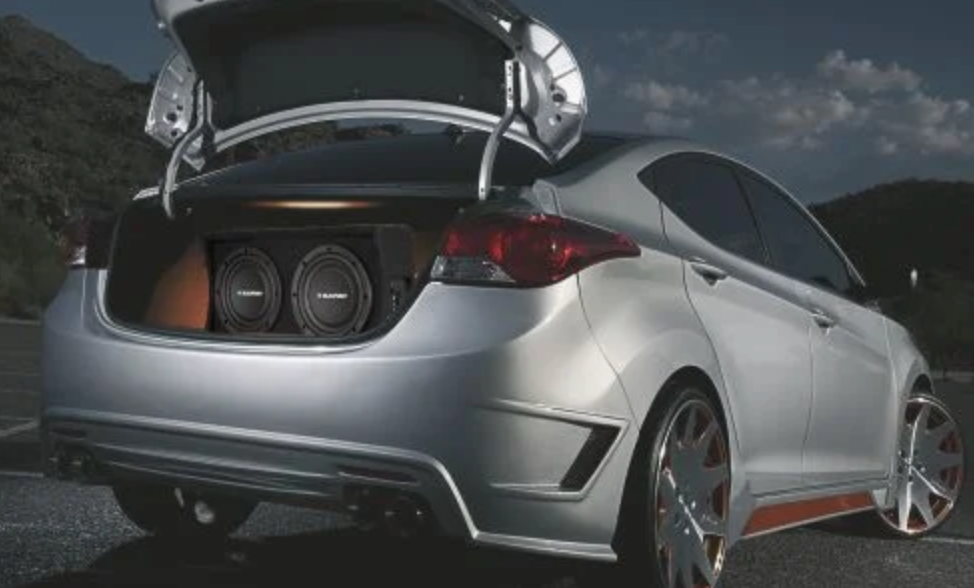

• Acoustic Ground Loading: The down-firing enclosure design enhances bass presence and protects the drivers, making it perfect for trunk or under-seat installation.

• Integrated Class D Power: Built-in high-efficiency amplifier delivers consistent, punchy bass with minimal heat generation.

• Total Acoustic Control: Includes variable Low Pass Filters (40Hz–180Hz) and Subsonic Filters (10Hz–50Hz) to eliminate unwanted frequencies and keep bass tight.

• Custom Sound Shaping: Selectable Phase Alignment (0°–180°) and Bass Boost/Gain controls (up to -12dB between 30Hz–80Hz) allow you to tailor the output to your vehicle’s specific acoustics.

• Universal Connectivity: Supports both RCA (low-level) and Speaker (high-level) inputs for seamless connection to any car stereo.

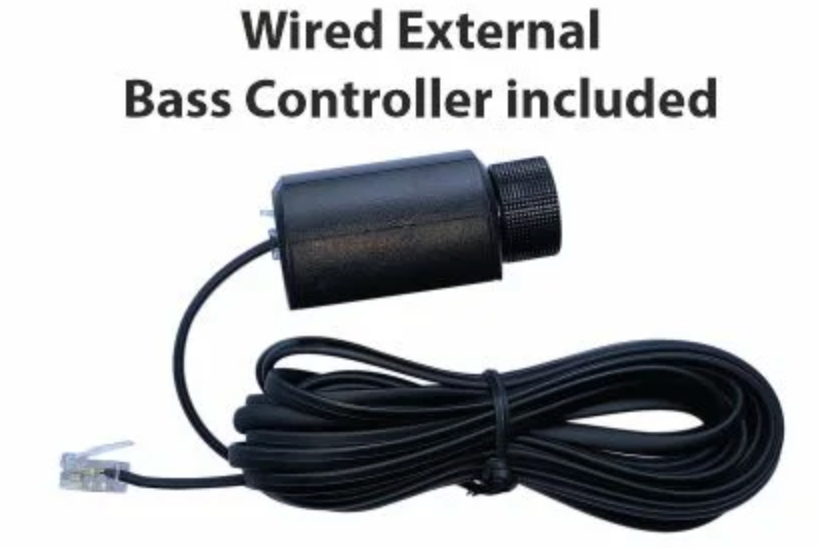

• On-the-Fly Adjustment: Comes complete with a wired external bass controller to manage volume directly from the driver’s seat.

Technical Specifications:

• Subwoofer: 8-inch High-Excursion Driver

• Integrated Amplifier: 200W RMS / 600W Peak (1000W Max Power)

• Amplifier Type: Class D

• Enclosure Type: Down-Firing Active

• Nominal Impedance: 3 Ohms

• Frequency Response: 10Hz - 180Hz (Amp) / 45Hz - 3KHz (Speaker)

• Fuse Rating: 40A

• Safety Indicators: Visual Power/Protect LED Indicators

  NO RETURNS
