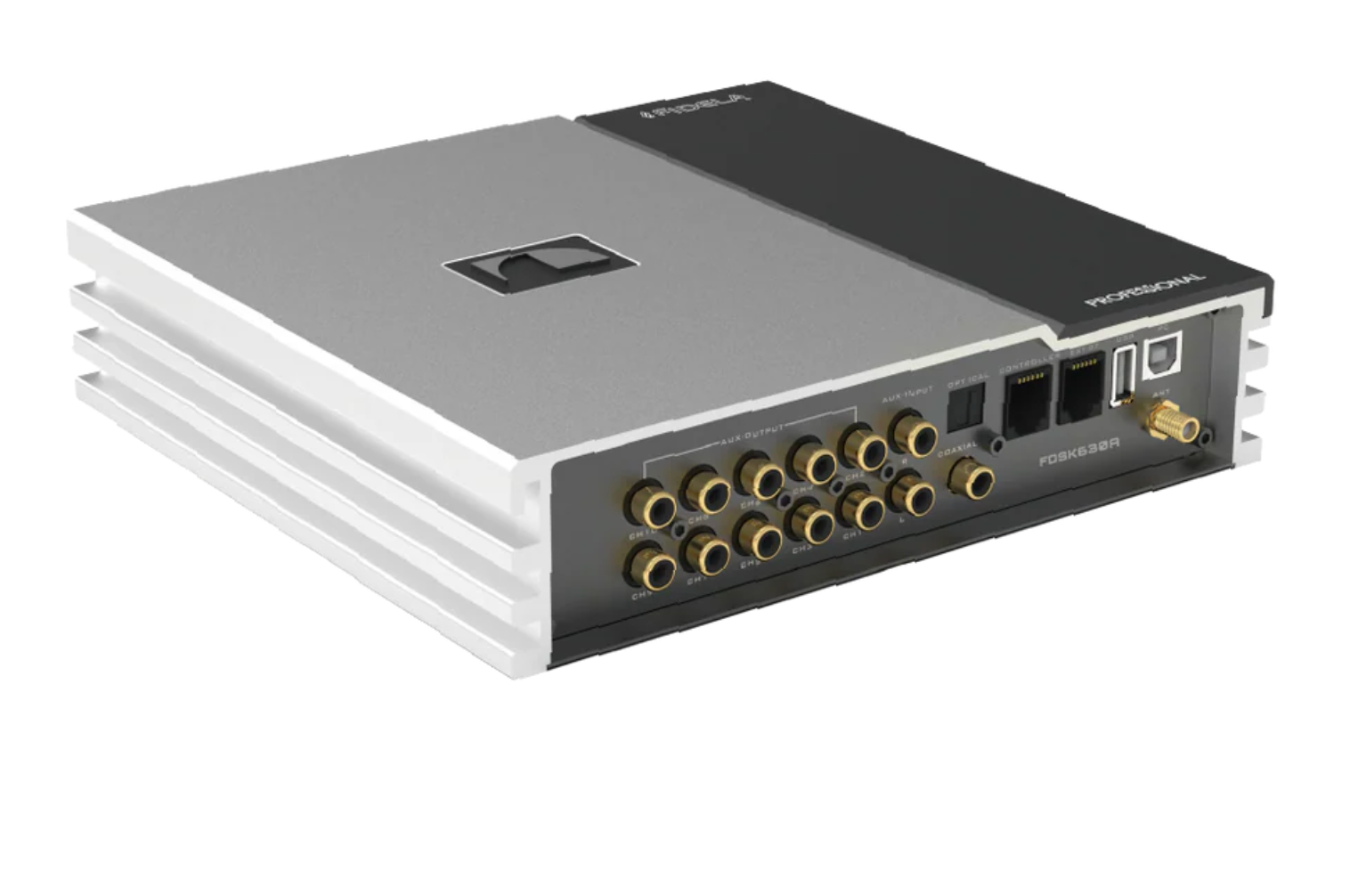

Nakamichi FDSK630A PRO Fidela Series 10-Channel Hi-Res DSP with Built-in 8-Channel Amplifier

The Ultimate Precision Engine for Audiophile Car Sound 🔊💎

Elevate your vehicle's audio to competition-grade standards with the Nakamichi FDSK630A PRO. Part of the flagship Fidela Series, this Digital Signal Processor (DSP) and high-power amplifier combo is engineered for those who demand absolute control over their soundstage.

With 8 channels of high-level input and 10 channels of output, the FDSK630A PRO provides the flexibility to run complex 3-way active setups, surround sound configurations, and multiple subwoofers with unmatched precision.

Key Features:

• Massive Connectivity: Featuring 8-channel high-level inputs and 10-channel low-level outputs, allowing for total system integration.

• Hybrid Power Delivery: Rated at 6 x 50W + 2 x 100W, providing dedicated high power for mid-bass or subwoofers while maintaining crystal clear output for tweeters and mids.

• Hi-Res Audio Processing: A super-wide frequency range of 20Hz – 40KHz ensures every nuance of high-resolution music is preserved.

• 31-Band EQ Per Channel: Independent 31-band equalization for all 12 channels (software controlled), allowing you to fix acoustic peaks and dips in any vehicle interior.

• Subwoofer Bridging: Supports bridging up to 200W, allowing you to drive a subwoofer directly from the DSP unit.

• Lossless Streaming: Integrated support for USB Lossless playback, Bluetooth V5.1, and optional external APTX-HD/LDAC modules for the highest wireless audio quality.

• Advanced Tuning Tools: Professional-grade filters (Butterworth, Bessel, Linkwitz-Riley) with slopes up to 48dB/Oct and micro-precision time alignment (0.01ms steps).

Technical Specifications:

• DSP Type: 8-In / 10-Out Digital Sound Processor

• RMS Power: 6 x 50W + 2 x 100W (Bridgeable to 200W)

• Frequency Response: 20Hz – 40KHz

• Signal-to-Noise Ratio: >98dB

• T.H.D: ≤0.05%

• Digital Inputs: Optical & Coaxial

• EQ: 31-Band Graphic/Parametric EQ per channel

• Bluetooth: Built-in V5.1 (Supports external FDS05B for APTX-HD)

• Dimensions: 210 x 188 x 48mm

• Weight: Approx. 2.1kg

What’s in the Box?

• 1 x Nakamichi FDSK630A PRO DSP Amplifier

• 20P DSP Power Cable & 16P Input/Output Harnesses

• USB Computer Tuning Cable

• User Manual & Installation Brackets
