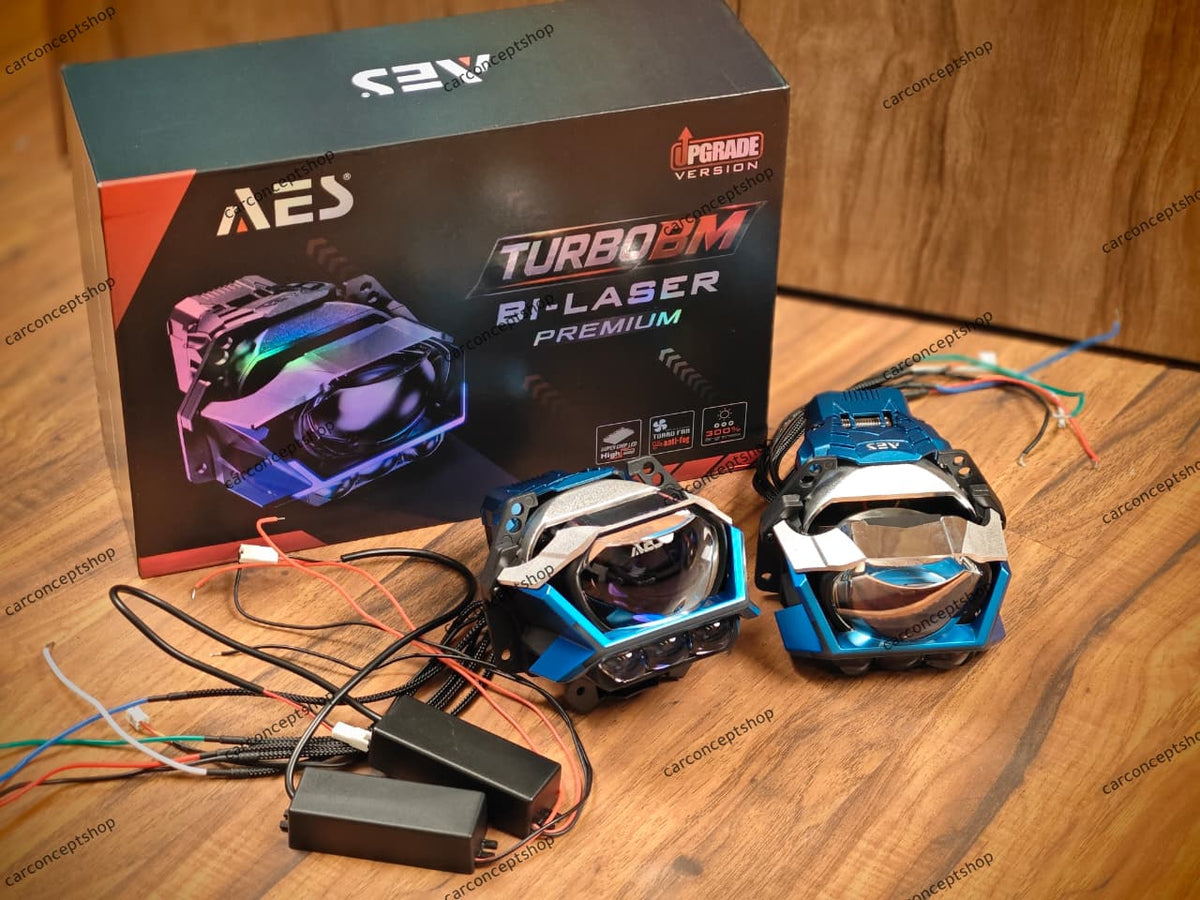

AES Turbo BM —
Triple Laser + Bi-LED + DRL. One Projector.
The AES Turbo BM is not a fog light. It is a full headlight retrofit projector with 4 active functions in one 3-inch lens — low beam, high beam, triple laser assist, and integrated DRL. Aviation aluminium, turbo cooling fan, -40°C to +120°C. White or tri-colour (6000K / 4300K / 3000K). ₹21,890.
Most projector lenses do one thing well — low beam or high beam from a single LED source. The AES Turbo BM does four. It is a 3-inch headlight retrofit projector that packs a bi-LED low/high beam system, a dedicated triple-laser assist module for extreme distance projection, and a factory-style integrated DRL — all in one compact lens housing designed to sit inside your existing headlight assembly. This is for serious builders who want headlights that perform and look like a flagship European car, built inside their own car's housing.
The Turbo BM is available in Pure White (6000K) or Tri-Colour (6000K / 4300K / 3000K switchable) at ₹21,890. The aviation-grade aluminium body, high-RPM turbo cooling fan, and -40°C to +120°C operating temperature range are not marketing claims — they are engineering requirements for a projector that runs bi-LED chips and three laser diodes simultaneously in a sealed headlight environment. Here is the complete picture.
This Is a Headlight Retrofit — Not a Fog Light. Critical Difference.
The Turbo BM is for car enthusiasts doing headlight retrofits — either replacing an existing projector lens inside the headlight housing with a premium unit, or converting a factory reflector headlight to a full projector system. Common Indian builds: Hyundai Creta bi-xenon projector upgrade, Maruti Swift custom headlight conversion, Tata Nexon headlight retrofit, Mahindra Thar projector build. If you want a fog light upgrade — the AES FX-3 (₹12,490) or Carsfy CLP3010 (₹19,490) are the right products. If you want to upgrade the headlights themselves — the Turbo BM is what you need.
4 Functions — Every One Explained in Full
The Turbo BM's low beam uses a dual-reflector bi-LED chip — two separate LED emitters focused through a precision parabolic bowl and then through the 3-inch projector lens. A solenoid-actuated shutter positioned at the lens focal point creates the sharp horizontal cut-off line that defines projector behaviour: all light directed onto the road surface, nothing scattered upward into oncoming traffic. The horizontal spread covers full road width close to the car for complete low-speed and city coverage.
When your headlight high beam switch is activated, the solenoid fully retracts the shutter — releasing the complete bi-LED output through the projector lens without restriction. The lens focuses this into a powerful, long-range beam extending far ahead. Activated simultaneously with the triple laser module, the Turbo BM high beam delivers visibility distances that rival premium OEM headlights costing significantly more.
This is the defining engineering of the Turbo BM — three dedicated laser diodes producing a concentrated long-range hotspot projected hundreds of metres down the centre of the road. The laser fires simultaneously with high beam — wide bi-LED illumination for the full road width, with a laser hotspot punching through darkness at extreme distances that the bi-LED alone cannot reach.
LED light is incoherent — photons travel in all directions from the source, spreading naturally. Laser light is coherent — all photons travel in the same direction and same phase. This coherence allows laser to maintain its intensity over vastly greater distances than equivalent-wattage LED output. A 15W laser delivers more usable illumination at 300+ metres than a 100W LED spot. In the Turbo BM, three laser diodes pool their coherent output into one converged centre hotspot — creating a beam-within-a-beam that extends the Turbo BM's effective visibility range beyond what any bi-LED projector can produce alone.
The Turbo BM includes a built-in DRL LED circuit — a dedicated emitter within the projector housing that activates independently during daytime. DRLs are proven to reduce daytime collision rates significantly by making vehicles visible to crossing and oncoming traffic in bright daylight — conditions where standard headlights provide little visibility benefit.
Thermal Engineering — Built for Indian Climate
A sealed headlight housing on a car parked in the sun on a May afternoon in Delhi or Gujarat routinely reaches internal ambient temperatures of 70°C+ before the headlights are even switched on. When the bi-LED chips and three laser diodes fire, junction temperatures climb rapidly. Uncooled or passively cooled LED/laser projectors throttle output or suffer permanent chip degradation under these conditions. The Turbo BM's aviation aluminium housing and active turbo fan continuously remove heat from the semiconductor junctions, maintaining full rated output and preventing long-term lumen decay even during extended night drives in peak Indian summer heat.
White vs Tri-Colour — Choose the Right Version for Your Driving
The AES Turbo BM is offered in two distinct configuration options, both priced at ₹21,890. Selecting the right version depends on your geographical driving environment and typical weather conditions.
Short-wavelength blue/white light (6000K) scatters heavily off water droplets, suspended mist, and dust particles — causing backscatter glare that creates a "wall of white" in front of your windshield. Longer-wavelength yellow light (3000K) experiences substantially less Rayleigh scattering. The light passes through airborne moisture instead of reflecting off it, maintaining forward penetration and illuminating the road surface through heavy fog, monsoon downpours, or mountain mist. The Tri-Colour Turbo BM lets you switch to 3000K instantly when weather conditions deteriorate.
Full Specifications Table
| Product Name | AES Turbo BM 3-Inch Bi-LED + Laser Projector |
| Retail Price | ₹21,890 (Inclusive of all taxes) |
| Lens Size | 3.0 Inches (76 mm) |
| Laser Architecture | Triple Laser Assist Module (3 Diodes) |
| LED Architecture | Dual Reflector Bi-LED System |
| Integrated DRL | Yes — Built-in Daytime Running Light Circuit |
| Colour Variants | 6000K Pure White OR Tri-Colour (6000K/4300K/3000K) |
| Body Material | Aviation Grade Aluminium Alloy |
| Cooling System | Active High-RPM Turbo Cooling Fan + Heat Sink |
| Operating Temperature | -40°C to +120°C Range |
| Fitment Type | Universal Headlight Retrofit (3-inch Lens Slot) |
| Operating Voltage | 12V DC Vehicle Electrical System |
| Warranty & Support | Official Warranty |
Comparison — AES Turbo BM vs Competitors
- ✅ 3-Laser assist module
- ✅ Bi-LED low & high beam
- ✅ Integrated DRL built-in
- ✅ Tri-Colour or White options
- ✅ Turbo fan + Aviation aluminium
- ✅ Complete headlight solution
- ⚠️ Single laser diode (narrower)
- ✅ Bi-LED low & high beam
- ❌ No integrated DRL
- ❌ Usually 6000K white only
- ✅ Basic fan cooling
- ❌ Higher cost for fewer features
- ❌ Bumper fog lamp mount only
- ✅ Laser + Bi-LED fog light
- ❌ No headlight integration
- ✅ Tri-Colour switchable
- ✅ IP67 waterproof housing
- ⚠️ Bumper position limits range
Headlight Retrofit Installation Process Overview
Retrofitting the AES Turbo BM into your car's headlight assembly is a precision process best performed by an experienced automotive lighting retrofitter or custom shop. Here is how professional installers complete the build:
