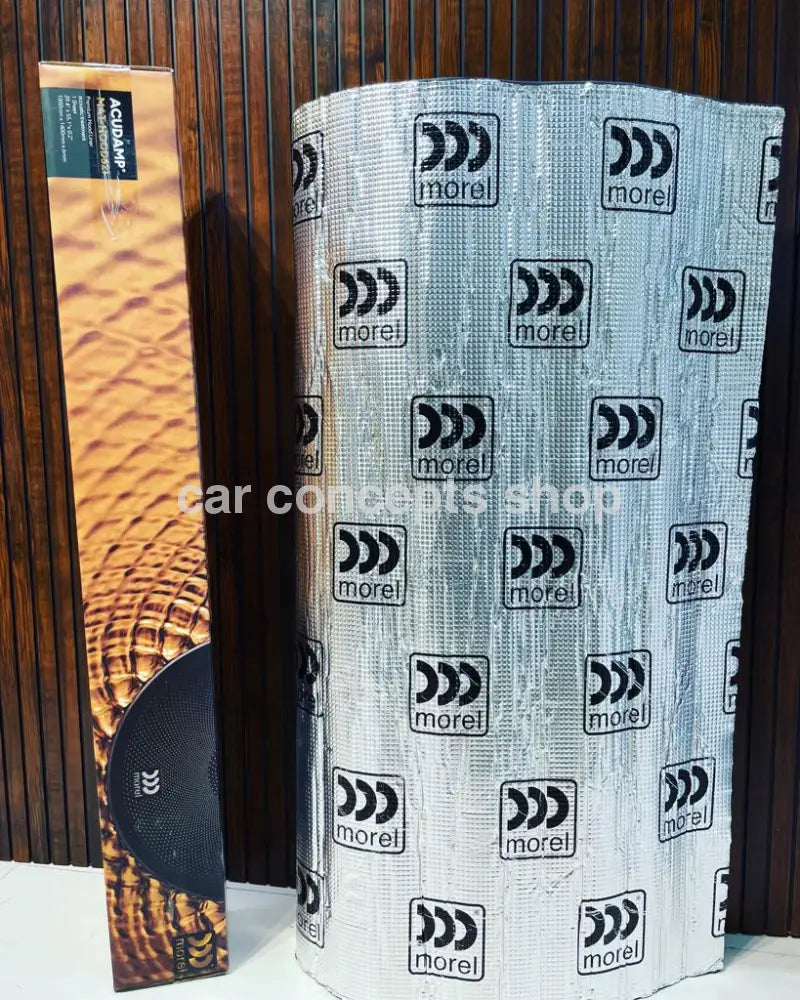

Morel ACUDAMP MAT-HOOD621 Bonnet Damping Sheet 6mm Hood Liner Engine Noise Reduction Heat Insulation 3-Layer Butyl Aluminium Israeli Made Morel India Car Deadening
Your car's bonnet is a thin sheet of stamped steel sitting directly above a hot, vibrating engine. Without damping, it transmits engine noise, heat, and vibration straight into your cabin. The Morel ACUDAMP HOOD621 is the professional solution — a single large-format 6mm sheet engineered specifically for bonnet application, combining noise deadening, heat insulation, and vibration control in one three-layer mat.
Most car owners damp their doors and boot floor and stop there. The bonnet is the largest single flat metal panel in your car and the closest to your engine — it's also the most overlooked. Every noise your engine makes travels through that steel panel into your cabin. Every degree of engine heat radiates upward through it toward your HVAC system. One HOOD621 sheet changes both.
At ₹3,849 for a single sheet large enough to cover the entire bonnet of most Indian cars, this is one of the highest-impact, lowest-cost upgrades you can make to your car's cabin refinement. Here's everything you need to know before buying.
Why Your Bonnet Needs Damping — The Physics
3 Problems the Factory Bonnet Creates
🔊
Engine Noise Transmission
Your engine produces broadband noise — mechanical clatter, intake noise, exhaust harmonics, belt and pulley noise. A bare steel bonnet is an efficient sounding board for all of it. The thinner and lighter the bonnet, the worse it is — and modern cars use increasingly thin steel to save weight.
🌡️
Heat Radiation & Transfer
Engine bays in Indian summers routinely reach 90–120°C. That heat radiates upward through your bonnet. It heats the bonnet panel itself, makes it uncomfortable to touch, and raises the thermal load on your car's cabin — making your AC work harder to cool. In stop-and-go traffic, bonnet heat is a significant factor in cabin temperature.
📳
Panel Vibration & Resonance
Engine vibration transmits to the bonnet panel — especially at idle, under load, or at certain RPM ranges where the panel's resonant frequency is excited. This creates a drum effect: the bonnet amplifies the engine's vibration frequency, making it audible and tactile inside the cabin.
🚗 The Indian Context — Why It Matters More Here
Delhi traffic in June. Bengaluru peak hour at 3 PM. Chandigarh highway in a diesel SUV. Indian driving involves extended periods at low speed with high engine load — exactly the conditions where bonnet heat and idle engine noise are at their worst. Factory bonnets on most Indian cars — Maruti Swift, Hyundai Creta, Tata Nexon — use thin, undamped steel with minimal factory insulation. Aftermarket bonnet damping is not a luxury here — it's an environmental adaptation.
3-Layer Construction — What Each Layer Does
The HOOD621's performance comes from three distinct layers working together — each addressing a different aspect of bonnet noise, heat, and vibration:
~1mm
Layer 1 — Aluminium Foil Facing
Outermost layer facing the engine bay — reflects radiant heat, provides structural rigidity, and acts as a vapour/moisture barrier
~4mm
Layer 2 — Butyl Rubber Core (Noise Lock)
Primary mass-damping layer — butyl rubber's high density converts panel vibration energy into negligible heat; deadens resonance at the bonnet's natural frequencies
~1mm
Layer 3 — Thermal Insulation + Adhesive
Contact side — self-adhesive for direct bonnet application; thermal barrier layer reduces heat transfer through the sheet toward the bonnet's exterior surface
How All 3 Layers Work Together
🔊
Sound: Butyl Mass Damping
Engine sound waves hit the bonnet panel and cause it to vibrate. The butyl core adds mass and damping — it resists the panel's tendency to vibrate freely, converting acoustic energy into tiny amounts of heat. Result: bonnet no longer acts as a resonator for engine noise.
🌡️
Heat: Dual Barrier System
The aluminium foil reflects radiant heat from the engine back downward, while the thermal insulation layer reduces conductive heat transfer through the sheet material. Both mechanisms reduce the amount of engine heat reaching the bonnet exterior and cabin above.
📳
Vibration: Added Mass + Constrained Layer
The bonnet panel's resonant frequency depends on its mass. Adding the HOOD621's butyl layer changes the panel's mass distribution, shifting resonant frequencies outside the engine's operating range — vibration that was audible at idle disappears.
🎨
Paint Life: Heat Protection
Sustained high heat from the engine bay degrades bonnet paint from the inside out — the HOOD621's thermal barrier reduces peak temperatures the bonnet steel reaches, slowing oxidation and paint degradation that causes bonnet discolouration over time.
Sheet Size — Does It Fit Your Car?
39.4" × 55.1"
1000mm × 1400mm — One full bonnet sheet
Maruti Swift Hyundai Creta Tata Nexon Honda City Kia Seltos Tata Harrier Mahindra Thar Toyota Innova Hyundai i20 Maruti Baleno Tata Punch + Most Indian Cars
At 39.4 × 55.1 inches (1000 × 1400mm), the HOOD621 is large enough to cover the bonnet of most Indian hatchbacks, sedans, and compact SUVs in one piece. For larger vehicles — Mahindra XUV700, Toyota Fortuner, Tata Safari — you may need to cut the sheet to navigate the bonnet's internal support ribs and hinges, or use it in sections. The material cuts cleanly with scissors or a utility knife.
✂️ Cutting Is Normal and Expected
Most bonnets have internal reinforcement ribs, hinge mounting points, and latch mechanisms — the HOOD621 is cut around these during installation. The large sheet size ensures enough material for complete bonnet coverage after trimming. Use scissors for straight cuts and a utility knife for curved sections around ribs. The aluminium foil surface marks easily with a pen for precise cutting lines.
What Changes After HOOD621 — Before & After
Before — Factory Bare Bonnet
Your Cabin Right Now
-
🔊Engine clatter clearly audible at idle
-
🔊Diesel knock or petrol whirr present
-
🌡️Bonnet hot to touch after 20 mins
-
🌡️AC takes longer to cool cabin
-
📳Bonnet vibrates at certain RPM
-
📳Subtle drumming under acceleration
-
🎨Bonnet paint yellowing over time
After — HOOD621 Installed
Your Cabin After
-
🔇Engine idle noticeably quieter
-
🔇Mechanical noise significantly reduced
-
🌡️Bonnet exterior cooler to touch
-
🌡️Cabin reaches set temperature faster
-
✅Bonnet resonance eliminated
-
✅Acceleration note smoother, less intrusive
-
🎨Bonnet paint thermal protection active
🎵 The Car Audio Angle — Why Damping Improves Your Sound System
Every audiophile knows: the quieter the cabin, the better your audio system sounds. Engine noise leaking into the cabin raises your ambient noise floor — you turn up the volume to compensate, which introduces distortion. With the HOOD621 reducing engine noise transmission, your ambient cabin level drops. Your speakers, DSP tuning, and overall audio system performance improve without a single change to the audio hardware. This is why Morel sells damping alongside their world-class speakers — they're part of the same solution.
Installation — Step by Step
How to Install the HOOD621
1
Open Bonnet and Clean the Surface
Open the bonnet fully and prop it securely. The inside surface of the bonnet — where the HOOD621 adheres — must be completely clean: no grease, oil, dust, or moisture. Wipe down with an IPA (isopropyl alcohol) cloth or equivalent degreaser. Allow to dry completely. This step is critical — any contamination reduces adhesion dramatically.
2
Measure and Cut to Shape
Lay the HOOD621 sheet across the inside of your bonnet — the aluminium foil side faces the engine, the adhesive side goes against the bonnet panel. Mark cut lines around reinforcement ribs, hinge mounts, latch mechanisms, and any bolts or protrusions. Use a marker pen on the foil surface. Cut along marked lines with scissors or a utility knife.
3
Peel and Press — Start from Centre
Peel the release liner from the adhesive side in sections — don't remove it all at once. Start from the centre of the bonnet and work outward. Press firmly as you go, working out air bubbles toward the edges. The adhesive is pressure-activated — the harder and more evenly you press, the better the long-term bond.
4
Roll for Maximum Adhesion
Use a deadening roller — Morel's 8-inch or 12-inch roller (available separately at ₹790–₹990) — to press the HOOD621 firmly across the entire surface. Roll in overlapping passes. Pay extra attention to edges and cut sections. The roller ensures consistent pressure across the whole sheet — far better than hand pressure alone.
5
Fit Remaining Sections and Close
Apply any additional cut sections around hinges and latch areas. Ensure no loose edges — press all perimeters firmly. Close the bonnet and check nothing interferes with the bonnet latch or hinge mechanism. Allow 24 hours for the adhesive to fully cure at ambient temperature before the first high-heat engine cycle.
⏱️ Time, Tools & Tips
Time: 45–90 minutes for first-timers. Tools needed: IPA cleaner, scissors or utility knife, marker pen, roller. Temperature tip: Install at room temperature (20–30°C) — cold adhesives bond poorly; warm the sheet slightly in direct sun for 5 minutes if installing in winter. Pro tip: If your bonnet has a factory foam liner, remove it completely before applying the HOOD621 — the HOOD621 performs better in direct contact with bare metal.
Beyond the Bonnet — Other Applications
Other Surfaces the HOOD621 Works On
🏠
Car Roof Panel
The roof is the second-largest flat panel — sun heating, rain noise, and road noise all transmit through it. The HOOD621's thermal layer is especially valuable here in Indian summer sun. One sheet covers most hatchback roofs completely.
🚗
Side Fenders / Wheel Arches
Road noise, tyre spray, and small stone impact transmit strongly through the thin steel of inner fenders. Cut sections of HOOD621 applied to inner fender liners significantly reduce tyre roar — especially noticeable at highway speeds.
🔥
Firewall (Bulkhead)
The firewall separating engine bay from cabin is the primary path for engine noise and heat into your car. HOOD621's thermal and acoustic properties make it excellent for firewall application — though this requires removing interior panels to access the firewall's bare metal surface.
🎵
Above Headliner
If headliner is removed — on roof panel directly — HOOD621 adds thermal and noise isolation from above cabin. Combined with the thinner MAT221 on doors and boot for a complete full-car treatment.
Complete Morel ACUDAMP Range — Where HOOD621 Fits
The HOOD621 is the thickest, most specialised product in the ACUDAMP range. Here's how the full lineup compares and where each belongs:
2.1mm
MAT221 Metalic / Gold
Doors · Boot floor · Pillars — standard damping panels
From ₹1,414
2.7mm
MAT227 Red
Floor · Roof · Firewall — heavier coverage
₹9,699 / 8 sheets
4.5mm
MAT345
Boot · Door skins · Sub area — maximum panel damping
From ₹3,499
6mm
HOOD621 ← This Product
Bonnet · Roof · Fenders — thermal + acoustic
₹3,849 / 1 sheet
🏆 Complete Car Damping Strategy
Doors: MAT221 2.1mm on outer door skin + inner door panel. Boot floor: MAT345 4.5mm for maximum bass containment and road noise. Floor pan: MAT227 2.7mm Red across main cabin floor. Bonnet: HOOD621 6mm — one sheet, complete coverage. Roof: MAT221 or HOOD621 above headliner. This full treatment is what Morel builds into their reference listening room on wheels — and it's achievable for most Indian car owners across 2–3 weekends and a total budget of ₹15,000–₹25,000 for a hatchback.
Frequently Asked Questions
Will one HOOD621 sheet cover my entire bonnet?
For most Indian hatchbacks and sedans — Swift, Baleno, i20, City, Altroz, Nexon, Punch — yes, one 39.4 × 55.1 inch sheet covers the full bonnet interior after cutting around ribs and hinges. For larger SUVs — Creta, Harrier, Safari, Seltos — the sheet covers most of the bonnet and may leave small gaps at the very edges. For full-size SUVs like Fortuner or XUV700, a second sheet may be needed for complete coverage. When in doubt, measure your bonnet's inner surface length and width before ordering.
Does the adhesive hold in extreme Indian summer heat?
Yes. The HOOD621's adhesive is specifically engineered for high-temperature bonnet environments — sustained temperatures of 80–120°C are within its operating design range. The adhesive is the same grade Morel uses across the ACUDAMP range, which has been deployed in Indian market conditions across thousands of installations. Ensure surface is clean and dry before installation — adhesion failures are almost always due to contaminated surfaces, not adhesive failure.
Will the HOOD621 add noticeable weight to my bonnet?
No. Morel designed the HOOD621 specifically for bonnet application with a lightweight construction philosophy — the 6mm thickness achieves thermal and acoustic performance without the mass penalty of door damping sheets. The weight added to your bonnet is minimal — well within the structural design tolerances of any standard Indian car bonnet. Your bonnet opens and closes exactly as before.
Do I need to remove a factory foam liner first?
Yes — if your car has a factory foam or felt bonnet liner (common on premium models like Creta, Verna, XUV700, Safari), remove it completely before applying the HOOD621. The HOOD621 must bond directly to bare metal for maximum effectiveness. Factory foam liners often have inconsistent adhesion and reduced thermal performance compared to the HOOD621's engineered 3-layer construction. Removing the factory liner and replacing with HOOD621 is an upgrade, not a compromise.
How does the HOOD621 differ from the MAT221 / MAT345 other ACUDAMP sheets?
The MAT221 and MAT345 are primarily vibration and acoustic damping sheets — butyl + aluminium foil in 2.1mm and 4.5mm thickness. They're designed for door panels, boot floors, and other cabin surfaces. The HOOD621 at 6mm is specifically engineered for the bonnet — it adds a dedicated thermal insulation layer that the standard MAT series doesn't have, because the bonnet faces the most intense heat exposure of any car surface. Use MAT221/MAT345 for cabin panels, HOOD621 for the bonnet.
Does this help with diesel engine noise specifically?
Significantly. Diesel engines produce characteristic clatter from injector and combustion noise — a broadband acoustic signature that transmits efficiently through the thin bonnet panel. The HOOD621's butyl mass-damping layer is highly effective against exactly this type of broadband mechanical noise. Many diesel car owners (Creta diesel, Nexon diesel, Harrier diesel, Fortuner diesel) report the HOOD621 as one of the most impactful single upgrades for cabin refinement.
Will this improve my car audio system performance?
Indirectly but meaningfully, yes. Engine noise leaking into the cabin raises your ambient noise floor — the minimum sound level present even when your music is off. This forces you to play audio louder to achieve the same signal-to-noise ratio, which introduces compression and distortion at higher volumes. Reducing engine noise transmission through the bonnet lowers your cabin's ambient noise floor, allowing your speakers to reproduce low-level musical detail that was previously masked. Audiophiles doing serious system builds always damp the entire car — bonnet included — before final system tuning.
Available Now — Same Day Dispatch
Morel ACUDAMP HOOD621
6mm Bonnet Damping Sheet
39.4" × 55.1" · 3-Layer · Aluminium Foil + Butyl + Thermal · Heat · Noise · Vibration · Paint Protection
₹3,849
100% Genuine Morel · Made in Israel · Pan India Shipping · OTP Verified Delivery
Buy Now — carconceptsshop.com →
