Combo Review · October 6, 2026

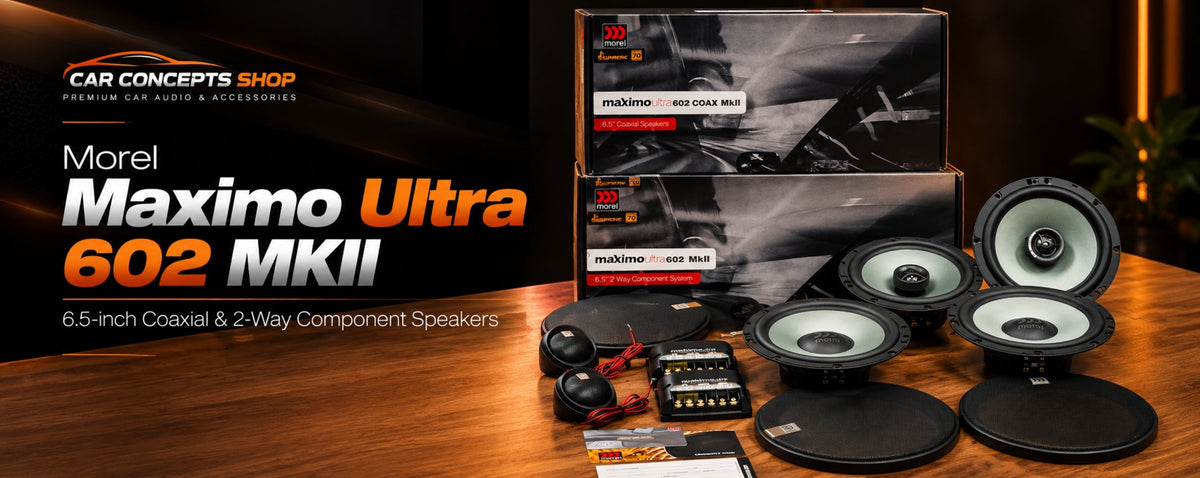

Morel Maximo Ultra 602 MKII Combo —
4 Doors. One Box. Israeli Sound.
The Maximo Ultra 602 MKII component set in front, the Maximo Ultra Coax 602 MKII in the rear. Treated paper composite woofer cones. 25mm soft dome tweeters. MXU20.2 external crossovers. 90.5dB and 91dB sensitivity. Complete 4-door audiophile upgrade from Israel. ₹24,650.
Maximo Ultra MKII Treated Paper Cone Israeli Engineering 90.5dB + 91dB MXU20.2 Crossover 4-Door Complete
4-Door
Complete Setup
90W RMS
Front Power
91 dB
Rear Sensitivity
50Hz–20kHz
Frequency Range
₹24,650
Complete Combo
Front Stage
Maximo Ultra 602 MKII
2-Way Component — Woofer + Separate Tweeter + Crossover
Power RMS90W RMS / 180W Peak
Sensitivity90.5 dB
Woofer6.5-Inch Treated Paper
Tweeter25mm Soft Dome — Separate
CrossoverExternal MXU20.2
Impedance4 Ohms
Rear Fill
Maximo Ultra Coax 602 MKII
2-Way Coaxial — Integrated Woofer + Tweeter Unit
Power RMS80W RMS / 160W Peak
Sensitivity91 dB
Woofer6.5-Inch Treated Paper
Tweeter25mm Soft Dome — Integrated
CrossoverInternal (Coaxial)
Impedance4 Ohms
Morel Maximo Ultra 602 MKII Maximo Ultra Combo 4-Door Car Speaker Combo Treated Paper Cone Soft Dome Tweeter MXU20.2 Crossover Morel Israel Component Coaxial Combo 90dB Sensitivity Morel India Car Concepts Shop
The Morel Maximo line is Israel's most recognised car audio export to India. The Ultra MKII is the second-generation refinement of the Maximo Ultra — a speaker that combines the warm, natural character of Morel's treated paper composite cone with the dynamic capability of a high-grade ferrite motor system. This combo pairs the Maximo Ultra 602 MKII component set for front-stage separation and imaging with the Maximo Ultra Coax 602 MKII for rear fill — one purchase, four doors, all Morel, all Israeli engineering.
At ₹24,650, this is Morel's mid-tier offering — above the popular Maximo MK3 combo (₹14,440) and below the Kinetic 603 3-way system (₹29,490). The Ultra MKII series sits at the exact point where audiophile quality becomes accessible without the premium of Morel's reference range. For someone who wants to hear what their music actually sounds like — without equaliser compensation, without compression — this is the combo that delivers it.
The Maximo Ultra MKII in the Morel Range
Understanding where the Ultra MKII sits helps confirm it is the right purchase for your build:
Entry
Maximo 6 MK3 Combo
₹14,440
Standard Maximo cone. First Morel upgrade. Excellent entry SQ.
MK3
Mid-Tier ← You Are Here
Maximo Ultra 602 MKII Combo
₹24,650
Ultra paper composite cone. Refined MKII generation. Higher sensitivity.
Ultra MKII
Performance
Morel Sensus 62 / 63
₹45,990–₹65,990
Individual set (not combo). Dedicated Sensus driver series.
Sensus
High Performance
Morel Kinetic 603
₹29,490
3-way, neodymium tweeter, 3-inch midrange. Reference SQ.
Kinetic
🎯 Why Choose Ultra MKII Over Maximo MK3?
The Maximo MK3 combo (₹14,440) is an excellent first Morel upgrade. The Ultra MKII adds three measurable improvements: higher sensitivity (90.5dB / 91dB vs standard Maximo's ~88dB), the refined Ultra-grade treated paper composite cone for improved midrange accuracy, and the second-generation MKII motor refinement that tightens bass response. For ₹7,210 more, the Ultra MKII is the better long-term choice for anyone who plans to eventually add an amplifier — the higher sensitivity means the investment compounds. It also sounds measurably better on a factory head unit today.
Treated Paper Composite Cone — Why Morel Chose Paper
🔵
Polypropylene Cone
Lightweight, moisture-resistant. Used by JBL, Infinity. Punchy mid-bass with slight warmth. Fast transient response. Best for bass-heavy genres.
🔴
Aluminium / Metal Cone
Very stiff, highly detailed. Used in some premium woofers. Excellent for fast music but can sound harsh if driven hard. Metal breakup resonances audible at high SPL.
🟡
Treated Paper Composite
Morel's choice. Paper with proprietary treatment for stiffness and moisture resistance. Combines natural warmth and damping with controlled resonance behaviour — the traditional audiophile-preferred material.
Morel's Choice — Maximo Ultra MKII
Why Treated Paper Is the Audiophile's Cone Material
🎵
Natural Tonal Character
Paper cones have a natural damping quality — when a wave passes through the cone, the fibrous structure absorbs and dissipates it rather than reflecting it. This prevents the "ringing" heard in metal cones and the "plastic sound" of cheaper polypropylene.
🎤
Vocal Naturalness
Treated paper cones reproduce the midrange frequencies (300Hz–3kHz) — the human voice range — with a warmth and presence that audiophiles specifically associate with live music. Bollywood vocals, Carnatic singing, and acoustic instruments all sound more real through paper cones.
⚖️
Mass vs Stiffness Balance
Morel's proprietary treatment makes the paper cone simultaneously lightweight (for fast transient response) and stiff (to prevent break-up at higher SPL). This is the engineering challenge that their Israeli manufacturing process has refined over 50 years.
4-Door Stage Architecture — Every Position Explained
Complete 4-Door Acoustic Layout — Maximo Ultra 602 MKII Combo
Front Left
602 MKII Woofer
6.5" Paper Composite
Door inner panel
+ MXU20.2 Crossover
Door inner panel
+ MXU20.2 Crossover
Component
Front Right
602 MKII Woofer
6.5" Paper Composite
Door inner panel
+ MXU20.2 Crossover
Door inner panel
+ MXU20.2 Crossover
Component
Rear Left
Coax 602 MKII
6.5" Paper Composite
Integrated tweeter
Direct fit, no ext. XO
Integrated tweeter
Direct fit, no ext. XO
Coaxial
Rear Right
Coax 602 MKII
6.5" Paper Composite
Integrated tweeter
Direct fit, no ext. XO
Integrated tweeter
Direct fit, no ext. XO
Coaxial
🎭 Front Component vs Rear Coaxial — Why This Split Makes Sense
Front doors carry the primary soundstage — vocals, instruments, and stereo separation that determines where music appears to come from. A component speaker with a separately mounted tweeter at dashboard or A-pillar height creates proper soundstage height and stereo imaging. Rear passengers need fill and ambience, not stereo precision — a coaxial speaker (tweeter mounted coaxially on the woofer, pointing straight at rear passengers) is correct for this job. It is simpler to wire, requires no external crossover, and delivers the right amount of rear fill without competing with the front stage. The Maximo Ultra combo's front component + rear coaxial split is exactly the industry-standard architecture for this reason.
MXU20.2 External Crossover — The Front Stage's Precision Tool
🎛️ MXU20.2 — Morel's Passive Crossover for the Ultra 602 MKII
Driver-Matched Design The MXU20.2 is engineered specifically for the Maximo Ultra 602 MKII driver pair — crossover frequencies and slopes are set for these exact woofer and tweeter impedance and efficiency curves. A generic crossover at similar frequencies would produce tonal imbalance; the MXU20.2 produces flat frequency response.
External Mounting — Better Performance External crossovers (mounted outside the door, typically behind the dashboard or under a seat) keep the crossover components away from door vibration, heat, and moisture. This extends component life and prevents the distortion-causing micro-vibrations that in-door crossovers experience from speaker output.
Woofer + Tweeter Split The MXU20.2 splits the amplifier's full-range signal into the correct frequency bands — low-pass to the 6.5-inch woofer, high-pass to the 25mm soft dome tweeter. Without this division, the tweeter receives bass frequencies it cannot handle and burns out. The crossover protects both drivers while optimising their output.
DSP Bypass Option For advanced installations using a 4 or 6-channel DSP amplifier — the MXU20.2 passive crossovers can be bypassed. Each driver connects directly to its own DSP channel for active crossover control, time alignment, and parametric EQ per driver. Full DSP active setup extracts maximum performance from the Ultra MKII drivers.
Key Engineering Highlights
6 Reasons the Maximo Ultra MKII Sounds Different
🎤
Signature Morel Vocal Clarity
Morel voices its speakers specifically for vocal naturalness — the Ultra MKII is tuned for warm, lifelike human voice reproduction without the forward harshness that cheaper speakers introduce in the 2kHz–5kHz range. Bollywood and classical Indian vocals benefit most.
🧲
High-Grade Ferrite Motor
The Ultra MKII's woofer uses a high-grade ferrite magnet motor that maintains consistent magnetic field strength across the woofer's full excursion range. Bass remains controlled and undistorted at higher listening volumes — no progressive bloom or distortion as SPL increases.
🔊
Heavy-Duty Voice Coil
Heavy-duty voice coil construction handles the rated 90W RMS (front) and 80W RMS (rear) without thermal compression. The voice coil gap is maintained precisely during excursion — voice coil rub and scrape distortion at high SPL is eliminated by the manufacturing precision at Morel's Israeli facility.
✨
25mm Soft Dome Tweeter
25mm silk-type soft dome — large enough for wide high-frequency dispersion across the cabin without beaming. Soft dome material naturally damps resonances for fatigue-free treble reproduction. Cymbal detail, acoustic string harmonics, and breath in vocals are rendered without harshness.
📊
90.5dB / 91dB Sensitivity
Above-average sensitivity for a component set at this price. Factory head units deliver 18–22W per channel — at 90.5dB sensitivity, the front stage produces approximately 103dB SPL without an amplifier. Loud, clean, and undistorted directly from any head unit.
🏭
Morel Israel Manufacturing
Every driver component — cone, surround, voice coil, magnet, spider — is manufactured in-house at Morel's Israeli facility under the same quality controls since 1975. Vertical integration means consistent, specification-verified quality on every unit that leaves the factory.
Complete Technical Specifications
| Specification | 🔵 Front — 602 MKII Component | 🟢 Rear — Coax 602 MKII |
| Speaker Type | 2-Way Component | 2-Way Coaxial |
| Woofer Size | 6.5 Inch (165mm) | 6.5 Inch (165mm) |
| Cone Material | Treated Paper Composite | Treated Paper Composite |
| Tweeter | 25mm Soft Dome — Separate | 25mm Soft Dome — Integrated |
| Power — RMS | 90W RMS (per pair) | 80W RMS (per pair) |
| Power — Peak | 180W Peak (per pair) | 160W Peak (per pair) |
| Sensitivity | 90.5 dB @ 2.83V/1m | 91 dB @ 2.83V/1m |
| Frequency Response | 50 Hz – 20,000 Hz | 50 Hz – 20,000 Hz |
| Impedance | 4 Ohms | 4 Ohms |
| Crossover | External MXU20.2 (Included) | Internal Coaxial |
| Application | Front Doors — Primary Stage | Rear Doors — Fill Stage |
Complete Box Contents
- 2× Maximo Ultra 602 MKII 6.5-inch woofers (front pair)
- 2× 25mm soft dome tweeters with surface and flush mount cups (front pair)
- 2× MXU20.2 external passive crossover networks (front pair)
- 2× Maximo Ultra Coax 602 MKII 6.5-inch coaxial speakers (rear pair)
- Speaker protective grilles (all four positions)
- Complete mounting hardware (screws, gaskets, wiring terminals)
- Morel documentation and warranty card
Who Should Buy the Ultra MKII Combo
Moving up from MK3 — Ready for More
If you already own the Maximo 6 MK3 combo and want the next tier of Morel performance — the Ultra MKII is the direct step up. Higher sensitivity, refined Ultra cone, MKII motor improvements. Same Israeli DNA, noticeably better sound.
First Premium Build — Doing It Right
For someone building their first serious audio system and wanting to buy a speaker set they will not need to replace for 5+ years — the Ultra MKII is the starting point that scales. It runs on factory head unit now and reveals more as you add an amplifier later.
Vocal Music Listener — Indian Genres
Bollywood, ghazals, Carnatic classical, Hindustani vocal — all benefit most from Morel's paper cone vocal character. If the authenticity of the singer's voice matters to you more than bass thump, the Ultra MKII is built for exactly this listening profile.
4-Door Convenience — One Box, Done
For anyone who wants all four door positions upgraded in one purchase without compatibility research — the Ultra MKII combo handles front and rear with matched Morel drivers from the same series. One box, one install session, done.
🇮🇱 The Morel Difference — 50 Years of Israeli Speaker Manufacturing
Morel has manufactured every component of every speaker in-house at their Israeli facility since 1975. The treated paper composite cone in the Maximo Ultra MKII is not sourced from a third-party supplier — it is processed, treated, and formed by Morel. The voice coil is wound by Morel. The magnet assembly is tested and paired by Morel. This vertical manufacturing control is what produces the consistent, specification-verified performance that Indian car audio enthusiasts have come to rely on across every price point in the Morel range. At ₹24,650 for a complete 4-door setup, the Ultra MKII combo brings this manufacturing pedigree to a price point that delivers genuine value per rupee.
What to Pair with the Ultra MKII Combo
Amplifier — Unlock Full 90W RMS
Pioneer GM-EL704 4-Channel
₹10,890
70W RMS per channel at 4 ohms — powers both front 602 MKII components and rear Coax 602 MKII from one unit. The Ultra MKII's full dynamic range and bass extension become fully apparent when properly amplified. Natural first amplifier pairing for this combo.
DSP + Amp — Advanced Setup
Nakamichi FDSK230A PRO
₹17,950
4-channel DSP amplifier with time alignment and active crossover — drives the front 602 MKII component pair actively (bypassing the MXU20.2 passive crossovers) plus rear Coax 602 MKII. DSP tuning optimises the Ultra MKII's output for your specific car cabin.
Door Damping — Essential First Step
Morel ACUDAMP MAT221 Sheets
₹2,090
Morel ACUDAMP butyl damping for front door panels — the Ultra MKII paper cone's midrange precision and bass extension both depend on a stiff, resonance-free door panel. ACUDAMP + Ultra MKII is a natural pairing — same brand, same engineering philosophy.
Speaker Seal — Maximum Bass
Morel Fast Rings 6.5" Acoustic Gasket
₹1,290
Foam acoustic seal between the Ultra MKII woofer flange and door panel. Eliminates back-wave leakage that reduces bass output and blurs midrange. The highest return-on-investment accessory per rupee for any door speaker installation.
Frequently Asked Questions
What is the difference between the Maximo Ultra MKII and the standard Maximo 6 MK3?
Three measurable differences: (1) Cone material — the Ultra MKII uses Morel's higher-grade treated paper composite cone with improved internal damping treatment vs the standard Maximo MK3 cone. (2) Sensitivity — the Ultra MKII achieves 90.5dB / 91dB vs the standard Maximo's ~88dB — that 2.5dB advantage represents significantly more acoustic output from the same power. (3) Motor refinement — the MKII designation indicates second-generation improvements to the ferrite motor geometry for tighter bass and better transient control. The combo price difference (₹24,650 vs ₹14,440) reflects these improvements. For a first Morel purchase on a budget — the MK3 combo is excellent. For a build you want to stay with for 5 years — the Ultra MKII is the right choice.
Can this combo run from a factory head unit without an amplifier?
Yes. At 90.5dB (front) and 91dB (rear) sensitivity, the Maximo Ultra MKII combo produces significantly more acoustic output per watt than average speakers. A factory head unit delivering 18–22W per channel produces approximately 103dB SPL from the front stage — louder and cleaner than your factory speakers at maximum volume. The improvement over factory speakers is immediately obvious: vocal clarity, bass definition, and stereo separation all improve dramatically even from a stock head unit. An amplifier is recommended for the future — but the combo sounds good from day one without one.
What are the MXU20.2 crossovers and where do they mount?
The MXU20.2 is Morel's external passive crossover network designed specifically for the Maximo Ultra 602 MKII front component pair. It splits your amplifier's full-range signal into the correct frequency bands for the woofer and tweeter. "External" means it mounts outside the door — typically under the dashboard, behind the door panel trim, or under the front seat. Most installers mount them in the door pocket or under the dashboard where they are accessible for future system changes. Each crossover is a compact unit approximately the size of a small book.
Will both 6.5-inch speakers fit my car's factory door positions?
Standard 6.5-inch (165mm) mounting diameter fits front and rear door positions on most Indian cars — Hyundai Creta, Verna, i20, Tata Nexon, Harrier, Safari, Maruti Swift, Baleno, Grand Vitara, Honda City, Elevate, Kia Seltos, Sonet, and most other current Indian models. Confirm by measuring your factory speaker mounting hole diameter before removing the old speaker. If your rear doors have a different size — some Indian cars use 5.25-inch or 6.75-inch rear positions — WhatsApp us at +91 97287 64403 with your car model and we will advise.
Should the front tweeter mount in the door, dashboard, or A-pillar?
A-pillar is ideal for maximum soundstage height — tweeter at ear level, sound appears to come from in front of you. Dashboard corner is a good second choice if A-pillar space is limited. Door sail panel (factory tweeter position on many Indian cars) is acceptable but places the tweeter lower than ideal — soundstage remains in the door rather than rising to ear level. The MXU20.2 crossover's tweeter high-pass filter is calibrated for all three positions — no crossover modification needed regardless of where you mount the tweeter. Discuss placement options with your installer before the installation session.
Is there a warranty on the Morel Maximo Ultra 602 MKII?
Yes — Morel products purchased from Car Concepts Shop carry the manufacturer's warranty. All Morel speakers sold through our store are 100% genuine, sourced through Morel's verified Indian distribution channels. For warranty claims or product issues, WhatsApp us at +91 97287 64403 with your order number and we handle it directly as your authorised purchase point. Keep your invoice — it serves as the warranty document.
