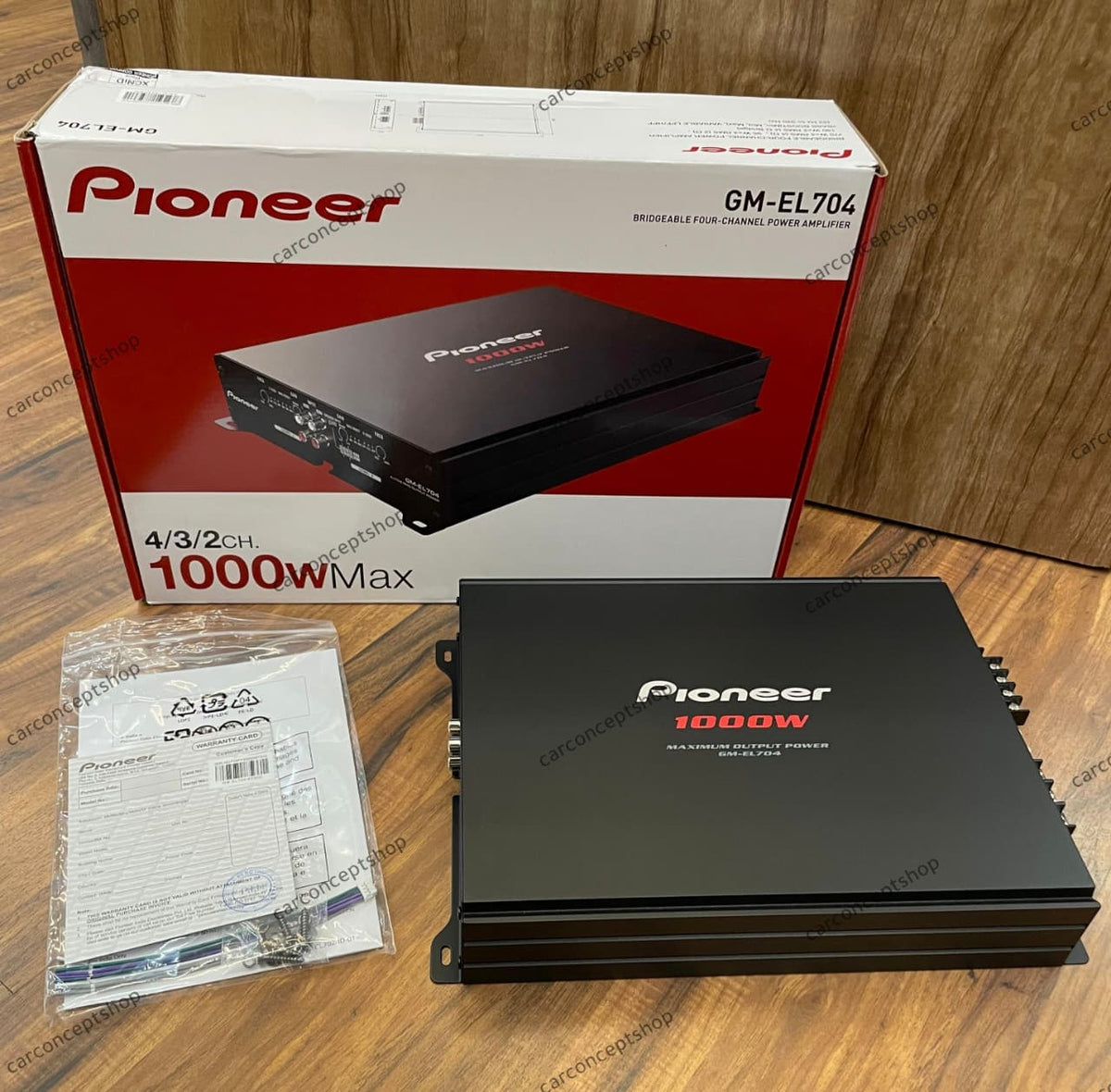

Pioneer GM-EL704 Review — The New 4-Channel King at ₹10,890

Car Concepts Shop

Naraingarh, Haryana · carconceptsshop.com

Deep Product Review · August 16, 2026

Pioneer GM-EL704
The New 4-Channel King

Pioneer's latest 4-channel Class AB amplifier replaces the beloved GM-E7004. At ₹10,890, the GM-EL704 brings upgraded internal architecture, bridgeable channels, built-in high-level inputs, and Pioneer's precision crossover control — all in one slim unit. Here's everything you need to know.

By Car Concepts Shop · August 16, 2026 · Car Amplifiers · Pioneer · 4-Channel

NEW — Replaces GM-E7004 70W×4 @ 4Ω RMS Bridgeable 190W×2 THD <0.1% Built-in Hi-Level Input 1-Year Warranty

70W×4

RMS @ 4Ω

190W×2

Bridged RMS

<0.1%

THD

32–320Hz

Variable X-Over

₹10,890*

Price

Pioneer GM-EL704 4-Channel Amplifier Class AB Bridgeable Replaces GM-E7004 Built-in LOC Variable Crossover Bass Boost 50Hz Pioneer India

Pioneer's GM-E7004 was one of the most popular 4-channel amplifiers in India — trusted by installers, recommended by enthusiasts, and proven across thousands of builds. The GM-EL704 is its direct successor, and it raises the bar across every specification. More RMS power, better crossover range, lower distortion, and the same Pioneer build quality that made the E7004 a household name.

At ₹10,890, the Pioneer GM-EL704 sits in India's most competitive amplifier price bracket — where buyers are choosing between Chinese Class D amps, budget Korean units, and established Japanese brands. The GM-EL704 makes that choice straightforward. This is Pioneer's engineering at a price point that anyone building a serious car audio system can justify.

This blog covers everything — what's new over the GM-E7004, all specifications explained in plain language, every wiring mode and its power output, who it's for, what to pair it with, and how to install it clean.

GM-EL704 vs GM-E7004 — What's New?

⚡ Why Pioneer Replaced the GM-E7004

The GM-E7004 served Indian car audio for years. The GM-EL704 is Pioneer's next-generation unit — updated PCB architecture with large-capacity electrolytic capacitors for better dynamic headroom, improved thermal dissipation for sustained high-volume performance, and a wider crossover range (32Hz–320Hz vs narrower on the E7004). Same Pioneer reliability, meaningfully better internals.

GM-E7004 vs GM-EL704 — Specification Comparison

Specification	GM-E7004 Old	GM-EL704 New
Amplifier Class	Class AB	Class AB
RMS @ 4Ω (4-CH)	~50W×4	70W×4
RMS @ 2Ω (4-CH)	~70W×4	95W×4
Bridged RMS (2-CH)	~150W×2	190W×2
Max Power	~700W System	1000W System
THD	<0.5%	<0.1%
Signal-to-Noise	>75 dB	>80 dB
Crossover Range	50Hz–400Hz	32Hz–320Hz
Bass Boost (50Hz)	+6dB	+6dB (3-Step)
High-Level Input	Yes	Yes
Bridgeable	Yes	Yes
PCB Architecture	Standard	Optimised + Large Cap
Warranty	1 Year	1 Year
Price at CCS	₹9,250 (old)	₹10,890

📌 The Short Version

Every measurable specification on the GM-EL704 is better than the GM-E7004 — more RMS power, lower distortion, better signal-to-noise, wider crossover range, and improved PCB design. The price increase of ₹1,640 is well justified. If you were looking at the GM-E7004, the GM-EL704 is the definitive upgrade — buy this instead.

Class AB — Why It Matters for the GM-EL704

Class AB vs Class D — The Real Difference for Indian Car Audio

🎵

Class AB — Analog Sound Character

Class AB amplifiers use a linear analog signal path — the audio signal is amplified continuously without switching. The result is warmer, more natural midrange and treble that many audiophiles prefer, especially for component speakers.

🌡️

Thermal Characteristics

Class AB runs warmer than Class D — this is expected and managed by Pioneer's heatsink design. The GM-EL704's optimised PCB layout improves thermal dissipation over the GM-E7004 for sustained high-volume performance.

📉

THD <0.1% — Studio Grade

Total Harmonic Distortion below 0.1% means the audio signal coming out is 99.9%+ faithful to what went in. At this level, distortion is inaudible — you hear music, not amplifier artifacts.

📊

SNR >80dB — Dead Silent Background

Signal-to-Noise ratio above 80dB means your speakers are dead silent when no music plays — no hiss, no hum, no noise floor. Important for tweeters which expose amplifier noise immediately.

For Indian car audio builds — especially those running component speakers like Morel Maximo, JBL Club, or Hertz Uno — Class AB is the preferred amplifier topology. The linear signal path gives component speakers the clean, undistorted signal they need to reproduce midrange and treble accurately. Class D is excellent for subwoofers (where efficiency matters more than linearity) but Class AB remains the choice for full-range speaker channels.

Power Output — Every Wiring Mode Explained

The GM-EL704 is a 4-channel bridgeable amplifier. This means you can wire it multiple ways depending on your system. Here's every mode and what it delivers:

Mode 1 — Standard 4-Channel

All 4 Channels Active

70W×4 RMS

@ 4 Ohms · Front L/R + Rear L/R · All 4 speakers powered simultaneously · Standard full-system setup

Mode 2 — 4-Channel @ 2Ω

2-Ohm Load per Channel

95W×4 RMS

@ 2 Ohms · More power per channel for 2-ohm capable speakers · Higher demand on amp; ensure proper wiring and ventilation

Mode 3 — Bridged 2-Channel

CH3+4 Bridged for Sub

190W×2 RMS

@ 4 Ohms bridged · CH1+2 run front speakers · CH3+4 bridged to drive a single 4Ω sub at 190W RMS · Most popular Indian build mode

Complete Power Output Reference Table

Configuration	RMS Power	Max Power	Load
4-Channel Stereo	70W × 4	125W × 4	4 Ohms per CH
4-Channel @ 2Ω	95W × 4	250W × 4	2 Ohms per CH
Bridged 2-Channel	190W × 2	500W × 2	4 Ohms bridged
System Max Total	—	1000W Total	Combined all modes

🏆 Most Used Mode in Indian Builds

Front speakers (CH1+2 @ 4Ω) + Bridged Sub (CH3+4 @ 4Ω bridged) — This is the most popular configuration for Indian cars. Your front component or coaxial speakers get 70W RMS each — more than enough for 89–91dB sensitivity speakers to play loud and clean. Your 4-ohm subwoofer gets 190W RMS from the bridged channels — enough to drive most 10–12" subs like the Pioneer TS-W1202D4, JBL W0V3, or Recoil Echo Pro 10 effectively. One amplifier — complete system.

Key Features — Everything Explained

Variable Crossover — 32Hz to 320Hz

This is one of the GM-EL704's strongest features — a variable crossover adjustable from 32Hz all the way to 320Hz on both Channel A and Channel B. What does this mean in practice?

🔼

High-Pass Filter (HPF) — For Speakers

Set HPF on CH1+2 (front speakers) to 80Hz or 100Hz — the amplifier cuts frequencies below that point from your speakers. Your component woofers focus on midrange and upper bass, not deep bass that would cause distortion. Cleaner midrange, better staging.

🔽

Low-Pass Filter (LPF) — For Subwoofer

Set LPF on CH3+4 (bridged sub channel) to 80Hz or 100Hz — your subwoofer only plays frequencies below that point. No midrange from the sub, no overlap with your speakers. Clean, tight bass that blends seamlessly with your front stage.

💡 Why 32Hz Matters

Most amplifiers start their crossover range at 50Hz. The GM-EL704 starts at 32Hz — this means you can set your sub's low-pass filter lower, allowing it to play deeper sub-bass frequencies while still crossover-protecting your woofer from infrasonic content. For sealed enclosure builds, this lower crossover point is a genuine advantage.

Bass Boost — 50Hz, Up to +6dB, 3-Step

The GM-EL704 includes a dedicated bass boost at 50Hz — the frequency where subwoofer output typically peaks — with three steps: 0dB (off), 3dB/4dB (mid), and 6dB (max). This is available independently on both Channel A and Channel B.

🎚️

0dB — Flat Reference

No boost applied. Use this when your head unit or DSP already has bass EQ applied, or when running a sealed enclosure with naturally tight bass response.

🎚️

+3dB / +4dB — Moderate Boost

Adds noticeable warmth and punch to bass without risking over-excursion at high volumes. Ideal for ported enclosures and moderate listening levels.

🎚️

+6dB — Maximum Boost

Significant bass emphasis — use with caution and only at moderate volume levels. Best for demo/show use or when your subwoofer has large excursion capability (like the Echo Pro 12 or JL W0V3).

🔑

Why 50Hz Specifically?

50Hz is the crossover region between sub-bass (below 50Hz) and upper bass (50–120Hz). A boost here adds body and thump to your bass without making it muddy or one-note.

Built-in High-Level Input — No LOC Needed

This is the feature that makes the GM-EL704 especially practical for Indian car owners who want to keep their factory head unit.

🔌

What High-Level Input Does

Instead of needing an RCA output from your head unit, the GM-EL704 accepts direct speaker wire connections. Your installer taps into the factory head unit's speaker outputs and connects directly to the amp — no LOC (Line Output Converter) required.

💰

Saves You ₹1,000–₹3,000

A quality LOC converter costs ₹949–₹4,590. The built-in high-level input eliminates this expense entirely for factory stereo installs — and fewer components means fewer potential noise sources.

📻

Works with Any Head Unit

Factory Maruti, Hyundai, Tata, Mahindra OEM stereos — all work directly. Also compatible with aftermarket single-DIN and double-DIN head units via RCA low-level inputs.

🔇

Clean Signal Handling

Pioneer's internal conversion circuit processes the high-level speaker signal cleanly — you don't lose sound quality compared to an RCA connection from a quality aftermarket head unit.

PCB Architecture — Large Electrolytic Capacitors

Large-capacity electrolytic capacitors are the "power reserve" of an amplifier — they store charge and release it instantly during dynamic peaks (when the kick drum hits, when the bass drops). Without adequate capacitance, the power supply sags during these moments and the amplifier clips, producing distortion. Pioneer's upgraded PCB design in the GM-EL704 ensures the capacitance bank is large enough to handle dynamic transients cleanly at all listening levels — critical for Class AB operation where headroom management directly affects sound quality.

Complete Technical Specifications

Brand / Model	Pioneer GM-EL704
Amplifier Class	Class AB
Channels	4-Channel (Bridgeable)
RMS Power @ 4Ω	70 Watts × 4 Channels
RMS Power @ 2Ω	95 Watts × 4 Channels
Bridged RMS @ 4Ω	190 Watts × 2 Channels
Max Power @ 4Ω	125 Watts × 4 Channels
Max Power @ 2Ω	250 Watts × 4 Channels
Max Power Bridged @ 4Ω	500 Watts × 2 Channels
Total System Max	1000 Watts
Frequency Response	15 Hz – 22,000 Hz (±1dB)
Total Harmonic Distortion (THD)	< 0.1%
Signal-to-Noise Ratio	> 80 dB
Crossover (CH A & B)	HPF / LPF Variable — 32 Hz to 320 Hz
Bass Boost Frequency	50 Hz
Bass Boost Range	0 / +3–4 / +6 dB (3-Step)
Input Types	RCA Low-Level + Speaker High-Level
RCA Pre-Out Voltage	4V
Bridgeable	Yes — CH1+2 and/or CH3+4
Warranty	1 Year Official Pioneer Warranty
Price	₹10,890 at Car Concepts Shop

Who Is the GM-EL704 For?

Ideal Use Cases

Factory stereo upgrade — no head unit change: High-level input means plug directly into OEM speaker wires. Creta, Nexon, Thar, Fortuner, City — all work without touching the factory head unit.
Front speakers + subwoofer in one amp: Bridge CH3+4 for 190W sub, run CH1+2 for 70W front speakers. One amp, complete system — simplest possible build.
Pioneer ecosystem build: Pioneer DMH-AP6650BT head unit → Pioneer GM-EL704 → Pioneer TS-C602IN component + Pioneer TS-W1202D4 sub. 100% Pioneer — everything tuned to work together.
Budget audiophile build: At ₹10,890 for a Class AB amp with <0.1% THD, this is exceptional value for component speaker builds where amplifier quality matters for midrange and treble.
Replacing GM-E7004: Direct successor. If your GM-E7004 has failed or you're planning a new build and liked the E7004, the EL704 is the obvious next step.
4-door speaker upgrade with sub: 70W RMS to each of four speakers is more than enough for 89–91dB efficiency speakers in all four doors — clean, loud, controlled output at any volume.

Best Speaker & Sub Pairings for the GM-EL704

Front Components — Best Match

Pioneer TS-C602IN 6.5" Component

₹4,650

Pioneer's own component speaker — 390W peak, 80W RMS, 89dB sensitivity. Perfect match for the GM-EL704's 70W RMS × 2 front channels. Same brand, same tuning philosophy.

Front Components — Audiophile Step Up

Morel Maximo 6 MK3 Component

₹8,699

Morel's silk dome tweeter + Israeli engineering. The GM-EL704's Class AB output is ideal for the Maximo MK3's revealing drivers — clean power, no distortion.

Front Components — Premium

JBL Club 602C Component

₹8,999

JBL's Club series — broad soundstage, JBL signature clarity. 70W RMS per side from the GM-EL704 drives the Club 602C to full potential without clipping.

Rear Coaxials — Simple Fill

Pioneer TS-1602IN 6.5" Coaxial

₹2,890

Pioneer coaxial for rear fill — 350W peak, efficient, perfect for the GM-EL704's rear channels. Pioneer-to-Pioneer matching for consistent tonal balance front to rear.

Subwoofer — Bridged CH3+4

Pioneer TS-W1202D4 Champion 12"

₹5,799

Pioneer's Champion Series DVC sub — 4Ω DVC, wires to 4Ω for bridged connection. 190W RMS from the GM-EL704 drives it clean and hard. Complete Pioneer system.

Subwoofer — Step Up

Recoil Echo Pro 10 DVC 4Ω

₹12,490

Recoil's Echo Pro 10 — 600W RMS rated, 4Ω DVC wired parallel = 2Ω. Note: bridge mode is 4Ω only on GM-EL704. Wire one DVC coil to bridged output for clean 190W RMS operation.

🎯 The Complete Pioneer Build — One Brand, Full System

Head Unit: Pioneer DMH-AP6650BT 9" Wireless CarPlay (₹24,440)
Amplifier: Pioneer GM-EL704 4-Channel (₹10,890)
Front: Pioneer TS-C602IN Component (₹4,650) — CH1+2 @ 70W RMS
Rear: Pioneer TS-1602IN Coaxial (₹2,890) — CH3+4 @ 70W RMS before bridging
Sub: Pioneer TS-W1202D4 Champion 12" (₹5,799) — Bridged CH3+4 @ 190W RMS

Total System Cost: ~₹48,669 — Complete Pioneer ecosystem with wireless CarPlay, 4-channel Class AB amplification, component staging up front, rear fill, and 190W bass. All products from one brand — zero compatibility guesswork.

Installation Guide — Clean Setup Every Time

Step-by-Step Installation Overview

Choose Mounting Location

Mount the GM-EL704 in the boot (most common), under a seat, or behind the rear seat. Ensure adequate ventilation — Class AB amps generate heat. Avoid direct carpet contact; use mounting feet or a bracket for airflow beneath the unit.

Run Power Cable from Battery

Use minimum 8-gauge (AWG8) power cable from battery positive terminal through the firewall grommet to the amp. Install an inline fuse (50A recommended) within 30cm of the battery. Ground the amp to a clean metal chassis point within 50cm of the amp.

Connect Signal — RCA or High-Level

If using an aftermarket head unit with RCA outputs: run RCA cables from HU to amp (keep away from power cables to avoid noise). If using factory stereo: tap front speaker wires from the HU and connect directly to the GM-EL704's high-level speaker inputs — no LOC needed.

Connect Remote Turn-On Wire

Run the blue remote wire from your head unit's remote output to the amp's remote terminal. This tells the amp to switch on with the head unit. If using factory stereo without a remote wire, use the Recoil ALOC2 auto-sensing LOC which generates a remote trigger from audio signal.

Set Crossover and Gain

Before connecting speakers: set CH1+2 to HPF at 80–100Hz (for component speakers). Set CH3+4 to LPF at 80Hz if bridging to a sub. Set gain (input sensitivity) by playing music at 80% volume and adjusting gain until distortion just disappears. Set bass boost to 0dB until final tuning is done.

Connect Speakers and Test

Connect front speakers to CH1+2. If bridging CH3+4 for a subwoofer, connect the sub's positive terminal to CH3 positive and sub's negative terminal to CH4 negative (standard bridge wiring). Power up, test all channels, verify no clipping at high volume, fine-tune crossover points and bass boost.

✅ Wiring Requirements Summary

Power Wire: 8-gauge minimum from battery · Ground Wire: 8-gauge to chassis · Inline Fuse: 50A within 30cm of battery · Signal: RCA (low-level) or speaker wire (high-level) · Remote: Blue wire from HU or Recoil ALOC2 auto-trigger · Speaker wire: 14–16 gauge to speakers

Frequently Asked Questions

Can the GM-EL704 power four door speakers and a subwoofer simultaneously?

Yes — but with a choice. In standard 4-channel mode you can power front and rear speakers. However, to add a subwoofer, you'd bridge CH3+4 — meaning those channels no longer power rear speakers individually. The most common setup is: CH1+2 for front component speakers, CH3+4 bridged for the subwoofer. Rear fill either comes from the bridged sub or you add a separate small amp for rear speakers. Most builds skip rear speakers entirely and focus on front stage + sub — this is the audiophile approach.

What's the minimum impedance the GM-EL704 handles?

2 ohms per channel in stereo mode (95W RMS × 4). In bridged mode, the minimum is 4 ohms per bridged pair (190W RMS × 2). Do not bridge into a 2-ohm load — this will damage the amplifier. Always ensure your bridged subwoofer presents a 4-ohm load to the bridged channels.

Is the GM-EL704 compatible with factory OEM stereos in Indian cars?

Yes — this is one of the GM-EL704's key advantages. The built-in high-level speaker input accepts direct speaker wire connections from any factory head unit. No LOC converter is required. Works with all major Indian OEM stereos — Maruti, Hyundai, Tata, Mahindra, Honda, Toyota, Kia factory systems. Even high-impedance premium OEM systems (Bose, factory JBL) work with the GM-EL704's high-level input.

How is the GM-EL704 different from cheaper Class D 4-channel amplifiers at the same price?

Class D amps at ₹8,000–₹12,000 typically show THD of 0.5–1% and SNR of 60–70dB — you'll hear noise on tweeters and distortion at higher volumes. The GM-EL704's Class AB design with THD <0.1% and SNR >80dB is measurably and audibly superior for full-range speaker channels. Additionally, Pioneer's quality control and 1-year official warranty provide assurance that budget Class D units from unknown brands cannot match.

How does the GM-EL704 compare to the GM-E7004 it replaces?

The GM-EL704 is better in every specification — more RMS power (70W vs ~50W per channel), lower distortion (<0.1% vs <0.5%), better SNR (>80dB vs >75dB), and a wider crossover range (32–320Hz vs narrower on E7004). The optimised PCB with large electrolytic capacitors also improves dynamic headroom during bass peaks. The price difference of ₹1,640 is absolutely justified — buy the GM-EL704.

What fuse size and wire gauge do I need?

Pioneer recommends 8-gauge (AWG8) power and ground cable for the GM-EL704. Use a 50A inline fuse installed within 30cm of the battery positive terminal. For speaker outputs, 14–16 gauge wire is sufficient. If running a long power cable (more than 4 metres), consider upgrading to 4-gauge for minimal voltage drop.
