Complete Damping Guide
Your Car Is Drowning
in Noise. Here's How
to Fix It.
Road hiss. Door rattles. Tyre roar. Engine drone. Every Indian car suffers from them. Three products can silence your cabin, tighten your bass, and transform the way your car feels to drive.
The Real Problem
Why Your Car Feels Loud, Rattly & Your Speakers Sound Muddy
You upgrade your speakers. You install a subwoofer. You expect to be blown away. And then it sounds good, but not great. The bass feels loose. The doors rattle at certain frequencies. Road noise bleeds into everything at highway speed. You turn the volume up to compensate and it gets worse.
The problem is not your speakers. The problem is your car's untreated sheet metal and plastic doors they are vibrating, resonating, and leaking road noise straight into your cabin. Until you address this, every audio upgrade you make will be fighting against the car itself.
A car door without damping is basically a large speaker cone that the road is playing except the road is playing tyre noise, gravel hits, and wind rush. Your aftermarket speakers are trying to compete with that. Damping sheets silence the door. Then your speakers can finally be heard.
🛣️
Tyre & Road Noise
Road texture vibrations travel up through the chassis and resonate through untreated door panels directly into the cabin at 60–300 Hz exactly where music lives.
📳
Door Panel Rattles
Thin factory plastic trim vibrates against door metal especially at bass frequencies. Every subwoofer hit or bass note triggers plastic-on-metal ticking.
💨
Wind & Highway Drone
At 80 km/h+, wind turbulence floods through door gaps and untreated door cavities, creating constant high-frequency hiss that exhausts you on long drives.
🎵
Muddy, Loose Bass
Without damping, speaker rear energy bounces back through the door panel and recolours the sound creating the "boomy", one-note bass that cheap car audio is known for.
The Science
How Damping Sheets Work The Two-Layer System
Professional car audio installers use a two-layer approach. Each layer targets a different type of noise. Using both together delivers results that neither can achieve alone.
Inside a properly treated car door — from outside to inside:
Outer Door Steel Skin
Factory bare steel resonates freely. This is where butyl rubber damping sheets like AudibleX Tri-Mute are applied directly on the metal to stop panel flex.
Layer 1 — Butyl Rubber Damping (AudibleX Tri-Mute)
Heavy, viscous butyl mass arrests panel resonance. Stops the metal from vibrating. Eliminates structural drone and low-frequency boom that travels through the chassis.
Air Cavity (speaker volume, wiring)
The inner door cavity where your speaker motor lives. Sound waves bounce around here. This is where the speaker builds the rear pressure that gives bass depth.
Layer 2 — Acoustic Foam (D-WAY 15mm or Elite 20mm)
Foam sticks to the inside of the plastic door card. Absorbs airborne noise that made it through the steel skin, stops plastic-on-metal rattles, and creates a thermal barrier.
Plastic Door Trim Card (factory)
The visible plastic panel. With foam behind it, it no longer buzzes, rattles, or transmits road noise it simply forms a clean, silent acoustic boundary.
The result of both layers working together: The metal stops resonating. The air cavity becomes quieter. The plastic card stops rattling. Your speakers hear silence and produce music instead of competing with noise.
Product 01 — Acoustic Cotton Foam

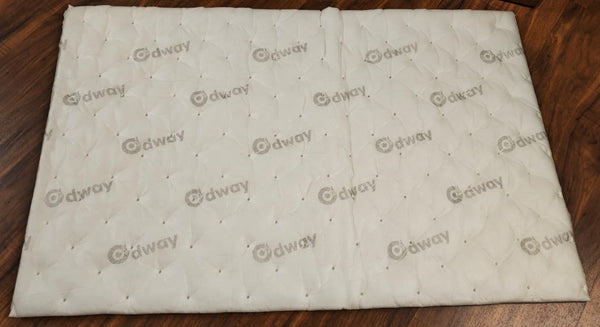

D-WAY Premium 15mm Acoustic Foam Cotton Pad
Cotton-Foam · Door Card Layer
Buy D-WAY 15mm — ₹1,849 →
D-WAY Premium 15mm Acoustic Foam Cotton Pad
"The softest silence your car has ever experienced."
₹1,849 per pack (2 sheets) · multiple pack options
Thickness
15mm
Size
50 × 80 cm per sheet
Material
Cotton-Foam Blend
Adhesive
High-Bond Self-Adhesive
Where to apply
✓ Inner door card (back face) ✓ Boot trim panels Side quarter panels Roof liner backing B-pillar trim
What Makes the D-WAY Different
The D-WAY is not a butyl rubber damping sheet it is an acoustic cotton-foam pad. This is a critical distinction. While butyl sheets go on the metal to stop panel flex, the D-WAY goes on the plastic door card to absorb the airborne noise that makes it through.
The 15mm thickness is significantly more than the 5–8mm alternatives that most people use. That extra bulk means dramatically more surface area for sound trapping the dense cotton-foam matrix captures high-frequency road hiss and mid-range resonance before it can enter the cabin.
- ✓ 15mm plush thickness highest sound absorption in class
- ✓ Cotton-foam blend catches and dissipates mid-to-high frequencies
- ✓ Anti-rattle cushioning decouples plastic card from metal door
- ✓ Thermal insulation keeps AC-cooled cabin air from escaping through door
- ✓ Featherweight zero stress on door hinges
Install tip: Apply D-WAY to the back of your plastic door card (the side facing into the door cavity). Use with AudibleX Tri-Mute on the door metal for complete noise elimination. Together, they are the most effective two-layer damping system possible.
Product 02 — 3-in-1 Butyl Damping

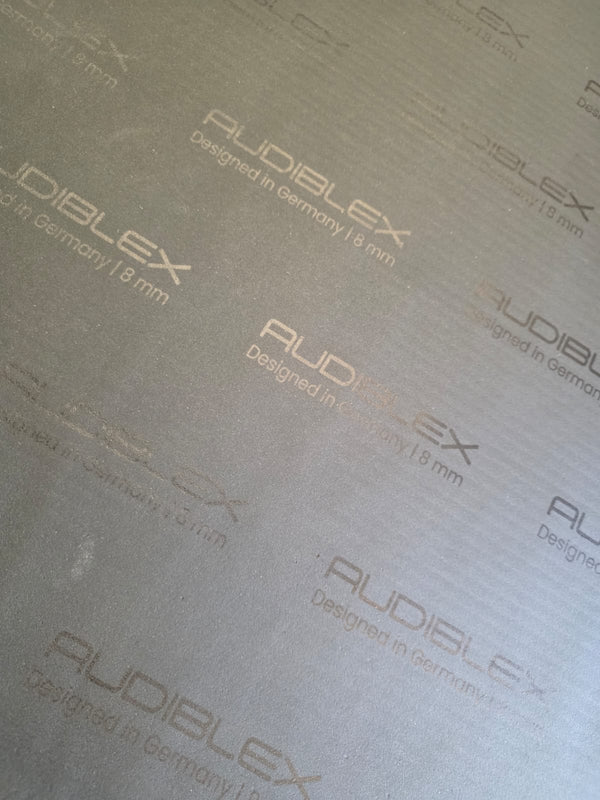

AudibleX Tri-Mute 3-in-1 Sound Damping Sheets
3-in-1 Butyl + Foam + Aluminium · Metal Layer
Buy AudibleX Tri-Mute — ₹6,999 →
AudibleX Tri-Mute Premium 3-in-1 Sound Damping Sheets
"Three layers. One sheet. Total silence on the steel."
₹6,999 8 sheets per box · 20×20 inch each
Thickness
8mm (3-layer)
Size
20 × 20 inch per sheet
Material
Butyl + Foam + Aluminium
Box Contents
8 sheets
Where to apply
✓ Door metal inner skin ✓ Floor panels ✓ Roof metal Boot floor Firewall Wheel arch inner
The Tri-Mute Technology — Three Layers Explained
Most standard damping sheets are single-layer butyl heavy and effective at stopping panel flex but limited in what they can do. The AudibleX Tri-Mute stacks three different materials, each targeting a different frequency range and noise mechanism.
Layer 1 — Butyl Rubber (Bottom, contacts metal)
High-mass viscoelastic butyl absorbs structural vibration energy from the door steel. This is the layer that stops low-frequency panel resonance the boom and drone that travels through your car's chassis.
Layer 2 — Acoustic Foam (Middle)
A mid-layer of high-density foam absorbs mid-frequency vibration energy that the butyl layer converts to heat. Acts as a decoupling layer between the mass and the reflective aluminium surface.
Layer 3 — Aluminium Facing (Top, visible side)
Rigid aluminium facing reflects radiant heat, provides a clean surface to bond to, and adds structural rigidity that prevents the combined sheet from flexing back in warm temperatures.
- ✓ Butyl layer eliminates low-frequency panel boom and chassis drone
- ✓ Foam layer decouples vibration prevents energy transfer between layers
- ✓ Aluminium facing heat reflective, stays rigid in Indian summer temperatures
- ✓ Dramatically tightens and cleans up bass from your car speakers
- ✓ 8 sheets per box covers both front doors fully with sheets to spare
Product 03 — Honeycomb Wave Foam

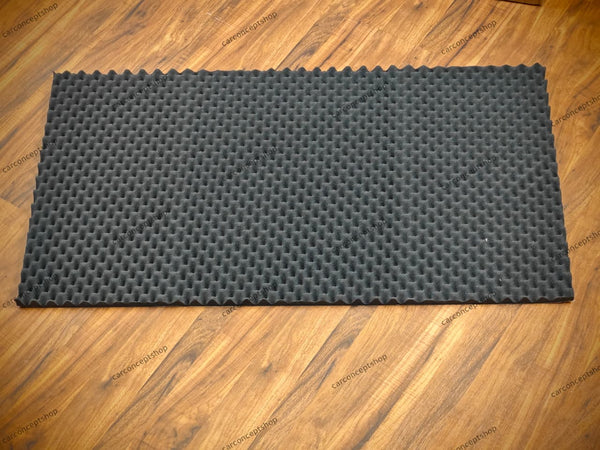

Elite Series 20mm Honeycomb Wave Acoustic Foam
Pure Foam · Honeycomb Wave · Maximum Absorption
Buy Elite Series 20mm — ₹3,300 →
Elite Series 20mm Honeycomb Wave Acoustic Foam Damping Sheet
"The thickest foam. The deepest silence."
₹3,300 per pack (2 sheets) · multiple pack options
Thickness
20mm peak
Size
36 × 18 inch per sheet
Material
100% Pure Acoustic Foam
Profile
Honeycomb Wave (Egg-crate)
Where to apply
✓ Door card (back face) ✓ Roof headliner backing ✓ Boot trim panels Wheel arch liners Tailgate plastic trim Custom enclosure lining
Why Honeycomb Wave Changes Everything
A flat foam sheet is effective. A honeycomb wave foam sheet is dramatically more effective and the Elite Series at 20mm peak thickness is the most aggressive acoustic foam we stock.
The difference is geometry. A flat foam surface reflects some sound waves at an angle they bounce around and find their way out eventually. A honeycomb wave profile (like an egg-crate) creates hundreds of acoustic traps. Sound waves entering the valleys of the honeycomb bounce between surfaces, losing energy with each reflection until they are completely absorbed. The result is measurably higher sound absorption across the frequency range that matters most for road noise: 500Hz to 8,000Hz.
- ✓ 20mm peak thickness deepest foam absorption available in this format
- ✓ 100% pure acoustic foam zero cotton, no moisture retention, no degradation
- ✓ Honeycomb wave profile geometric sound trapping across all angles
- ✓ Excellent for roof headliner blocks wind noise at highway speed
- ✓ Full-coverage industrial self-adhesive bonds permanently, stays in place
Elite vs D-WAY: Both are acoustic foam door card layers. The Elite at 20mm honeycomb is thicker and geometrically more effective at absorbing high-frequency road noise. The D-WAY at 15mm cotton-foam is better at absorbing mid-range resonance and has a softer physical character. For maximum performance use Elite on door cards and D-WAY in remaining areas like boot trim and quarter panels.
Which One to Choose
D-WAY vs AudibleX Tri-Mute vs Elite Series — Full Comparison
| Feature | D-WAY 15mm Cotton Foam | AudibleX Tri-Mute 8mm | Elite Series 20mm Honeycomb |
|---|---|---|---|
| Price | ₹1,849 / 2 sheets | ₹6,999 / 8 sheets | ₹3,300 / 2 sheets |
| Thickness | 15mm | 8mm (3 layers) | 20mm peak |
| Material | Cotton-Foam blend | Butyl + Foam + Aluminium | 100% Pure Acoustic Foam |
| Apply on metal | ❌ Not recommended | ✅ Designed for metal | ❌ Not ideal for metal |
| Apply on plastic door card | ✅ Primary use | ✅ Can be used | ✅ Primary use |
| Stops panel resonance | Medium (cushions) | High (butyl mass) | Medium (decouples) |
| Absorbs airborne noise | High | Medium | Very High (honeycomb) |
| Thermal insulation | Good | Excellent (aluminium) | Good |
| Weight added | Minimal | Moderate (butyl is heavy) | Minimal |
| Best for | Door card, boot trim | Door metal, floor, roof metal | Door card, headliner, boot |
| Use together? | Yes — pair with Tri-Mute | Yes — first layer on metal | Yes — pair with Tri-Mute |
The ultimate setup: AudibleX Tri-Mute on the door metal skin (stops panel resonance) + Elite Series 20mm Honeycomb on the plastic door card (absorbs airborne noise). Use D-WAY for remaining areas boot trim, B-pillars, quarter panels. This three-product combination delivers professional studio-grade cabin isolation.
Installation Guide
How to Apply Damping Sheets — Step by Step
-
1Remove the door trim card — Pop off the plastic door panel using a panel removal tool. Locate all plastic clips (usually 6–10 per door) and remove. Set the door card aside on a clean surface.
-
2Clean the surfaces — Wipe down the inner door metal with IPA (isopropyl alcohol) or contact cleaner. For the back of the plastic door card, a dry cloth is sufficient. Adhesives bond poorly to dusty or oily surfaces.
-
3Apply AudibleX Tri-Mute to the metal skin — Cut sheets to fit the large flat areas of the inner door metal. You do not need to cover every centimetre aim for 60–80% coverage of the large flat panels. Peel and press firmly.
-
4Apply foam sheet to the plastic door card — Cut D-WAY or Elite Series foam to cover the large flat area of the back face of the door card. Leave holes and clips uncovered. Peel and press flat. Use a roller for maximum adhesive contact.
-
5Reinstall the door card — Reattach all wiring connectors (window switch, speaker, etc.). Align the door card over the clips and press firmly you should hear each clip click into place. Reinstall screws.
-
6Repeat for all doors — Treat all four doors for maximum impact. The difference between treating only the front doors vs all four is immediately noticeable, particularly for rear passengers and overall cabin tone at highway speed.
Tools needed: panel removal tool (₹150–₹300), scissors or utility knife, IPA wipes, gloves. Total installation time per door: 30–45 minutes for a first-timer, 20 minutes once you know the process.
Indian Car Compatibility
Works on Every Popular Indian Car — Here's How Many Sheets You Need
All three products are universal they are cut to size during installation. Every Indian car benefits from damping. Here is a specific guide for popular models.
| Car | AudibleX Tri-Mute (metal) | D-WAY / Elite Foam (door cards) | Notes |
|---|---|---|---|
| Maruti Swift (all gen) | 8 sheets (2 front doors) | 4 D-WAY sheets | Thin doors — high benefit |
| Maruti Baleno | 8 sheets | 4 D-WAY or Elite sheets | Resonant door skin |
| Maruti Brezza | 8–12 sheets (4 doors) | 4 Elite sheets (front) | Full 4-door treatment recommended |
| Maruti Ertiga / Grand Vitara | 16 sheets (all 4 doors) | 8 sheets total | Larger doors — more coverage needed |
| Hyundai i20 (2020+) | 8 sheets | 4 D-WAY sheets | Good factory insulation — foam layer sufficient |
| Hyundai Creta (2020+) | 8–12 sheets | 4 Elite sheets | Notable road noise at highway — highly recommended |
| Hyundai Venue | 8 sheets | 4 D-WAY sheets | Compact — 8 sheets covers both front doors |
| Tata Nexon (2023+) | 8 sheets | 4 Elite sheets | Good structural rigidity but drum-like doors |
| Tata Punch / Tiago | 8 sheets | 4 D-WAY sheets | Compact car — thin door skin benefits most |
| Tata Harrier / Safari | 16 sheets (all 4) | 8 Elite sheets | Larger cabin — floor and boot also worthwhile |
| Kia Seltos | 8–12 sheets | 4 Elite sheets | Higher baseline — focus on floor and boot |
| Kia Sonet / Carens | 8 sheets | 4 D-WAY sheets | Standard treatment |
| Honda City (6th gen) | 8 sheets | 4 D-WAY sheets | Good base — road noise reduction noticeable |
| Toyota Innova Crysta | 16–20 sheets (all doors) | 8 Elite sheets | Large van body floor treatment adds a lot |
| Toyota Hyryder / Urban Cruiser | 8 sheets | 4 Elite sheets | Standard treatment good ROI |
| Mahindra Thar | 16 sheets | 8 Elite sheets | Off-road vehicle maximum treatment recommended |
| Mahindra XUV700 / Scorpio N | 12–16 sheets | 8 sheets | Larger body floor highly recommended |
| VW Virtus / Skoda Slavia | 8 sheets | 4 D-WAY sheets | Good baseline door foam sufficient |
| Renault Kiger / Nissan Magnite | 8 sheets | 4 D-WAY sheets | Thin door skin high benefit per rupee |
Not sure how many sheets your car needs? WhatsApp us at +91 97287 64403 with your car name we give you a specific recommendation based on the doors you want to treat.
Your Questions Answered
Frequently Asked Questions
QDo I need to treat all 4 doors or just the front?
Treating just the front doors delivers approximately 60–70% of the total benefit for the driver and front passenger. If your priority is audio quality and you sit in the front, start there. For full cabin silence particularly for rear passengers and overall highway drone treat all four doors. The difference between 2-door and 4-door treatment is substantial on longer journeys.
QWill this actually make my music sound better?
Yes measurably and immediately. When the door metal stops resonating, your speakers are no longer competing with panel vibration. Bass tightens because the door cavity becomes a more controlled acoustic space. Mid-range clarity improves because road noise is no longer masking it. If you have already upgraded your speakers and are not getting the results you expected, damping treatment is almost certainly the missing step.
QCan I install this myself or do I need a workshop?
Both are valid options. The installation is genuinely DIY-friendly a panel removal tool, scissors, and clean hands are all you need. Most people complete a single door in 30–40 minutes for the first time. If you prefer professional installation, any car audio workshop can apply these for you. Installation charges are typically ₹300–₹600 per door at most workshops.
QWill the D-WAY or Elite foam be too thick for my door panel to close?
The foam needs to be applied to areas of the plastic door card that do not come into direct contact with the door cavity's inner metal framework. Apply to the large flat sections. The foam compresses easily 15mm and 20mm foam will compress significantly when the door card is reinstalled without affecting how the panel fits or the door closes.
QIs the adhesive permanent? Can I remove it later?
The adhesive creates a strong, semi-permanent bond. The foam layers can be peeled off with effort if needed, though some adhesive residue may remain. The AudibleX Tri-Mute butyl layer is more difficult to remove once bonded. These products are intended as a permanent installation, not a temporary treatment.
⚠️ Important — No Return / No Warranty Policy
All three damping products are sold as consumable installation materials and are not eligible for returns or exchanges once dispatched. Please calculate your coverage requirements and verify door panel clearances before ordering. Every sheet is physically inspected at our warehouse before dispatch to ensure adhesive integrity and material quality.
The Verdict — Start Here
If you have upgraded speakers in your Indian car and the bass still sounds loose, the road noise is still intrusive, or you find yourself turning the volume up just to hear the music clearly at highway speed damping sheets are the single most impactful thing you can do next. The AudibleX Tri-Mute on the door metal stops the structural resonance. The Elite Series or D-WAY foam on the door card catches the rest. Together, they transform your car from a tin box full of noise into a cabin that feels genuinely quiet and luxurious and your speakers will finally sound like what you paid for them.
