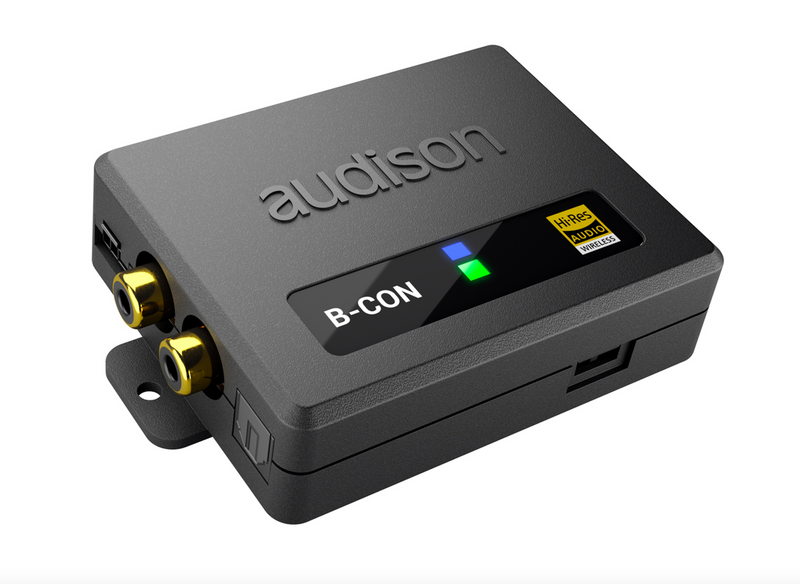

Audison B-CON Hi-Res Bluetooth 5.0 Audio Receiver with LDAC & Optical Pass-Through (24-Bit / 96kHz High-End Streaming)

Product Overview

Unlock studio-grade wireless audio streaming in your vehicle with the Audison B-CON Hi-Res Bluetooth 5.0 Audio Receiver. Engineered specifically for high-end car audio and Sound Quality (SQ) system builds, the B-CON is the world's first Bluetooth 5.0 automotive receiver certified with Hi-Res Audio Wireless status by the Japan Audio Society. Equipped with support for high-bitrate codecs like LDAC, AAC, and SBC, it transmits music up to 24-bit/96kHz resolution—tripling the data bandwidth of standard Bluetooth connections. Featuring an optical digital output, master volume control integration, and an intelligent absolute volume feature, the B-CON bridges your smartphone seamlessly to your DSP amplifier or aftermarket sound processor.

Key Features & Performance Highlights

• Hi-Res Audio Wireless Certified: Officially certified by the Japan Audio Society to deliver true high-resolution wireless streaming up to 24-bit/96kHz.

• Advanced LDAC & AAC Codec Support: Maximizes audio fidelity from Android devices via Sony's LDAC (up to 990 kbps) and Apple devices via AAC.

• Master Volume & Absolute Control: Directly manages DSP volume without degrading digital dynamic range or altering bit-depth resolution.

• Optical & Analog Output Options: Includes S/PDIF optical digital output (24-bit/96kHz) for direct connection to digital signal processors and stereo analog RCA outputs.

• Automatic Phone Call Switching: Seamlessly prioritizes factory hands-free calling systems when a call arrives, instantly switching back to high-res music once the call ends.

• Dual Power Supply Input: Operates on standard 6–24 VDC automotive power or via micro-USB port for easy bench testing or alternative setups.

Technical Specifications

• Brand & Model: Audison B-CON

• Product Type: Hi-Res Bluetooth Audio Receiver

• Bluetooth Version: Bluetooth 5.0 + EDR

• Supported Audio Codecs: LDAC, AAC, SBC

• Max Wireless Resolution: 24-bit / 96 kHz (via LDAC)

• Digital Outputs: S/PDIF Optical (24-bit / 96 kHz)

• Analog Outputs: Stereo RCA (2 Vrms Output Level)

• Audio Performance: Frequency Response 10 – 48,000 Hz, THD 0.003%, S/N Ratio 105 dBA

• Power Supply Voltage: 6 – 24 VDC / Micro-USB 5VDC

• Installation: Compact housing with mounting ears for flexible placement

Frequently Asked Questions (FAQs)

1. What is the difference between the Audison B-CON and standard Bluetooth adapters?

Standard Bluetooth modules compress audio heavily using basic codecs like SBC, resulting in flat, muddy sound. The Audison B-CON utilizes LDAC and Hi-Res certification to stream uncompressed 24-bit/96kHz audio files directly into your DSP with zero loss in clarity.

2. How does the B-CON handle hands-free phone calls?

The B-CON is designed to integrate with your car's existing setup. When an incoming call is received, the unit automatically passes audio control back to your factory head unit or hands-free kit so you can talk normally, then seamlessly resumes your high-res music stream when the call finishes.

3. Can I connect the B-CON directly to my digital sound processor (DSP)?

Yes! The S/PDIF optical digital output allows you to feed a pristine, uncompromised digital bitstream directly into any compatible DSP or amplifier with an optical input.

4. What components are included inside the package?

The package includes 1 x Audison B-CON Bluetooth Receiver, power/remote wiring harness, and user instruction manual.
