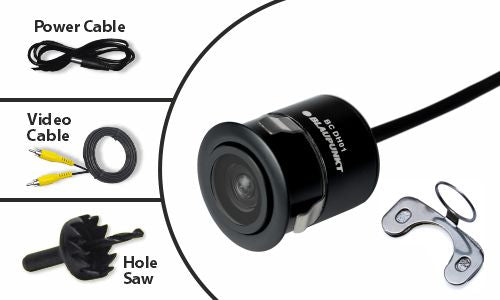

Blaupunkt Rear View Camera BC DH01
Product Overview
170° Universal Dual Mount Capable Rear View Camera
Car Accessories - Reverse Camera
Product Details
BC DH01 (rear bumper camera / number plate camera) is equipped with high end 1/3" CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside.
A CMOS sensor is an electronic chip that converts photons to electrons for digital processing. BC DH01 incorporates a highly efficient color sensor and modern electronics, reducing power consumption.
- Power Supply: DC12V±3V
- Current Consumption: 80mA
- Optical Format: 1/3
- Image Sensor: CMOS
- Effective Pixels: 1080 x 720
- Lens Angle: 170° (D), 120° (H), 100° (V)
- White Balance: Auto
- Water Resistance : IP67
- Illumination Min.: 0.1 Lux
- TV System : PAL/NTSC
- Operating Temperature: -20°C - +70°C
- Storage Temperature : -20°C ~ +70°C
- Video Signal - 1.0Vp-p at 75ohm
Frequently Asked Questions (FAQ)
Q: Can the Blaupunkt BC DH01 be connected to my existing touchscreen or Android head unit?
A: Yes! The camera uses a standard RCA composite video cable ($1.0\text{Vp-p}$ output), making it compatible with almost any factory or aftermarket double-DIN or Android touchscreen system with a reverse camera input.
Q: Can this camera be used as a front-view camera?
A: Yes. The BC DH01 features a mirror-image flip option. By cutting the designated wire loops on the cable harness during installation, the image switches from a mirrored rear-view image to a direct front-view image.
Q: Is the camera safe to wash during pressure car washes?
A: Absolutely. It carries an IP67 weather-resistance rating, meaning it is fully dust-tight and resistant to water splashes, rain, and pressure washing.
