Deaf-Bonce Machete ML-12R D2
Product Overview

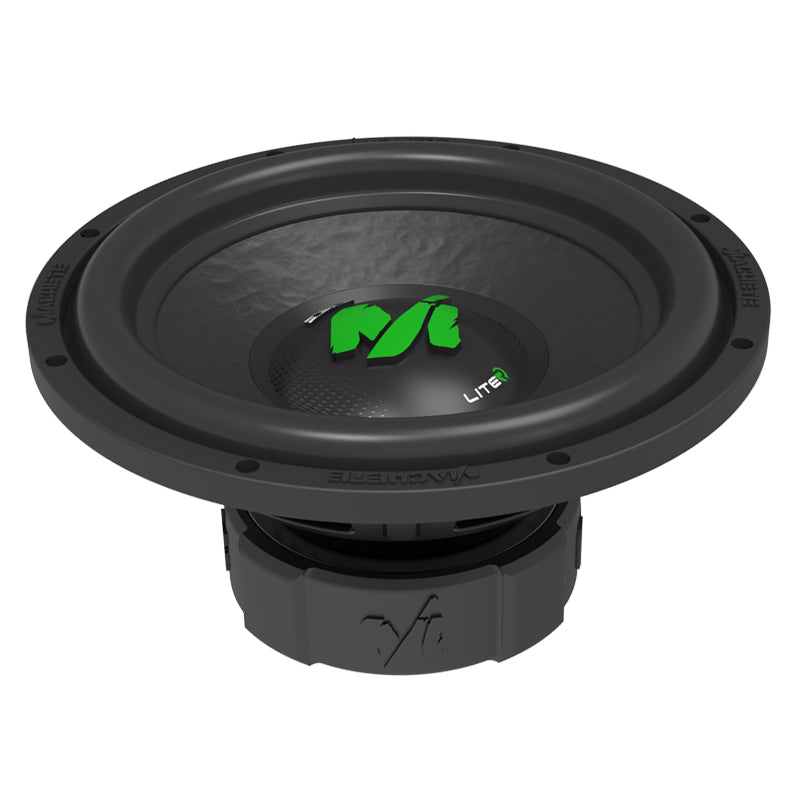

The Deaf Bonce Machete ML-12R D2 is a high-output 12-inch Dual 2-Ohm (2+2 $\Omega$) subwoofer from Deaf Bonce's upgraded "R" revision series. Engineered to deliver serious SPL output and musical depth, the ML-12R D2 jumps to an impressive 500 Watts RMS (1000 Watts Max) continuous power rating—making it a perfect step-up option for daily drivers and sound-quality setups looking for hard-hitting bass without sacrificing efficiency.
Reinforced Motor Assembly & 2" High-Temp Voice Coil
The ML-12R D2 upgrades to a larger 2.00-inch copper voice coil coupled with a double-stacked ferrite motor structure. This expanded voice coil surface area greatly increases thermal heat dissipation, enabling the driver to sustain prolonged high-power play without thermal distortion or output compression.
Pressed Paper Cone & High-Excursion Suspension
To handle the increase in power, the driver features a pressed paper cone supported by a thick, high-density foam surround. Paper provides an optimal balance between low moving mass and rigidity, ensuring transient accuracy during fast bass drops. With a linear excursion of $12.00\text{ mm}$ ($X_{\max}$), the driver delivers smooth, deep low-end frequency extension down into the $30\text{ Hz}$ range.
Flexible Wiring Setup
With its Dual 2-Ohm voice coil configuration, you can easily configure a single ML-12R D2 for a 1-Ohm or 4-Ohm final load, or connect a pair together to present a 2-Ohm load to a mono amplifier.
Specifications
| Model | ML-12R D2 |
| Type | Subwoofer |
| Size | 12 inch |
| Voice coil size | 2.00 inch |
| Cone | Paper |
| Magnet | Ferrite |
| Voice coil wire | Copper |
| Surround | Foam |
| RMS Power | 500 W |
| MAX Power | 1000 W |
| Frame | Steel |
| Impedance | 2+2 Ohm |
| SPL | 88.00 dB |
| Fs | 38.00 Hz |
| Qts | 0.46 |
| BL | 16.60 |
| Vas | 42.00 L |
| Xmeh | 24.00 mm |
| Xmax | 12.00 mm |
| Mounting depth | 5.38 inch (136.6 mm) |
| Cut-out dimension | 10.94 inch (278.0 mm) |
| Gross weight | 15.65 lb (7.10 kg) |
Frequently Asked Questions (FAQ)
Q: What is the difference between the Machete ML-12S and the ML-12R subwoofer?
A: The ML-12R is a higher-power model compared to the ML-12S. The ML-12R handles 500W RMS (versus 300W RMS on the 12S), features a larger 2.00-inch voice coil (versus 1.75-inch), and offers increased linear excursion ($12\text{ mm}$ $X_{\max}$ vs $10\text{ mm}$) for deeper and louder output.
Q: What size amplifier is recommended for the Deaf Bonce ML-12R D2?
A: We recommend pairing this subwoofer with a monoblock amplifier capable of delivering between 400 and 600 Watts RMS into a 1-Ohm or 4-Ohm load.
Q: What is the recommended box size for a ported enclosure?
A: The ML-12R D2 performs best in a ported enclosure with a net internal volume of approximately $1.7\text{ cu. ft.}$ ($48 - 50\text{ Liters}$) tuned around $35\text{ Hz}$ for maximum bass response.
