Infinity Basslink Mini 100 Watt RMS 200 Watt Underseat Subwoofer

Product Description

Big Bass, Small Space

Infinity BassLink MINI delivers deep bass and takes up minimal space. Its on-board 100Wrms amplifier has been performance matched to subwoofer to deliver tight, accurate bass.

Intelligent Electronic Design for Reliable and Extraordinary PerformanceThe BassLink MINI employs high-pass filters and limiters that deliver exceptional at-the-limits
performance.

Die-Casting Aluminum Enclosure Design
The all-die-cast aluminum enclosure design not only minimizes size but also eliminates rattles to deliver clear bass from tiny space.

Bass Volume Remote Control
Bass Volume Remote control is included to let you adjust the sound from the driver’s seat.

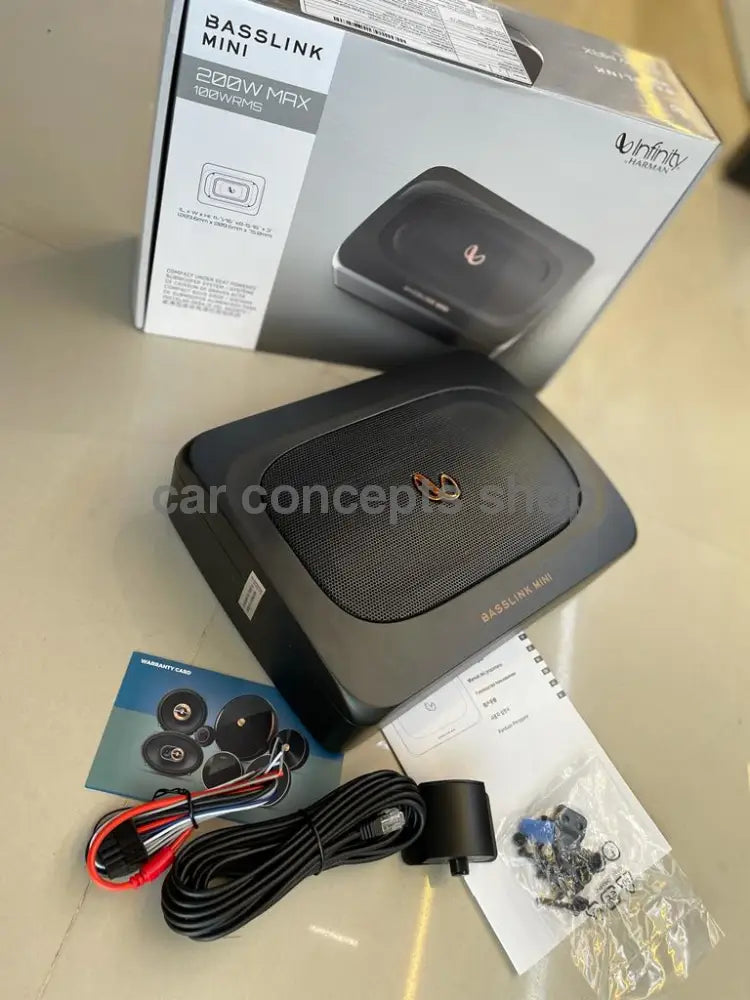

What’s in the Box:

• 1x Under seat subwoofer
• 14x Screws
• 4x Small metal plate
• 1x Wiring harness [ POWER CONNECTOR ]
• 1x Bass volume remote control (with cable)
• 1x 15A Fuse

Specifications:

• Driver Complement: 6" x 8" (152mm x 203mm) Subwoofer
• Amplifier Power: 100Wrms; 200W Max
• Frequency Response: 30Hz – 150Hz
• Fuse: 15A
• Maximum Current Draw: 13A
• Quiescent Current Draw: <600mA
• Input Sensitivity: 0.1V – 4.0V Low-Level Input
• 0.25V – 10V High-Level Input
• Crossover Frequency: 50Hz – 150Hz
• Crossover Slope: 12dB/octave
• Bass Boost: 0dB to + 12dB @ 50Hz
• Dimensions (L x W x H): 11-7/16" x 8-5/16" x 3"
• (289.6mm x 209.6mm x 75.0mm)

1 YEAR BRAND WARRANTY

Deep Bass Low Profile

Enjoy the rich sound of Bass in just about any vehicle with the Infinity Basslink Mini 100 Watt Low Profile Amplified Subwoofer. With RMS 200 Watt Peak Subwoofer power supply and High and Low Level Inputs, this Amplified Subwoofer can be hooked up to just about any in-dash stereo. it's a perfect solution when space is an issue as it can easily fit under the seat of almost all vehicles.

Infinity Basslink Mini 100 Watt RMS 200 Watt Peak Subwoofer

We wanted to truly make installation a breeze so we designed this unit with the user in mind from start to finish. We added high level inputs so you don't need a remote wire from your receiver to trigger the unit on and off. The smart circuit will sense that an audio signal is present and turn on your radio and a signal is present.

Frequently Asked Questions (FAQ)

Q: Do I need to buy a separate power amplifier for the Infinity BassLink Mini?

A: No. The BassLink Mini is an active (powered) subwoofer with an internal 100W RMS Class D amplifier built directly into the housing.

Q: Will the BassLink Mini connect to my vehicle's original factory radio?

A: Yes! It includes high-level speaker inputs with auto turn-on capability, allowing it to tap directly into your factory speaker wires without needing an external Line Output Converter (LOC).

Q: Will this fit under my car seat?

A: With a slim height profile of just 2.75 inches (70mm), the Infinity BassLink Mini is designed to slide under the front seats of most hatchbacks, sedans, SUVs, and trucks.
