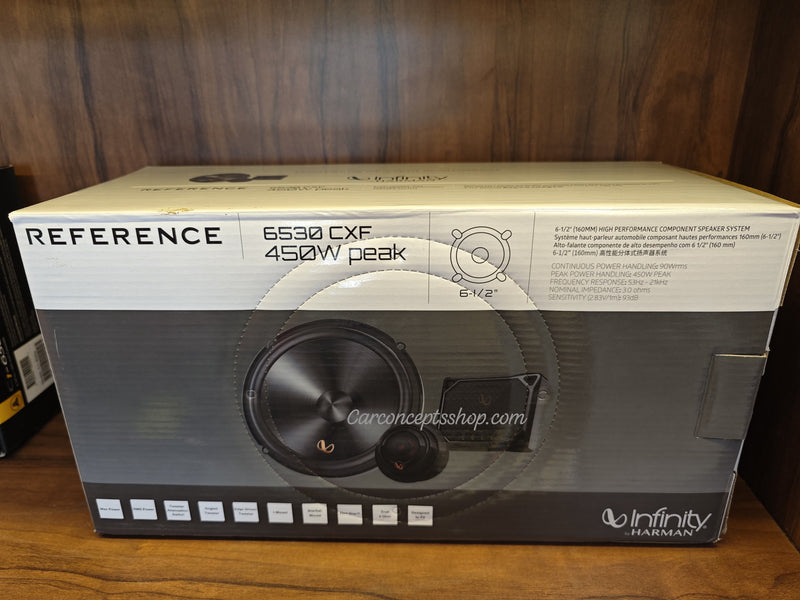

Infinity Reference Ref-6530cxf Component Speaker

Infinity Reference 6530CXF 2-Way Component Speakers

Product Overview

The Infinity Reference 6530CXF 2-Way Component Speakers are designed to deliver clear sound, strong bass, and reliable performance for your car audio system. With a 6.5-inch speaker size, 450W max power output, and 90W RMS nominal power handling, these component speakers are a solid upgrade for enhanced in-car audio quality.

Key Features

• Infinity Reference 6530CXF
• 2-Way Component Speakers
• Size - 6.5"
• Max Power Output - 450W
• Nominal Power Output - 90W RMS

Infinity Reference 6530CXF Specifications

What’s in the Box

Box Contents

• 2 x Speakers
• 2 x Tweeters
• 2 x Crossovers
• 2 x Tweeters Surface Mount Cups
• 2 x Tweeters Flush Mount Cups
• 2 x Tweeters Flat Washers
• Warranty Card
• Mounting Hardware

Frequently Asked Questions (FAQs)

Q: Do I need an external amplifier to run the Infinity Reference REF-6530CXF?

A: No, an external amp is not required. Thanks to their high 93 dB sensitivity and 3-ohm low-impedance design, these speakers are efficient enough to produce loud, clear sound powered directly by a stock factory head unit or an aftermarket receiver. However, powering them with a 50W to 90W RMS multi-channel amplifier will unlock their full dynamic punch and bass capacity.

Q: What is the benefit of the "+3dB" switch on the external crossovers?

A: Depending on where your tweeters are installed, factory speaker locations can sometimes absorb or muffle high frequencies (for example, if mounted down low in a door panel). Switching the crossover setting to +3 dB boosts the tweeter output to compensate for poor placement, bringing the treble back into perfect alignment with the woofer.

Q: Will these 6.5-inch woofers fit in my vehicle's door panels?

A: Yes, in most cases. The REF-6530CXF features an optimized frame size with a top-mount depth of approximately 2-1/16 inches. The kit also includes multi-application woofer adapter brackets in the box to accommodate standard 6.5-inch and 6.75-inch factory door openings without requiring custom panel cutting.

Q: Where should I mount the separate tweeters?

A: Component systems give you the freedom to mount the tweeters away from the woofers. For the best acoustic imaging and soundstage elevation, mount the tweeters higher up near ear level—such as on your A-pillars, dashboard corners, or window sail panels—using the included flush or surface mount hardware cups.

Q: What is included in the box with the REF-6530CXF kit?

A: The package includes 2 x 6.5" Plus One™ woofers, 2 x edge-driven textile tweeters, 2 x external crossovers, woofer adapter bracket rings, tweeter flush-mount and surface-mount cups, mounting hardware clips/screws, and foam mounting tape.
