JBL Stage A6002-2 Channels
Product Overview
The JBL Stage A6002 is a compact 2-channel car amplifier designed to deliver iconic JBL sound performance and clarity at an accessible price point. Pushing out 280 Watts Max Power Output ($60\text{W RMS x 2 at } 4\Omega$ or $70\text{W RMS x 2 at } 2\Omega$), this amplifier provides clean, dynamic power to boost the performance of your vehicle's aftermarket coaxial or component speakers.
Compact Footprint & Sleek Industrial Design

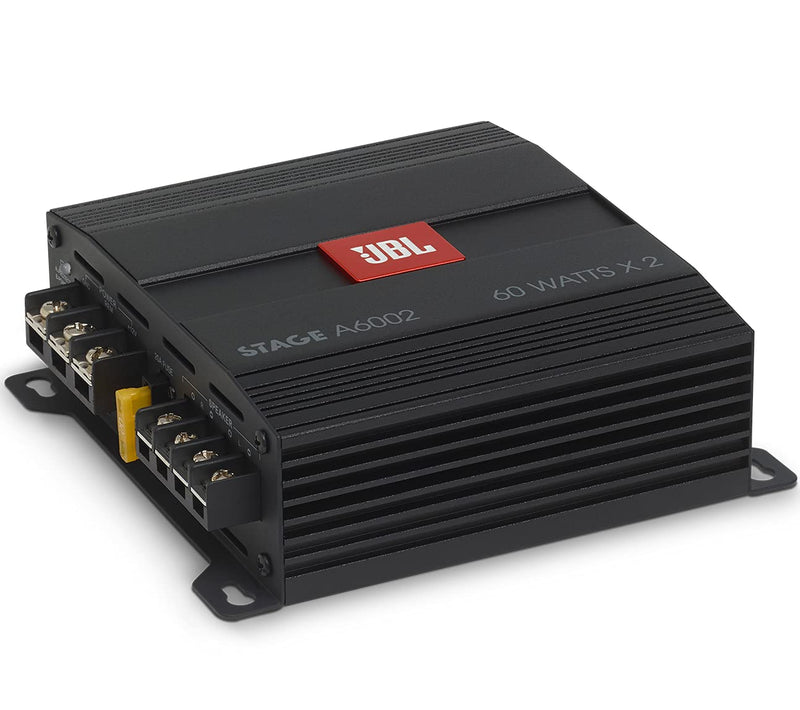

Modern vehicle cabins have limited mounting space, but the Stage A6002’s small footprint allows for easy installation under seats, in side panels, or inside tight trunk spaces. Its sleek black chassis features deep cooling grooves, silver silkscreen accents, an anodized JBL badge, and iconic JBL orange end panels for a sharp, custom look.
Precise Audio Tuning & Full Onboard Protection
Tailor your sound system with onboard variable High-Pass (HPF) and Low-Pass (LPF) crossovers ($32\text{Hz } – 320\text{Hz}$ at $12\text{dB/octave}$) alongside a switchable Bass EQ ($0\text{dB / } 6\text{dB / } 12\text{dB at } 45\text{Hz}$). Integrated protection circuitry safeguards against thermal overload, short circuits, over-voltage, and under-voltage, keeping your system safe during demanding playback.
JBL Stage Amplifier A6002
- Value Engineered
- Compact footprint
- Full On-Board Protection
| Brand | JBL |
|---|---|
| Manufacturer | Harman International Industries, Inc., Harman International Industries, Inc. 8500 Balboa Blvd, Northridge, CA91329, USA |
| Model | STAGEA6002 |
| Model Name | Stage Amplifier Series |
| Product Dimensions | 19 x 23 x 9.5 cm; 1 Kilograms |
| Item model number | STAGEA6002 |
| Mounting Hardware | Amplifier |
| Number Of Items | 1 |
| Voltage | 5 Volts, 12 Volts |
| Wattage | 60 Watts |
| Batteries Included | No |
| Batteries Required | No |
| Manufacturer | Harman International Industries, Inc. |
| Country of Origin | USA |
| Item Weight | 1 kg |
Frequently Asked Questions (FAQ)
Q: Can I use the JBL Stage A6002 to power a subwoofer instead of door speakers?
A: Yes! You can bridge the two channels into a single 4-Ohm output, delivering $140\text{W RMS}$ to a small subwoofer or bass tube while engaging the variable Low-Pass Filter (LPF).
Q: Can I connect this JBL amplifier to a factory stock head unit?
A: Yes. The Stage A6002 includes a speaker-level (high-level) input harness, allowing you to connect directly to factory door speaker wiring without needing an external Line Output Converter.
Q: What wiring kit size is recommended for installing the Stage A6002?
A: We recommend a 10 AWG or 8 AWG 100% Oxygen-Free Copper (OFC) wiring kit with an inline $20\text{A}$ fuse placed near your vehicle's main battery.
