JL Audio C1-690x Oval Speakers
Product Overview
C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.

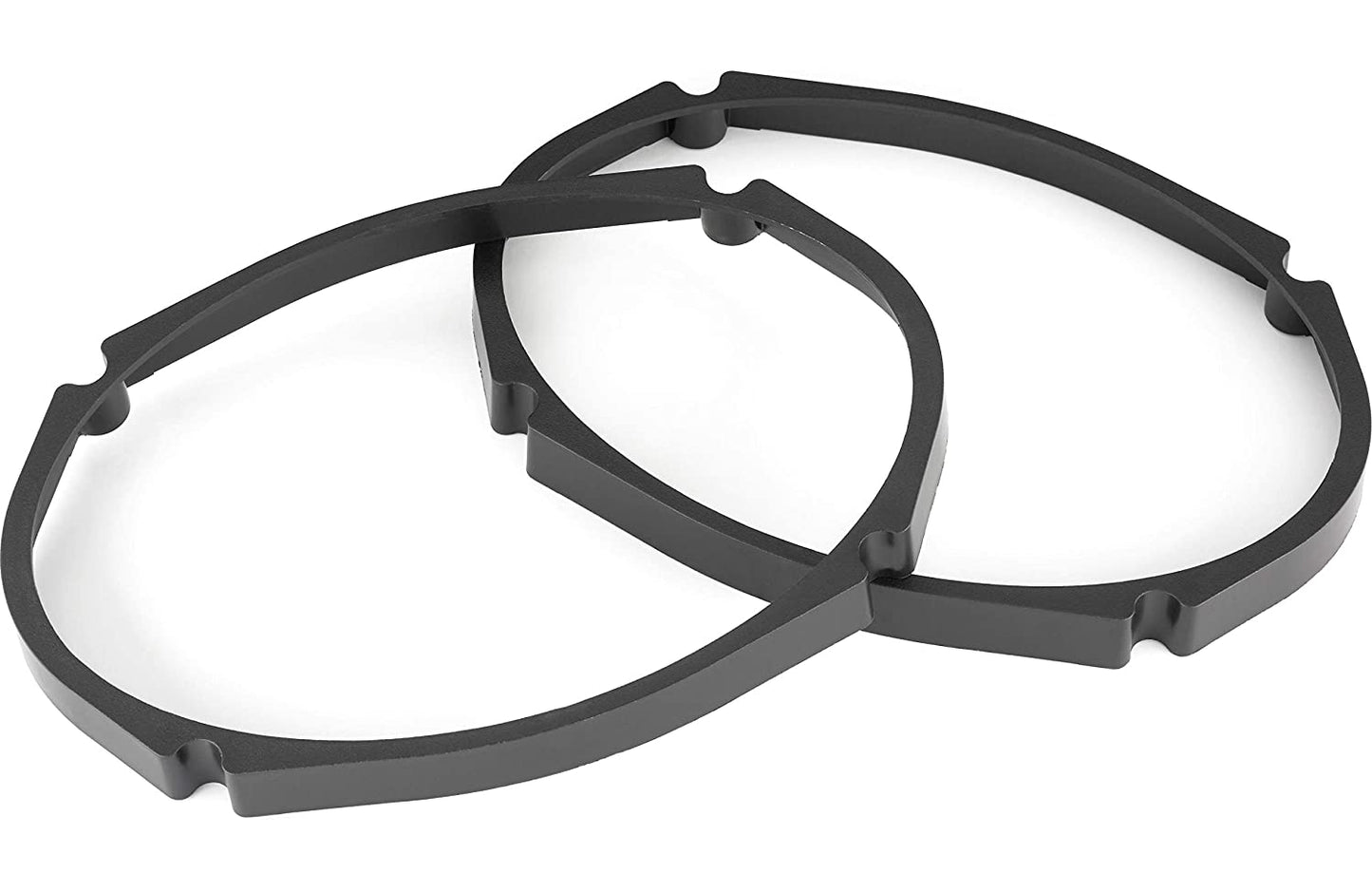

To facilitate fit, spacer/adaptor rings are included allowing the C1-690 woofers to be installed in bottom-mount applications. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.

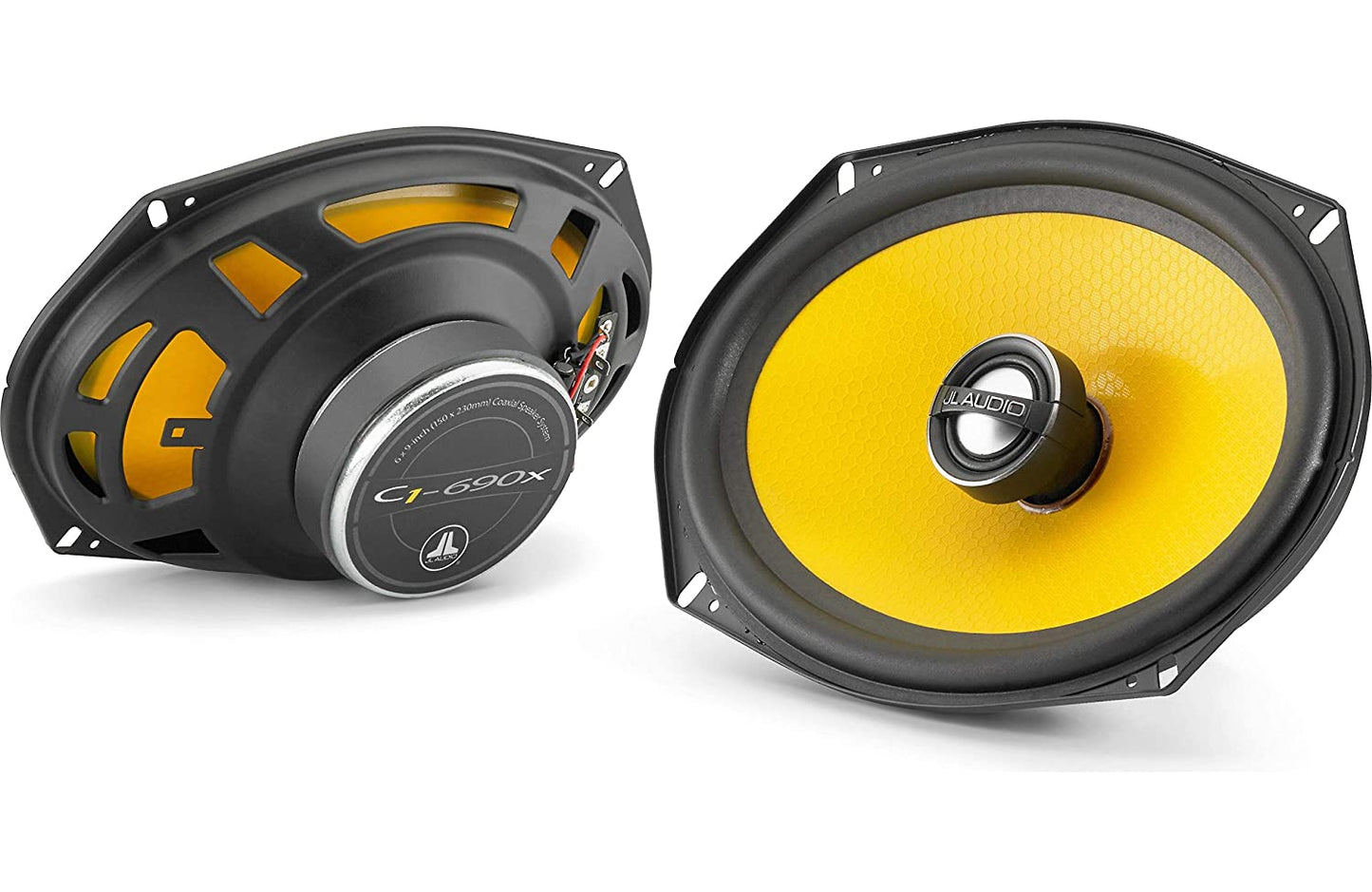

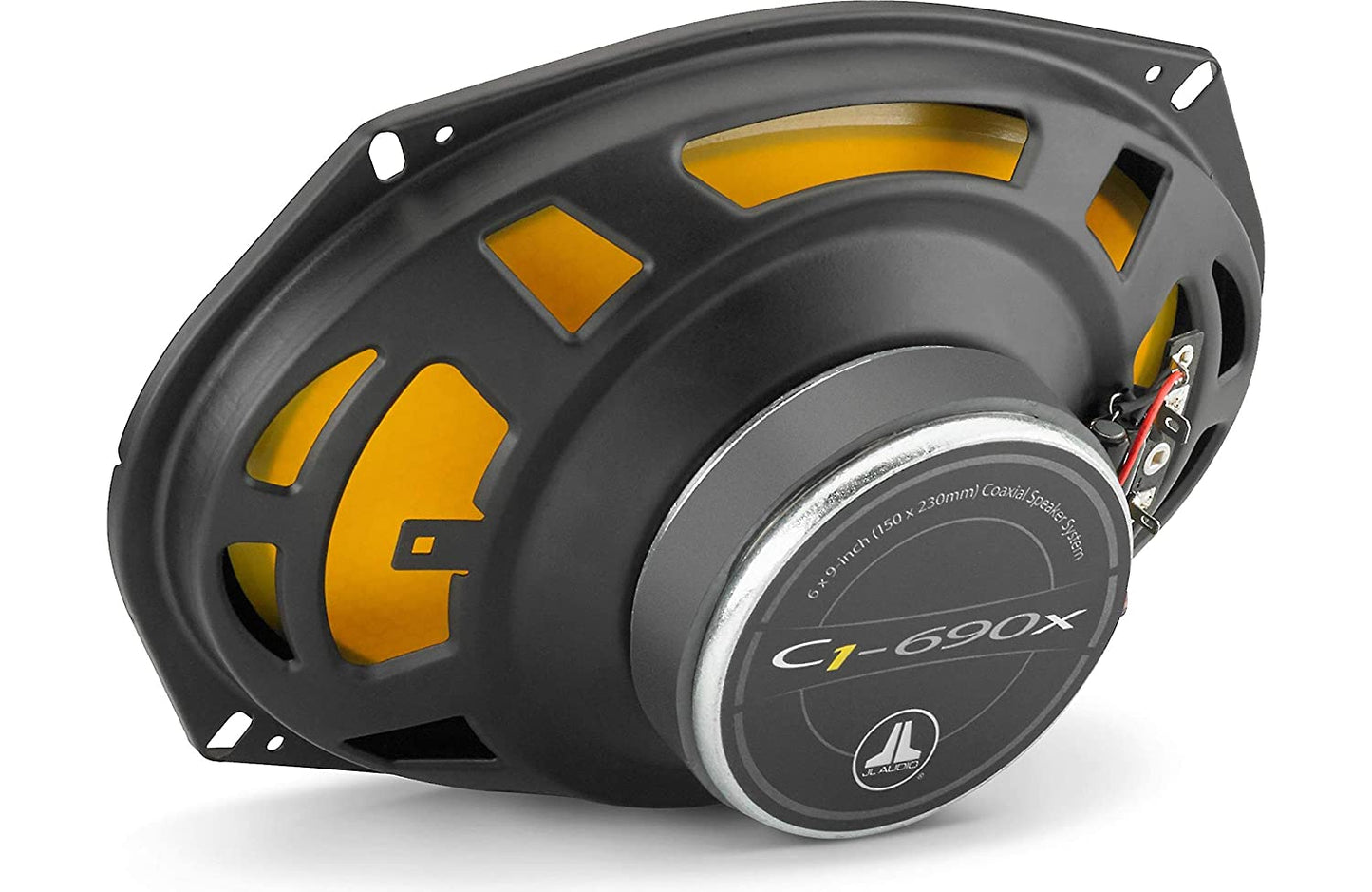

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690 is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.

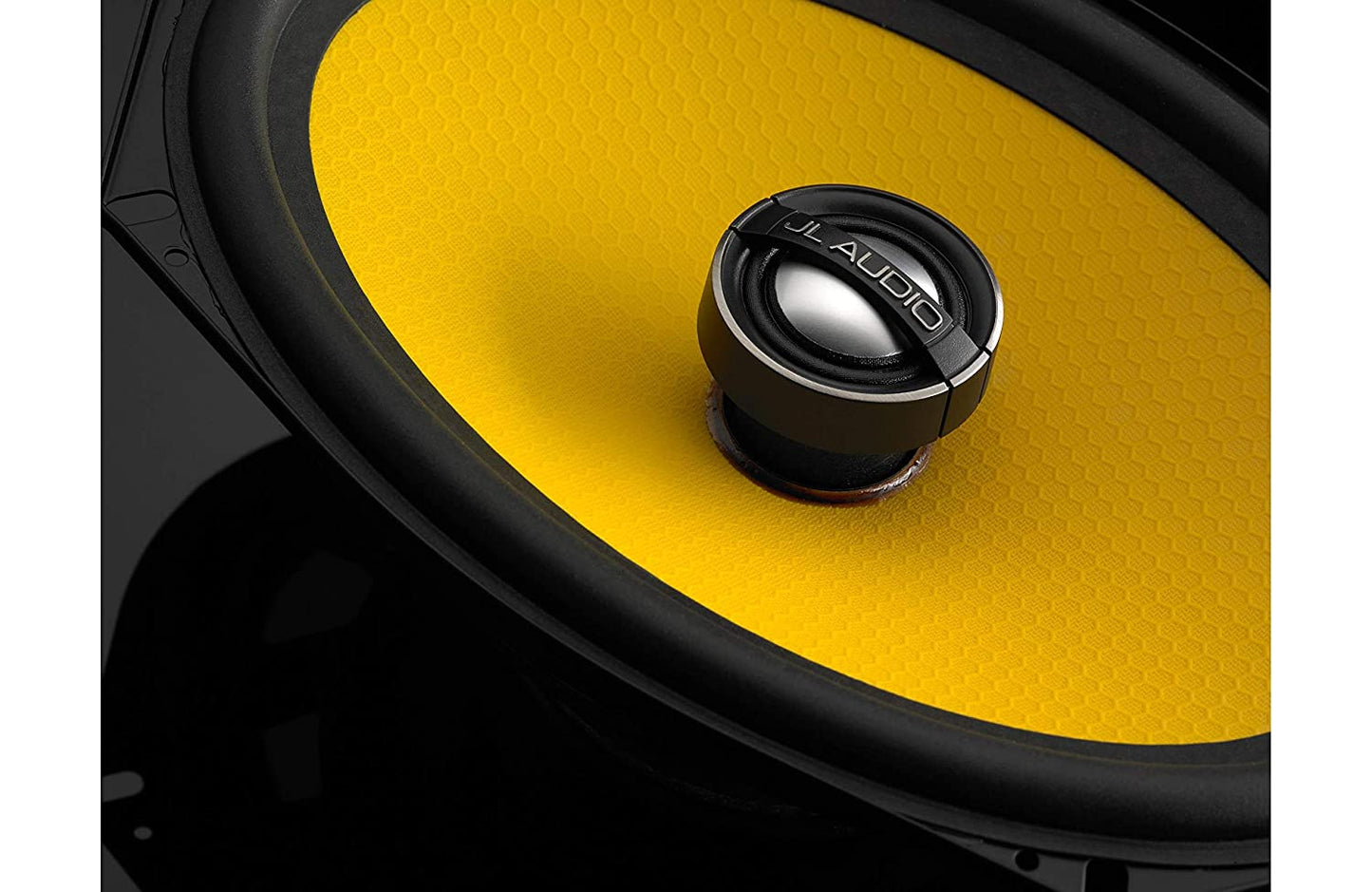

Equipped with a true, edge-driven, 1-inch aluminum dome tweeter, the C1-690 stands further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.
C1-690
6 x 9-inch (150 x 230 mm) 2-Way Component Speaker System
2-Way Component System: 6 x 9-inch (150 x 230 mm) Woofer, 1.0-inch (25 mm) Aluminum Dome Tweeter
General Specifications
| Continuous Power Handling (RMS) | 60 W |
| Recommended Amplifier Power (RMS) | 10 - 100 W / Ch. |
| System Efficiency | 91.5 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 39 Hz - 22 KHz ± 3 dB |
Woofer Physical Specifications
Lineart Bottom-View and Side-View of C1-690 Coaxial Speaker with dimension labels A-G
| Frame Outer Diameter* (A) | 6.38 x 9.33 in / 162 x 237 mm |
| Grille Tray Outer Diameter (B) | N/A |
| Motor Outer Diameter (C) | 3.54 in / 90 mm |
| Frontal Coaxial Tweeter Protrusion (D) | N/A |
| Frontal Grille Protrusion (E) | N/A |
| Mounting Hole Diameter (F) | N/A |
| Mounting Depth (G) | 2.75 in / 70 mm |
|
*Does not take into account mounting tabs |
|
Frequently Asked Questions (FAQs)
Q: Will the JL Audio C1-690x speakers fit in my car's factory 6x9 speaker cutouts?
A: Yes, the C1-690x features a standard 6" x 9" oval mounting frame and a shallow 2.75-inch mounting depth designed specifically to fit into most factory door and rear-deck speaker locations without metal cutting or modifications.
Q: Do I need an external amplifier to run these JL Audio 6x9 speakers?
A: No. Thanks to their high 93 dB efficiency rating, the C1-690x speakers sound great powered directly by a stock factory radio or aftermarket touchscreen player. However, powering them with an aftermarket amplifier (rated 30W to 60W RMS per channel) will unlock tighter mid-bass and higher dynamic range.
Q: Do these speakers come with protective speaker grilles?
A: Yes! The JL Audio C1-690x kit includes a pair of sleek, black mesh protective grilles with JL Audio badging for surface-mounted or custom installation setups.
