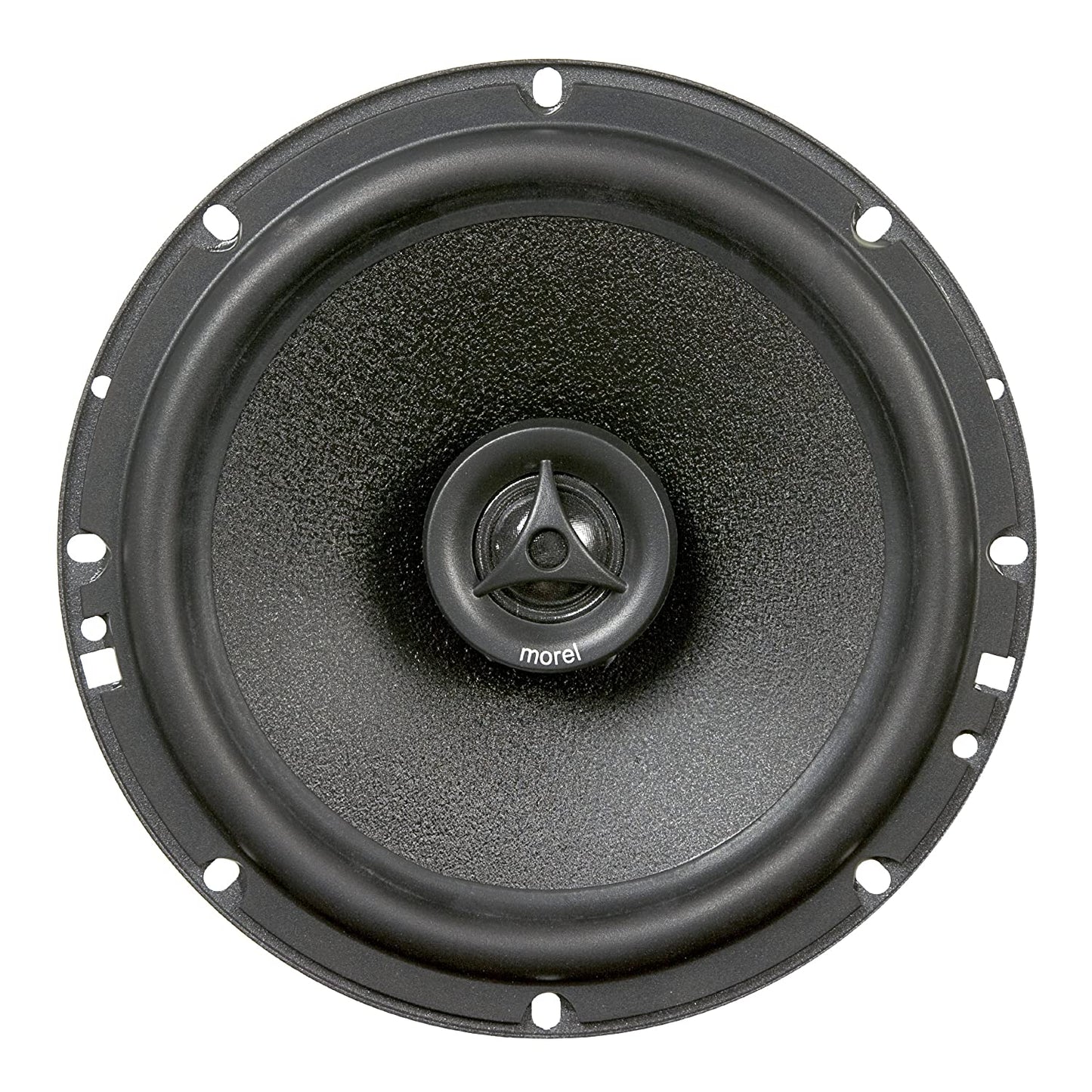

Morel Maximo 6 Mk 2 6.5-Inch Coaxial Speakers

Product Details

• 6.5-inch coaxial speaker kit with built-in crossover delivers 160 watts maximum power handling with 4-ohm impedance
• Woofers feature ferrite magnet and proprietary Acudamp cone coating for clean, linear response and increased bass dynamics
• 0.8-inch soft dome tweeter with a powerful neodymium magnet motor for the "sweet and warm" signature Morel sound
• Crossover features high-quality film capacitors for serious clarity and low distortion
• Highly efficient design enables the coaxial to be powered by either radio or amplifier

Description

6-1/2" 80W Maximo Series Coaxial Speakers . Treated paper composite cone . High grade ferrite magnets. Soft Dome Tweeter. MXR direct crossover . Frequency Response: 55-20000. Crossover Frequency: 3500 Hz . . WF: LPF-12dB. TW: HPF-12dB. . . Sensitivity: 91.

Let the music move you with Morel's affordable Maximo Coax 6. Living up to the standards of the company's renowned speaker systems, the Maximo 6-inch coaxial driver features high-tech advancements that could only come from the leader in loudspeaker technology.

Let the music move you with Morel's affordable Maximo Coax 6. Click to enlarge.

Efficiency is a Morel trait, one that is also incorporated into the new Maximo coaxials. For the woofer, the source is a new ultra-high-grade ferrite magnet that generates increased magnetic flux to motivate the large 1-inch voice coil, thereby increasing power handling and output. At the same time, the smaller yet more powerful magnet (35% smaller than standard ferrite magnets) affords the Maximo to be smaller in size, providing a shallow mounting depth for easy installation in tight places.

Maximo is the first in Morel's lineup to use a new proprietary coating called Acudamp. Acudamp is an incredibly lightweight polymer resin applied to the woofer cone to eliminate cone resonances largely responsible for distortion. This, along with the computer optimized cone and suspension, results in clean, linear movement during low-frequency reproduction, increased bass dynamics, and natural mid-range response.

High frequencies are reproduced by a large-format 19-mm (0.8-inch) tweeter and a powerful neodymium magnet. The tweeter utilizes a soft textile dome enhanced with a lightweight proprietary coating that minimizes distortion and increases power handling. This imparts the tweeter the "sweet and warm" signature sound Morel is renowned for. A high-grade built-in crossover naturally bridges the woofer and tweeter for sonic performance you would only expect from a Morel product.

About the Maximo Series

Morel invested the same passion, engineering, and philosophy that earned its car audio speakers countless awards in the development of the Maximo line. As a result, Maximo inherits several of the company's innovative technologies.

Consisting of 2-way component systems and coaxial speakers, the Maximo Series is Morel's solution for those who enjoy a superb-sounding music system that can be easily installed into factory speaker locations and integrated with factory head unit power, or amplified, all at a great value.

With Morel's quality craftsmanship, the Maximo Coax speakers deliver the powerful sound car audio enthusiasts seek but without the ear-fatiguing harshness found in similarly priced speakers.

Maximo Coax Tweeter

The foundation for the Maximo tweeter is rooted with the same design principles as Morel's high-end tweeters. Each coaxial tweeter uses a proprietary- coated soft textile dome and a powerful neodymium magnet motor. The design suppresses distortion while optimizing power handling and off-axis performance, and enables the delivery of the "sweet and warm" signature sound only a Morel can produce.

Soft Dome Design
The shape of the soft dome and its proprietary coating optimize the off-axis performance of the tweeter while minimizing distortion, increasing power handling, and improving the overall tonal and dynamic response.19-mm (0.8-inch) Voice Coil and Powerful Neodymium Motor
The large-format voice coil improves power handling and efficiency while providing superb control for the utmost detail.Wide Dispersion
The carefully designed, built-in phase-guide helps control the dispersion pattern for superb off-axis response that minimizes high-frequency losses.

Maximo Coax Woofer

Efficiency, compact size, and versatile mounting are all virtues of the Maximo coax, starting with the woofer. At the source is an ultra-high-grade ferrite magnet that allows the design to be as much as 35% smaller than standard ferrite-driven motors. This enabled Maximo engineers to build a woofer with a shallow mounting depth for easy installation in tight places.

Compact Design and Versatile Basket
A shallow mounting depth and versatile mounting options allow Maximo to fit in most vehicles without modification.25-mm (1-inch) Voice Coil
Larger voice coil provides excellent power handling and dynamic low-frequency response.Acudamp-Coated Paper Cone
Eliminates cone distortion for higher power handling while enhancing weather protection.Butyl Rubber Surround
FEA computer-designed surround that remains completely linear for the ultimate speaker cone control. Butyl is also an ideal surround material that is extremely durable to promote longevity.Computer-Optimized Cone
Results in clean, linear movement during low-frequency reproduction, delivering increased bass dynamics.

Built-in Crossover

High-grade Film Capacitors
High-grade film capacitors are used in the built-in tweeter crossover for the purest, uncolored sound reproduction.

Technical

Nominal impedance: 4 ohms Power Handling: 80W Max. Transient Power Handling: 160W Sensitivity (2.83V/1M): 91 dB Frequency Response: 55-20,000Hz Voice Coil Woofer: 25mm (1") Voice Coil Tweeter: 19 mm (0.8") Voice Coil Wire: Copper Magnet System Woofer: High-Grade Ferrite Magnet System Tweeter: Neodymium Mounting Depth: 63 mm (2.5") Net Weight: 2.38 kg (5.24 lbs)

About Morel

Morel has been at the forefront of loudspeaker technology since the upstart of the company in 1975. Inspired by his love of music, founder Meir Mordechai set out to create the perfect loudspeaker. His lifelong quest has resulted in successive generations of speakers that consistently set new standards for superb sound quality. In fact, the Morel brand has become an annual recipient of "Best of" and "Innovation" awards for sound reproduction worldwide.

Loudspeakers are like musical instruments. While there are many producers of musical instruments of all kinds, only a handful succeed in making the sound that captures the essence and magic of music. Morel's in house design, R&D, and manufacturing enable the company to produce loudspeakers that deliver that magical feeling as natural and transparent as the finest instruments themselves.

To reach this zenith in audio reproduction, the human touch is an absolute necessity. Each Morel product is assembled by hand and extensively tested, undergoing seven different quality tests to ensure that it meets the highest standards.

Morel has dedicated years of R&D to developing unique technologies that overcome the limitations of car audio and offer exceptional performance--from our Maximo line to our flagship Supremo products. The mark of a good speaker is its ability to transform recordings into "live" performances. Morel's car audio systems hit the mark every time.

What's in the Box

A pair of Maximo Coax 6 speakers, 2 grilles, 2 grille mounting rings, 8 screws, 8 nuts, and a user's manual.
