Brand - Morel
Series - Maximo

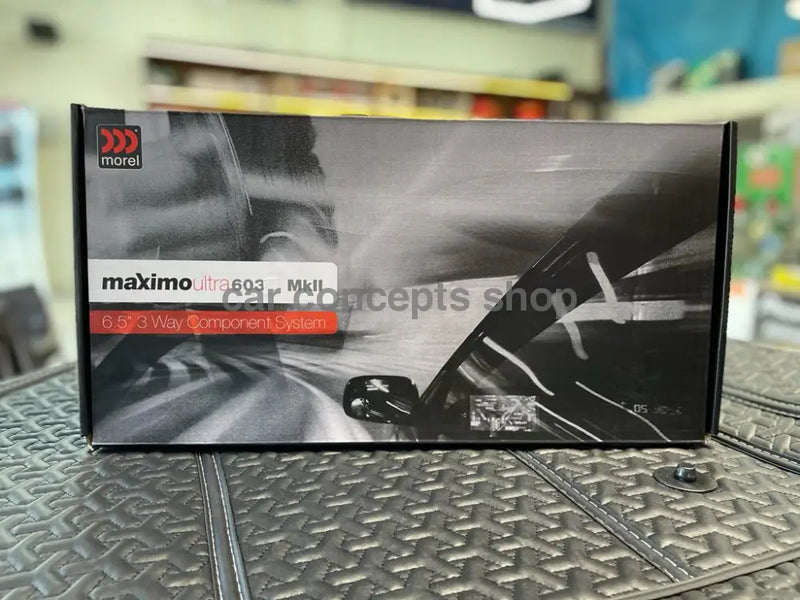

Model No. - Maximo Ultra 603 MKII
Type - 3-way Component System
Size - 6.5"
Max Power Output - 180W
Nominal Power Output - 100W RMS
Frequency Response - 50 Hz ~ 20000 kHz
Impedance - 4 ohm
Sensitivity - 90.5dB
2.5" Midrange Woofers
1" Soft Dome Tweeters
MXR Direct Crossovers
Speaker Grilles - Yes
|Speaker Type||3-Way Components|
|Speaker Sub Type||3-Way Component Speakers|
|Speaker Size||6 - 6.75" (Door Speakers)|
|Max Power Output||180W|
|Nominal Power Output RMS||100W RMS|
|Frequency Response||50 Hz ~ 20 kHz|
2 Tweeters (with attached 38" length of speaker wire)
2 Speaker grilles
2 Midrange grill
The Maximo Ultra 2-way and 3-way drivers:
The tweeter is a new 25mm (1″) diameter soft dome tweeter, that employs Morel’s external voice coil technology (EVC™) developed specifically for the Maximo Ultra. The tweeter design sets new standards for power handling and low distortion for this price level while delivering an enjoyable musical sound reproduction. Its four mounting options make installation effortless and trouble-free.
The woofer features a high-grade ferrite magnet motor that provides increased magnetic energy, with higher power handling and better efficiency than ever before. The new design uses a specially treated paper cone and computer-modeled suspension for a highly linear movement during low midrange frequency reproduction, thus reducing distortion and increasing bass dynamics.
The midrange in the 3-way component system is a new 2.5-inch premium wide-range midrange that employs a powerful double neodymium magnetic system that features a full copper sleeve to ensure smooth frequency response and low distortion. It delivers amazing detail and a lush midrange in a compact size.
The crossover network is built to handle more power than the speakers using high-grade components. This minimizes component saturation that can make the speakers prematurely distort, allowing the Maximo Ultra to play to its fullest potential.
The Maximo Ultra presents you with the best performance in its class.
