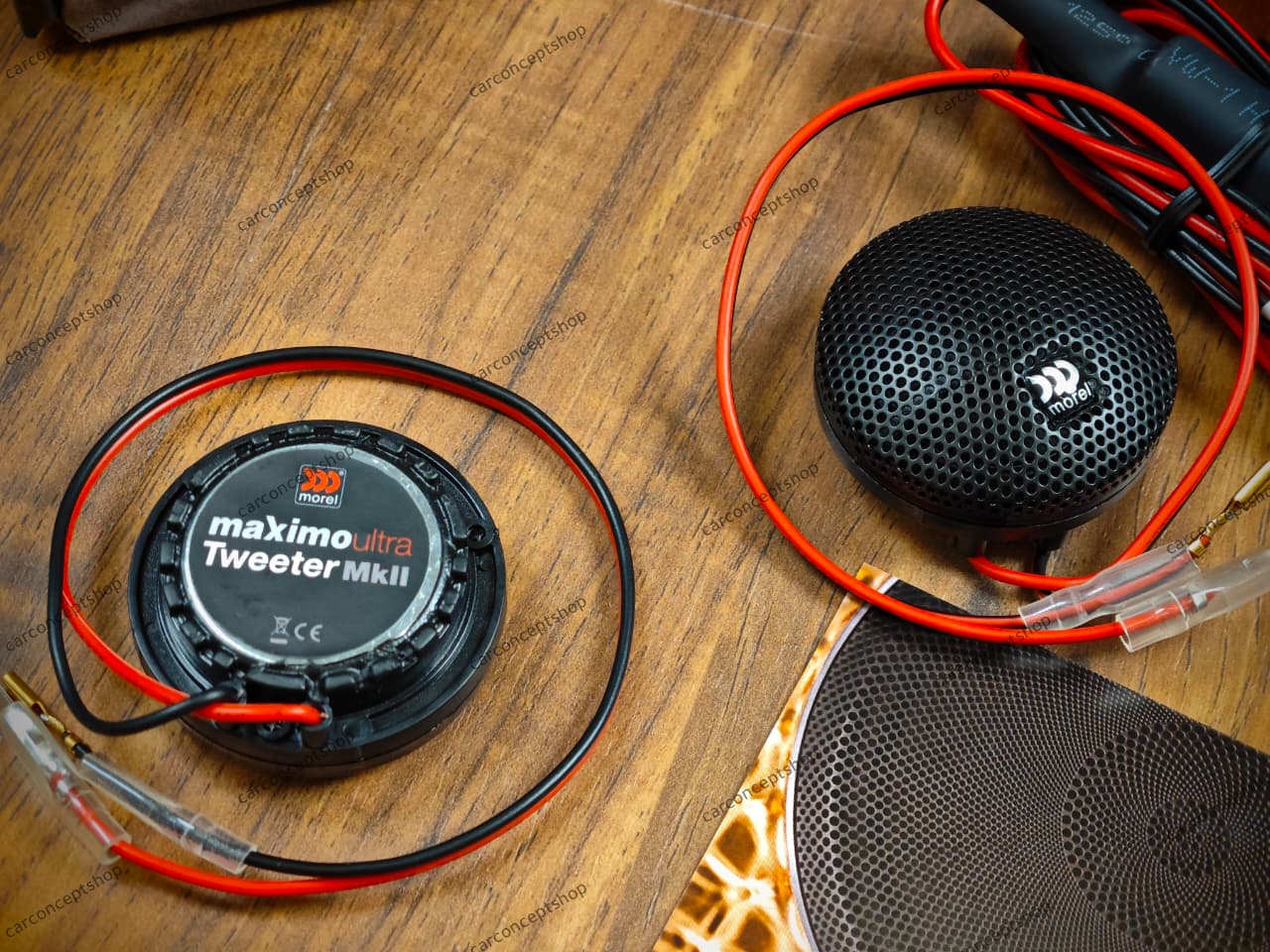

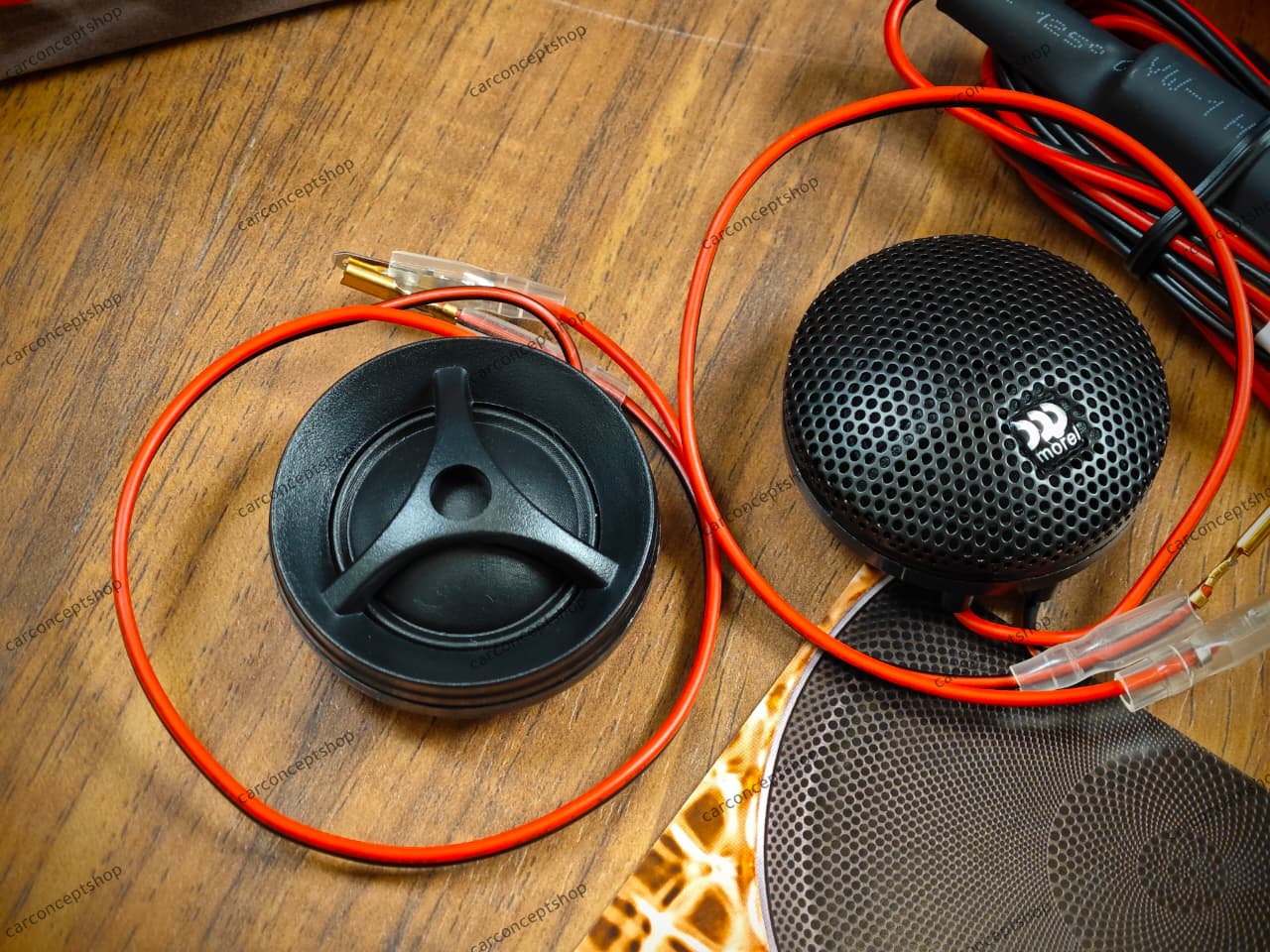

Morel Maximo Ultra MKII 1-Inch High-Efficiency Silk Dome Tweeters
Product Overview
Elevate your in-car audio experience with the Morel Maximo Ultra MKII 1-inch Tweeters. Designed by the world-renowned audio engineers at Morel, these tweeters deliver crystal-clear imaging and high-frequency detail that standard factory speakers cannot match.
Featuring a Neodymium magnet and a precision-engineered 25mm (1") silk dome, these tweeters provide smooth, natural highs without harshness. With a compact 20mm mounting depth, they integrate easily into most vehicle dashboards or door panels.
Key Highlights
Exceptional Clarity
A broad frequency range of 1800Hz to 20,000Hz ensures you hear every nuance of your music, from crisp vocals to sharp instrumentals.
Powerful Performance
Capable of handling 90W RMS and up to 180W Max Transient Power, ideal for high-performance audio systems.
Premium Materials
Equipped with a high-grade Neodymium magnet system for superior efficiency and a copper voice coil for thermal stability.
Smooth Sound Profile
The soft silk dome design eliminates ear fatigue by delivering warm, balanced highs.
Compact Design
The slim 0.80" (20mm) mounting depth allows for a sleek, flush-mount installation in tight spaces.
Technical Specifications
| Specification | Details |
|---|---|
| Nominal Impedance | 4 Ohm |
| Power Handling (RMS) | 90W |
| Max Transient Power | 180W |
| Sensitivity (2.83V/1M) | 90.5dB |
| Frequency Response | 1800 - 20,000 Hz |
| Voice Coil Diameter | 25mm (1") |
| Voice Coil Wire | Copper |
| Magnet System | Neodymium |
| Mounting Depth | 20.00mm (0.80") |
Warranty & Support
- Brand Warranty: 1 Year Manufacturer Warranty included.
- Authenticity: 100% Genuine Morel Product.
Frequently Asked Questions (FAQ)
Q: Can I connect these tweeters directly to my car stereo without a crossover or capacitor?
A: No. Connecting raw full-range power directly to a tweeter will damage its delicate voice coil. You must run them through a high-pass crossover filter (passive capacitor/crossover network or active DSP set to a high-pass cutoff at or above $3,500\text{ Hz}$).
Q: What is the benefit of a silk dome tweeter compared to metal dome tweeters?
A: Silk dome tweeters produce a warmer, smoother sound profile. Metal (aluminum/titanium) domes can sound harsh or fatiguing at high volume, whereas silk dampens sharp resonance peakiness for a natural listening experience.

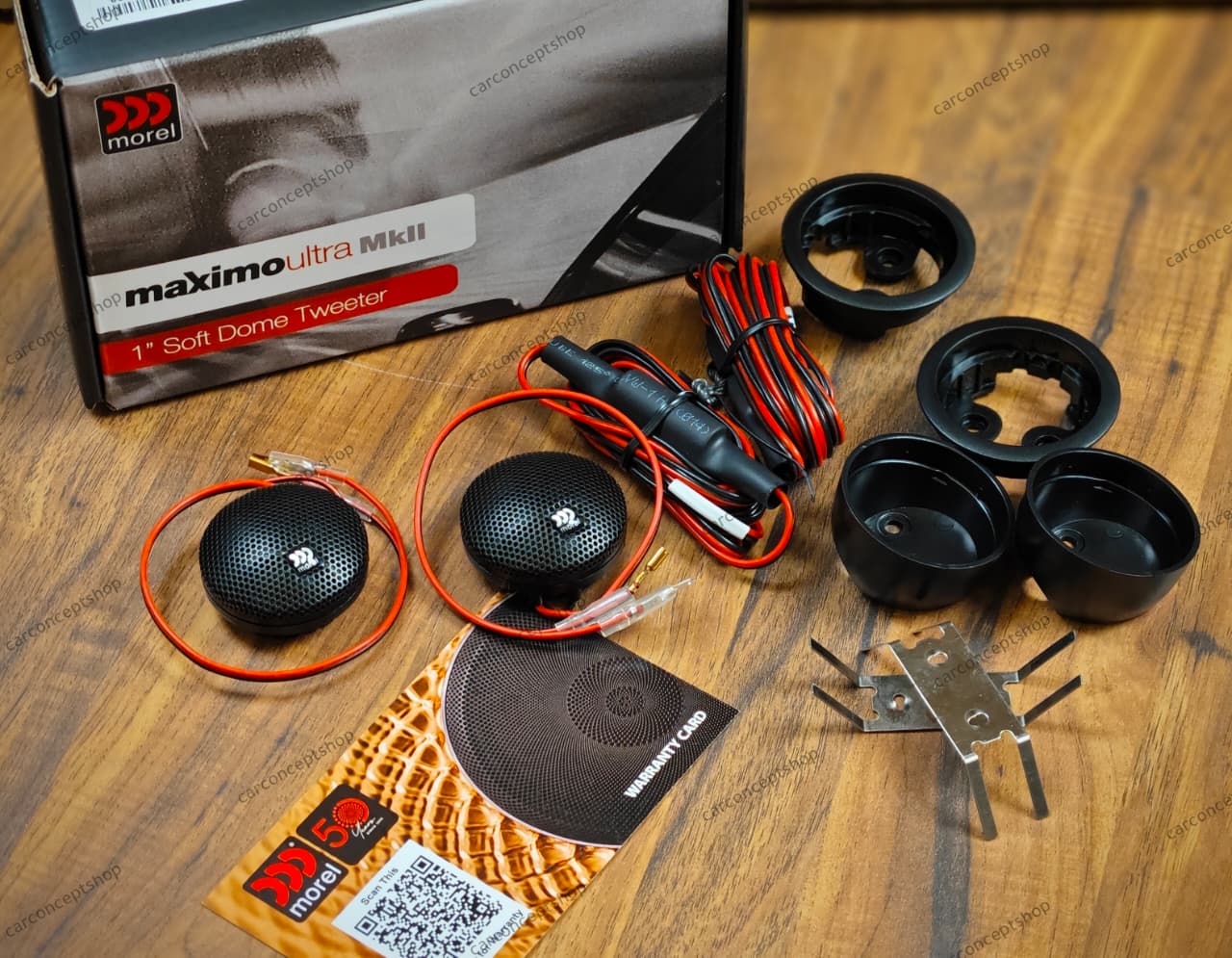

Q: Do these tweeters come with mounting hardware?
A: Yes! The Morel Maximo Ultra MKII pair includes both flush-mount cups and surface/angled mounting pods to ensure optimal placement and aiming on your dashboard or A-pillars.
Product Overview
Elevate your in-car audio experience with the Morel Maximo Ultra MKII 1-inch Tweeters. Designed by the world-renowned audio engineers at Morel, these tweeters deliver crystal-clear imaging and high-frequency detail that standard factory speakers cannot match.
Featuring a Neodymium magnet and a precision-engineered 25mm (1") silk dome, these tweeters provide smooth, natural highs without harshness. With a compact 20mm mounting depth, they integrate easily into most vehicle dashboards or door panels.
Key Highlights
Exceptional Clarity
A broad frequency range of 1800Hz to 20,000Hz ensures you hear every nuance of your music, from crisp vocals to sharp instrumentals.
Powerful Performance
Capable of handling 90W RMS and up to 180W Max Transient Power, ideal for high-performance audio systems.
Premium Materials
Equipped with a high-grade Neodymium magnet system for superior efficiency and a copper voice coil for thermal stability.
Smooth Sound Profile
The soft silk dome design eliminates ear fatigue by delivering warm, balanced highs.
Compact Design
The slim 0.80" (20mm) mounting depth allows for a sleek, flush-mount installation in tight spaces.
Technical Specifications
| Specification | Details |
|---|---|
| Nominal Impedance | 4 Ohm |
| Power Handling (RMS) | 90W |
| Max Transient Power | 180W |
| Sensitivity (2.83V/1M) | 90.5dB |
| Frequency Response | 1800 - 20,000 Hz |
| Voice Coil Diameter | 25mm (1") |
| Voice Coil Wire | Copper |
| Magnet System | Neodymium |
| Mounting Depth | 20.00mm (0.80") |
Warranty & Support
- Brand Warranty: 1 Year Manufacturer Warranty included.
- Authenticity: 100% Genuine Morel Product.
Frequently Asked Questions (FAQ)
Q: Can I connect these tweeters directly to my car stereo without a crossover or capacitor?
A: No. Connecting raw full-range power directly to a tweeter will damage its delicate voice coil. You must run them through a high-pass crossover filter (passive capacitor/crossover network or active DSP set to a high-pass cutoff at or above $3,500\text{ Hz}$).
Q: What is the benefit of a silk dome tweeter compared to metal dome tweeters?
A: Silk dome tweeters produce a warmer, smoother sound profile. Metal (aluminum/titanium) domes can sound harsh or fatiguing at high volume, whereas silk dampens sharp resonance peakiness for a natural listening experience.
Q: Do these tweeters come with mounting hardware?
A: Yes! The Morel Maximo Ultra MKII pair includes both flush-mount cups and surface/angled mounting pods to ensure optimal placement and aiming on your dashboard or A-pillars.
