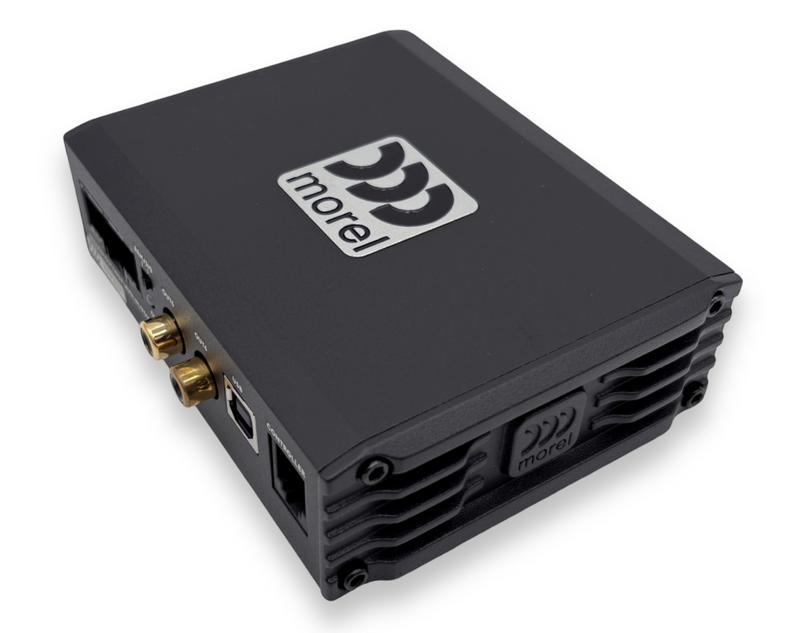

Morel MDSP 6/4A Ultra-Compact 4-Channel Class-AB Amplifier with Integrated 6-Channel High-Resolution DSP & Built-in Bluetooth

Ultra-Compact Warm Fidelity & High-Res DSP: Morel MDSP 6/4A

Product Overview

Upgrade your vehicle's factory sound system with authentic audiophile warmth using the Morel MDSP 6/4A. Combining a smooth Class-AB 4-channel power amplifier with an advanced 24-Bit / 96 kHz high-resolution 6-channel Digital Signal Processor (DSP), this micro-sized unit delivers precise sound staging, seamless OEM integration, and direct Bluetooth audio streaming.

Key Features & Highlights

• Warm Class-AB Sound Performance: Delivers 25W RMS x 4 @ 4Ω of smooth, natural Class-AB amplification, ideal for high-efficiency speakers, midranges, and tweeters.

• Integrated 6-Channel High-Res DSP: Powered by a 24-Bit / 96 kHz DSP engine featuring 31-band parametric EQ per channel, fully adjustable crossovers, and digital time alignment.

• Built-in Bluetooth Audio Streaming: Direct Bluetooth wireless connectivity built into the main unit for instant, lossless music playback directly to the DSP.

• RCA Pre-Out Expansion: Features 2 processed RCA pre-outs (Channels 5 & 6) to easily add an external monoblock amplifier for a subwoofer.

• Seamless OEM Integration: High-level 4-channel speaker inputs with signal summing and Morel’s SLAM(Speaker Load Assurance Module) keep factory head units stable.

• Micro Chassis Form Factor: Measuring just 116 mm x 90 mm x 35 mm, it fits hidden under dashboards, center consoles, or behind interior panels.

Technical Specifications

• Brand: Morel

• Series: MDSP

• Model: MDSP 6/4A

• Amplifier Topology: Class AB

• Amplified Channels: 4 Channels

• DSP Processing Channels: 6 Channels (4 Amplified + 2 RCA Pre-Outs)

• RMS Power Output @ 4 Ohm: 25 Watts x 4

• DSP Resolution: 24-Bit / 96 kHz Sampling Rate

• Frequency Response: 20 Hz – 20,000 Hz

• Signal-to-Noise Ratio (S/N): > 96 dB

• THD + Noise: < 0.2%

• Inputs: 4-Channel High-Level (Speaker) Inputs

• Wireless Connectivity: Built-in Bluetooth Audio Streaming

• Outputs: 4-Channel Speaker Level + 2-Channel RCA Low-Level Pre-Outs

• Dimensions (L x W x H): 116 mm x 90 mm x 35 mm (4.5" x 3.5" x 1.37")

Frequently Asked Questions

1. What is the Morel MDSP 6/4A and what does it do?
The Morel MDSP 6/4A combines a 4-channel Class-AB amplifier with a 6-channel high-resolution DSP, allowing you to amplify speakers and fine-tune your car audio system from one compact unit.

2. How much power does the Morel MDSP 6/4A deliver?
It delivers 25W RMS × 4 channels at 4Ω, making it suitable for efficiently driving component speakers, tweeters and midrange speakers.

3. Is the Morel MDSP 6/4A suitable for a factory/OEM car stereo?
Yes. It features 4-channel high-level speaker inputs and Morel's SLAM technology to support stable integration with compatible factory head units.

4. Does this amplifier have a built-in DSP?
Yes. It has a 6-channel, 24-bit/96kHz high-resolution DSP with advanced tuning capabilities, including parametric EQ, adjustable crossovers and time alignment.

5. Can I connect a subwoofer to the Morel MDSP 6/4A?
Yes. Its two processed RCA pre-outs can be connected to an external subwoofer amplifier, while the DSP can be used to control the subwoofer signal, EQ, crossover and time alignment.

6. Does the Morel MDSP 6/4A have Bluetooth?
Yes. Bluetooth audio streaming is built into the MDSP 6/4A, allowing compatible devices to stream audio directly to the amplifier/DSP.

7. Can I tune the DSP according to my car's acoustics?
Yes. The DSP allows detailed tuning through Morel's software, including equalization, crossover adjustment and digital time alignment. Morel provides dedicated MDSP 6/4A software and documentation.

8. Is this amplifier suitable for upgrading factory speakers?
Yes, particularly when paired with compatible high-efficiency component speakers or midrange/tweeter systems. Its compact design and OEM integration features make it useful for factory-system upgrades.

9. Is the Morel MDSP 6/4A a good choice for a compact installation?
Yes. Measuring only 116 × 90 × 35 mm, the amplifier is designed for space-constrained installations and can fit behind interior panels, under dashboards or in other concealed locations, subject to vehicle-specific installation requirements.

10. Can I use RCA inputs with the Morel MDSP 6/4A?
Yes. The amplifier provides 2-channel low-level RCA inputs in addition to its 4-channel high-level speaker inputs.

11. Does the MDSP 6/4A improve sound quality or only increase volume?
Its purpose goes beyond amplification. The integrated DSP provides control over EQ, crossovers and time alignment, allowing the system to be tuned for improved staging, tonal balance and overall listening quality.

12. Is professional installation recommended?
Yes. Because DSP configuration, OEM integration, speaker impedance, gain settings and vehicle wiring need to be correctly matched, professional car-audio installation and tuning are recommended for the best results.

13. Is the Morel MDSP 6/4A suitable for a complete premium car audio upgrade?
It can be an excellent foundation for a compact active front-stage system, especially when combined with suitable speakers and an external subwoofer amplifier. Its 6-channel DSP processing provides considerable tuning flexibility.

14. What should I check before buying this DSP amplifier?
Check your vehicle's factory audio system, speaker impedance, available installation space, required power output and whether you need an external amplifier for a subwoofer. If you're unsure about compatibility, confirm your vehicle and existing audio setup with the seller before ordering.
