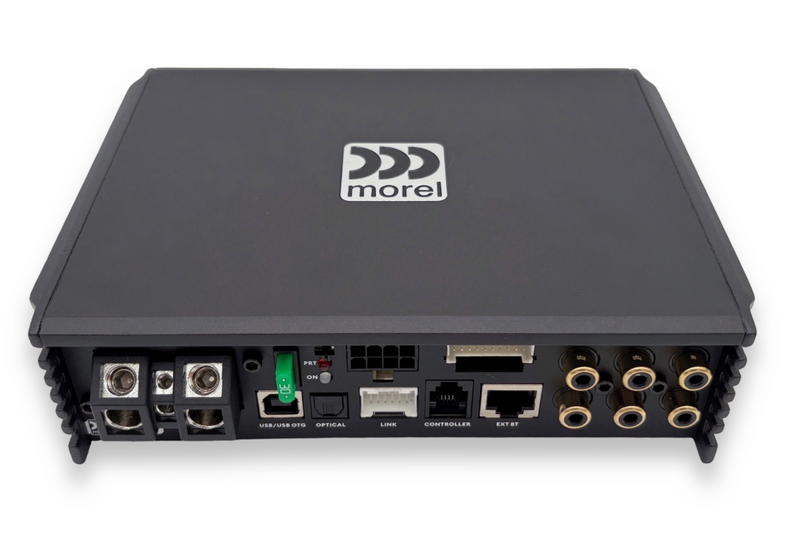

Morel MDSP 8/4A 4-Channel Class-D Amplifier with Integrated 8-Channel High-Resolution Digital Signal Processor

Ultra-Compact High-Resolution Processing & Power: Morel MDSP 8/4A

Product Overview

Transform your vehicle's factory or custom sound system with the Morel MDSP 8/4A. Combining a 4-channel Class-D power amplifier with a high-resolution 8-channel Digital Signal Processor (DSP), this unit provides precise tuning, seamless OEM integration, and clean audiophile-grade power in a compact chassis.

Key Features & Highlights

• Integrated 8-Channel High-Res DSP: Features a 24-bit / 96 kHz high-resolution sampling rate for precise time alignment, crossover network management, and equalization.

• 4-Channel Power Amplifier: Delivers clean output power (80W RMS x 4 @ 4Ω or 160W RMS x 4 @ 2Ω), with bridging support up to 160W RMS x 2 @ 2Ω.

• RCA Expansion pre-outs: Includes 4 processed RCA line outputs to send tuned audio signals to additional external amplifiers (such as a dedicated subwoofer mono amp).

• OEM Integration Assurance: Equipped with high-level speaker inputs and Morel's SLAM (Speaker Load Assurance Module) technology to work flawlessly with factory head units without error codes.

• Modern Audio Connectivity: Features Optical digital input, Bluetooth audio streaming capabilities, USB OTG support, and dedicated mobile app / PC software tuning control.

Technical Specifications

• Brand: Morel

• Series: MDSP

• Model: MDSP 8/4A

• Amplifier Type: Class D with Integrated DSP

• Amplifier Channels: 4 Amplified Channels

• DSP Channels: 8 Processed Channels (4 Amplified + 4 RCA Pre-Outs)

• RMS Power Output @ 4 Ohm: 80 Watts x 4

• RMS Power Output @ 2 Ohm: 160 Watts x 4

• Bridged Power Output @ 2 Ohm: 160 Watts x 2

• DSP Architecture: 24-Bit / 96 kHz Resolution

• Frequency Response: 10 Hz – 22,000 Hz

• Signal-to-Noise Ratio (S/N): > 100 dB

• Inputs: High-Level Speaker Inputs, RCA Low-Level, Optical Digital Input, Bluetooth / USB OTG

• Outputs: 4-Channel Speaker Outputs + 4-Channel RCA Pre-Outs

• Dimensions (L x W x H): 215 mm x 135 mm x 45 mm

Frequently Asked Questions

1. What is the Morel MDSP 8/4A and what does it do?
The Morel MDSP 8/4A combines a 4-channel Class-D amplifier with an 8-channel DSP, allowing you to amplify speakers while digitally tuning EQ, crossover, time alignment, phase and soundstage from one compact unit.

2. How much power does the Morel MDSP 8/4A provide?
It delivers 80W RMS × 4 channels at 4 ohms and can be bridged for higher output. This makes it suitable for powering a front and rear speaker setup with controlled, clean amplification.

3. Can I use the MDSP 8/4A with my car's factory stereo?
Yes. The amplifier is designed for OEM/factory integration and supports high-level speaker inputs, making it suitable for many factory head-unit systems without necessarily replacing the original stereo.

4. Does the Morel MDSP 8/4A include a built-in DSP?
Yes. It has an integrated 8-channel DSP, giving you detailed control over your car audio system without needing a separate external DSP processor.

5. What can I adjust using the Morel DSP software?
The DSP software provides tuning functions such as parametric EQ, time alignment, crossover configuration and other signal-processing controls, allowing the system to be matched to your speakers and vehicle acoustics.

6. Do I need a laptop or computer to tune the MDSP 8/4A?
Yes. Morel specifies that the MDSP amplifier should be connected to a PC or laptop through USB and configured using Morel's MDSP software to unlock its full tuning capabilities.

7. Can the Morel MDSP 8/4A improve the sound of factory speakers?
It can significantly improve system control and amplification, but the final result depends on your speakers, head unit, installation and tuning. It is particularly useful when you want more precise control over a factory-integrated audio system.

8. Can I connect a subwoofer to the Morel MDSP 8/4A?
The MDSP 8/4A provides DSP-controlled outputs and can be configured for different system layouts. Whether it is the right choice for your particular subwoofer depends on the subwoofer's impedance, power requirements and the complete system configuration. Professional tuning is recommended for complex setups.

9. Can the MDSP 8/4A be used with aftermarket speakers?
Yes. Its combination of four amplified channels and extensive DSP control makes it suitable for upgraded component or coaxial speaker systems. Proper gain, crossover and impedance matching should be confirmed before installation.

10. Is the Morel MDSP 8/4A suitable for an audiophile car audio setup?
Yes. Its 24-bit/96kHz processing, low distortion, high signal-to-noise performance and detailed DSP tuning capabilities make it a strong option for enthusiasts seeking precise sound reproduction and system control.

11. Does it support time alignment?
Yes. Time alignment is one of the key DSP functions, allowing the installer to compensate for differences in speaker-to-listener distances and improve stereo imaging and soundstage positioning.

12. Is the Morel MDSP 8/4A compact enough for a car installation?
Yes. The amplifier has a relatively compact footprint of approximately 7.08 × 2.03 × 5.50 inches, making it easier to integrate into installations where space is limited.

13. Can the MDSP 8/4A work with a start-stop vehicle?
Yes. The MDSP 8/4A is specified as being compatible with start-stop vehicle systems, which is useful for many modern cars.

14. Does it support Bluetooth music streaming?
Bluetooth functionality is available through an optional MDSP Bluetooth module, rather than being the standard built-in feature of the MDSP 8/4A.

15. Is professional installation recommended for the Morel MDSP 8/4A?
Yes. Because this is an amplifier and advanced DSP processor, professional installation and tuning are recommended. Correct wiring, gain structure, crossover settings and time alignment can make a major difference to sound quality.

16. What wiring kit do I need for the MDSP 8/4A?
An appropriate amplifier wiring setup is required, and an 8-gauge power and ground cable is recommended by available product specifications. Wiring and installation hardware may need to be purchased separately.

17. Is the Morel MDSP 8/4A suitable for upgrading a complete car audio system?
Yes. It can be a strong foundation for a system combining upgraded speakers with DSP-based tuning. For larger systems involving multiple amplifiers or dedicated subwoofer amplification, your installer should design the complete signal and power architecture before purchase.

18. Who should buy the Morel MDSP 8/4A?
It is best suited to car-audio enthusiasts who want amplification and advanced DSP tuning in one compact unit, particularly those upgrading an OEM system or building a more precisely tuned aftermarket audio setup.
