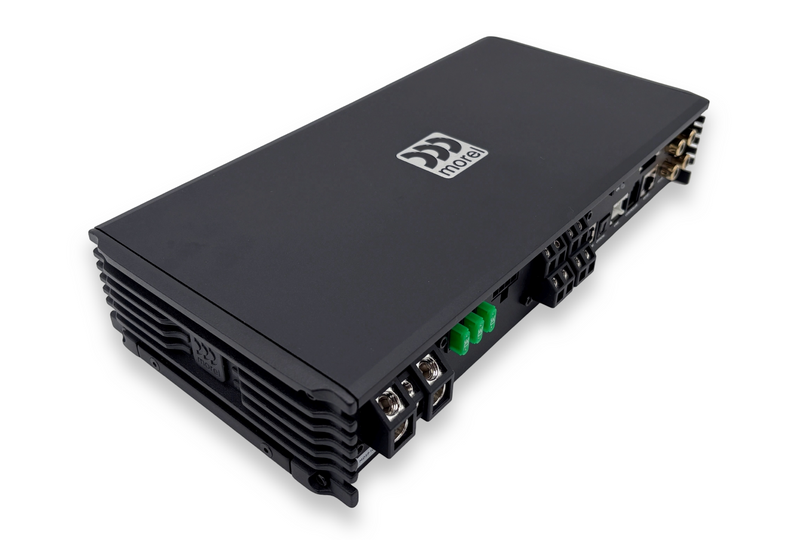

Morel MDSP 8/6A 6-Channel High-Output Class-D Amplifier with Integrated 8-Channel High-Resolution Digital Signal Processor

High-Power Asymmetric Output & 8-Ch DSP: Morel MDSP 8/6A

Product Overview

Take your vehicle's audio system to competition levels with the Morel MDSP 8/6A. Combining an asymmetric 6-channel Class-D power amplifier with a high-resolution 8-channel Digital Signal Processor (DSP), this unit offers high dynamic range, precise time alignment, and flexible active system configurations.

Key Features & Highlights

• Integrated 8-Channel High-Res DSP: Features a 24-bit / 96 kHz high-resolution sampling rate for precise parametric EQ adjustments, active crossover filtering, and time alignment.

• Asymmetric 6-Channel Power Output: Delivers high output power (80W RMS x 2 + 160W RMS x 4 @ 4Ω), making it perfect for active 3-way setups or driving tweeters, midranges, and powerful mid-bass woofers.

• High-Output Bridging: Channels 3 to 6 can be bridged down to 2 Ohms to deliver up to 320W RMS x 2 @ 2Ωfor high-power woofers.

• RCA Pre-Out Expansion: Includes 2 processed RCA line outputs (Channels 7 & 8) to seamlessly feed tuned audio signals to an external subwoofer monoblock amplifier.

• OEM Integration & SLAM Technology: Equipped with 8 high-level speaker inputs and Morel's SLAM (Speaker Load Assurance Module) technology to prevent factory head unit error codes.

• Digital & Wireless Connectivity: Features Optical digital input, USB OTG, optional Bluetooth streaming, and DRC Connect remote compatibility.

Technical Specifications

• Brand: Morel

• Series: MDSP

• Model: MDSP 8/6A

• Amplifier Type: Class D with Integrated DSP

• Amplifier Channels: 6 Amplified Channels

• DSP Processing Channels: 8 Processed Channels (6 Amplified + 2 RCA Pre-Outs)

• RMS Power Output @ 4 Ohm: 80 Watts x 2 + 160 Watts x 4

• RMS Power Output @ 2 Ohm: 160 Watts x 4 (Channels 3–6)

• Bridged Power Output @ 2 Ohm: 320 Watts x 2 (Channels 3–6)

• DSP Resolution: 24-Bit / 96 kHz Sampling Rate

• Frequency Response: 20 Hz – 20,000 Hz

• Signal-to-Noise Ratio (S/N): > 98 dB (A-weighted)

• THD + Noise: < 0.03%

• Inputs: 8-Ch High-Level Speaker Inputs, 2-Ch RCA Low-Level, 1 Optical, 1 USB OTG

• Bluetooth: Optional

• DRC Connect Support: Yes (Optional Remote Controller)

• Outputs: 6-Channel Speaker Output + 2-Channel RCA Low-Level Pre-Outs

• Dimensions (L x W x H): 275 mm x 136 mm x 51.6 mm (10.82" x 5.3" x 2.03")

Frequently Asked Questions

1. What is the Morel MDSP 8/6A amplifier?
The Morel MDSP 8/6A is a compact Class D car amplifier with 6 amplified channels and an integrated 8-channel DSP, designed for advanced OEM and aftermarket car-audio upgrades.

2. How many speakers can the Morel MDSP 8/6A power?
It provides 6 amplified speaker outputs, while its 8-channel DSP allows flexible signal processing and system configuration for complex speaker setups.

3. Can I use the Morel MDSP 8/6A with my factory car stereo?
Yes. The amplifier is designed for factory integration and includes 8 high-level speaker inputs, making it suitable for many OEM audio systems without replacing the factory head unit.

4. Can I use it with an aftermarket head unit?
Yes. The MDSP 8/6A supports low-level RCA, optical and USB inputs in addition to high-level inputs, giving installers flexibility when working with aftermarket systems.

5. What is the power output of the Morel MDSP 8/6A?
At 4 ohms, it delivers 80W RMS × 2 + 160W RMS × 4. Channels 3–6 can also support higher-power configurations depending on impedance and setup.

6. What does the built-in 8-channel DSP do?
The DSP lets you fine-tune your car audio using features such as EQ, time alignment, crossover adjustment, polarity/phase correction and input/output configuration.

7. Can the DSP improve the soundstage and speaker imaging?
Yes. Proper DSP tuning can help correct timing and frequency-response issues, allowing installers to improve soundstage, imaging, tonal balance and overall clarity.

8. Is professional installation required for the Morel MDSP 8/6A?
Professional installation and DSP tuning are recommended, especially for OEM integration or multi-speaker systems. Correct wiring, gain settings, crossover points and time alignment are important for getting the best performance.

9. How is the Morel MDSP 8/6A tuned?
The amplifier is configured using Morel MDSP software through a PC/laptop connection. The software provides access to the amplifier's DSP tuning functions.

10. Does the Morel MDSP 8/6A support Bluetooth?
Bluetooth functionality is available through an optional Morel Bluetooth module, rather than being standard built-in Bluetooth on the MDSP 8/6A.

11. Can I connect a subwoofer to the Morel MDSP 8/6A?
The DSP and channel configuration provide flexibility for different system designs, but the correct subwoofer connection depends on the speaker impedance, available channels and overall system configuration. Professional system matching is recommended.

12. Does it support high-resolution audio?
Yes. The MDSP 8/6A uses a 24-bit/96kHz DSP sampling rate, supporting high-resolution digital signal processing.

13. Is the Morel MDSP 8/6A suitable for premium car audio upgrades?
Yes. Its combination of multi-channel amplification, high-resolution DSP, flexible inputs and detailed tuning controls makes it well suited to OEM upgrades and advanced custom car-audio systems.

14. Do I need to replace my factory head unit to install this amplifier?
Not necessarily. Its high-level inputs and OEM-integration features are specifically designed to work with factory audio systems, so replacing the head unit may not be required.

15. What should I check before buying the Morel MDSP 8/6A?
Check your vehicle's factory/aftermarket audio configuration, speaker impedance, available installation space, required wiring and desired speaker layout. If you're unsure, provide your car model and existing audio setup to the seller for compatibility guidance.
