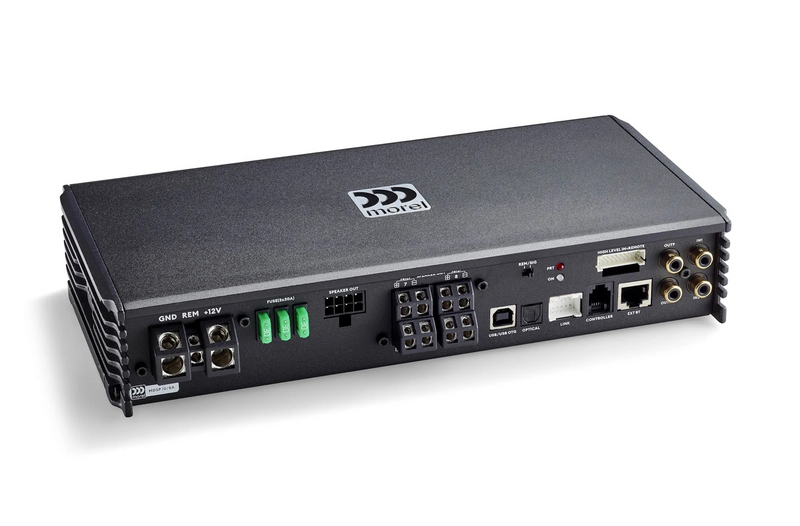

Morel MDSP8/10A 8-Channel Class-D High Power Car Amplifier with Integrated 10-Channel DSP

Flagship Power & Audiophile Processing: Morel MDSP8/10A

Product Overview

Transform your vehicle's sound stage with the Morel MDSP8/10A. Featuring an asymmetric 8-channel Class-D output design paired with a high-resolution 10-channel Digital Signal Processor (DSP), this flagship amplifier produces up to 960W RMS total power. Built with premium audiophile components like WIMA capacitors, high-voltage speaker level inputs, and SLAM OEM integration technology, the MDSP8/10A delivers precise time alignment, dynamic clarity, and effortless multi-channel control.

Key Features & Highlights

• Asymmetric 8-Channel High Power: Delivers 80W RMS x 4 + 160W RMS x 4 @ 4Ω or 160W RMS x 4 @ 2Ω, making it ideal for running active 3-way/4-way speaker systems.

• 320W Bridged Output: High-power channels (5–8) bridge down to 320W RMS x 2 @ 2Ω/4Ω to drive heavy mid-bass woofers or subwoofers.

• Integrated 10-Channel High-Res DSP: Engine operating at 24-Bit / 96 kHz for 31-band parametric EQ, adjustable crossover networks, and digital time alignment.

• SLAM Technology for OEM Integration: Features Speaker Load Assurance Module (SLAM) on high-level inputs to ensure smooth, error-free interfacing with factory head units.

• Expandable 2-Channel Pre-Outs: Includes 2 processed RCA line outputs (Channels 9 & 10) to control an additional external monoblock amplifier.

• Advanced Connectivity: Features High-Level speaker inputs, Low-Level RCA, Optical Digital Input, USB-DAC, and support for Bluetooth streaming & DRC remote controller.

Technical Specifications

• Brand: Morel

• Model: MDSP8/10A (MDSP 10/8A)

• Amplifier Class: Class-D

• Amplified Channels: 8 Channels

• DSP Processing Channels: 10 Channels (8 Amplified + 2 RCA Pre-Outs)

• RMS Power Output @ 4 Ohm: 80 Watts x 4 + 160 Watts x 4

• RMS Power Output @ 2 Ohm: 160 Watts x 4

• Bridged Power Output: 320 Watts x 2

• M.R.P.: ₹1,09,990/-

• DSP Resolution: 24-Bit / 96 kHz Sampling Rate

• Frequency Response: 20 Hz – 20,000 Hz

• Signal-to-Noise Ratio (S/N): > 98 dB

• THD + Noise: ≤ 0.03%

• Inputs: 8-Ch High-Level, RCA Low-Level, Optical Digital Input, USB OTG

• Outputs: 8-Channel Speaker Outputs + 2-Channel RCA Pre-Outs

• Dimensions (L x W x H): 275 mm x 136 mm x 51.6 mm

Frequently Asked Questions

1. What is the Morel MDSP8 10A used for?
The Morel MDSP8 10A is designed to upgrade a car's audio system by combining multi-channel Class D amplification with advanced DSP processing for better power, clarity, staging, and sound tuning.

2. Does the Morel MDSP8 10A have a built-in DSP?
Yes. It combines an integrated amplifier with a 10-channel DSP, allowing detailed control over your vehicle's audio system without requiring a separate DSP processor.

3. How many speakers can the Morel MDSP8 10A power?
The amplifier provides 8 amplified channels while the DSP architecture provides 10 controlled output channels, allowing flexible configurations for speakers and additional audio components.

4. Can I use this amplifier with my factory car stereo?
Yes. The Morel MDSP platform is designed for factory/OEM integration and supports high-level speaker inputs, making it suitable for many vehicles with factory head units.

5. Can the DSP be tuned according to my car's speakers and setup?
Yes. Morel DSP software provides detailed tuning capabilities, including parametric EQ and other audio adjustments, allowing the system to be configured according to your speakers, vehicle and listening preferences.

6. What is the advantage of having an amplifier and DSP in one unit?
An all-in-one DSP amplifier can simplify installation by combining amplification and signal processing in one chassis. It also gives you greater control over speaker levels, equalization and overall sound staging.

7. Is the Morel MDSP8 10A suitable for a premium car audio upgrade?
Yes. Its multi-channel amplification and advanced DSP capabilities make it particularly suitable for sound-quality-focused builds where precise tuning and control are important.

8. Can I connect a subwoofer to the Morel MDSP8 10A?
The DSP's multiple outputs allow different system configurations, including dedicated channels for additional audio components. The exact subwoofer setup should be planned according to the required power and speaker impedance.

9. Does it work with aftermarket speakers?
Yes. It can be integrated into upgraded car audio systems using compatible aftermarket speakers. Proper gain, crossover and DSP tuning should be performed according to the speakers being installed.

10. Is professional installation recommended for this DSP amplifier?
Yes. Because DSP amplifiers require correct wiring, gain settings, crossover configuration and acoustic tuning, professional installation and calibration are recommended for the best results.

11. Will this amplifier make my factory car audio sound better?
It can significantly improve the control and tuning capability of a factory-based system when properly installed. DSP processing can help optimize frequency response, speaker levels and sound staging rather than simply making the system louder.

12. What should I check before buying the Morel MDSP8 10A?
Check your vehicle's factory audio configuration, speaker count, impedance, available installation space and desired system layout. If you're unsure, confirm compatibility and the required installation setup before ordering.
