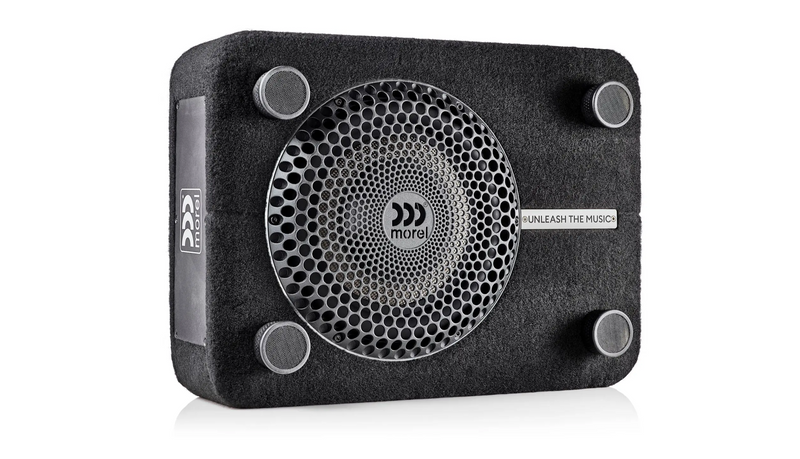

Morel Primo PSL10AE 10-Inch Ultra-Slim Active Subwoofer Enclosure with Integrated 350W Amplifier & Lotus Aluminum Grille

Product Overview

Add Morel's signature audiophile-grade bass to your vehicle without sacrificing valuable trunk space with the Morel Primo PSL10AE 10-Inch Active Subwoofer Enclosure. Engineered as an all-in-one turn-key bass solution, the PSL10AE houses a precision 10-inch shallow-mount woofer mated to a high-efficiency 350-Watt internal amplifier.

Wrapped in high-durability automotive carpet and featuring Morel's iconic Lotus-pattern die-cast aluminum grille, the PSL10AE offers flexible down-firing or vertical mounting configurations with removable feet. Equipped with both high-level speaker inputs and low-level RCA inputs, plus a quick-connect power terminal, this active sub seamlessly integrates with factory OEM head units or high-end aftermarket stereos and can be removed in seconds whenever full cargo capacity is required.

Key Features & Performance Highlights

• Integrated 350W Power Amplifier: Built-in high-output digital amplifier tuned specifically to the 10-inch shallow driver for deep, controlled bass without external amp mounting.

• Ultra-Slim Convertible Enclosure Design: Low-profile housing fits easily in hatchbacks, boot spaces, or under utility decks with removable feet supporting both down-firing and vertical placement.

• Iconic Lotus Aluminum Die-Cast Grille: Heavy-duty protective metal grille features Morel's signature Lotus pattern, offering luxurious aesthetic appeal and maximum cone protection.

• High & Low-Level Input Compatibility: Connects effortlessly to factory radio speaker wires via high-level sensing inputs or aftermarket head units via low-level RCA jacks.

• Quick-Disconnect Power Harness: Heavy-duty plug-and-play power block allows quick release of the entire enclosure in seconds when extra boot space is needed.

• Variable Sound Controls: Features adjustable low-pass crossover (50Hz–200Hz) and onboard bass boost (0–6dB @ 45Hz) for precise in-cabin acoustic integration.

Technical Specifications

• Brand & Series: Morel (Primo SL Active Series)

• Model: PSL10AE (10-Inch Active Enclosure)

• Driver Diameter: 10.0-Inch (300mm) Shallow-Mount Subwoofer

• Amplifier Output Power: 350 Watts

• Operating Voltage: 10V – 16V DC

• Frequency Response: 20 Hz – 300 Hz

• Low-Pass Crossover: 50 Hz – 200 Hz (Variable)

• Bass Boost: 0 to +6 dB @ 45 Hz

• Input Sensitivity: High-Level: 0.2V – 9 VRMS | Low-Level: 0.1V – 4.5 VRMS

• Dimensions (H x W x L): 6.5” (165mm) x 13.3” (338mm) x 18.1” (460mm)

• Enclosure Type: Sealed Ultra-Slim Convertible (Down-Firing / Vertical)

Frequently Asked Questions (FAQs)

1. Does the Morel Primo PSL10AE require an external amplifier?

No. The PSL10AE is an active subwoofer enclosure featuring an integrated 350-Watt power amplifier built directly into the housing.

2. Can I connect this active subwoofer to my car's factory original music system?

Yes! The PSL10AE includes high-level speaker inputs, allowing direct connection to your factory car stereo wiring without needing external line output converters (LOC).

3. How easy is it to remove the sub when I need boot space?

It features a modular quick-connect power plug and quick RCA/speaker wire connections, allowing you to unplug and remove the entire sub enclosure in under 10 seconds.

4. What is included in the package?

The box includes 1 x Morel Primo PSL10AE Active Subwoofer Enclosure, removable mounting feet, quick-connect power harness, and user documentation.
