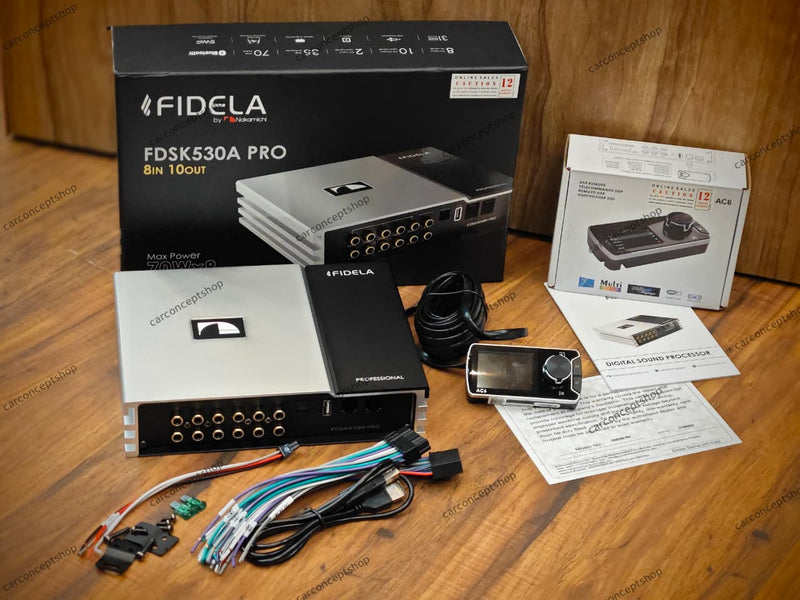

Nakamichi FDSK530A PRO 10-Channel DSP Amplifier & AC-6 HD Display Remote Package (8-In / 10-Out | 70W x 8 Built-In Amp | Optical & Coaxial Input)

Product Overview

Take complete digital command over your car audio system with the premium Fidela by Nakamichi FDSK530A PRO 10-Channel DSP Amplifier paired with the Nakamichi AC-6 HD Remote Controller. Engineered for audiophiles, active 3-way component setups, and high-end Sound Quality (SQ) builds, this package combines 8 input channels, 10 output channels, 31-band parametric EQ tuning per channel, and direct dashboard control without needing a laptop while driving. Featuring an integrated 8-channel power amplifier delivering up to 70W per channel, optical/coaxial digital inputs, high/low-level inputs, and Bluetooth audio streaming, this combo allows you to manage master volume, subwoofer levels, and sound stage presets right from your driver seat.

Key Features & Performance Highlights

• 10-Channel DSP with 31-Band Parametric EQ: Advanced digital signal processor provides precise crossover points, time alignment, phase control, and 31-band equalization across all channels for ultimate cabin acoustic tuning.

• Built-In 8-Channel Amplifier: Integrated power stage delivers up to 70W x 8 max output, efficiently driving multi-speaker setups and active component systems without requiring separate speaker amplifiers.

• Versatile Signal Connectivity: Equipped with 8 high-level OEM speaker inputs, 8 RCA inputs, 10 RCA outputs, optical digital input, coaxial input, USB music playback, and Bluetooth streaming.

• 2-Inch HD Display Remote (Nakamichi AC-6): Dashboard-mounted controller with colorful backlighting provides instant adjustment of master volume, subwoofer bass level, sound presets, and input source selection.

• Active Crossover & Multi-Preset Storage: Supports Butterworth, Bessel, and Linkwitz-Riley filter types for active 2-way or 3-way front stage setups, with memory slots to store custom listening profiles.

Technical Specifications

• Brand & Series: Fidela by Nakamichi (FDSK530A PRO)

• Package Includes: 1 Unit Nakamichi FDSK530A PRO DSP Amplifier + 1 Unit Nakamichi AC-6 Remote Controller

• DSP Processing Architecture: 8-Channel Input / 10-Channel Output

• Built-In Amplifier Output: 35W RMS x 8 / Up to 70W Peak x 8 (at 4 Ohms)

• Equalizer Type: 31-Band Parametric EQ per channel (1 Hz fine resolution)

• Digital Inputs: Optical Digital Input, Coaxial Input & USB Lossless Playback

• Wireless Connectivity: Built-in Bluetooth Audio Streaming & Smartphone App Tuning

• Pre-Out Channels: 10 Low-Level RCA Outputs for external multi-channel or monoblock amplifiers

• Remote Display: 2-Inch HD Screen with RJ9 Cable Connection (Approx. 4.9m length)

Frequently Asked Questions (FAQs)

1. What is the main advantage of the Nakamichi FDSK530A PRO over lower-channel DSP amplifiers?

The FDSK530A PRO offers 8 input channels and 10 output channels. This allows you to run complex active setups (such as a 3-way front component stage + rear fill + subwoofers) with dedicated time alignment and 31-band EQ control for every single speaker driver.

2. Can I install this Nakamichi DSP amplifier with a stock factory infotainment system?

Yes. The FDSK530A PRO features 8 high-level speaker inputs, allowing seamless plug-and-play integration with factory car stereos and OEM head units without needing external line-output converters.

3. What functions can I adjust using the AC-6 Remote Controller while driving?

The AC-6 remote allows you to adjust master volume, isolate and control subwoofer bass output, switch between saved EQ sound presets, and toggle input sources (Bluetooth, Optical, USB, High-Level) directly from your dashboard.

4. What components are included inside the package?

The complete package includes 1 x Nakamichi FDSK530A PRO DSP Amplifier unit, 1 x Nakamichi AC-6 Remote Controller with RJ9 connection cable, main power harness connector, USB tuning cable, user manual, and warranty documentation.
