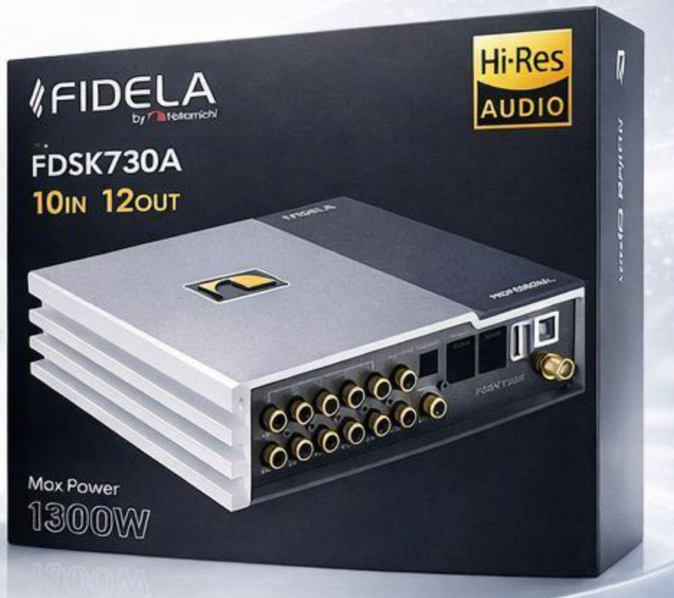

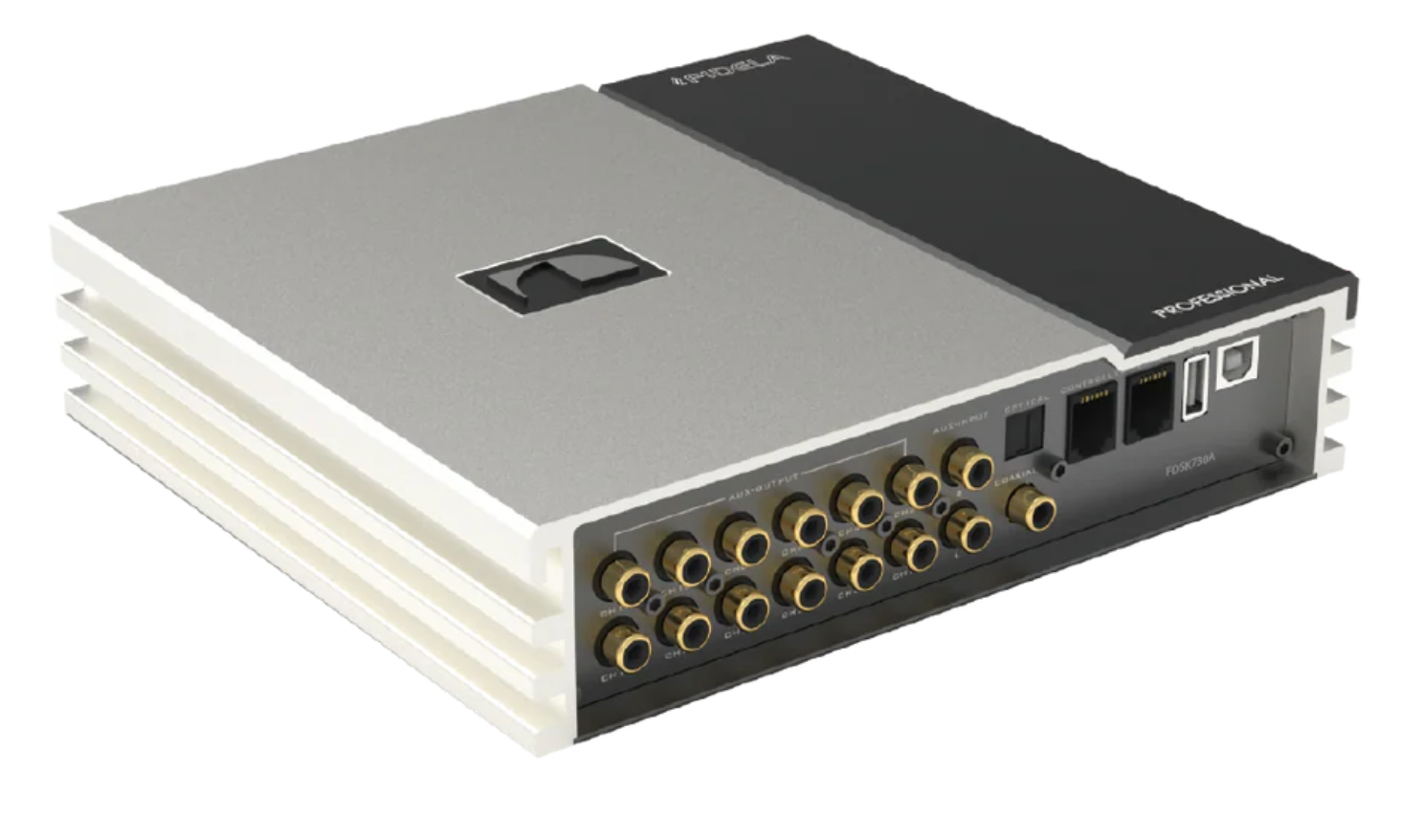

Nakamichi FDSK730A PRO Fidela Series 12-Channel Flagship Hi-Res DSP with Built-in 10-Channel Amplifier

Product Overview

Experience the pinnacle of automotive audio with the Nakamichi FDSK730A PRO. As the elite powerhouse of the Fidela Series, this Digital Signal Processor (DSP) is designed for extreme audiophile installations. With a massive 12-channel output and a sophisticated 10-channel high-power amplifier, the FDSK730A PRO gives you the power to manage complex 4-way active front stages, rear fill, and dual subwoofers—all from a single, high-performance unit.

Built for those who refuse to compromise, this "PRO" version offers higher current stability and superior internal components to deliver a wider, more transparent soundstage.

Key Features:

• Flagship Connectivity: Features 10-channel high-level inputs and 12-channel RCA outputs, making it the most versatile processor in the Nakamichi lineup.

• High-Output Hybrid Power: Delivers a versatile power configuration of 8 x 50W + 2 x 120W, providing high-current drive for mid-bass drivers while ensuring delicate clarity for mid-ranges and tweeters.

• Ultra Hi-Res Processing: Supports a massive frequency range of 20Hz – 40KHz, capturing every micro-detail of high-fidelity FLAC, WAV, and DSD files.

• Studio-Grade Tuning: Independent 31-band parametric and graphic EQ for each of the 12 channels. Fine-tune your crossovers with slopes up to 48dB/Oct using Linkwitz-Riley, Butterworth, or Bessel filters.

• Bridgeable Channels: High-power channels can be bridged to deliver up to 240W RMS, allowing you to power a high-end subwoofer directly without an external mono-block.

• Lossless Source Management: Features Optical and Coaxial digital inputs, along with high-speed Bluetooth V5.1 for the cleanest possible signal transfer.

Technical Specifications:

• DSP Type: 10-In / 12-Out Digital Sound Processor

• RMS Power Output: 8 x 50W + 2 x 120W (Bridgeable up to 240W)

• Frequency Response: 20Hz – 40KHz

• Signal-to-Noise Ratio: ≥100dB

• T.H.D: ≤0.01%

• Inputs: 10-Channel High Level, 2-Channel Low Level (RCA), Optical, Coaxial

• Outputs: 12-Channel Low Level (RCA), 10-Channel High Level

• Time Alignment: 0 to 20ms (0.01ms steps) for laser-accurate imaging.

• Dimensions: 255 x 195 x 50mm

What’s in the Box?

• 1 x Nakamichi FDSK730A PRO DSP Amplifier

• Complete High-Level & Power Wiring Loom

• Professional USB Tuning Cable for PC

• Mounting Hardware & User Manual

Frequently Asked Questions

1. Is the Nakamichi FDSK730A PRO compatible with my car?

Yes. The FDSK730A PRO supports both factory and aftermarket head units through high-level, RCA, optical, and coaxial inputs, making it compatible with most vehicles.

2. Do I need a separate amplifier with this DSP?

In most installations, no. The unit includes a powerful built-in 10-channel amplifier capable of driving speakers directly, reducing the need for additional amplifiers.

3. Can this DSP power a subwoofer?

Yes. The amplifier channels can be bridged to provide up to 240W RMS output, allowing many subwoofers to run without an additional monoblock amplifier.

4. Is professional installation recommended?

Yes. Since this is a flagship 12-channel DSP designed for advanced tuning and multi-speaker setups, professional installation and tuning are strongly recommended for the best sound quality.

5. Does the product support Hi-Res audio playback?

Absolutely. It supports Hi-Res audio formats and a wide frequency range of 20Hz to 40kHz for exceptional sound detail and clarity.

6. Can the DSP be tuned according to my music preferences?

Yes. The unit provides independent 31-band EQ, time alignment, and crossover controls for every channel, allowing fully customized sound tuning.

7. Does it support Bluetooth music streaming?

Yes. The FDSK730A PRO includes Bluetooth connectivity for convenient wireless audio streaming from smartphones and other devices.

8. Is this product suitable for SQL or audiophile builds?

Yes. This flagship DSP is designed specifically for high-end SQ and audiophile installations, including active 3-way and 4-way systems with multiple subwoofers.

9. What comes in the box?

The package includes the DSP amplifier unit, wiring harness, USB tuning cable, mounting accessories, and user documentation required for installation and setup.

10. Why should I buy the Nakamichi FDSK730A PRO from Car Concepts Shop?

Purchasing from Car Concepts Shop gives you access to genuine products, expert car audio guidance, secure shipping, and support for premium installations.
