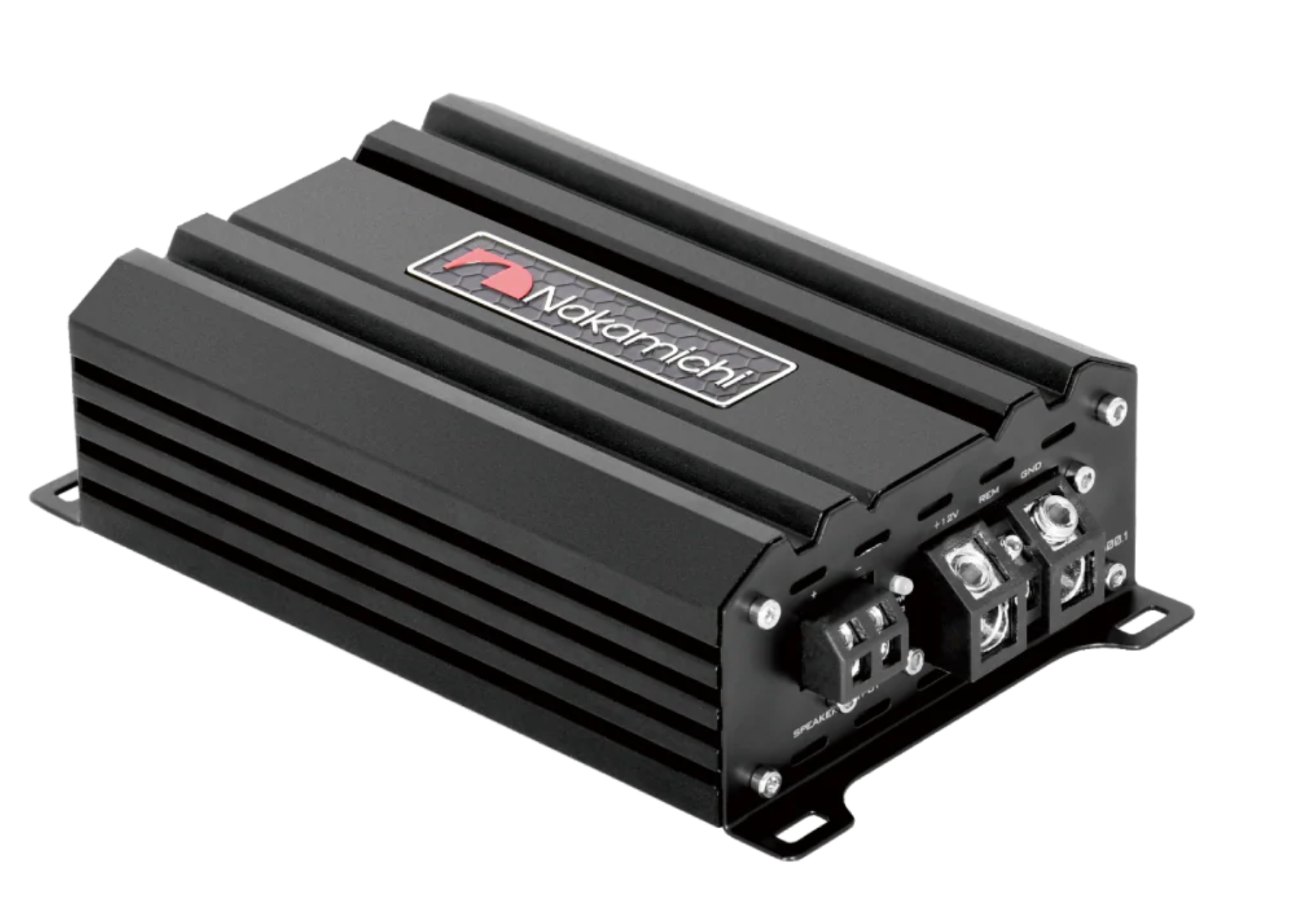

Nakamichi NHPD600.1: High-Performance 600W RMS Class-D Monoblock Amplifier

Product Overview:

The Nakamichi NHPD600.1 is a high-efficiency Class-D Monoblock amplifier designed specifically to deliver clean, raw power to your car's subwoofer system. Built with Nakamichi’s legendary precision, this amplifier ensures that your bass is not just loud, but deep, tight, and distortion-free.

Its compact footprint makes it perfect for modern car installations where space is limited, while its high-current power supply ensures it can handle demanding bass tracks without breaking a sweat.

Key Features:

• Class-D Efficiency: Advanced digital circuitry allows the amplifier to run cool even during long, high-volume sessions, providing more power with less strain on your vehicle's electrical system.

• High Power Output: Delivering 600W RMS at 1-Ohm, this monoblock is capable of driving most high-performance 10-inch and 12-inch subwoofers to their full potential.

• Precision Sound Tuning: Features adjustable Low Pass (LPF) and Subsonic filters, allowing you to tailor the bass frequencies to match your specific enclosure and subwoofer.

• Remote Bass Control: Comes with a wired bass remote knob, giving you the flexibility to adjust the bass levels directly from the driver’s seat.

• Safety & Protection: Built-in multi-way protection circuitry (thermal, overload, and short circuit) to keep your investment safe at all times.

Technical Specifications:

• Power Output (1-Ohm): 600W RMS x 1

• Power Output (2-Ohm): 400W RMS x 1

• Frequency Response: 10Hz – 250Hz

• Signal-to-Noise Ratio: ≥90dB

• Low Pass Filter: 50Hz – 250Hz

• Subsonic Filter: 10Hz – 50Hz

• Bass Boost: 0dB – 12dB

• Dimensions: Approx. 220 x 140 x 50mm

What’s in the Box?

• 1 x Nakamichi NHPD600.1 Amplifier

• 1 x Wired Bass Remote Control

• Mounting Screws & Spare Fuses

• User Manual

Frequently Asked Questions:

1. Is the Nakamichi NHPD600.1 suitable for powering a subwoofer?
Yes, this Class-D monoblock amplifier is specifically designed to power car subwoofers and delivers up to 600W RMS at 1 ohm for deep and powerful bass performance.

2. Which subwoofer sizes work best with this amplifier?
The amplifier is ideal for most high-performance 10-inch and 12-inch subwoofers, depending on their RMS power handling and impedance ratings.

3. Can this amplifier run at 1-ohm impedance safely?
Yes, the NHPD600.1 is engineered to operate safely at 1 ohm and can deliver its full 600W RMS output at that load.

4. Does the amplifier include a bass remote controller?
Yes, it comes with a wired bass remote knob, allowing you to adjust bass levels conveniently from the driver's seat.

5. Does it have built-in protection features?
Yes, the amplifier includes thermal, overload, and short-circuit protection circuits to ensure reliable operation and safeguard your investment.

6. Is this amplifier compatible with factory OEM music systems?
Yes, it can work with factory systems using suitable high-to-low converters or adapters, although RCA inputs provide the best sound quality.

7. Will this amplifier overheat during long drives?
The Class-D design offers high efficiency and lower heat generation compared to traditional amplifier designs, making it suitable for extended listening sessions.

8. What installation accessories are required?
You will typically need an amplifier wiring kit, fuse holder, RCA cables, and speaker wiring for installation.
