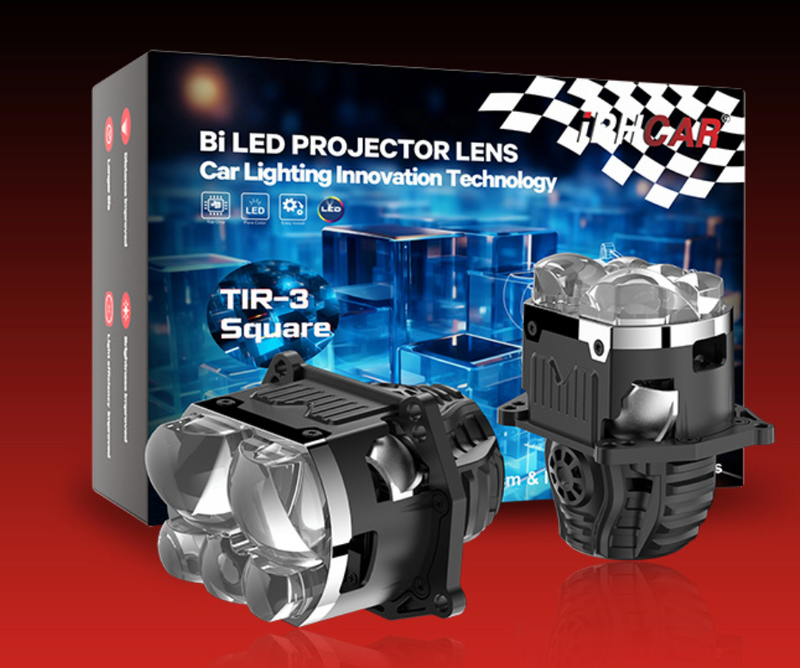

PHCAR TIR-3 Square 3-Inch Bi-LED Headlight Projector Lens (5-Lens TIR Prism Optics | Parallel Double-Cup 90W Output | Pure White 6000K)

Advanced 5-Lens Prism Lighting: IPHCAR TIR-3 Square 3-Inch Bi-LED Projector Lens

Upgrade your vehicle’s night driving capability with the IPHCAR TIR-3 Square 3-Inch Bi-LED Projector Lens. Featuring a distinctive 5-Lens Rectangular TIR (Total Internal Reflection) Prism Array combined with a Parallel Double-Cup Optical System, the TIR-3 Square delivers ultra-dense, razor-sharp cutoff light with up to 90W of high-power illumination.

Unlike standard round projectors, the 5-lens rectangular matrix focuses ambient LED output directly onto the road surface without internal reflection loss, eliminating hot spots and dead zones.

Key Features & Highlights

• 5-Lens Rectangular TIR Prism Array: Utilizes 5 specialized total-internal-reflection prism lenses arranged in a precision square/rectangular matrix for uniform light scattering and high optical efficiency.

• Parallel Double-Cup Reflective Design: Dual independent reflector cups manage low beam and high beam distribution seamlessly, providing wider road coverage and massive distance reach without beam obstruction.

• 90W High Output Performance: High-lumen LED chips generate consistent high-power output with crisp 6000K daylight-white temperature for reduced eye fatigue during long highway drives.

• Sharp Cutoff Line: Precision-engineered shield design casts a distinct flat cutoff line to prevent glare for oncoming drivers while flooding the road shoulders.

• Dual-Bearing Turbo Fan & Aviation Aluminum Housing: High-rpm dual-bearing cooling fan integrated with a heavy-duty aviation-grade aluminum heat sink keeps chip operating temperatures low for extended lifespan.

• Universal 3.0" Retrofit Compatibility: Designed to mount into standard 3.0-inch headlight housings, ideal for custom retrofit builds using threaded shaft adapters or frame mounts.

Technical Specifications & Package Contents

Product Specifications

• Lens Diameter: 3.0 Inches (Square / Rectangular Profile)

• Optical Tech: 5-Lens TIR Prism Array + Parallel Double Reflector Cup

• Power Output: 90W Peak Output (Per Pair Set)

• Color Temperature: 6000K (Pure Crisp White)

• Operating Voltage: 12V DC

• Cooling System: Dual-Bearing Turbo Cooling Fan + Aviation Aluminum Body

• Beam Modes: Integrated Solenoid Low Beam & High Beam

Package Includes

• 2 Pcs x IPHCAR TIR-3 Square 3-Inch Bi-LED Projector Lenses

• 2 Pcs x Integrated LED Control Drivers

• 1 Set x Mounting Hardware & Wiring Accessories

Frequently Asked Questions

What is the advantage of the 5-lens rectangular TIR prism optics?

The 5-lens rectangular array directs light rays through individual prism channels, capturing maximum LED diode output and reducing optical scattering compared to standard single-lens projectors.

Will the IPHCAR TIR-3 Square lens fit my car's headlights?

Yes, the 3.0-inch chassis fits standard 3-inch projector headlight retrofits. Due to the square front profile, modern custom shrouds or square bezel openings complement the design best.
