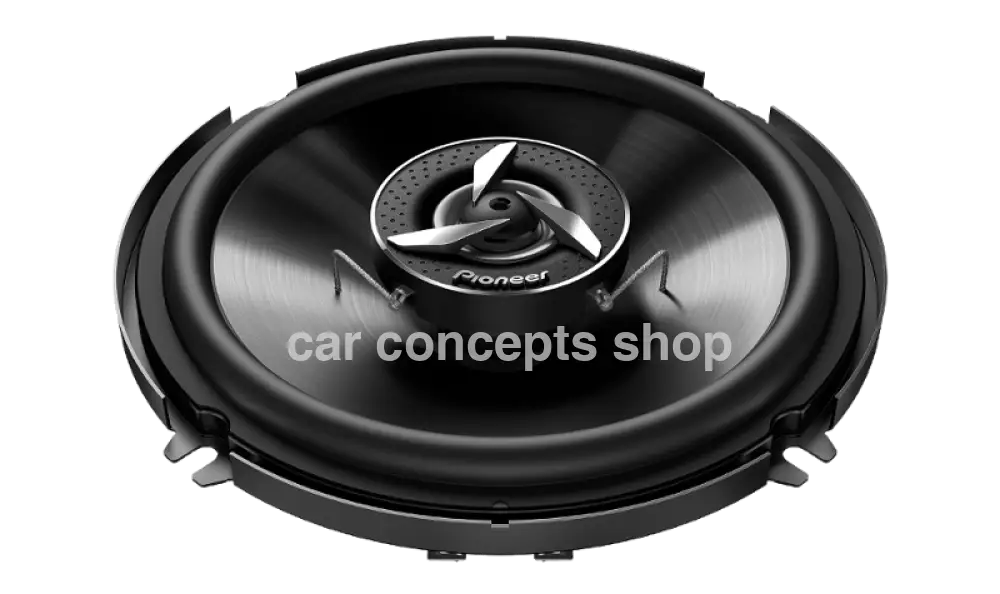

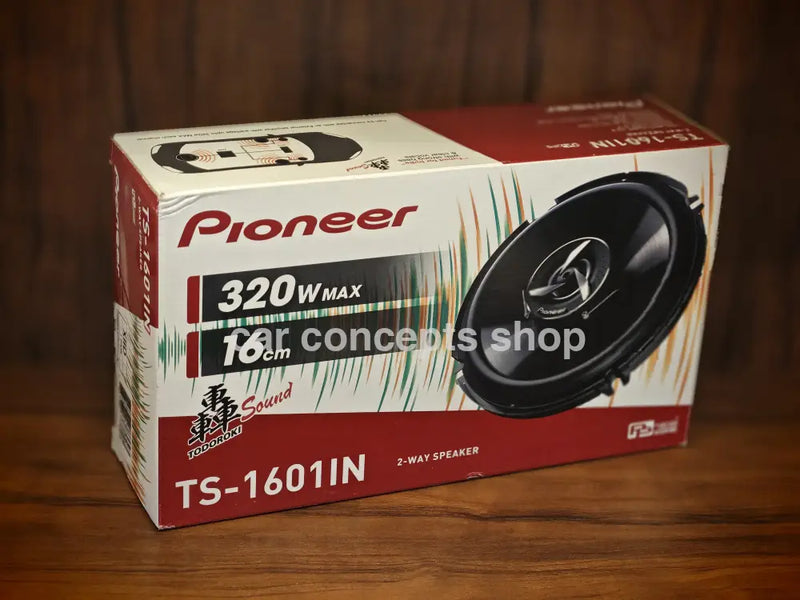

Pioneer TS-1601IN 2 Way Coaxial Speaker
Upgrade your car's audio system with the Pioneer TS-1601IN 2 Way Coaxial Speaker. With 320 watts of power, experience crystal-clear sound and immersive bass. The PIONEER technology ensures high-quality audio for an enhanced driving experience.
Type: Coaxial 2-WAY
Sound pressure level: 88dB(±1.5dB)
Frequency range: 30 Hz～35,000 Hz（－20ｄB）
Maximum power: 320W
Nominal power: 50W
Cone size: 6-1/2' (φ160mm) Cone
Impedance: 4 OHM
Cone material: High rigid IMPP Cone
Surround material: Light weight elastic polymer
TWEETER TYPE
Type: Dome
Diaphragm material: Polyimide
color: Black
INSTALLATION
Weight: 0.64 kg
Mounting depth: 53mm
Cutout hole: 128mm
Dimensions (Dia x Depth): Φ159 (mm) x 70.2 (mm)
Other features of TS-1601IN
Elastic polymer surround
Cone surround is made of elastic polymer for strong bass
Aluminum bobbin
High quality aluminium voice coil bobbin is used to safeguard from heat and prolong speaker life
Long Voice Coil
Enable large displacement. Helps in producing strong bass and High power handling.
High heat resistance
Made for Indian climatic conditions, especially extreme heat
Tweeter mounting option
Various mounting options are included in the package to install tweeter
Brand |
Pioneer |
|---|---|
Manufacturer |
Pioneer India Electronics Ltd, Tohoku pioneer vietnam co ltd, land plot G,Namura-haiphjong industrial Zone,An Hung Ward,An Duong Dist,Haiphong city, Vietnam |
Model |
TS-1601IN |
Model Name |
TS-1601IN |
Product Dimensions |
17.4 x 8.6 x 29.4 cm; 4.39 Kilograms |
Item model number |
TS-1601IN |
Mounting Hardware |
2 x Speakers, 2 x Speaker Wire, Warranty Card |
Speaker Connectivity |
Coaxial |
Wattage |
320.00 |
Batteries Included |
No |
Batteries Required |
Yes |
Manufacturer |
Pioneer India Electronics Pvt. Ltd. |
Imported By |
PIONEER India Electronics Pvt. Ltd. Unit No.3 10th Floor, Ambience Corporate Tower II,Plot No.3 Ambience Island, NH-8, Gurgaon - 122002, Haryana, India |
