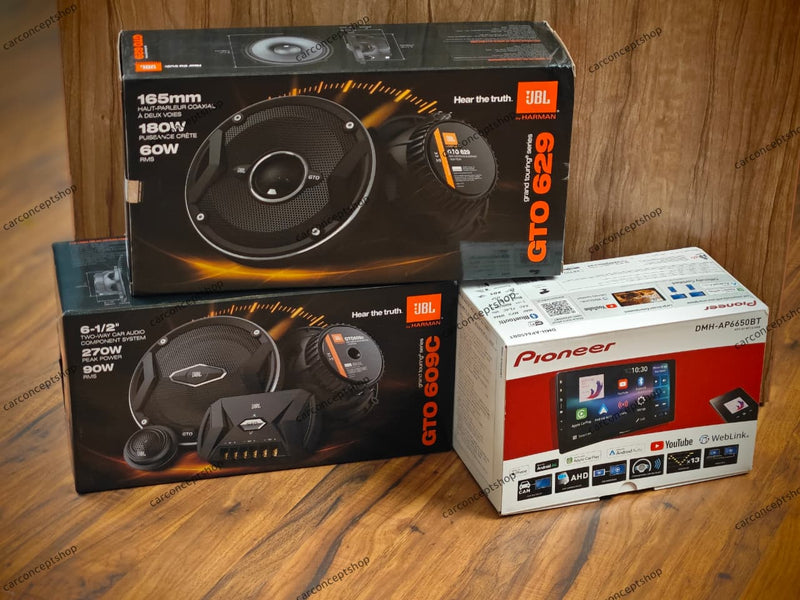

Pioneer DMH-AP6650BT 9-Inch Wireless CarPlay Touchscreen Stereo + JBL GTO 609C Component & GTO 629 Coaxial Speaker High-Performance Car Audio Upgrade Combo

Iconic Power & Punchy Clarity: Pioneer DMH-AP6650BT + JBL GTO Series Audio Combo

Product Overview

Upgrade your vehicle's factory system to one of the most legendary, high-output car audio combinations available. This master package pairs the advanced digital sound engine of the Pioneer DMH-AP6650BT 9-inch Wireless Apple CarPlay & Android Auto Touchscreen Receiver with the renowned power, deep bass, and crystal-clear highs of JBL GTO 609C 6.5" Component Speakers (Front) and JBL GTO 629 6.5" Coaxial Speakers (Rear). Engineered with JBL’s patented Plus One™ cone technology and low-impedance architecture, this system delivers unmatched dynamic volume and clarity.

What’s Included in This Master Combo

1. Pioneer DMH-AP6650BT 9-Inch Capacitive Display Touchscreen Receiver (1 Unit): Premium 9-inch high-definition WSVGA display featuring Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast screen mirroring, built-in 24-bit AKM DSP processor, 13-band graphic equalizer, and 3 high-voltage RCA pre-outs (4V).

2. JBL GTO 609C 6.5-Inch Component Speaker Set (1 Pair - Front Doors): Includes 2x 6.5" Plus One™ carbon-injected woofers, 2x edge-driven soft dome tweeters with level adjustments, and 2x computer-tuned passive crossover networks for razor-sharp front sound staging.

3. JBL GTO 629 6.5-Inch Coaxial Speaker Set (1 Pair - Rear Doors): Includes 2x 2-way coaxial drivers with integrated edge-driven soft dome tweeters and UniPivot™ directional aiming, delivering rich, full-range rear fill for all passengers.

Technical Performance & System Synergy

Patented Plus One™ Carbon-Injected Cone Technology

Both the JBL GTO 609C component set and GTO 629 coaxial drivers feature JBL's patented Plus One™ cone design. By extending the cone surface area up to 30% larger than competing speakers of the same size, these woofers move more air to deliver deeper, punchier mid-bass and higher acoustic efficiency.

Low-Impedance 3-Ohm Architecture for Maximum Output

Engineered as 3-Ohm low-impedance drivers, the JBL GTO series extracts every available watt from your head unit or external amplifier. This compensates for the thin-gauge factory wiring found in most modern vehicles, ensuring maximum volume, clarity, and dynamic punch.

Built-In 24-Bit AKM DSP Engine & Time Alignment

The Pioneer DMH-AP6650BT serves as the central brain of your setup. Powered by a 24-bit AKM sound processing chip, it features 13-band graphic equalization, digital time alignment, and active crossover adjustments, allowing you to align speaker output timing perfectly with your seating position.

Technical Specifications

Pioneer DMH-AP6650BT Head Unit

• Screen Size: 9-Inch WSVGA Capacitive Touchscreen (1024 x 600 Resolution)

• Smartphone Connectivity: Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast

• Audio DSP: Built-in 24-Bit AKM Sound Processor with 13-Band Graphic EQ & Digital Time Alignment

• Amplification: Built-in MOSFET 50W x 4 Channels

• Pre-Outs: 3 Sets High-Voltage RCA Pre-Outs (4V - Front, Rear, Subwoofer)

• Camera Integration: Rear View Camera Support & CAN-Bus Compatible

JBL GTO 609C (Front Component Pair)

• Driver Size: 6.5-Inch (165mm) 2-Way Component System

• Power Handling: 90 Watts RMS / 270 Watts Peak

• Nominal Impedance: 3 Ohms

• Frequency Response: 53 Hz – 21,000 Hz

• Sensitivity (@ 2.83V/1m): 93 dB

• Tweeter Design: Edge-Driven Soft Dome Tweeter (+0dB/-3dB Adjustment)

JBL GTO 629 (Rear Coaxial Pair)

• Driver Size: 6.5-Inch (165mm) 2-Way Coaxial System

• Power Handling: 60 Watts RMS / 180 Watts Peak

• Nominal Impedance: 3 Ohms

• Frequency Response: 53 Hz – 21,000 Hz

• Sensitivity (@ 2.83V/1m): 93 dB

• Tweeter Design: UniPivot™ Directional Edge-Driven Soft Dome

Warranty Details

• Pioneer DMH-AP6650BT Head Unit: Covered by 2 Years Official Brand Warranty against manufacturing defects and electronic hardware failures.

• JBL GTO Series Speakers: Covered by 1 Year Official Brand Warranty against manufacturing defects under proper power and installation conditions.

• Official Brand Warranty Only: All warranty claims are processed directly through authorized brand service networks using your official tax invoice.

Frequently Asked Questions

Will this Pioneer 9-inch screen and JBL GTO speaker combo fit my car?

Yes! 6.5-inch (165mm) speakers are the standard door size for nearly 90% of vehicles on Indian roads. The Pioneer DMH-AP6650BT fits universal 9-inch dashboard slots using vehicle-specific fascia frames and plug-and-play wiring harnesses without cutting original wires.

Is an external power amplifier required to run these JBL GTO speakers?

No, thanks to JBL's high-efficiency 93dB sensitivity and 3-Ohm low-impedance architecture, these speakers perform exceptionally loud and clear directly powered by the Pioneer receiver's internal MOSFET amplifier. However, adding a 4-channel power amplifier later will unlock even deeper mid-bass and higher volume headroom.

Why Choose This Iconic Pioneer & JBL Combo?

• High-Efficiency Output: Low-impedance design delivers noticeably higher volume and deeper bass compared to standard factory speakers.

• Seamless Smart Connectivity: Complete wireless Apple CarPlay and Android Auto integration on a vibrant 9-inch capacitive HD touch display.

• Durable Automotive Build: Fiberglass-reinforced ABS frames and carbon-injected cones built to withstand extreme heat and humidity cycles.

Technical Integration & Sourcing Assurance

• 100% Genuine, Authenticated Sourcing: We source directly through verified distribution channels to guarantee you receive 100% original, factory-fresh products with valid serial numbers.

• Expert System Integration Guidance: Unsure if your car requires special CAN-Bus couplers, steering wheel control interfaces, or speaker spacer rings? Our internal technical team is always ready with clear answers.
