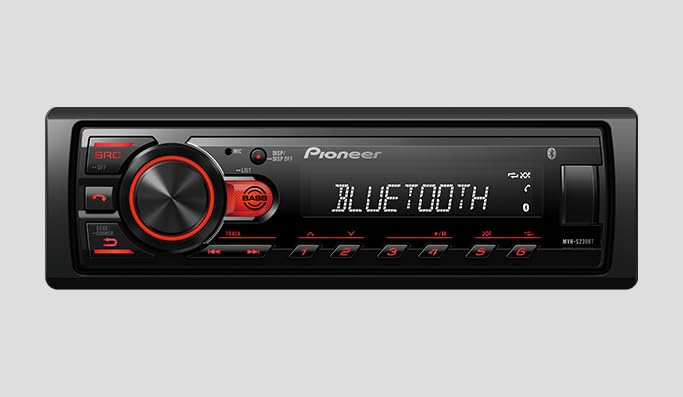

Pioneer MVH-S239bt Single Din Car Multimedia Player

Upgrade your vehicle's factory radio with the Pioneer MVH-S239BT Single-DIN Digital Media Receiver. Designed for modern drivers, this mechless head unit eliminates bulky CD drives in favor of a shallow-depth chassis that installs easily into any standard 1-DIN slot. Driven by Pioneer’s proven 50W x 4 MOSFET internal amplifier, the MVH-S239BT delivers crisp, energetic sound output with rich bass punch across all volume levels.

Unlock Full Command with Pioneer Smart Sync App

Take total control of your audio ecosystem using the Pioneer Smart Sync App on your smartphone. When connected via Bluetooth or USB, your phone's screen transforms into an interactive controller for the receiver. Access navigation maps, trigger voice assistant commands (Siri or Google Assistant), select playlists, and fine-tune advanced audio parameters—including a 13-Band Graphic Equalizer and time alignment settings—directly from your mobile display.

Seamless Hands-Free Calling & Multi-Source Playback

Safety and convenience come standard with built-in Bluetooth connectivity. Pair your phone for wireless audio streaming and clear, hands-free phone calling using the built-in microphone on the front panel. The illuminated front panel also hosts a high-current USB port (capable of 1.5A quick charging for Android devices) and a 3.5mm AUX input for direct cable connections.

Product Features & Technical Specifications

• Max Power Output: 50W x 4 MOSFET

• Continuous RMS Power Output: 22W x 4

• Bluetooth Connectivity: Hands-Free Calling (HF) & Wireless Audio Streaming

• Microphone: Integrated Built-in Microphone on Front Panel (No External Mic)

• USB Port: Front Panel USB Port (1.5A Quick Charge support for Android)

• AUX Input: 3.5mm Front Aux-In Port

• Radio Tuner: AM / FM Radio Tuner

• Equalizer & Audio Control: 5-Band Graphic Equalizer (Stand-alone) / 13-Band Graphic Equalizer (via Pioneer Smart Sync App)

• Audio Adjustments: Balance, Fader, Loudness, Direct Access Bass Boost Key

• RCA Pre-Outs: 1 Pair RCA Pre-Out (2V)

• Steering Wheel Control (SWC): No (Steering Wheel Control Not Supported)

• Illumination Color: Red Button Illumination

• Audio Decoding Formats: MP3, WMA, FLAC, WAV

Frequently Asked Questions (FAQs)

Q: Does the Pioneer MVH-S239BT play compact discs (CDs)?

A: No, the MVH-S239BT is a mechless digital media receiver without a physical CD slot. It plays audio files (such as MP3, WMA, FLAC, and WAV) wirelessly via Bluetooth, through USB flash drives, or via the front 3.5mm AUX jack.

Q: Is an external microphone included for hands-free phone calls?

A: No, the Pioneer MVH-S239BT features an integrated built-in microphone directly on the front panel, eliminating the need to install or route an external wired microphone inside the car cabin.

Q: Does this head unit support steering wheel control integration?

A: No, the Pioneer MVH-S239BT does not feature a steering wheel control (SWC) input port. If steering wheel control functionality is required, we recommend checking models with hardwired remote input support like the Pioneer DEH or S-series advanced models.

Q: What is the benefit of using the Pioneer Smart Sync App with this receiver?

A: The Pioneer Smart Sync App links your smartphone directly to the receiver. It provides a visual touch interface on your phone screen to manage voice controls, open navigation apps (like Google Maps), and unlock enhanced audio tuning options like a 13-band EQ, sound field effects, and dynamic bass extension.

Q: Can I connect an external amplifier or powered subwoofer to this unit?

A: Yes, the MVH-S239BT features 1 pair of 2V RCA pre-outs on the rear panel, allowing you to connect external multi-channel or monoblock amplifiers for driving door speakers or subwoofers.
