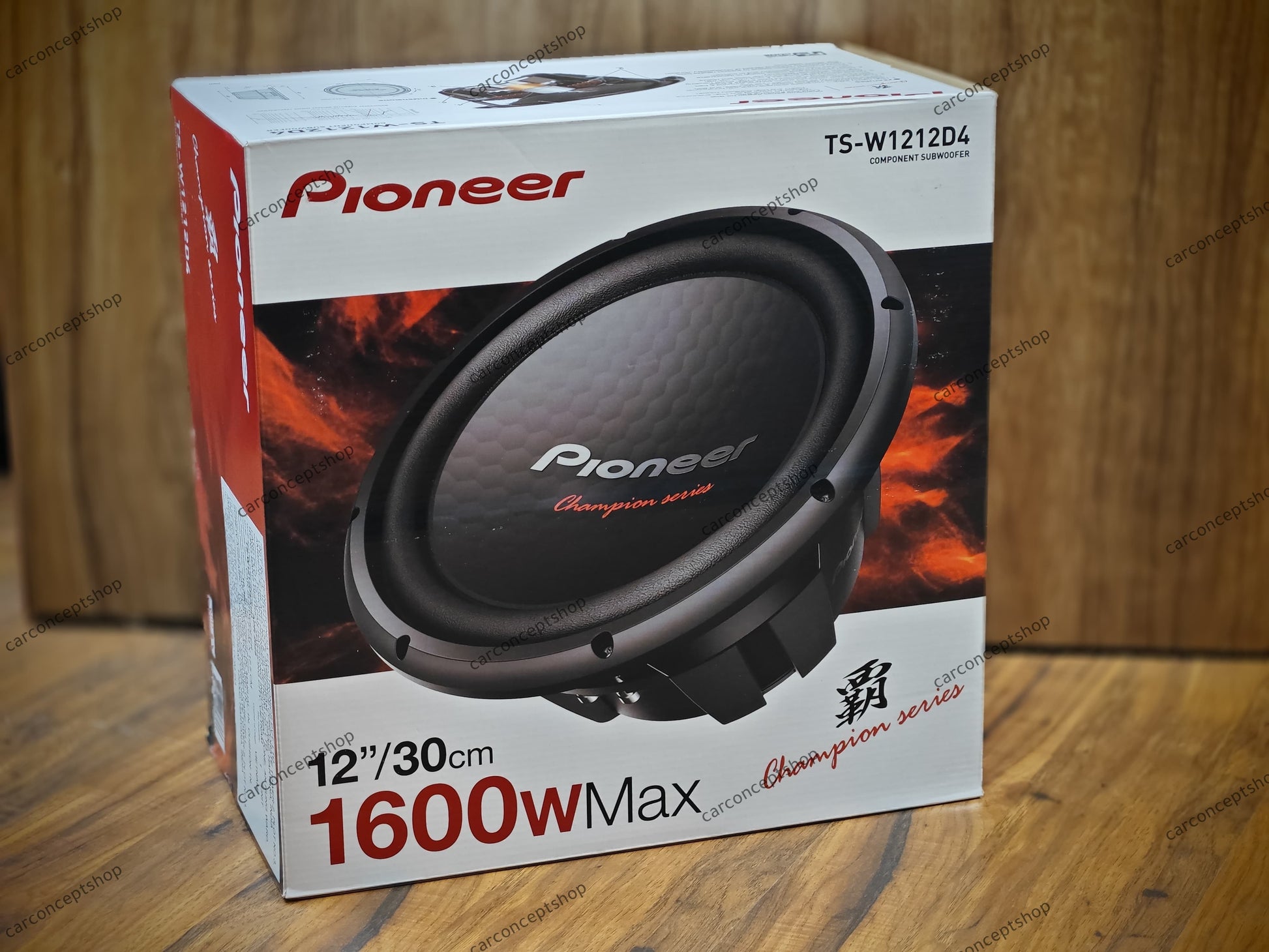

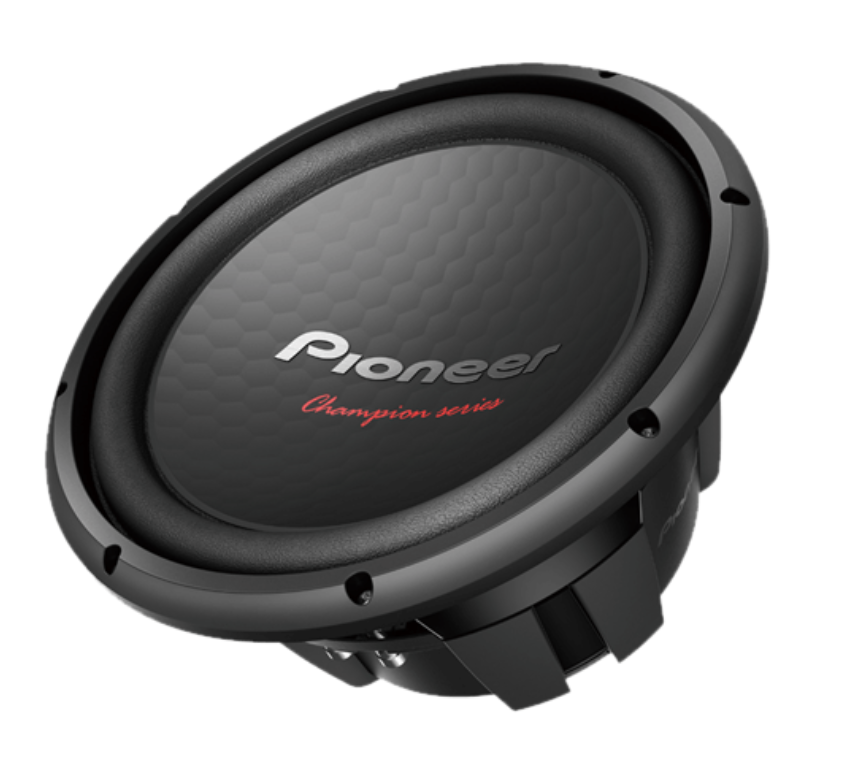

Pioneer TS-W1212D4 12 Inch Dual 4 Ohm Subwoofer – 1600W Max Power Car Audio Bass Speaker
Product Overview
The Pioneer TS-W1212D4 Champion Series 12-Inch Subwoofer is designed for car audio enthusiasts who want deep, powerful bass without compromising sound quality. Featuring a robust 1600W maximum power output, 500W RMS handling, and a dual 4-ohm voice coil design, this 12-inch subwoofer offers flexible amplifier compatibility and impressive low-frequency performance. Its rigid honeycomb cone structure, large motor assembly, and reinforced surround deliver louder, cleaner, and more controlled bass even at high volumes.
Brand: Pioneer
Model No.: TS-W1212D4
Type: Enclosure Use
Size: 12"
In the Box
- 1 x Subwoofer
- Warranty Card
- User Manual
Key Specifications
Sound Pressure Level
92 dB (±1.5 dB) in car
Frequency Range
20Hz ~ 1.6kHz (-20 dB)
Maximum Power
1600W
Nominal Power
500W
Impedance
4 ohms / Dual voice coil
Type
Enclosure Use
Woofer Specifications
Cone Size
12" (30cm) Cone
Terminal
Silver Push Terminal
Cone Material
Injection Molded PP
Color
Black
Surround Material
Dual Layer Fiber Reinforced Elastic Polymer Surround
Installation Information
Mounting Depth
157 mm
Cutout Hole
283 mm
Weight
5.9 kg (208.09 oz)
Dimensions
Φ327 (mm) x 175 (mm)
Warranty
1 Year Manufacturer's Warranty
Key Features
High Power Handling and Endurance
Dual layer, fiber reinforced elastic polymer surround. High heat resistance voice coil & large magnet with high heat dissipation.
Deeper & Louder Bass
Rigid seamless cone structure with honeycomb design cap. Double stacked large magnets for superior low-frequency output.
Heavy and High Sturdy Structure
Optimized basket and heavy magnetic circuit ensure accurate cone motion and durability.
Advanced Features
Light & Rigid Honeycomb Design Cone
Superior power transmission and stronger cone structure for louder sound.
Hybrid Surround
Firmly Enclosed Bottom Basket
Large & Powerful Motor Assembly
Frequently Asked Questions
1. Is Pioneer TS-W1212D4 a dual voice coil subwoofer?
Yes, the Pioneer TS-W1212D4 features a dual 4-ohm voice coil design, allowing multiple wiring configurations for amplifier compatibility.
2. What size is the Pioneer TS-W1212D4?
The Pioneer TS-W1212D4 is a 12-inch car audio subwoofer designed for strong low-frequency bass performance.
3. Is Pioneer TS-W1212D4 good for deep bass?
Yes, it is designed to deliver deep, powerful, and controlled bass for car audio enthusiasts.
4. Can Pioneer TS-W1212D4 be used in a sealed box?
Yes, the subwoofer can be installed in both sealed and ported enclosures depending on the desired bass response.
5. What amplifier is suitable for Pioneer TS-W1212D4?
A quality mono or multi-channel amplifier matched to the subwoofer's impedance and power requirements is recommended for optimal performance.
Product Overview
The Pioneer TS-W1212D4 Champion Series 12-Inch Subwoofer is designed for car audio enthusiasts who want deep, powerful bass without compromising sound quality. Featuring a robust 1600W maximum power output, 500W RMS handling, and a dual 4-ohm voice coil design, this 12-inch subwoofer offers flexible amplifier compatibility and impressive low-frequency performance. Its rigid honeycomb cone structure, large motor assembly, and reinforced surround deliver louder, cleaner, and more controlled bass even at high volumes.
Brand: Pioneer
Model No.: TS-W1212D4
Type: Enclosure Use
Size: 12"
In the Box
- 1 x Subwoofer
- Warranty Card
- User Manual
Key Specifications
Sound Pressure Level
92 dB (±1.5 dB) in car
Frequency Range
20Hz ~ 1.6kHz (-20 dB)
Maximum Power
1600W
Nominal Power
500W
Impedance
4 ohms / Dual voice coil
Type
Enclosure Use
Woofer Specifications
Cone Size
12" (30cm) Cone
Terminal
Silver Push Terminal
Cone Material
Injection Molded PP
Color
Black
Surround Material
Dual Layer Fiber Reinforced Elastic Polymer Surround
Installation Information
Mounting Depth
157 mm
Cutout Hole
283 mm
Weight
5.9 kg (208.09 oz)
Dimensions
Φ327 (mm) x 175 (mm)
Warranty
1 Year Manufacturer's Warranty
Key Features
High Power Handling and Endurance
Dual layer, fiber reinforced elastic polymer surround. High heat resistance voice coil & large magnet with high heat dissipation.
Deeper & Louder Bass
Rigid seamless cone structure with honeycomb design cap. Double stacked large magnets for superior low-frequency output.
Heavy and High Sturdy Structure
Optimized basket and heavy magnetic circuit ensure accurate cone motion and durability.
Advanced Features
Light & Rigid Honeycomb Design Cone
Superior power transmission and stronger cone structure for louder sound.
Hybrid Surround
Firmly Enclosed Bottom Basket
Large & Powerful Motor Assembly
Frequently Asked Questions
1. Is Pioneer TS-W1212D4 a dual voice coil subwoofer?
Yes, the Pioneer TS-W1212D4 features a dual 4-ohm voice coil design, allowing multiple wiring configurations for amplifier compatibility.
2. What size is the Pioneer TS-W1212D4?
The Pioneer TS-W1212D4 is a 12-inch car audio subwoofer designed for strong low-frequency bass performance.
3. Is Pioneer TS-W1212D4 good for deep bass?
Yes, it is designed to deliver deep, powerful, and controlled bass for car audio enthusiasts.
4. Can Pioneer TS-W1212D4 be used in a sealed box?
Yes, the subwoofer can be installed in both sealed and ported enclosures depending on the desired bass response.
5. What amplifier is suitable for Pioneer TS-W1212D4?
A quality mono or multi-channel amplifier matched to the subwoofer's impedance and power requirements is recommended for optimal performance.
