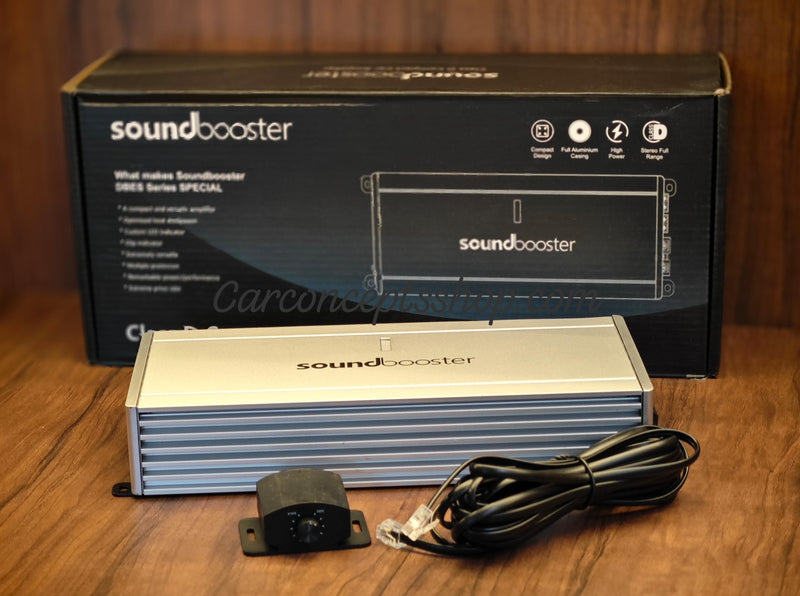

Sound Booster DBES1000.1 Mono Amplifier 1000W RMS w/ Bass controller Class D

Product Overview

The SoundBooster DBES1000.1 is a high-efficiency Class-D Monoblock Car Bass Amplifier built for audiophiles and bass enthusiasts who demand clean, high-impact low-frequency output. Capable of pounding out a massive 1000 Watts RMS at a 1-Ohm load, the DBES1000.1 delivers serious power while maintaining efficient power conversion and cool operating temperatures inside your vehicle.

Ultra-Compact, High-Efficiency Class-D Topology

Built on a double-sided FR-4 PCB with high-grade Surface Mount Devices (SMD), the DBES1000.1 offers greater than 80% power efficiency. This ensures maximum current delivery directly to your subwoofers with minimal strain on your vehicle’s battery and alternator. Its compact housing makes stealthy under-seat or trunk installs seamless.

Precision Sound Tuning & Remote Bass Knob

Achieve the perfect balance between your subs and front speakers using the onboard variable Low-Pass Filter (40–220 Hz) and adjustable Subsonic Filter (10–50 Hz). The Subsonic filter protects your subwoofers from over-excursion by eliminating useless, energy-robbing sub-audible frequencies. Plus, the included wired remote bass controller lets you dial in your bass levels directly from the driver’s seat.

Comprehensive Multi-Protection Circuitry

Engineered for reliable daily performance, the DBES1000.1 incorporates intelligent protection safeguards against low voltage (cuts off under 8V), short circuits, and thermal overload (protects at 80°C / 176°F).

Sound Booster DBES1000.1 Mono Amplifier 1000W RMS


Features:

CAR MONO BASS AMPLIFIER
1000W x 1RMS(1 OHM, 14.4)
600W x 1RMS(2 OHM,14.4)
400W x 1RMS(4 OHM,14.4)

Specification:

• LED
• Input Level:0.2-5 V
• Frequency Response:10-220 Hz
• LPF:40-220 Hz
• SubSonic Filter (HPF):10-50 Hz
• THD at 4Ohm load 30% Rated Power: <0.3%
• S/N Ratio: >80dB
• Best Efficiency @4ohm: >80%
• Minimum Load:1 Oh
• Optional Remote
• Low voltage protection:Yes, protect <8 V
• ShortCircuit Test @ max power:Pass
• Overheat protect temperature:Protect at 80/176F
• Components PCB:SMD parts/double side FR-4 pcb
• 2 RCA INPUT

1 YEAR BRAND WARRANTY

Frequently Asked Questions (FAQ)

Q: Can I run two subwoofers with this monoblock amplifier?

A: Yes! As long as the final combined wiring impedance of your subwoofers equals 1 Ohm, 2 Ohms, or 4 Ohms, the DBES1000.1 will easily power dual subwoofers. For maximum power output ($1000\text{W RMS}$), wire two dual 4-Ohm subwoofers in parallel down to a 1-Ohm final load.

Q: What wiring kit gauge should I use for installing the DBES1000.1?

A: Because this amplifier pulls substantial current when delivering $1000\text{W RMS}$ at 1 Ohm, we strongly recommend using a 4 AWG 100% Oxygen-Free Copper (OFC) amplifier installation kit with an inline fuse holder rated between 80A to 100A.

Q: What is the purpose of the Subsonic Filter on this amplifier?

A: The Subsonic filter blocks ultra-low frequencies ($10\text{--}50\text{ Hz}$) that are too low for your human ears or your subwoofer enclosure to reproduce cleanly. Setting this filter slightly below your ported enclosure’s tuning frequency prevents the subwoofer cone from over-exerting and damaging itself.
