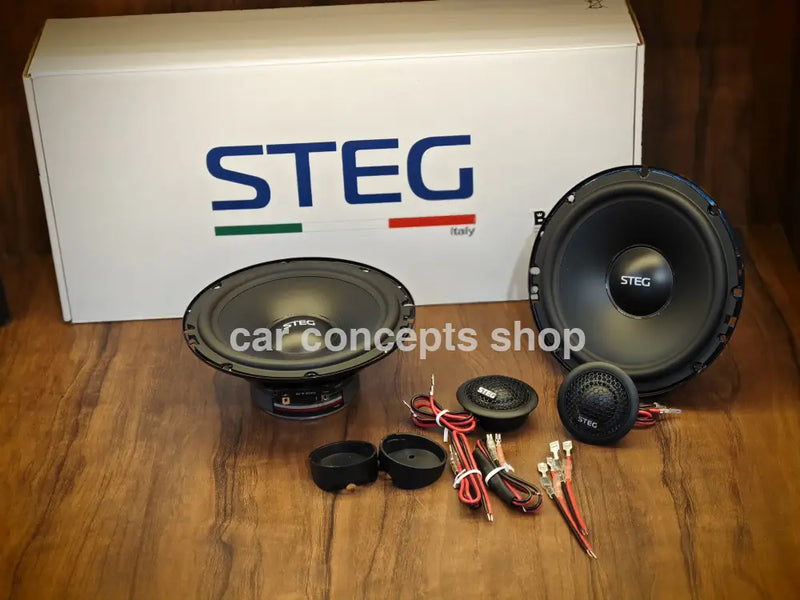

Steg LEO650C Component Speakers
Overview of STEG LEO 650C
The improved SQ component system comes with a new name and better sound for even more enjoyment in your car. Thanks to their unique quality and price, these series of speakers are among the best selling products.
Midbass Specifications
- Impedance: 2.6 Ω
- Sensitivity: 1W / 1M: 88.0 dB
- Frequency Range: 60 - 5,000 Hz
- Power: 50W
- QTS: 0.60
Tweeter Specifications
- Impedance: 4.0 Ω
- Sensitivity: 1W / 1M: 90 dB
- Frequency Range: 1,000 - 22,000 Hz
- Power: 25 W
- Magnet: Neodym
Additional Information
1-YEAR BRAND WARRANTY
Frequently Asked Questions (FAQ)
Q: Do I need an external amplifier to run the STEG LEO 650C component speakers?
A: Not necessarily. With an efficient 89 dB sensitivity rating, the LEO 650C set runs comfortably directly off the factory head unit power supply. That said, to hear their absolute best performance, adding a clean, dedicated 2-channel or 4-channel external amplifier will unlock their full mid-bass impact and clean dynamic range.
Q: Where should the tweeters be installed for the best sound stage?
A: Since high frequencies are directional, component tweeters look and sound best when mounted near dashboard height, inside the front door A-pillars, or within the factory sail panels (near the side mirrors). The LEO 650C includes mounting pods to help achieve clean flush or surface styling integrations.
Q: Are these door speakers water-resistant?
A: Yes. The mid-bass driver cones are constructed using a specialized water-resistant composite membrane designed to withstand the condensation and damp environments common inside automobile door panels during heavy rainy seasons.
Q: What is the benefit of a "Component" speaker system over a standard Coaxial speaker?
A: A coaxial speaker mounts the tweeter right in the center of the woofer, firing sound down at your ankles from the bottom of the door. A component system like the LEO 650C separates the two drivers. This lets you position the mid-bass low down for deep punch while moving the tweeters up high, raising the perceived soundstage to ear level.
Q: Does this kit include crossovers for the tweeters?
A: Yes, the package includes dedicated, inline inline frequency crossovers tailored for the 25mm fabric dome tweeters. These protect the delicate high-frequency drivers by filtering out low bass notes that could otherwise distort or damage them.
If you need help selecting matching sound damping sheets or spacer rings for your specific car model to complete this installation, just let me know!
