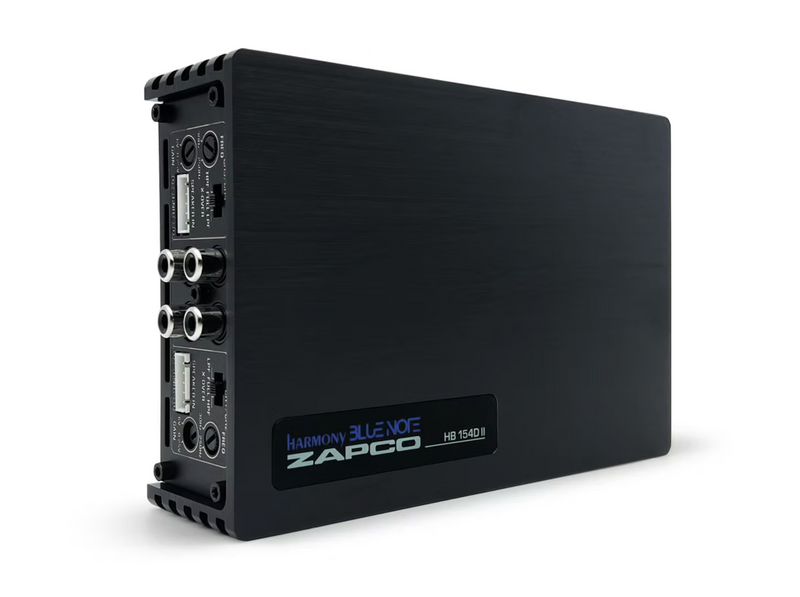

Zapco Harmony HB-154D II 4-Channel Full-Range Class-D Micro Power Amplifier

High-Power Compact Performance: Zapco Harmony HB 154D II

Product Overview

Experience impressive power and clean audio dynamics in a micro footprint with the Zapco HB 154D II full-range Class-D amplifier. Delivering an impressive 150W x 4 RMS @ 4Ω and 200W x 4 RMS @ 2Ω, this compact power unit bridges up to 350W x 2 RMS @ 4Ω, making it an ideal choice for high-output front stage speakers or powering component setups alongside subwoofers.

Key Features & Highlights

• High-Output Class-D Architecture: Packs 800W RMS total power into an ultra-compact chassis with low power draw and minimal heat generation.

• Flexible Multi-Channel Power: Delivers 150W x 4 @ 4Ω, 200W x 4 @ 2Ω, and bridges to 350W x 2 @ 4Ω.

• Universal Integration: Equipped with both RCA Low-Level and Speaker High-Level inputs for easy connectivity to factory radios or aftermarket head units.

• Variable Crossover Tuning: Integrated electronic crossovers allow precise High-Pass (HPF) and Low-Pass (LPF) frequency adjustments.

• Ultra-Compact Aluminum Footprint: Premium brushed black aluminum chassis measuring just 180 mm x 115 mm x 45.5 mm for effortless installation in tight vehicle spaces.

Technical Specifications

• Brand: Zapco

• Series: Harmony Blue

• Model: HB 154D II

• Amplifier Topology: Full-Range Class D

• Channels: 4-Channel

• RMS Power Output @ 4 Ohm: 150 Watts x 4

• RMS Power Output @ 2 Ohm: 200 Watts x 4

• Bridged Power Output @ 4 Ohm: 350 Watts x 2

• Frequency Response: 20 Hz – 20,000 Hz (±1dB)

• Signal-to-Noise Ratio (S/N): > 90 dB

• THD + Noise: < 0.1%

• THD @ Rated Power: < 0.5%

• Input Sensitivity: 0.25V – 6.0V (Low-Level RCA)

• Input Types: RCA Low-Level & Speaker High-Level Inputs

• Crossover Control: Variable Electronic High-Pass / Low-Pass Crossovers

• Dimensions (L x W x H): 180 mm x 115 mm x 45.5 mm (7.08" x 4.52" x 1.79")

Frequently Asked Questions

1. What is the ZAPCO Harmony HB-154D II?
The ZAPCO Harmony HB-154D II is a compact 4-channel, full-range Class-D car amplifier designed to deliver clean and powerful audio while taking up less installation space.

2. How much power does the HB-154D II produce?
It delivers 150W RMS × 4 channels at 4Ω, 200W RMS × 4 channels at 2Ω, and up to 350W RMS × 2 channels when bridged at 4Ω.

3. Can I use this amplifier with my factory car stereo?
Yes. The HB-154D II supports both high-level speaker inputs and RCA inputs, making it suitable for integration with many factory and aftermarket head units.

4. Can the ZAPCO HB-154D II power four car speakers?
Yes. Its four independent channels make it suitable for powering a front and rear speaker setup. The exact speaker pairing should be checked against the speakers' impedance and RMS ratings.

5. Can I use the HB-154D II for a component speaker upgrade?
Yes. Its four channels can be used to power compatible component speakers, providing dedicated amplifier power instead of relying solely on the head unit.

6. Can this amplifier power a subwoofer?
It is a full-range 4-channel amplifier, rather than a dedicated mono subwoofer amplifier. Its channels can be configured for different speaker applications, including bridged operation where appropriate.

7. Does the HB-154D II have built-in crossover controls?
Yes. It features an electronic HP/Full/LP crossover, with adjustable crossover frequency from 30Hz to 250Hz.

8. Is the ZAPCO HB-154D II suitable for small or compact cars?
Its micro-power design makes it an attractive option where installation space is limited. However, available mounting space and ventilation should be checked before installation.

9. Is Class-D better for a car audio amplifier?
Class-D amplification is known for efficient power use and compact designs, making it useful when you want substantial amplifier power without the size of many traditional amplifier designs.

10. What is the frequency response of the HB-154D II?
The amplifier has a 20Hz–20kHz frequency response, covering the main audible frequency range for full-range car audio applications.

11. What impedance can the HB-154D II handle?
It is specified for 4Ω and 2Ω operation, with different RMS output levels at each impedance. Speaker impedance should be matched correctly during installation.

12. Can the amplifier be bridged?
Yes. The HB-154D II can be bridged at 4Ω, producing up to 350W RMS × 2 channels according to ZAPCO's specifications.

13. Will this amplifier make my factory speakers louder?
An amplifier can provide substantially more power than many factory head units, potentially improving output, dynamics and clarity. The final result also depends on the quality, sensitivity and power handling of your speakers.

14. Do I need professional installation for the HB-154D II?
Professional installation is recommended, especially when integrating the amplifier with a factory stereo. Correct power wiring, speaker impedance, gain and crossover settings are important for safe and reliable operation.

15. Is the ZAPCO HB-154D II a good choice for a complete car audio upgrade?
It can be a strong choice for a system requiring four channels of efficient Class-D amplification. It is particularly suitable for buyers who want to upgrade speaker power while keeping the amplifier relatively compact.

16. What should I check before buying this amplifier?
Check your speakers' RMS power rating and impedance, available mounting space, head-unit output type, wiring requirements and your desired system configuration. If you're unsure, get professional advice before ordering.

17. Is the HB-154D II suitable for both OEM and aftermarket audio systems?
Yes. Because it offers both high-level and RCA inputs, it can accommodate a variety of OEM and aftermarket system configurations.

18. Why choose the ZAPCO HB-154D II over a basic car amplifier?
The HB-154D II combines 4-channel full-range amplification, Class-D efficiency, compact dimensions, high/low-level inputs and adjustable crossover functionality, making it a versatile option for serious car-audio upgrades.
