Pioneer DMH-AP6650BT Harman Kardon FIT 6CF Harman Kardon FIT 6F Wireless CarPlay Android Auto 9-Inch Touchscreen AKM DSP Silk Dome Tweeter
If you've been searching for a single car audio upgrade that completely transforms your daily drive — screen, sound, and smart connectivity in one shot — this is it. The Pioneer DMH-AP6650BT combined with Harman Kardon FIT speakers is India's most searched, most installed premium car audio combo right now.
This isn't just a head unit swap. This is a complete audio system redesign — a 9-inch wireless CarPlay touchscreen with a built-in AKM DSP processor driving Harman Kardon's India-specific FIT series speakers, engineered to deliver audiophile-grade sound from your car's stock door positions without an external amplifier. All for ₹49,999, available at Car Concepts Shop with same-day dispatch and pan India delivery.
We've put together the most detailed breakdown of this combo available anywhere in India — what each component does, exact specifications, installation process, compatibility, warranty, and who it's for. Let's go deep.

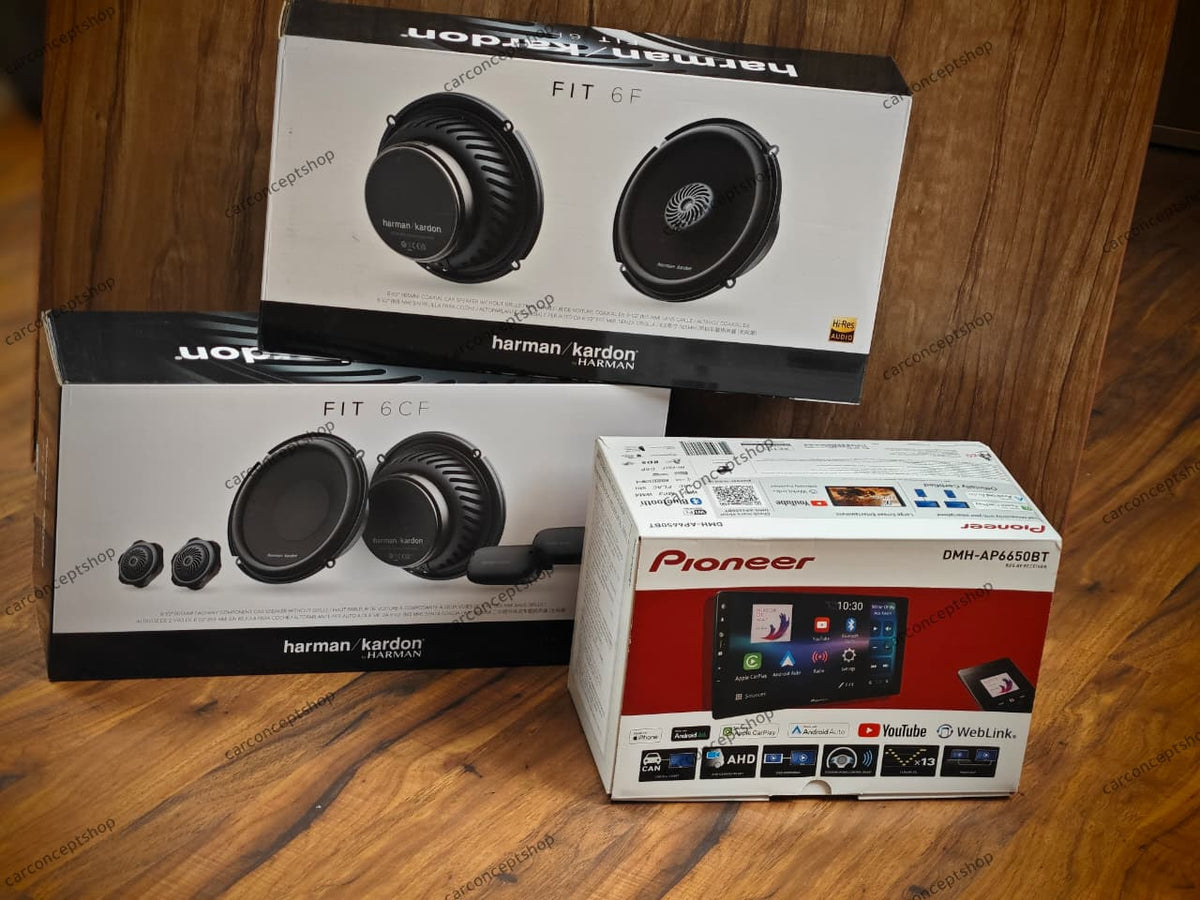

What's in the Combo — Three Products, One Perfect System
1
📺
Pioneer DMH-AP6650BT
9-inch wireless CarPlay / Android Auto touchscreen receiver with AKM DSP, 13-band EQ, 50W×4 MOSFET amp
2
🔊
Harman Kardon FIT 6CF
6.5" 2-way component speakers — front doors. Silk dome tweeter + external crossover, 60W RMS, 91dB
3
🔉
Harman Kardon FIT 6F
6.5" 2-way coaxial speakers — rear doors. Integrated silk dome tweeter, 50W RMS, 91dB
🎯 Why This Combo Works So Well
Pioneer's DMH-AP6650BT was specifically designed with a built-in AKM 24-bit DSP processor that allows time alignment and active crossover tuning per channel. The Harman Kardon FIT speakers' 91dB sensitivity means they deliver excellent volume and dynamics directly from Pioneer's built-in MOSFET amplifier — no separate external amp required. Pioneer and Harman Kardon are both Harman International brands — this system is tuned to work together from the factory.
Pioneer DMH-AP6650BT — Complete Deep Dive
The Pioneer DMH-AP6650BT is not just a touchscreen head unit — it's a fully featured infotainment processor. Here's every feature, explained:
9-Inch HD Display & Touchscreen
📐
9-Inch WSVGA Capacitive Display
1024×600 resolution capacitive touchscreen — same pinch-zoom and swipe responsiveness as your smartphone. No lag, no stylus needed.
☀️
High-Brightness Panel
Daylight-visible brightness for Indian road conditions. Clear in direct afternoon sunlight, dimmed automatically for night driving.
Wireless CarPlay & Android Auto
🍎
Wireless Apple CarPlay
Connect your iPhone via Wi-Fi — no cable. Full Maps, Calls, Messages, Music, Siri all on the 9-inch screen. Supports both wireless and wired connection.
🤖
Wireless Android Auto
Google Maps, Spotify, WhatsApp calls, and Google Assistant on screen, wirelessly. Supports both wireless and wired Android Auto.
🖥️
WebLink Cast
Mirror your phone screen directly to the head unit — useful for apps not natively supported by CarPlay or Android Auto.
📶
Dual Connectivity
Both wired and wireless options available for both Apple and Android — maximum flexibility regardless of your phone model.
AKM 24-Bit DSP Processor & Audio Engine
The DMH-AP6650BT uses a 24-bit AKM (Asahi Kasei Microelectronics) digital signal processor — the same chip technology found in standalone high-end DSP units. This is what separates Pioneer's head units from budget alternatives.
🎛️
13-Band Graphic EQ
Full 13-band equalizer — tune your audio precisely to your car's cabin acoustics. Cut resonant frequencies, boost detail.
⏱️
Time Alignment
Set delay per speaker so all sound arrives simultaneously. Creates a focused, centred soundstage regardless of speaker placement.
🔀
Active Crossover
3-way active crossover capability — divide frequency bands between speakers for clean, undistorted sound at all volumes.
Amplification & Connectivity
⚡
50W × 4 MOSFET Amplifier
High-output MOSFET built-in amplifier — lower distortion, better efficiency than standard op-amp stages. Drives 91dB speakers to high volumes cleanly.
🔌
3 Sets 4V RCA Pre-Outs
Front, rear, and subwoofer RCA outputs at 4V — high-voltage pre-outs for connecting external amplifiers with minimal noise.
📷
Rear Camera Input
Full rear-view camera support — auto-activates when reversing. Compatible with all standard reversing cameras.
🚗
CAN-Bus Compatible
CAN-Bus adapter support for steering wheel controls, speed signal, and parking brake integration in modern Indian cars.
Harman Kardon FIT 6CF — Front Component Speakers
The Harman Kardon FIT 6CF is Harman Kardon's India-specific component speaker — engineered for Indian road conditions, Indian music preferences, and Indian car door dimensions. Here's why they're exceptional:
FIT 6CF — Why Component Speakers for the Front?
In a component speaker system, the tweeter and woofer are separate units. The tweeter mounts at ear level — on your A-pillar or dashboard — while the 6.5" woofer stays in the door. This separation creates a soundstage that feels like a live performance in front of you, rather than music coming from your feet.
🎶
Edge-Driven Silk Dome Tweeter
Harman Kardon's signature silk dome — not plastic, not aluminium. Silk dome eliminates high-frequency harshness, delivering smooth, fatigue-free treble even at high volumes.
📊
91dB Sensitivity
Extremely efficient — delivers high volume directly from Pioneer's 50W×4 built-in MOSFET amp. No external amplifier required for most setups.
🔀
External Passive Crossover
Dedicated crossover network ensures the tweeter only receives treble frequencies and the woofer only handles mids and bass — clean separation, zero overlap distortion.
🌊
55Hz–20kHz Response
Full frequency range from punchy upper bass at 55Hz to the highest audible frequencies at 20kHz — no frequency left unhandled.
FIT 6CF Technical Specifications
| Driver Size |
6.5 Inch (165mm) 2-Way Component Set |
| Power Handling (RMS) |
60 Watts RMS |
| Power Handling (Peak) |
180 Watts Peak |
| Frequency Response |
55 Hz – 20,000 Hz |
| Sensitivity |
91 dB @ 2.83V / 1m |
| Tweeter Type |
Edge-Driven Silk Dome |
| Crossover |
External Passive Crossover Network (Included) |
| Impedance |
4 Ohm |
| Installation Position |
Front Doors (Woofer) + A-Pillar/Dash (Tweeter) |
| Warranty |
1 Year Official Brand Warranty |
Harman Kardon FIT 6F — Rear Coaxial Speakers
The FIT 6F handles rear audio — a 6.5" coaxial with an integrated silk dome tweeter. Here's the role it plays in your system:
FIT 6F — The Perfect Rear Fill
The rear speakers' job is not to create an impressive soundstage — that's the front components' role. The rear coaxials provide ambient fill so the audio feels enveloping and complete for all passengers, especially those in the back seat. The FIT 6F's 91dB sensitivity and integrated silk dome tweeter ensure the rear sound matches the quality of the front without sounding disconnected.
🔉
2-Way Coaxial Design
Woofer and tweeter integrated in one unit — fits directly into your existing rear door speaker cutout. No extra installation complexity.
🎶
Integrated Silk Dome Tweeter
Same silk dome tweeter material as the FIT 6CF front — matching tonal character front to rear. Consistent Harman Kardon sound signature throughout.
📊
50W RMS / 150W Peak
Plenty of power handling for Pioneer's built-in amp. Efficient enough to never need clipping even at high volumes.
🌊
55Hz–20kHz Full Range
Identical frequency response to the FIT 6CF — full, balanced rear audio that complements rather than contrasts with the front components.
FIT 6F Technical Specifications
| Driver Size |
6.5 Inch (165mm) 2-Way Coaxial Set |
| Power Handling (RMS) |
50 Watts RMS |
| Power Handling (Peak) |
150 Watts Peak |
| Frequency Response |
55 Hz – 20,000 Hz |
| Sensitivity |
91 dB @ 2.83V / 1m |
| Tweeter Type |
Integrated Silk Dome |
| Installation Position |
Rear Doors / Rear Tray |
| Impedance |
4 Ohm |
| Warranty |
1 Year Official Brand Warranty |
What Does This System Actually Sound Like?
The Harman Kardon Sound Signature
🎤
Vocal Clarity
Harman Kardon is famous for vocal presence — Bollywood, ghazals, pop, jazz — vocals sit forward, clear, and natural. Not artificially boosted, not recessed.
🥁
Punchy Mid-Bass
The FIT 6CF woofer handles mid-bass with authority — dhol, tabla, kick drums, bass guitar all feel tight and impactful without a subwoofer.
✨
Smooth Highs
Silk dome tweeters eliminate the fatiguing harshness of plastic or aluminium alternatives. Cymbals, strings, and sibilants are crisp without being piercing.
🎭
Wide Soundstage
Component placement — tweeter at A-pillar + woofer in door + Pioneer time alignment — creates a stage that feels wider than your car's windscreen.
💬 The Pioneer AKM DSP Difference
Most car owners set their EQ once and forget it. With Pioneer's 13-band graphic EQ and time alignment tuned to your specific car interior, every listening session is optimised. The AKM DSP chip in the DMH-AP6650BT processes audio at 24-bit resolution — that's the same bit depth as professional studio equipment. You hear details in your music that your old head unit was simply discarding.
Car Compatibility — Does It Fit Your Car?
Universal Indian Car Compatibility
The Pioneer DMH-AP6650BT is designed for the universal 9-inch DIN slot — the most common head unit slot in Indian cars manufactured after 2015. The Harman Kardon FIT 6CF and 6F are 6.5-inch (165mm) drivers — the universal standard that fits approximately 90% of Indian car door speaker positions.
-
Maruti Suzuki: Swift, Baleno, Ertiga, Grand Vitara, Brezza, Ciaz, WagonR, Dzire
-
Hyundai: Creta, Verna, i20, Tucson, Venue, Aura
-
Kia: Seltos, Sonet, Carens
-
Tata: Nexon, Harrier, Safari, Punch, Altroz, Tiago
-
Mahindra: Thar, XUV700, Scorpio-N, XUV300, Bolero
-
Honda: City, Amaze, Elevate, Jazz
-
Toyota: Innova Crysta, Innova HyCross, Fortuner, Urban Cruiser
-
Renault / Nissan / Skoda / Volkswagen: Most models with standard DIN slot and 6.5" doors
✅ No Wire Cutting Required
Using car-specific coupler-to-coupler wiring harnesses and CAN-Bus adapters, this combo installs cleanly without cutting any factory car wires. Your car's original wiring remains intact — company warranty unaffected. WhatsApp us with your car model and year and we'll confirm the exact harness and fascia frame needed: +91 97287 64403
Installation — What's Involved?
Step-by-Step Installation Overview
1
Remove Factory Head Unit
Using trim removal tools, remove the dashboard trim panel and factory head unit. No permanent modification required.
2
Connect Wiring Harness
Plug in your car-specific Harness coupler into the factory connector — no wire cutting. Connect to Pioneer's matching harness. CAN-Bus adapter connects steering wheel controls.
3
Install Pioneer DMH-AP6650BT
Fit the Pioneer unit into the 9-inch dashboard fascia frame. Secure with the provided screws. Fit the fascia trim panel.
4
Install FIT 6CF — Front Doors
Mount the 6.5" woofer into front door speaker position. Route tweeter wire up the A-pillar and mount silk dome tweeter at ear level. Connect external crossover in the door cavity.
5
Install FIT 6F — Rear Doors
Remove rear door panels, swap factory speaker for Harman Kardon FIT 6F coaxial. Straightforward drop-in replacement in most Indian cars.
6
DSP Tuning on Pioneer
Once installed, use Pioneer's built-in 13-band EQ and time alignment settings to tune the system to your car's interior. Takes 20–30 minutes and makes a dramatic difference.
How Does This Compare to Alternatives?
This Combo
Pioneer + Harman Kardon FIT
- 9-inch wireless CarPlay + Android Auto
- AKM 24-bit DSP + 13-band EQ
- Harman Kardon silk dome tweeters
- 91dB — no external amp needed
- Both brands are Harman International
- 2-year Pioneer warranty
- ₹49,999 complete 4-door system
Budget Alternative
Generic Android Stereo + Basic Speakers
- Android OS — slower, prone to lag
- No dedicated DSP or EQ chip
- Plastic tweeter — harsh highs
- Low sensitivity — needs external amp
- No brand tuning synergy
- Often no warranty or 6 months
- May seem cheaper but needs more investment
⭐ The Pioneer Advantage over Generic Android Stereos
Generic Android car stereos run a modified version of Android — they're prone to app crashes, slow UI, and poor audio output. Pioneer's DMH-AP6650BT runs a dedicated embedded OS optimised for CarPlay and Android Auto — it's faster, more stable, and the AKM DSP audio output is dramatically superior. This is not a comparison of features on paper — it's a comparison of real-world daily use quality.
Frequently Asked Questions
Does this combo work with both iPhone and Android phones?
Yes. The Pioneer DMH-AP6650BT supports both Wireless Apple CarPlay (iPhone 5 and newer with iOS 7.1+) and Wireless Android Auto (Android 6.0+ phones). Both work wirelessly — no cable needed once initial pairing is done.
Do I need an external amplifier for the Harman Kardon speakers?
No. The Harman Kardon FIT 6CF and 6F speakers have an exceptional 91dB sensitivity rating — they deliver high volume and excellent dynamics directly from Pioneer's built-in 50W×4 MOSFET amplifier. Most users find this system loud and clear enough without any additional amplification. If you want even more bass headroom, you can optionally add a subwoofer using Pioneer's dedicated subwoofer RCA pre-out.
Can I add a subwoofer to this setup later?
Absolutely. The Pioneer DMH-AP6650BT has a dedicated subwoofer RCA pre-out (4V). You can add any subwoofer + mono amplifier combination later — like the Pioneer TS-W1202D4 subwoofer with a JL Audio JD500/1 mono amp — for a complete full-range system.
Will my steering wheel controls still work after installation?
Yes, with the appropriate CAN-Bus steering wheel control adapter for your specific car model. Pioneer is compatible with most Indian car CAN-Bus systems. Contact us on WhatsApp with your car make and model and we'll confirm the exact adapter needed.
Is the reverse camera compatible with this head unit?
Yes. The DMH-AP6650BT has a rear-view camera input that automatically activates when the car is put in reverse. Compatible with all standard RCA-output reversing cameras. If your car has a factory camera, a camera input adapter is available.
What is the difference between Pioneer DMH-AP6650BT and a generic Android car stereo?
Pioneer's DMH-AP6650BT runs a dedicated embedded OS — it's faster, more stable, and more reliable than any Android-based stereo. Its AKM 24-bit DSP chip provides audiophile-grade audio processing that generic stereos cannot match. Pioneer also carries a 2-year official brand warranty and is backed by Pioneer's India service network.
What's the delivery timeline after ordering?
Same-day dispatch from Car Concepts Shop, Naraingarh, Haryana. Pan India delivery in 3 to 5 working days. Every order is OTP-verified at delivery. You receive a tracking link via SMS/WhatsApp after dispatch.
Available Now at Car Concepts Shop
Pioneer DMH-AP6650BT + Harman Kardon FIT Combo
9-Inch Wireless CarPlay · AKM DSP · Harman Kardon Silk Dome · 4-Door Complete System · Pan India Delivery
₹49,999
Pioneer: 2-Year Warranty · Harman Kardon: 1-Year Warranty · 100% Genuine
