Pioneer DMH-AP6650BT 9-Inch Wireless CarPlay Touchscreen Stereo + Harman Kardon FIT 6CF Component & FIT 6F Coaxial Speaker Car Audio Upgrade Combo

India’s Most Popular Car Audio Package: Pioneer DMH-AP6650BT + Harman Kardon FIT Series Full System Combo

Upgrade your vehicle's factory system to India’s most searched, viral car audio combination. This complete plug-and-play package pairs the powerful Pioneer DMH-AP6650BT 9-inch Wireless Apple CarPlay & Android Auto Touchscreen Infotainment System with the legendary sound staging of Harman Kardon FIT 6CF 6.5" Component Speakers(Front) and Harman Kardon FIT 6F 6.5" Coaxial Speakers (Rear). Designed for all car models in India, this combo delivers studio-grade acoustics, punchy mid-bass, crisp high notes, and modern smart connectivity in a single setup.

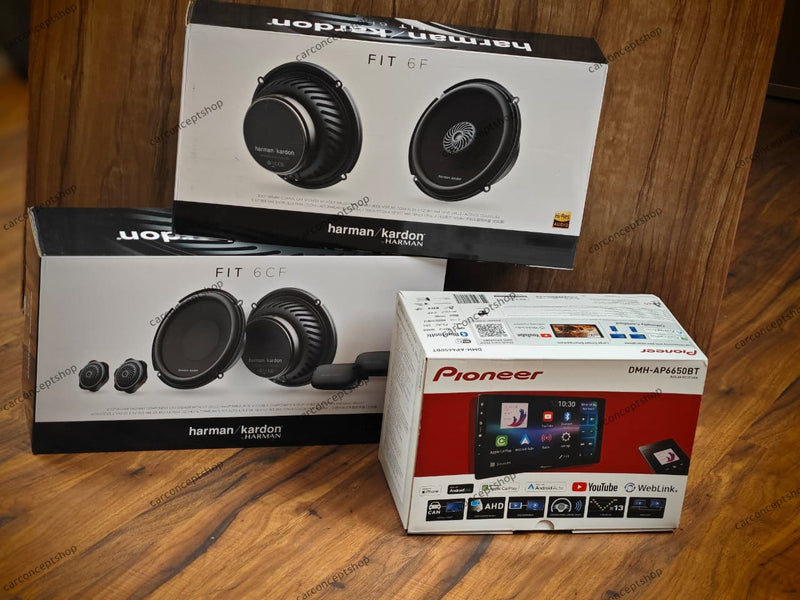

What’s Included in This Master Combo

1. Pioneer DMH-AP6650BT 9-Inch Capacitive Display Touchscreen Receiver (1 Unit): Premium 9-inch high-definition WSVGA display with Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast screen mirroring, built-in 24-bit AKM DSP processor, 13-band graphic equalizer, and 3 RCA pre-outs (4V).

2. Harman Kardon FIT 6CF 6.5-Inch Component Speaker Set (1 Pair - Front Doors): Features 2x 6.5" high-excursion woofers, 2x edge-driven silk dome tweeters, and 2x external passive crossover networks for precise vocal staging and zero high-frequency distortion.

3. Harman Kardon FIT 6F 6.5-Inch Coaxial Speaker Set (1 Pair - Rear Doors): Features 2x 2-way coaxial drivers with integrated silk dome tweeters, delivering balanced full-range rear fill audio for rear passengers.

Technical Performance & System Synergy

Pioneer 9-Inch HD Screen with Built-In AKM Digital Sound Processor (DSP)

The Pioneer DMH-AP6650BT serves as the ultimate audio source unit. Powered by a premium 24-bit AKM sound processing chip, it features 13-band EQ tuning, manual time alignment, and active 3-way crossover capabilities. This allows you to fine-tune speaker timing and frequency distribution so every note hits your ears at the exact same instant.

Crystal-Clear Vocal Staging with Silk Dome Tweeter Dynamics

The Harman Kardon FIT 6CF component set mounts silk dome tweeters at ear level on your A-pillars or dashboard, lifting the entire soundstage out from under your feet. Combined with dedicated external crossovers, treble notes stay smooth and non-fatiguing, even at high listening volumes.

High-Efficiency 91dB Sensitivity for Direct OEM Power

Both the Harman Kardon FIT 6CF and FIT 6F speaker sets feature an ultra-efficient 91 dB sensitivity rating. They deliver massive volume, deep punchy mid-bass, and rich clarity directly powered by the Pioneer receiver's internal high-output 50W x 4 MOSFET amplifier—no compulsory external amplifier required.

Technical Specifications

Pioneer DMH-AP6650BT Head Unit

• Screen Size: 9-Inch WSVGA Capacitive Touchscreen (1024 x 600 Resolution)

• Smartphone Connectivity: Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast

• Audio DSP: Built-in 24-Bit AKM Sound Processor with 13-Band Graphic EQ & Time Alignment

• Amplification: Built-in MOSFET 50W x 4 Channels

• Pre-Outs: 3 Sets High-Voltage RCA Pre-Outs (4V - Front, Rear, Subwoofer)

• Camera Integration: Rear View Camera Support & CAN-Bus Compatible

Harman Kardon FIT 6CF (Front Component Pair)

• Driver Size: 6.5-Inch (165mm) 2-Way Component Set

• Power Handling: 60 Watts RMS / 180 Watts Peak

• Frequency Response: 55 Hz – 20,000 Hz

• Sensitivity (@ 2.83V/1m): 91 dB

• Tweeter Design: Edge-Driven Silk Dome

Harman Kardon FIT 6F (Rear Coaxial Pair)

• Driver Size: 6.5-Inch (165mm) 2-Way Coaxial Set

• Power Handling: 50 Watts RMS / 150 Watts Peak

• Frequency Response: 55 Hz – 20,000 Hz

• Sensitivity (@ 2.83V/1m): 91 dB

• Tweeter Design: Integrated Silk Dome

Warranty Details

• 2-Year Official Brand Warranty:PIONEER DMH-AP6650BT

• 1-Year Official Brand Warranty: HARMAN KARDON FIT COMBO

Frequently Asked Questions

Will this 9-inch Pioneer screen and Harman Kardon combo fit my car?

Yes! 6.5-inch (165mm) speakers fit roughly 90% of all Indian cars directly. The Pioneer DMH-AP6650BT is designed for universal 9-inch frame fitting (Swift, Brezza, Creta, Baleno, Thar, Mahindra XUV, Tata Nexon, Hyundai, Kia, etc.) using vehicle-specific dashboard fascia frames and plug-and-play wiring harnesses.

Do I need to cut original car wires for installation?

No. Using car-specific coupler-to-coupler wiring harnesses and CAN-Bus adapters, this complete Pioneer and Harman Kardon combo can be installed cleanly without cutting any factory car wires, keeping your car's company warranty completely intact.

Why Choose This Complete Master Combo?

• India’s Best-Selling Audio Synergy: Takes the guesswork out of building a system by pairing India's top 9-inch wireless stereo with Harman Kardon's precision FIT drivers.

• Universal Compatibility: Seamlessly installs into all major Indian car platforms with standard 9-inch frame slots and 6.5-inch door panels.

• Unmatched Value & Clarity: Delivering luxury audiophile clarity, rich mid-bass, and wireless connectivity at a bundled combo price.

Technical Integration & Sourcing Assurance

• 100% Genuine, Authenticated Sourcing: We source directly through verified distribution channels to guarantee you receive 100% original, factory-fresh products with valid serial numbers.

• Expert System Integration Guidance: Unsure if your car requires special CAN-Bus couplers, steering wheel control interfaces, or speaker spacer rings? Our internal technical team is always ready with clear answers.
