AES FX 2 Laser Bi-Led Fog Projector 3 Color
Product Overview
The AES FX 2 Laser Bi-Led Fog Projector 3 Color Universal provides elite-level road safety through high-output illumination. It packs a powerful 67W high beam that pushes out a massive 24,500 lumens to slice through darkness.
The AES FX 2 Laser Bi-Led Fog Projector 3 Color Universal delivers 24,500 lumens of brightness across three color temperatures. It utilizes Taiwan LED chips and an active turbo fan cooling system for long-lasting, all-weather visibility.
-
Tri-Color Versatility: Features three selectable color modes in one housing: 3000K Yellow (ideal for thick fog or monsoons), 4300K Warm White (balanced all-weather visibility), and 5500K Pure White (sharp highway clarity).
-
Precision Optics: Engineered with an HD glass lens and straight cutoff shield to give you a wide, uniform low beam with a razor-sharp horizontal cutoff that avoids blinding oncoming traffic.
-
Heavy-Duty Performance: Built around 8 high-temperature resistant Taiwan LED chips and backed by a 9,500–10,000 RPM high-speed turbo fan system to guarantee steady output during prolonged multi-hour drives.
-
All-Weather Armor: Boasts an IP67 waterproof rating and a durable, heat-resistant reflector body designed to comfortably outlast standard halogen bulbs up to 6 times over.
AES FX2 Laser Bi-Led Fog Projector Lens 3 INCH - 3 Color. 3000k, 4300k, 5500k
- AES FX2 Laser Bi-Led Fog Projector Len 65w
- Size: 3inch
- Chips: 8pcsTaiwan LED chip
- IP rate: IP67
- Lifespan: LED module >=30000H
AES FX2 Laser Bi-Led Fog Projector Lens 67w
Specifications:
| Voltage: |
12V-18V |
| Power:High beam: |
67W |
| Color temperature： |
3 Color. 3000k, 4300k, 5500k. |
| Chips: low: |
Taiwan led chip |
| Lumen: |
24500LM |
| Cooling Fan speed: |
9500-10000times/Minute |
| Reflector: |
High temperature resistant material |
| Lens: |
HD glass lens |
| Working Temperture: |
-30℃-+85℃ |
| Fitment: |
Universal mould |
| IP: |
IP67 |
| Lifespan: |
LED module >=30000H |
Advanteages:
1) LED CHIP- Adopting 8pcs Taiwan high temperature resistant LED chip , stable quality and high luminous flux.
Frequently Asked Questions (FAQ)
Q: How do I switch between the three different light colors on the AES FX 2?
A: Switching colors is effortless. Every time you toggle your vehicle's factory fog lamp switch OFF and back ON, the projector automatically cycles to the next color profile—moving from 3000K to 4300K to 5500K.
Q: Does this 3-inch projector support both high and low beams?
A: Yes, this is a true Bi-LED projector housing. It features a built-in mechanical solenoid shutter. When connected to your car's main high beam wiring circuit, flashing your high beams will drop the internal shutter to unleash a targeted, long-range spotlight.
Q: Will these fog projectors fit into my car's original bumper spaces?

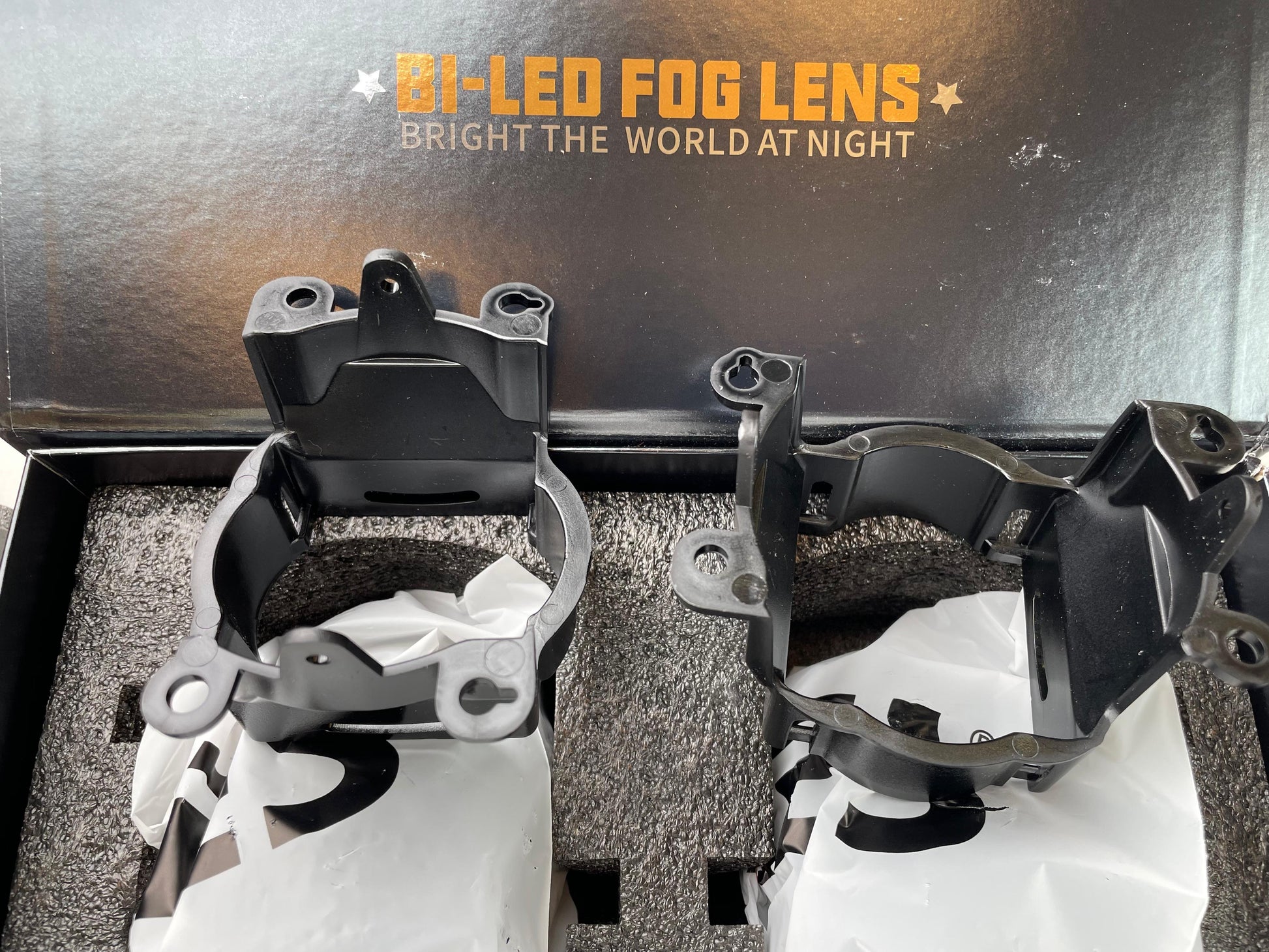

A: The AES FX 2 utilizes a standard 3-inch universal mold configuration. It is designed to fit directly into a wide range of stock 3-inch bumper cavities. For specific vehicle models, vehicle-specific ABS fitment brackets may be required to guarantee a flush, factory-style look.
Q: What is the expected lifespan of the internal LED modules?
A: These premium projectors utilize heavy-duty solid-state components engineered for a working life span of over 30,000 to 50,000 hours. This provides massive energy efficiency improvements and longevity compared to old halogen setups.
Q: Is professional installation recommended?
A: Yes. Professional automotive installation is strongly advised. Upgrading involves accessing the bumper cavity, securing brackets, routing the high beam solenoid wires safely into your factory harness, and setting up precise optical beam leveling.
Product Overview
The AES FX 2 Laser Bi-Led Fog Projector 3 Color Universal provides elite-level road safety through high-output illumination. It packs a powerful 67W high beam that pushes out a massive 24,500 lumens to slice through darkness.
The AES FX 2 Laser Bi-Led Fog Projector 3 Color Universal delivers 24,500 lumens of brightness across three color temperatures. It utilizes Taiwan LED chips and an active turbo fan cooling system for long-lasting, all-weather visibility.
-
Tri-Color Versatility: Features three selectable color modes in one housing: 3000K Yellow (ideal for thick fog or monsoons), 4300K Warm White (balanced all-weather visibility), and 5500K Pure White (sharp highway clarity).
-
Precision Optics: Engineered with an HD glass lens and straight cutoff shield to give you a wide, uniform low beam with a razor-sharp horizontal cutoff that avoids blinding oncoming traffic.
-
Heavy-Duty Performance: Built around 8 high-temperature resistant Taiwan LED chips and backed by a 9,500–10,000 RPM high-speed turbo fan system to guarantee steady output during prolonged multi-hour drives.
-
All-Weather Armor: Boasts an IP67 waterproof rating and a durable, heat-resistant reflector body designed to comfortably outlast standard halogen bulbs up to 6 times over.
AES FX2 Laser Bi-Led Fog Projector Lens 3 INCH - 3 Color. 3000k, 4300k, 5500k
- AES FX2 Laser Bi-Led Fog Projector Len 65w
- Size: 3inch
- Chips: 8pcsTaiwan LED chip
- IP rate: IP67
- Lifespan: LED module >=30000H
AES FX2 Laser Bi-Led Fog Projector Lens 67w
Specifications:
| Voltage: |
12V-18V |
| Power:High beam: |
67W |
| Color temperature： |
3 Color. 3000k, 4300k, 5500k. |
| Chips: low: |
Taiwan led chip |
| Lumen: |
24500LM |
| Cooling Fan speed: |
9500-10000times/Minute |
| Reflector: |
High temperature resistant material |
| Lens: |
HD glass lens |
| Working Temperture: |
-30℃-+85℃ |
| Fitment: |
Universal mould |
| IP: |
IP67 |
| Lifespan: |
LED module >=30000H |
Advanteages:
1) LED CHIP- Adopting 8pcs Taiwan high temperature resistant LED chip , stable quality and high luminous flux.
Frequently Asked Questions (FAQ)
Q: How do I switch between the three different light colors on the AES FX 2?
A: Switching colors is effortless. Every time you toggle your vehicle's factory fog lamp switch OFF and back ON, the projector automatically cycles to the next color profile—moving from 3000K to 4300K to 5500K.
Q: Does this 3-inch projector support both high and low beams?
A: Yes, this is a true Bi-LED projector housing. It features a built-in mechanical solenoid shutter. When connected to your car's main high beam wiring circuit, flashing your high beams will drop the internal shutter to unleash a targeted, long-range spotlight.
Q: Will these fog projectors fit into my car's original bumper spaces?
A: The AES FX 2 utilizes a standard 3-inch universal mold configuration. It is designed to fit directly into a wide range of stock 3-inch bumper cavities. For specific vehicle models, vehicle-specific ABS fitment brackets may be required to guarantee a flush, factory-style look.
Q: What is the expected lifespan of the internal LED modules?
A: These premium projectors utilize heavy-duty solid-state components engineered for a working life span of over 30,000 to 50,000 hours. This provides massive energy efficiency improvements and longevity compared to old halogen setups.
Q: Is professional installation recommended?
A: Yes. Professional automotive installation is strongly advised. Upgrading involves accessing the bumper cavity, securing brackets, routing the high beam solenoid wires safely into your factory harness, and setting up precise optical beam leveling.
