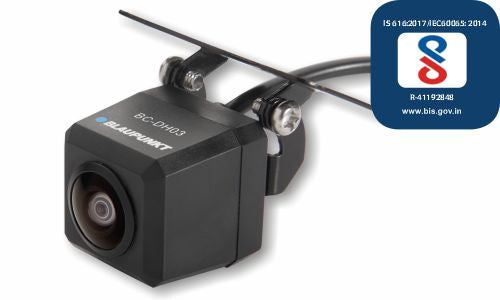

Blaupunkt Rear View Camera BC DH03
Product Overview
Bureau of Indian Standards (BIS) certified 170° Universal Rear View Number Plate Camera
Car Accessories - Reverse Camera
BC DH03 (rear number plate camera) is equipped with high end 1/3" CMOS color sensor and is Element Ready. It is designed to withstand extreme weather conditions. It consumes very little power due to the design and use of modern circuitry inside.
A CMOS sensor is an electronic chip that converts photons to electrons for digital processing. BC DH03 incorporates a highly efficient color sensor and modern electronics, reducing power consumption.
- Power Supply: DC12V±3V
- Current Consumption: 50mA
- Resolution: 720 TVL
- Optical Format: 1/3
- Image Sensor: CMOS
- Effective Pixels: 1080 x 720
- Lens Angle: 170° wide angle
- Electronic Shutter: 1/60 - 1/100000 sec
- White Balance: Auto
- Humidity: up to 95%
- Water Resistant
- Illumination Min.: 0.1 Lux
- PAL / NTSC compatible
- Operating Temperature: -20°C - +70°C
Frequently Asked Questions (FAQ)
Q: Will the Blaupunkt BC DH03 camera work with my touchscreen player or Android stereo?
A: Yes, the BC DH03 uses a standard RCA video output cable, making it universally compatible with almost all aftermarket Android players, touchscreen head units, and standalone rear view displays that feature a camera RCA input.
Q: Is the camera waterproof?
A: Yes, the Blaupunkt BC DH03 carries an IP68 rating, meaning it is fully sealed against heavy rain, dust, and pressure washing.
Q: Does this camera feature parking guide lines on the screen?
A: Yes, the camera generates static parking reference grid lines on your display screen to assist you in judging distance from objects behind your bumper while reversing.
