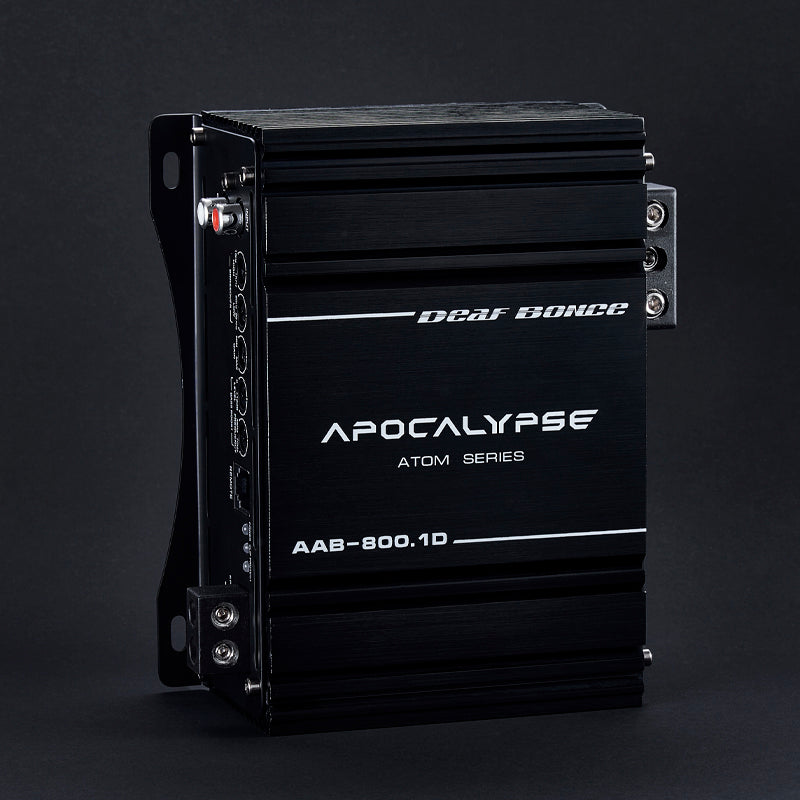

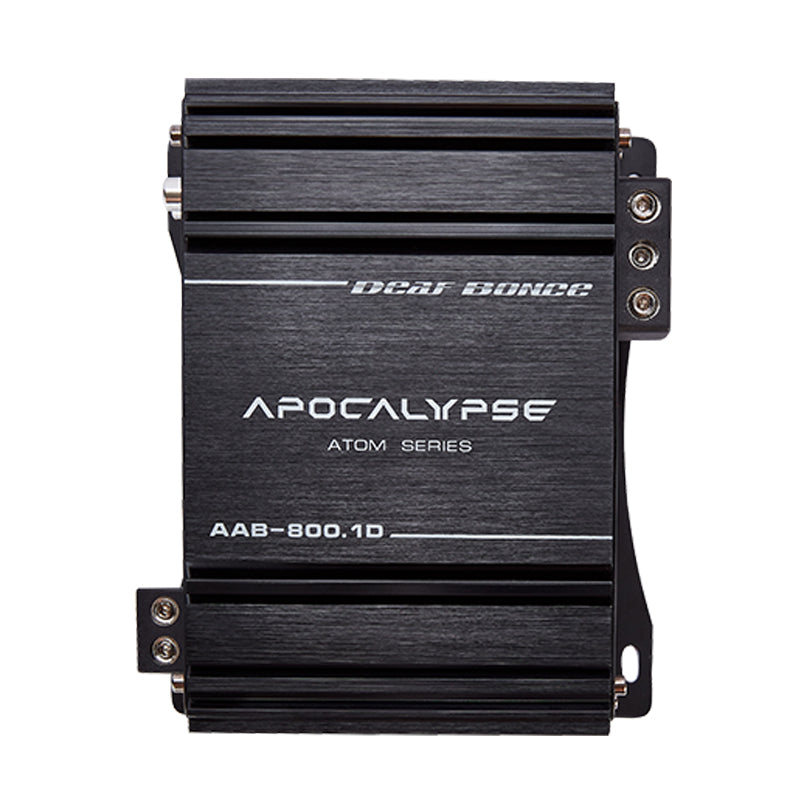

Deaf Bonce Apocalypse AAB-800.1D Atom Mono Amplifier
Product Overview
The Deaf Bonce Apocalypse AAB-800.1D Atom is a high-output, ultra-compact Class-D Monoblock Subwoofer Amplifier engineered to pack serious SPL power into space-restricted vehicle installations. Measuring a remarkably small $4.92\text{"} \times 6.30\text{"} \times 2.50\text{"}$, this "Atom" series monoblock drives up to 790 Watts RMS at a 1-Ohm load ($14.4\text{V}$), making it an outstanding choice for powering heavy-hitting single or dual subwoofers without sacrificing cabin or trunk space.
High-Efficiency Class-D Topology & Precise Driver Control
Designed to extract maximum output efficiency from standard $12\text{V}$ electrical systems ($9–15\text{V}$ operating range), the AAB-800.1D Atom features an impressive damping factor of $\ge 210$. This allows the amplifier to exert strict electromagnetic control over the subwoofer's voice coil, preventing sloppy cone excursion and producing tight, articulate, and punchy sub-bass across a $15\text{Hz}$ to $180\text{Hz}$ frequency spectrum.
Integrated Sub Stage Crossovers & Solid Connection Block

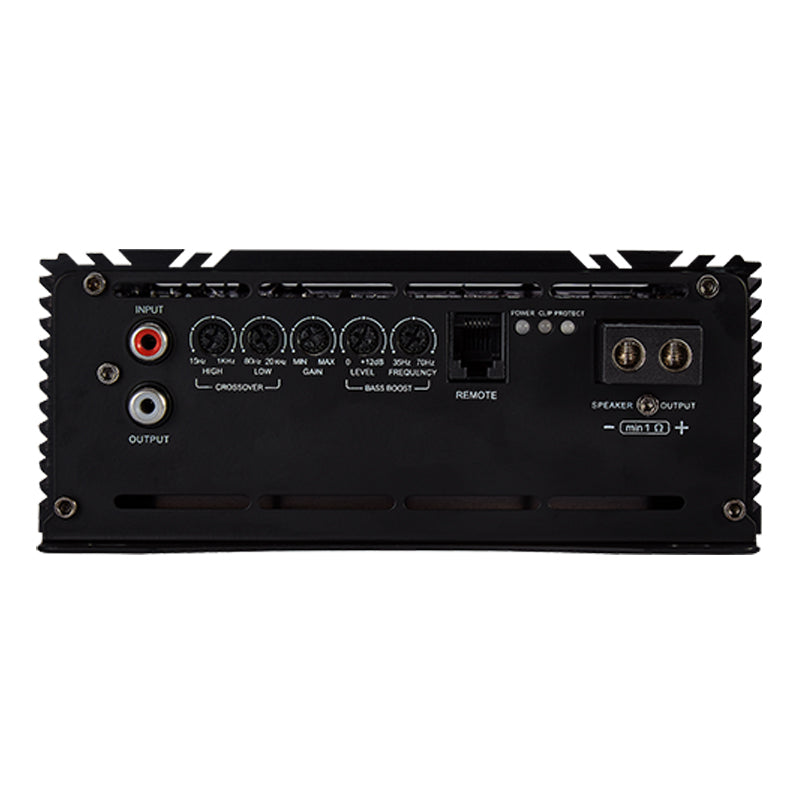

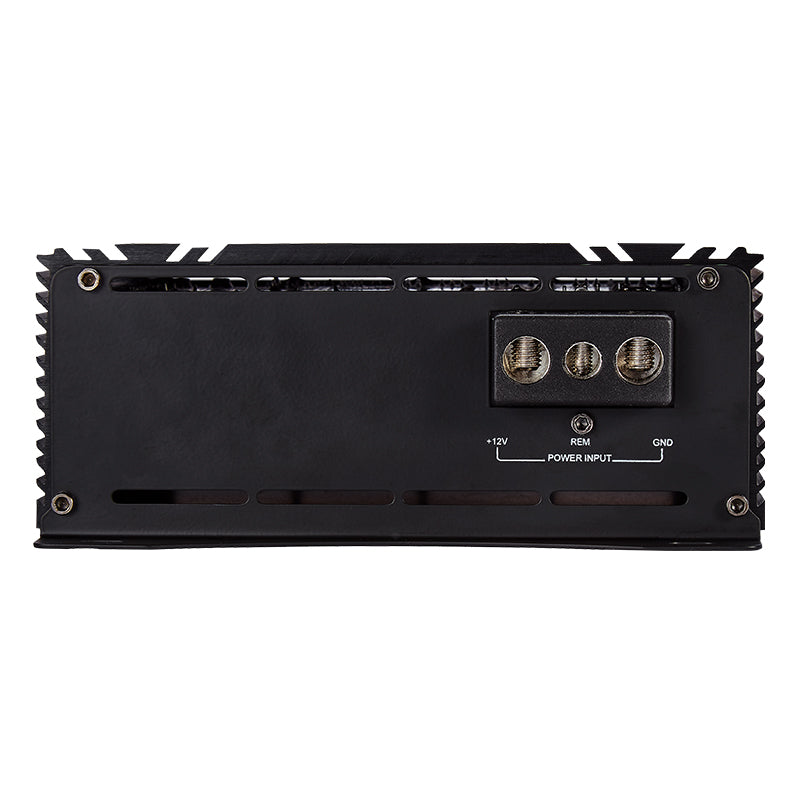

Equipped with onboard variable tuning controls, the AAB-800.1D Atom includes a Low-Pass Filter ($35–180\text{ Hz}$ at $12\text{dB/Oct}$) and a Subsonic Filter ($15–50\text{ Hz}$) to shield subwoofers from damaging sub-audible frequencies. Heavy-duty 4 AWG power input terminals and 8 AWG speaker output block terminals ensure low-resistance current transfer and a secure hold on heavy cabling.
Specifications
| Model | AAB-800.1D Atom |
| Class | D |
| Number of the channels | 1 |
| Frequency response | 15-20000 Hz |
| 1 Ohm RMS Power (14.4 V) | 790 W |
| 1 Ohm RMS Power (12 V) | 700 W |
| 2 Ohm RMS Power (14.4 V) | 480 W |
| 4 Ohm RMS Power (14.4 V) | 270 W |
| Minimum permissible load on the channel | 1 Ohm |
| Input SPL | 0.2 - 6 V |
| Low pass filter | 80-20000 Hz |
| High pass filter | 15-1000 Hz |
| Crossover | 12 dB/Oct |
| Bass frequency adjustment | 35-70 Hz |
| Input terminal | 4 Ga |
| Output terminal | 8 Ga |
| Damping factor | ≥ 210 |
| Working voltage | 9 - 15 V |
| Signal-to-noise ratio | ≥ 100 dB |
| Size (W×L×H) | 6.30 × 5.31 × 2.50 inch |
| Gross weight | 3.88 lb (1.76 kg) |
Frequently Asked Questions (FAQ)
Q: What subwoofers work best with the Deaf Bonce AAB-800.1D Atom?
A: This amplifier pairs exceptionally well with subwoofers rated between $600\text{W}$ and $800\text{W RMS}$. To achieve the full $790\text{W RMS}$ output power, wire your subwoofers down to a $1\text{-Ohm}$ final load (e.g., a single dual 2-Ohm sub or two dual 4-Ohm subs wired in parallel).
Q: What size power wire and fuse should I use for installation?
A: The amplifier features 4 Gauge set-screw power terminals. We recommend using a 4 AWG 100% Oxygen-Free Copper (OFC) power wiring kit equipped with an inline fuse holder (rated around 60A to 80A) placed near your vehicle's main battery.
Q: How does the Subsonic Filter help protect my subwoofers?
A: The Subsonic filter cuts off ultra-low frequencies ($15\text{--}50\text{ Hz}$) that are below human hearing range or below a ported enclosure's tuning frequency. Eliminating these frequencies prevents the subwoofer cone from over-exerting and bottoming out.
