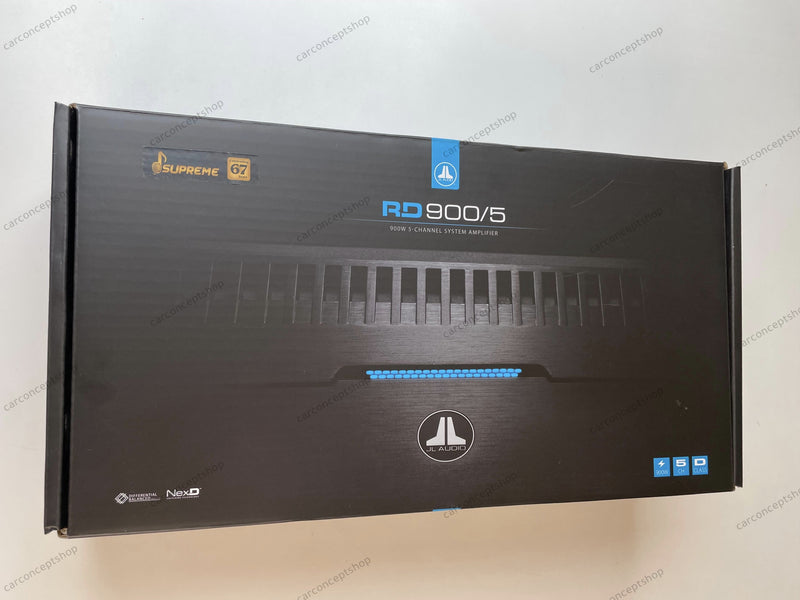

JL Audio RD-900/5 Amplifier
Product Overview:
5-Channel Class D System Amplifier, 70 W x 4 @ 4 Ω + 500 W x 1 @ 2 Ω - 14.4V
Crafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with our exclusive NexD™ switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier.
Conveniently located on top of the RD900/5, you’ll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility.
LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer’s output remotely from the driver’s seat.
Rated Continuous (RMS) Power @ 14.4 V
| Main Channels @ 4 Ω | 70 W RMS x 4 |
| Main Channels @ 2 Ω | 100 W RMS x 4 |
| Main Channels - Bridged @ 4Ω | 200 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 225 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 325 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 500 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
| Main Channels @ 4 Ω | 60 W RMS x 4 |
| Main Channels @ 2 Ω | 90 W RMS x 4 |
| Main Channels - Bridged @ 4Ω | 180 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 200 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 250 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 350 W RMS x 1 |
General Specifications
| Frequency Response (Main Channels) | 12 Hz - 22 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) | 10 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <1% @ 2 Ω per Ch. |
| THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
| Filter Slope(s): Channels 1 & 2 (front) | 12 dB/octave |
| Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz - 500 Hz |
| Filter Mode(s): Channels 3 & 4 (rear) | High-Pass only |
| Filter Slope(s): Channels 3 & 4 (rear) | 12 dB/octave |
| Filter Frequency Range: Channels 3 & 4 | 50 Hz - 500 Hz |
| Filter Mode(s): Subwoofer Channel | Low-Pass only |
| Filter Slope(s): Subwoofer Channel | 12 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | No |
| Filter Defeat Function | No |
| Infrasonic Filter: Subwoofer Channel | No |
| Remote Level Control | Optional (RBC-1) |
| Remote Level Modes | Sub Ch. |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | No |
Physical Specifications
| Height (H) | 2.13 in / 54 mm |
| Width (W) | 14.66 in / 372 mm |
| Depth (D) | 6.96 in / 177 mm |
| Net Weight | 6.15 lb / 2.79 kg |
Extended 1+1 Year Brand Warranty
Frequently Asked Questions:
1. Is the JL Audio RD 900/5 suitable for my car audio setup?
Yes. The RD 900/5 is designed as a complete audio solution capable of powering four speakers and one subwoofer from a single amplifier, making it ideal for hatchbacks, sedans, SUVs, and premium car audio upgrades.
2. Can this amplifier power both door speakers and a subwoofer together?
Absolutely. It delivers up to 70W x 4 RMS for speakers and 500W RMS for the subwoofer channel, allowing you to run your entire system using one amplifier.
3. Is the JL Audio RD 900/5 compatible with factory OEM stereos?
Yes. The amplifier supports a wide input voltage range and can work with many OEM factory head units as well as aftermarket stereo systems.
4. What size power wiring kit is recommended?
JL Audio recommends using a 4 AWG power and ground cable kit for safe operation and maximum performance.
5. Does this amplifier require a DSP for good sound quality?
No, the amplifier performs exceptionally well on its own. However, adding a DSP can further improve tuning and sound staging for audiophile-grade systems.
6. Can I adjust the subwoofer bass level from the driver's seat?
Yes. The RD 900/5 supports the optional JL Audio RBC-1 remote bass controller, allowing convenient bass adjustment while driving.
7. Does the amplifier overheat during long drives?
The RD Series uses efficient NexD™ Class-D technology, which generates less heat and maintains stable performance during extended listening sessions.
8. What type of subwoofer works best with the JL Audio RD 900/5?
The amplifier pairs exceptionally well with JL Audio subwoofers and supports subwoofer loads down to 2 ohms, delivering up to 500W RMS on the sub channel.
Product Overview:
5-Channel Class D System Amplifier, 70 W x 4 @ 4 Ω + 500 W x 1 @ 2 Ω - 14.4V
Crafted as an all-in-one, total system solution, the RD900/5 is engineered to power a complete audio system consisting of a subwoofer + four satellite system with 900 watts of high-performance sound. Equipped with our exclusive NexD™ switching technology, this complete power package efficiently generates a potent 70 watts of crystal-clear audio into 4 ohms, plus a robust 500 watts for a subwoofer system, all from a single compact chassis. Each pair of main channels is also fully bridgeable, stoutly producing 200 watts of full-range audio bliss (into 4 ohms), creating an ultra-powerful 3-channel amplifier.
Conveniently located on top of the RD900/5, you’ll find a complement of studio-grade signal processing features, all hidden beneath a removable protective cover. Each pair of main channels is equipped with a 12 dB / octave high-pass filter, with a dedicated low-pass filter for its subwoofer channel. All three crossovers offer continuously variable frequency selection from 50-500 Hz, for precise filtering. Dual-range, differential-balanced inputs are also onboard, capable of accepting most input voltage levels, plus automatic turn-on capability (via signal sensing or DC-offset sensing) for maximum versatility.
LED clipping indicators are also standard equipment for each channel section. This all-new, innovative feature lets you easily set your amplifier’s input sensitivity settings, quickly and accurately, with no special equipment needed. The RD900/5 features a durable, black powder-coated finish and a top-mounted, dual-color LED light strip that reports the overall status and condition. With the addition of an RBC-1 remote level control (sold separately), you can conveniently control the subwoofer’s output remotely from the driver’s seat.
Rated Continuous (RMS) Power @ 14.4 V
| Main Channels @ 4 Ω | 70 W RMS x 4 |
| Main Channels @ 2 Ω | 100 W RMS x 4 |
| Main Channels - Bridged @ 4Ω | 200 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 225 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 325 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 500 W RMS x 1 |
Rated Continuous (RMS) Power @ 12.5 V
| Main Channels @ 4 Ω | 60 W RMS x 4 |
| Main Channels @ 2 Ω | 90 W RMS x 4 |
| Main Channels - Bridged @ 4Ω | 180 W RMS x 2 |
| Subwoofer Channel @ 4 Ω | 200 W RMS x 1 |
| Subwoofer Channel @ 3 Ω | 250 W RMS x 1 |
| Subwoofer Channel @ 2 Ω | 350 W RMS x 1 |
General Specifications
| Frequency Response (Main Channels) | 12 Hz - 22 kHz (+0, -1dB) |
| Frequency Response (Subwoofer Channel) | 10 Hz - 500 Hz (+0, -1dB) |
| S/N Ratio, referred to highest rated power (Main Channels) | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
| Damping Factor @ 4 Ω | >150 / 50 Hz |
| Damping Factor @ 2 Ω | >75 / 50 Hz |
| THD+N @ Rated Power (Main Channels) | <1% @ 2 Ω per Ch. |
| THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 Ω per Ch. |
| Input Voltage Range @ RCA Inputs | Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High) |
| Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
| Fuse Rating | 80 A (AFS, AGU or MaxiFuse™) |
Signal Processing
| Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
| Filter Slope(s): Channels 1 & 2 (front) | 12 dB/octave |
| Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz - 500 Hz |
| Filter Mode(s): Channels 3 & 4 (rear) | High-Pass only |
| Filter Slope(s): Channels 3 & 4 (rear) | 12 dB/octave |
| Filter Frequency Range: Channels 3 & 4 | 50 Hz - 500 Hz |
| Filter Mode(s): Subwoofer Channel | Low-Pass only |
| Filter Slope(s): Subwoofer Channel | 12 dB/octave |
| Filter Frequency Range: Subwoofer Channel | 50 Hz - 500 Hz |
| Detented, Calibrated Filter Freq. Potentiometers | No |
| Filter Defeat Function | No |
| Infrasonic Filter: Subwoofer Channel | No |
| Remote Level Control | Optional (RBC-1) |
| Remote Level Modes | Sub Ch. |
| Channel Input Mode Switch | Yes (2/4/6 ch.) |
| Pass-Through Preamp Output | No |
Physical Specifications
| Height (H) | 2.13 in / 54 mm |
| Width (W) | 14.66 in / 372 mm |
| Depth (D) | 6.96 in / 177 mm |
| Net Weight | 6.15 lb / 2.79 kg |
Extended 1+1 Year Brand Warranty
Frequently Asked Questions:
1. Is the JL Audio RD 900/5 suitable for my car audio setup?
Yes. The RD 900/5 is designed as a complete audio solution capable of powering four speakers and one subwoofer from a single amplifier, making it ideal for hatchbacks, sedans, SUVs, and premium car audio upgrades.
2. Can this amplifier power both door speakers and a subwoofer together?
Absolutely. It delivers up to 70W x 4 RMS for speakers and 500W RMS for the subwoofer channel, allowing you to run your entire system using one amplifier.
3. Is the JL Audio RD 900/5 compatible with factory OEM stereos?
Yes. The amplifier supports a wide input voltage range and can work with many OEM factory head units as well as aftermarket stereo systems.
4. What size power wiring kit is recommended?
JL Audio recommends using a 4 AWG power and ground cable kit for safe operation and maximum performance.
5. Does this amplifier require a DSP for good sound quality?
No, the amplifier performs exceptionally well on its own. However, adding a DSP can further improve tuning and sound staging for audiophile-grade systems.
6. Can I adjust the subwoofer bass level from the driver's seat?
Yes. The RD 900/5 supports the optional JL Audio RBC-1 remote bass controller, allowing convenient bass adjustment while driving.
7. Does the amplifier overheat during long drives?
The RD Series uses efficient NexD™ Class-D technology, which generates less heat and maintains stable performance during extended listening sessions.
8. What type of subwoofer works best with the JL Audio RD 900/5?
The amplifier pairs exceptionally well with JL Audio subwoofers and supports subwoofer loads down to 2 ohms, delivering up to 500W RMS on the sub channel.
