Moco Class D Mono Amplifier Af-01d-1500
Product Overview

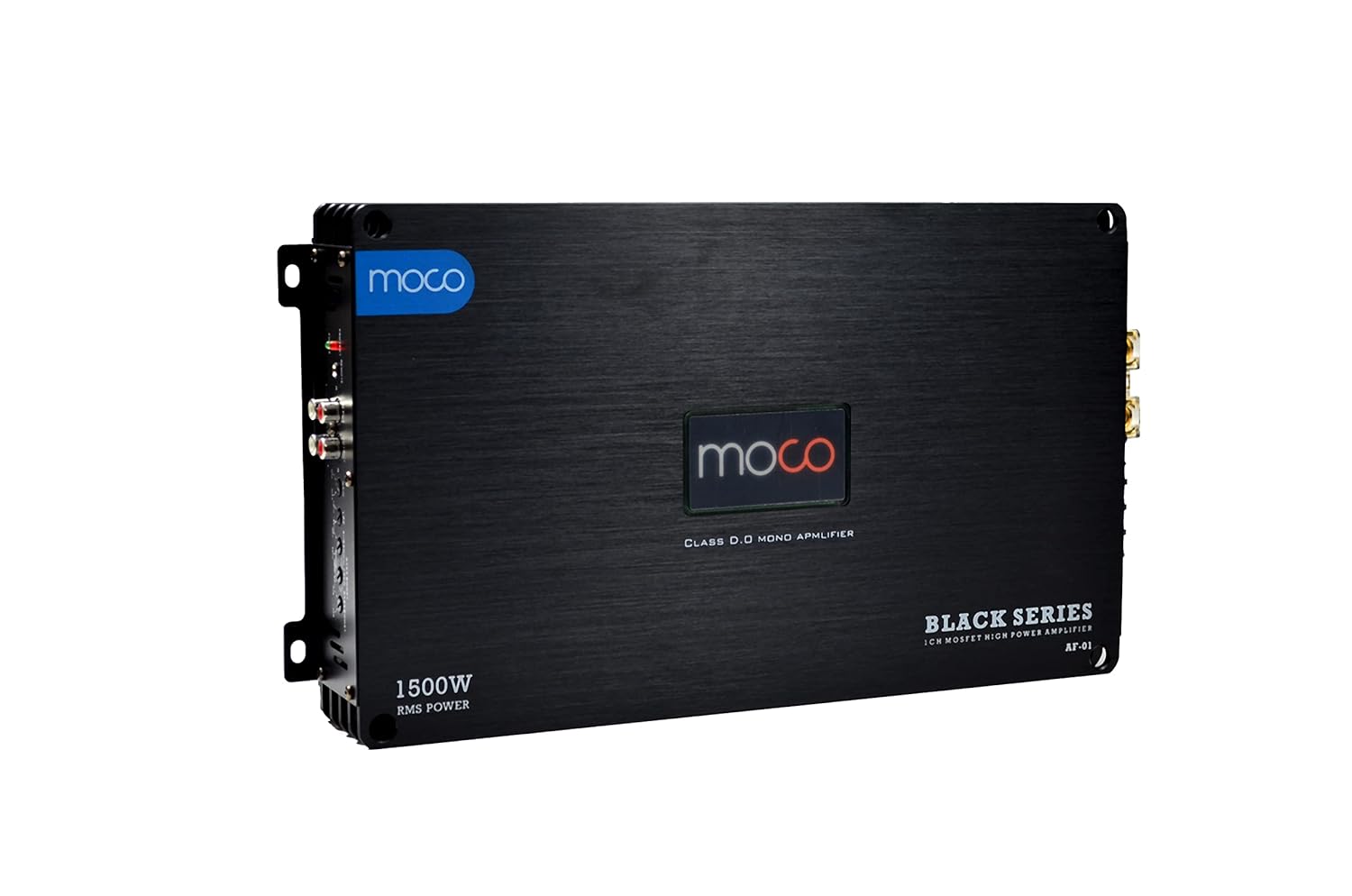

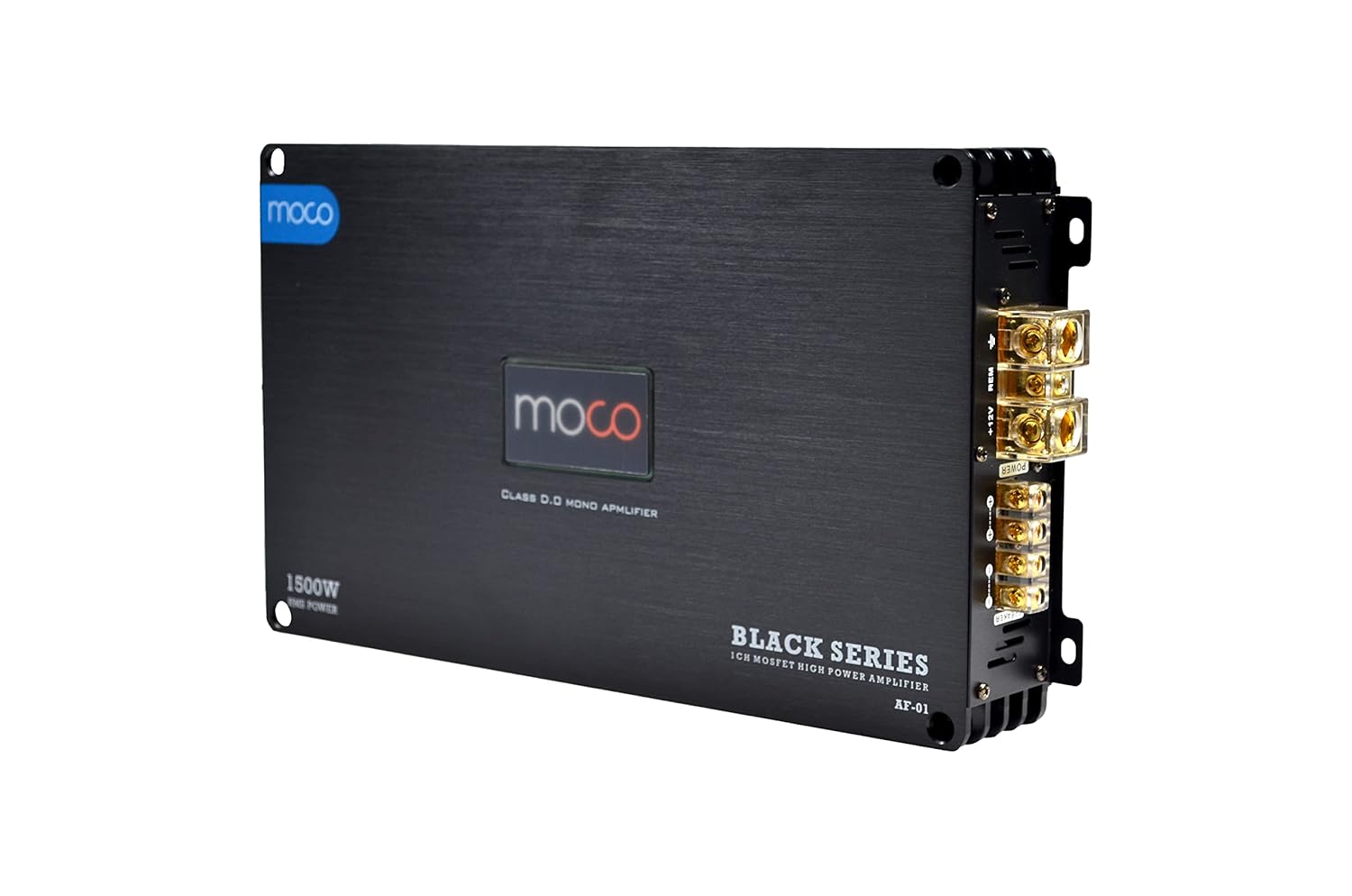

The Moco AF-01D-1500 is a high-output, single-channel (monoblock) Class D power amplifier built to drive heavy-duty subwoofer setups with clean, low-distortion power.
High-Efficiency Class D Architecture & 1500W RMS Output
Engineered to deliver high-current output while keeping electrical draw and thermal heat output to a minimum, the Moco AF-01D-1500 outputs 1500 Watts RMS directly to your subwoofer system. Its efficient Class D design makes it ideal for high-excursion subwoofers without straining your car's electrical charging system.
Precision Subwoofer Tuning & Signal Filters
Tailor your bass response to match your enclosure and music style. The AF-01D-1500 features a variable Low-Pass Filter (LPF) to isolate clean sub-bass frequencies, an adjustable Subsonic Filter to eliminate ultra-low non-audible frequencies that waste power, and an integrated Bass Boost control for added punch.
Heavy-Duty Heat Sink Chassis & Driver Remote

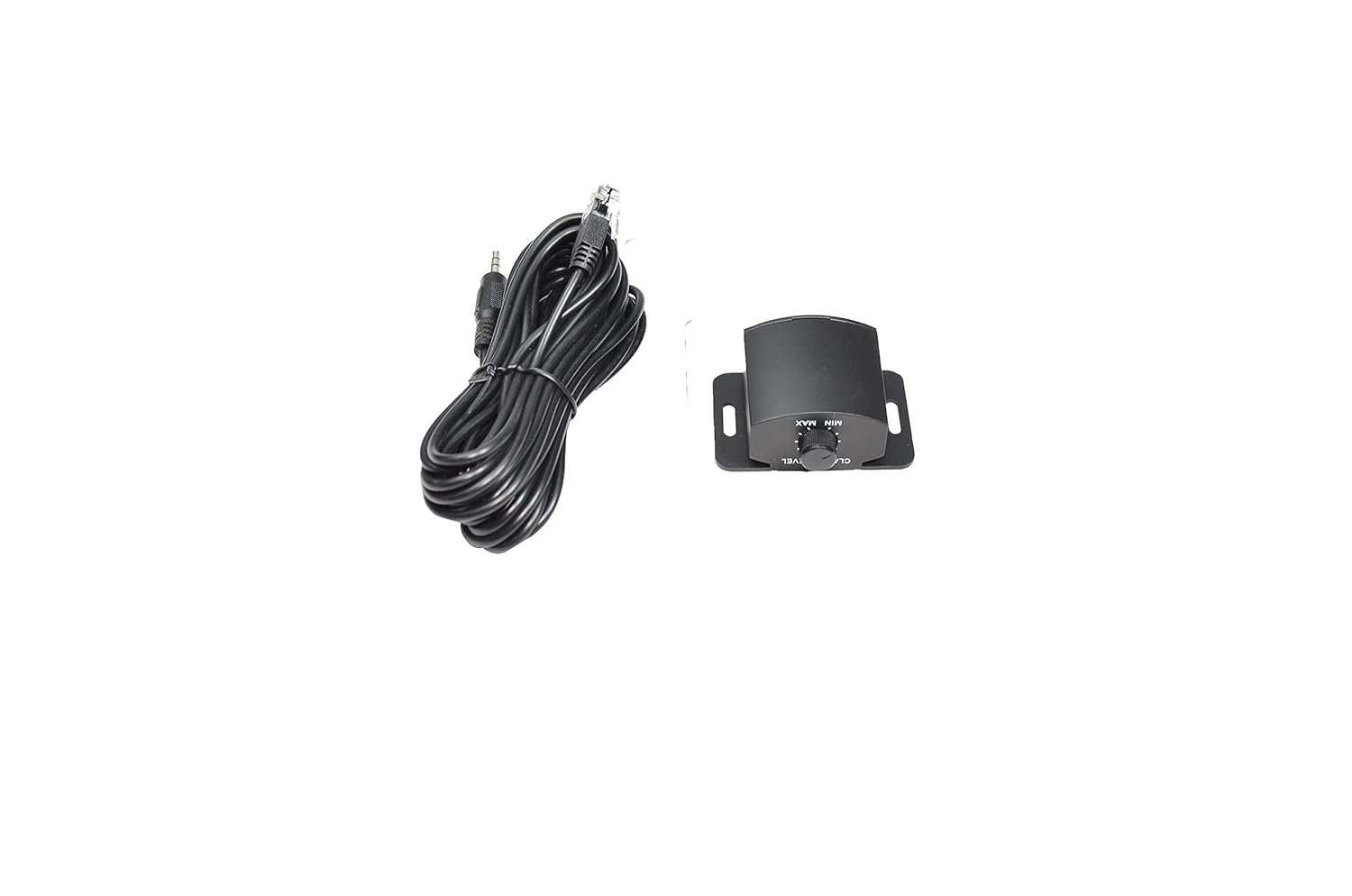

Encased in a brushed metal heat-sink housing, this amplifier dissipates heat rapidly during extended high-volume listening. It includes multi-way protection circuitry against thermal overload, voltage spikes, and short circuits, as well as a wired bass remote knob that lets you fine-tune subwoofer volume straight from the driver's seat.
- 1Ch MOSFET, 1500W RMS Power
- High Power MOSFET, Supply Voltage: 11-15V
- RMS Power: 600 Watts @ 4Ohm, RMS Power: 1 x 1500 Watts @ 1Ohm
- Signal Noise Ratio: 90dB, Input Sensivity: 100MV-6V
- Bass Frequency: 30Hz - 80Hz, Subsonic: OFF-50Hz
1 YEAR BRAND WARRANTY
Frequently Asked Questions (FAQ)
Q: Is the Moco AF-01D-1500 suitable for driving full-range door speakers?
A: No, this is a dedicated monoblock (1-channel) subwoofer amplifier. It is specifically designed to power subwoofers and low-frequency bass drivers.
Q: Why is a Class D amplifier better for powering subwoofers?
A: Class D amplifiers are significantly more power-efficient than traditional Class A/B amplifiers (often 80–90% efficient). They draw less current from your car battery and generate much less heat while producing high-wattage bass.
Q: What power wiring gauge should I use to install this amplifier?
A: Due to its 1500W RMS power rating, it is recommended to use a high-quality 4 AWG or 100% OFC (Oxygen-Free Copper) 8 AWG wiring kit with a high-current inline fuse near your car battery.
Q: What does the Subsonic Filter do on this amplifier?
A: The subsonic filter cuts off extremely low frequencies (usually below 20Hz–30Hz) that human ears cannot hear clearly. This prevents your subwoofer from wasting power or over-excurting on frequencies it cannot physically reproduce.
Product Overview
The Moco AF-01D-1500 is a high-output, single-channel (monoblock) Class D power amplifier built to drive heavy-duty subwoofer setups with clean, low-distortion power.
High-Efficiency Class D Architecture & 1500W RMS Output
Engineered to deliver high-current output while keeping electrical draw and thermal heat output to a minimum, the Moco AF-01D-1500 outputs 1500 Watts RMS directly to your subwoofer system. Its efficient Class D design makes it ideal for high-excursion subwoofers without straining your car's electrical charging system.
Precision Subwoofer Tuning & Signal Filters
Tailor your bass response to match your enclosure and music style. The AF-01D-1500 features a variable Low-Pass Filter (LPF) to isolate clean sub-bass frequencies, an adjustable Subsonic Filter to eliminate ultra-low non-audible frequencies that waste power, and an integrated Bass Boost control for added punch.
Heavy-Duty Heat Sink Chassis & Driver Remote
Encased in a brushed metal heat-sink housing, this amplifier dissipates heat rapidly during extended high-volume listening. It includes multi-way protection circuitry against thermal overload, voltage spikes, and short circuits, as well as a wired bass remote knob that lets you fine-tune subwoofer volume straight from the driver's seat.
- 1Ch MOSFET, 1500W RMS Power
- High Power MOSFET, Supply Voltage: 11-15V
- RMS Power: 600 Watts @ 4Ohm, RMS Power: 1 x 1500 Watts @ 1Ohm
- Signal Noise Ratio: 90dB, Input Sensivity: 100MV-6V
- Bass Frequency: 30Hz - 80Hz, Subsonic: OFF-50Hz
1 YEAR BRAND WARRANTY
Frequently Asked Questions (FAQ)
Q: Is the Moco AF-01D-1500 suitable for driving full-range door speakers?
A: No, this is a dedicated monoblock (1-channel) subwoofer amplifier. It is specifically designed to power subwoofers and low-frequency bass drivers.
Q: Why is a Class D amplifier better for powering subwoofers?
A: Class D amplifiers are significantly more power-efficient than traditional Class A/B amplifiers (often 80–90% efficient). They draw less current from your car battery and generate much less heat while producing high-wattage bass.
Q: What power wiring gauge should I use to install this amplifier?
A: Due to its 1500W RMS power rating, it is recommended to use a high-quality 4 AWG or 100% OFC (Oxygen-Free Copper) 8 AWG wiring kit with a high-current inline fuse near your car battery.
Q: What does the Subsonic Filter do on this amplifier?
A: The subsonic filter cuts off extremely low frequencies (usually below 20Hz–30Hz) that human ears cannot hear clearly. This prevents your subwoofer from wasting power or over-excurting on frequencies it cannot physically reproduce.
