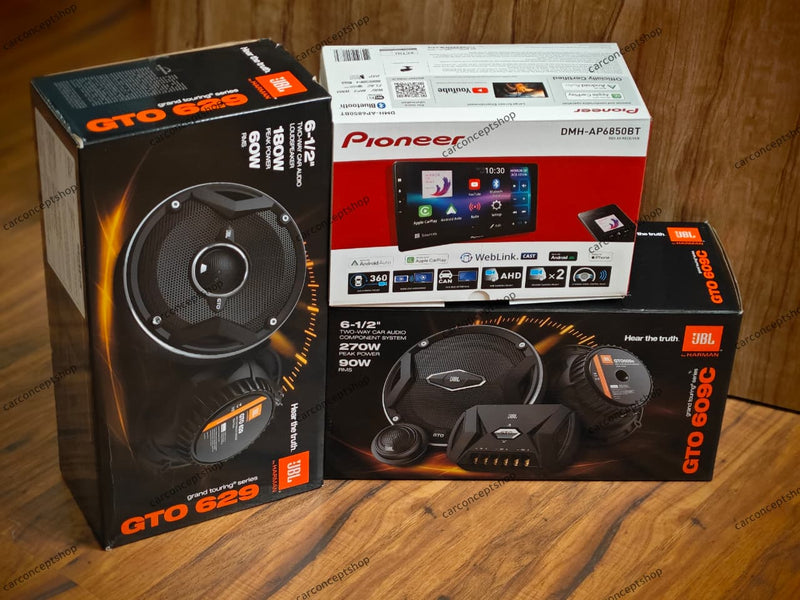

Pioneer DMH-AP6850BT 9-Inch Wireless CarPlay & Android Auto Touchscreen Receiver + JBL GTO 609C Component & GTO 629 Coaxial Speaker Full Car Audio System Upgrade Combo

Product Overview

Upgrade your vehicle's factory sound system to one of the most high-output, dynamic car audio combinations available.This master package pairs the advanced digital sound engine of the Pioneer DMH-AP6850BT 9-Inch Wireless Apple CarPlay & Android Auto Touchscreen Receiver with the legendary power, deep bass, and crystal-clear highs of the JBL GTO 609C 6.5" Component Speaker Set (Front Doors) and JBL GTO 629 6.5" Coaxial Speaker Set (Rear Doors).

Engineered with JBL's patented Plus One™ carbon-injected cone technology and 3-ohm low-impedance architecture, this combo delivers maximum acoustic output, punchy mid-bass impact, and effortless wireless smartphone integration.

What's Included in This Master Combo

• Pioneer DMH-AP6850BT 9-Inch Capacitive Touchscreen Receiver (1 Unit): High-definition 9-inch capacitive display featuring Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast screen mirroring, built-in 13-band graphic equalizer, digital time alignment, and 3 high-voltage RCA pre-outs (4V).

• JBL GTO 609C 6.5-Inch Component Speaker Set (1 Pair - Front Doors): Includes 2x 6.5" Plus One™ carbon-injected woofers, 2x edge-driven soft dome tweeters with level adjustments (+0dB/-3dB), and 2x passive crossover networks for razor-sharp front sound staging.

• JBL GTO 629 6.5-Inch Coaxial Speaker Set (1 Pair - Rear Doors): Includes 2x 2-way coaxial drivers with integrated edge-driven soft dome tweeters and UniPivot™ directional aiming, delivering rich, full-range rear fill for all passengers.

Technical Performance & System Synergy

Patented Plus One™ Carbon-Injected Cone Technology

Both the JBL GTO 609C component set and GTO 629 coaxial drivers feature JBL's patented Plus One™ cone design. By extending the cone surface area up to 30% larger than competing speakers of the same size, these woofers move more air to deliver deeper, punchier mid-bass and higher acoustic efficiency.

Low-Impedance 3-Ohm Architecture for Maximum Output

Engineered as 3-Ohm low-impedance drivers, the JBL GTO series extracts every available watt from your head unit or external power amplifier. This compensates for thin-gauge factory vehicle wiring, ensuring maximum volume, clarity, and dynamic punch.

Pioneer Digital Sound Engine & 13-Band DSP

The Pioneer DMH-AP6850BT serves as the central high-resolution source unit and sound processor. Equipped with a 13-band graphic equalizer, digital time alignment, and active crossover controls, it enables precise acoustic tuning to align speaker output timing perfectly with your driver seat position.

Technical Specifications

Pioneer DMH-AP6850BT Head Unit

• Screen Size: 9-Inch High-Definition Capacitive Touchscreen

• Smartphone Connectivity: Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast Screen Mirroring

• Audio DSP: 13-Band Graphic Equalizer with Digital Time Alignment & Crossovers

• Internal Amplification: Built-in MOSFET 50W x 4 Channels

• Pre-Outs: 3 Sets High-Voltage RCA Pre-Outs (4V - Front, Rear, Subwoofer)

• Camera Integration: Dual Camera Inputs (Front & Rear Parking Camera Support)

• Bluetooth: Bluetooth 5.0 Dual Phone Connectivity & Audio Streaming

JBL GTO 609C (Front Component Pair)

• Speaker Size: 6.5-Inch (165mm) 2-Way Component System

• Power Handling: 90 Watts RMS / 270 Watts Peak

• Nominal Impedance: 3 Ohms

• Frequency Response: 53 Hz – 21,000 Hz

• Sensitivity (@ 2.83V/1m): 93 dB

• Tweeter Design: Edge-Driven Soft Dome Tweeter (+0dB/-3dB Adjustment)

JBL GTO 629 (Rear Coaxial Pair)

• Speaker Size: 6.5-Inch (165mm) 2-Way Coaxial System

• Power Handling: 60 Watts RMS / 180 Watts Peak

• Nominal Impedance: 3 Ohms

• Frequency Response: 53 Hz – 21,000 Hz

• Sensitivity (@ 2.83V/1m): 93 dB

• Tweeter Design: UniPivot™ Directional Edge-Driven Soft Dome

Warranty Details

• Pioneer DMH-AP6850BT Head Unit: Covered by 2 Years Official Brand Warranty against manufacturing defects and electronic hardware failures.

• JBL GTO Series Speakers: Covered by 1 Year Official Brand Warranty against manufacturing defects under proper power and installation conditions.

• Official Brand Warranty Only: All warranty claims are processed directly through authorized brand service networks using your official tax invoice.

Frequently Asked Questions (FAQs)

1. Will this Pioneer 9-inch screen and JBL GTO speaker combo fit my car?

Yes! 6.5-inch (165mm) speakers are the standard door size for over 90% of vehicles on Indian roads. The Pioneer DMH-AP6850BT fits universal 9-inch dashboard slots using vehicle-specific fascia frames and plug-and-play wiring harnesses without cutting factory wires.

2. Is an external power amplifier required to run these JBL GTO speakers?

No. Thanks to JBL's high-efficiency 93dB sensitivity and 3-Ohm low-impedance architecture, these speakers perform exceptionally loud and clear directly powered by the Pioneer receiver's internal MOSFET amplifier. However, adding a 4-channel power amplifier later will unlock even deeper mid-bass and higher volume headroom.

3. Does this system support steering wheel controls and rear cameras?

Yes! The Pioneer DMH-AP6850BT supports OEM steering wheel control interface integration and features dual camera inputs for front and rear reverse parking camera setups.

Why Choose This Pioneer & JBL Combo?

• High-Efficiency Output: Low-impedance 3-Ohm design delivers noticeably higher volume and deeper bass compared to standard factory speakers.

• Seamless Smart Connectivity: Complete wireless Apple CarPlay and Android Auto integration on a vibrant 9-inch capacitive HD display.

• Durable Automotive Build: Fiberglass-reinforced frames and carbon-injected cones built to withstand extreme heat and humidity cycles.

Technical Integration & Sourcing Assurance

• 100% Genuine, Authenticated Sourcing: We source directly through verified distribution channels to guarantee you receive 100% original, factory-fresh products with valid serial numbers.

• Expert System Integration Guidance: Unsure if your vehicle requires specific CAN-Bus couplers, steering wheel control interfaces, or speaker spacer rings? Our internal technical team is always available with clear answers.
