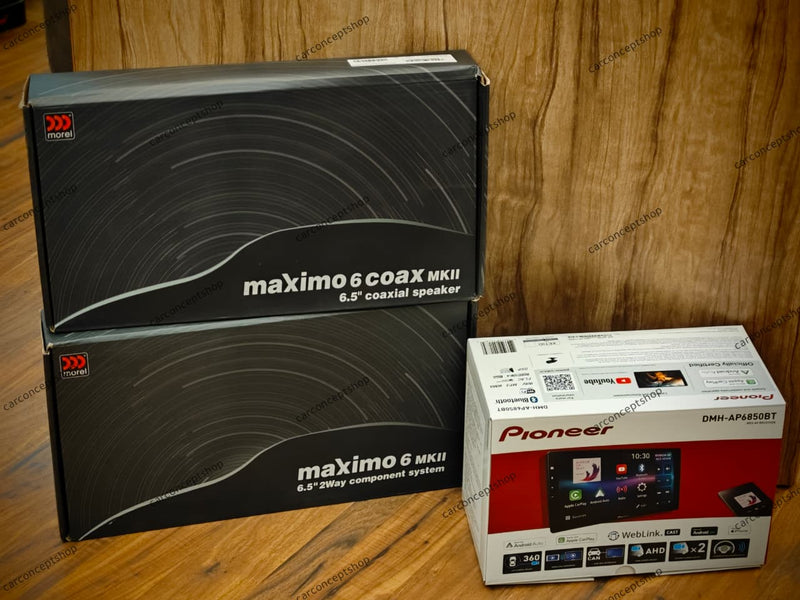

Pioneer DMH-AP6850BT 9-Inch Wireless CarPlay & Android Auto Touchscreen Receiver + Morel Maximo 6 MK2 Component & Coaxial Speaker Full Car Audio System Upgrade Combo

Product Overview

Elevate your in-car entertainment and listening experience with a high-performance audiophile-grade audio combination.This system pairs the flagship Pioneer DMH-AP6850BT 9-inch Wireless Apple CarPlay & Android Auto Touchscreen Receiver with the handcrafted acoustic precision of the Morel Maximo 6 MK2 6.5" Component Speaker Set (Front Doors) and Morel Maximo 6 MK2 6.5" Coaxial Speaker Set (Rear Doors).

Designed for music enthusiasts seeking clean vocal reproduction, smooth high-frequency extension, and seamless wireless connectivity, this combo brings signature Morel sound staging directly to your dashboard without requiring major vehicle alterations.

What's Included in This Master Combo

• Pioneer DMH-AP6850BT 9-Inch Capacitive Touchscreen Receiver (1 Unit): High-definition 9-inch capacitive display featuring Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast screen mirroring, built-in 13-band graphic equalizer, digital time alignment, and 3 high-voltage RCA pre-outs.

• Morel Maximo 6 MK2 6.5-Inch Component Speaker Set (1 Pair - Front Doors): Includes 2x 6.5" treated paper composite woofers with high-flux ferrite magnets, 2x 25mm soft dome tweeters, and 2x passive crossover networks for precise front sound staging.

• Morel Maximo 6 MK2 6.5-Inch Coaxial Speaker Set (1 Pair - Rear Doors): Includes 2x 2-way coaxial drivers featuring integrated soft dome tweeters, delivering rich, natural, full-range rear fill for all cabin passengers.

Technical Performance & System Synergy

Handcrafted Soft Dome Tweeters & Warm Natural Voicing

Morel is world-renowned for its silky, non-fatiguing soft dome tweeter design. The Maximo 6 MK2 component system utilizes 25mm soft dome tweeters to eliminate harshness and distortion. High frequencies sound smooth, open, and detailed even during extended high-volume listening.

High-Efficiency Composite Woofers for Clean Vocal Impact

Both the Morel Maximo 6 MK2 component and coaxial speakers feature lightweight treated paper composite cones driven by heavy-duty ferrite motor structures. This combination offers quick transient response and tight mid-bass impact,making vocals and acoustic instruments sound natural and life-like.

Pioneer Digital Sound Engine & 13-Band DSP

The Pioneer DMH-AP6850BT acts as the high-resolution digital hub of your setup. Equipped with a built-in 13-band graphic equalizer, digital time alignment, and active crossover controls, it enables precise acoustic tuning to align sound stage timing perfectly with your driver's seating position.

Technical Specifications

Pioneer DMH-AP6850BT Head Unit

• Screen Size: 9-Inch High-Definition Capacitive Touchscreen

• Smartphone Connectivity: Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast Screen Mirroring

• Audio DSP: 13-Band Graphic Equalizer with Digital Time Alignment & Crossovers

• Internal Amplification: Built-in MOSFET 50W x 4 Channels

• Pre-Outs: 3 Sets High-Voltage RCA Pre-Outs (Front, Rear, Subwoofer)

• Camera Integration: Dual Camera Inputs (Front & Rear Parking Camera Support)

• Bluetooth: Bluetooth 5.0 Dual Phone Connectivity & Audio Streaming

Morel Maximo 6 MK2 (Front Component Pair)

• Speaker Size: 6.5-Inch (165mm) 2-Way Component System

• Power Handling: 90 Watts RMS / 180 Watts Peak

• Nominal Impedance: 4 Ohms

• Frequency Response: 50 Hz – 20,000 Hz

• Sensitivity (@ 2.83V/1m): 91 dB

• Tweeter Design: 25mm (1-Inch) Soft Dome Tweeter

Morel Maximo 6 MK2 (Rear Coaxial Pair)

• Speaker Size: 6.5-Inch (165mm) 2-Way Coaxial System

• Power Handling: 70 Watts RMS / 140 Watts Peak

• Nominal Impedance: 4 Ohms

• Frequency Response: 55 Hz – 20,000 Hz

• Sensitivity (@ 2.83V/1m): 89 dB

• Tweeter Design: Integrated Soft Dome Tweeter

Warranty Details

• Pioneer DMH-AP6850BT Head Unit: Covered by 2 Years Official Brand Warranty against manufacturing defects and electronic hardware failures.

• Morel Maximo 6 MK2 Series Speakers: Covered by 1 Year Official Brand Warranty against manufacturing defects under proper power and installation conditions.

• Official Brand Warranty Only: All warranty claims are processed directly through authorized brand service networks using your official tax invoice.

Frequently Asked Questions (FAQs)

1. Will this Pioneer 9-inch screen and Morel Maximo MK2 speaker combo fit my car?

Yes! 6.5-inch (165mm) speakers are the standard door size for over 90% of vehicles on Indian roads. The Pioneer DMH-AP6850BT fits universal 9-inch dashboard slots using vehicle-specific fascia frames and plug-and-play wiring harnesses without cutting factory wires.

2. Is an external power amplifier required to run these Morel speakers?

No. Thanks to Morel's high sensitivity rating (91 dB), these speakers perform exceptionally well directly powered by the Pioneer head unit's built-in MOSFET amplifier. However, adding an external 4-channel power amplifier later will unlock even greater dynamic headroom and deeper mid-bass punch.

3. Does this system support steering wheel controls and rear cameras?

Yes! The Pioneer DMH-AP6850BT supports OEM steering wheel control interface integration and features dual camera inputs for front and rear reverse parking camera setups.

Why Choose This Pioneer & Morel Combo?

• Wireless Freedom: Enjoy completely wireless Apple CarPlay and Android Auto on a massive, vivid 9-inch capacitive HD display.

• Smooth Audiophile Voicing: Signature Israeli audio engineering from Morel brings rich, fatigue-free sound quality to every drive.

• Seamless Bolt-On Compatibility: Universal 6.5-inch speaker sizing paired with a universal 9-inch floating display setup for hassle-free installation.

Technical Integration & Sourcing Assurance

• 100% Genuine, Authenticated Sourcing: We source directly through verified distribution channels to guarantee you receive 100% original, factory-fresh products with valid serial numbers.

• Expert System Integration Guidance: Unsure if your vehicle requires specific CAN-Bus couplers, steering wheel control interfaces, or speaker spacer rings? Our internal technical team is always available with clear answers.
