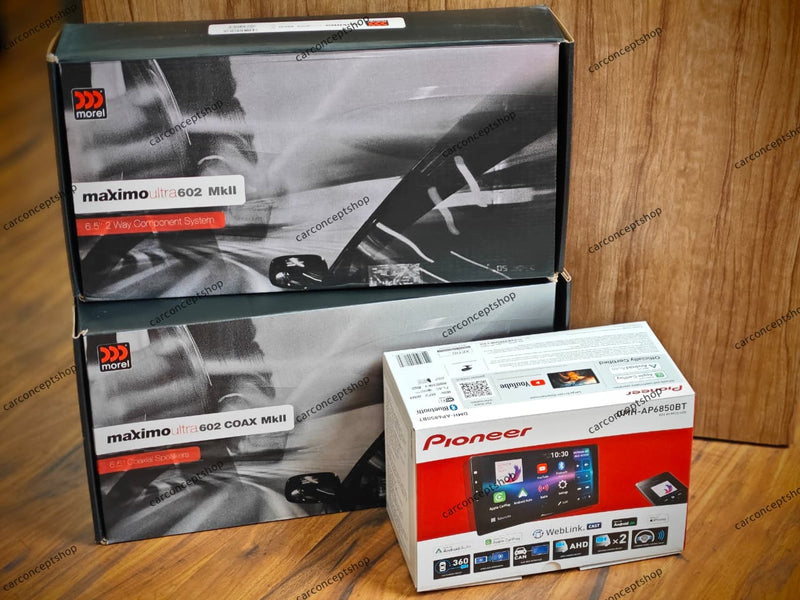

Pioneer DMH-AP6850BT 9-Inch Wireless CarPlay & Android Auto Touchscreen Receiver + Morel Maximo Ultra 602 MKII Component & Coaxial Speaker Full Car Audio System Upgrade Combo

Product Overview

Step into world-class audiophile clarity and wireless convenience with this top-tier car audio upgrade package. This master combination pairs the flagship Pioneer DMH-AP6850BT 9-Inch Wireless Apple CarPlay & Android Auto Touchscreen Receiver with the handcrafted acoustic precision of the Morel Maximo Ultra 602 MKII 6.5" Component Speaker Set (Front Doors) and Morel Maximo Ultra Coax 602 MKII 6.5" Coaxial Speaker Set (Rear Doors).

Engineered for music purists seeking rich vocal textures, extended high-frequency response, and tight mid-bass punch,this combo delivers concert-grade sound staging directly to your vehicle's cabin without requiring major dash or door modifications.

What's Included in This Master Combo

• Pioneer DMH-AP6850BT 9-Inch Capacitive Touchscreen Receiver (1 Unit): High-definition 9-inch capacitive display featuring Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast screen mirroring, built-in 13-band graphic equalizer, digital time alignment, and 3 high-voltage RCA pre-outs (4V).

• Morel Maximo Ultra 602 MKII 6.5-Inch Component Speaker Set (1 Pair - Front Doors): Includes 2x 6.5" treated paper composite woofers with oversized voice coils, 2x 25mm soft dome tweeters with Lotus grill design,and 2x computer-tuned passive crossover networks for precise front sound staging.

• Morel Maximo Ultra Coax 602 MKII 6.5-Inch Coaxial Speaker Set (1 Pair - Rear Doors): Includes 2x 2-way coaxial drivers featuring integrated soft dome tweeters, delivering warm, natural, full-range rear fill for all cabin passengers.

Technical Performance & System Synergy

Handcrafted Morel 25mm Soft Dome Tweeters & Lotus Grills

Morel is globally celebrated for its non-fatiguing soft dome tweeter architecture. The Maximo Ultra 602 MKII component set features 25mm soft dome tweeters equipped with Morel's signature Lotus grill design to eliminate unwanted distortion and sibilance, resulting in smooth, open highs during long listening sessions.

High-Efficiency Treated Paper Composite Woofers & Oversized Voice Coils

Both the Maximo Ultra 602 MKII component and coaxial woofers feature treated paper composite cone geometry backed by heavy-duty motor structures and oversized voice coils. This design provides high power handling, superior transient response, and punchy mid-bass impact.

Pioneer Digital Sound Engine & 13-Band DSP

The Pioneer DMH-AP6850BT acts as the high-resolution digital processing hub of your setup. Equipped with a built-in 13-band graphic equalizer, digital time alignment, and active crossover adjustments, it enables precise acoustic tuning to align speaker output timing perfectly with your driver seat position.

Technical Specifications

Pioneer DMH-AP6850BT Head Unit

• Screen Size: 9-Inch High-Definition Capacitive Touchscreen

• Smartphone Connectivity: Wireless & Wired Apple CarPlay, Wireless & Wired Android Auto, WebLink Cast Screen Mirroring

• Audio DSP: 13-Band Graphic Equalizer with Digital Time Alignment & Crossovers

• Internal Amplification: Built-in MOSFET 50W x 4 Channels

• Pre-Outs: 3 Sets High-Voltage RCA Pre-Outs (4V - Front, Rear, Subwoofer)

• Camera Integration: Dual Camera Inputs (Front & Rear Parking Camera Support)

• Bluetooth: Bluetooth 5.0 Dual Phone Connectivity & Audio Streaming

Morel Maximo Ultra 602 MKII (Front Component Pair)

• Speaker Size: 6.5-Inch (165mm) 2-Way Component System

• Power Handling: 100 Watts RMS / 180 Watts Peak

• Nominal Impedance: 4 Ohms

• Frequency Response: 50 Hz – 20,000 Hz

• Sensitivity (@ 2.83V/1m): 90.5 dB

• Tweeter Design: 25mm (1-Inch) Soft Dome Tweeter with Lotus Grill

Morel Maximo Ultra Coax 602 MKII (Rear Coaxial Pair)

• Speaker Size: 6.5-Inch (165mm) 2-Way Coaxial System

• Power Handling: 80 Watts RMS / 140 Watts Peak

• Nominal Impedance: 4 Ohms

• Frequency Response: 55 Hz – 20,000 Hz

• Sensitivity (@ 2.83V/1m): 89.5 dB

• Tweeter Design: Integrated Soft Dome Tweeter

Warranty Details

• Pioneer DMH-AP6850BT Head Unit: Covered by 2 Years Official Brand Warranty against manufacturing defects and electronic hardware failures.

• Morel Maximo Ultra Series Speakers: Covered by 1 Year Official Brand Warranty against manufacturing defects under proper power and installation conditions.

• Official Brand Warranty Only: All warranty claims are processed directly through authorized brand service networks using your official tax invoice.

Frequently Asked Questions (FAQs)

1. Will this Pioneer 9-inch screen and Morel Maximo Ultra speaker combo fit my car?

Yes! 6.5-inch (165mm) speakers are the standard door size for over 90% of vehicles on Indian roads. The Pioneer DMH-AP6850BT fits universal 9-inch dashboard slots using vehicle-specific fascia frames and plug-and-play wiring harnesses without cutting factory wires.

2. Is an external power amplifier required to run these Morel Maximo Ultra speakers?

No. Thanks to Morel's high sensitivity ratings, these speakers perform exceptionally well directly powered by the Pioneer head unit's internal MOSFET amplifier. However, adding an external 4-channel power amplifier later will fully unleash their 100W RMS power handling, yielding deeper mid-bass punch and increased dynamic headroom.

3. Does this system support steering wheel controls and rear cameras?

Yes! The Pioneer DMH-AP6850BT supports OEM steering wheel control interface integration and features dual camera inputs for front and rear reverse parking camera setups.

Why Choose This Pioneer & Morel Ultra Combo?

• High-End Audiophile Voicing: Premium Israeli acoustic engineering delivers warm, fatigue-free sound quality with outstanding vocal realism.

• Seamless Wireless Integration: Total wireless Apple CarPlay and Android Auto convenience on a massive 9-inch HD touch display.

• Superior Power Handling: Upgraded Maximo Ultra series motors handle higher wattage effortlessly for clean,distortion-free playback.
