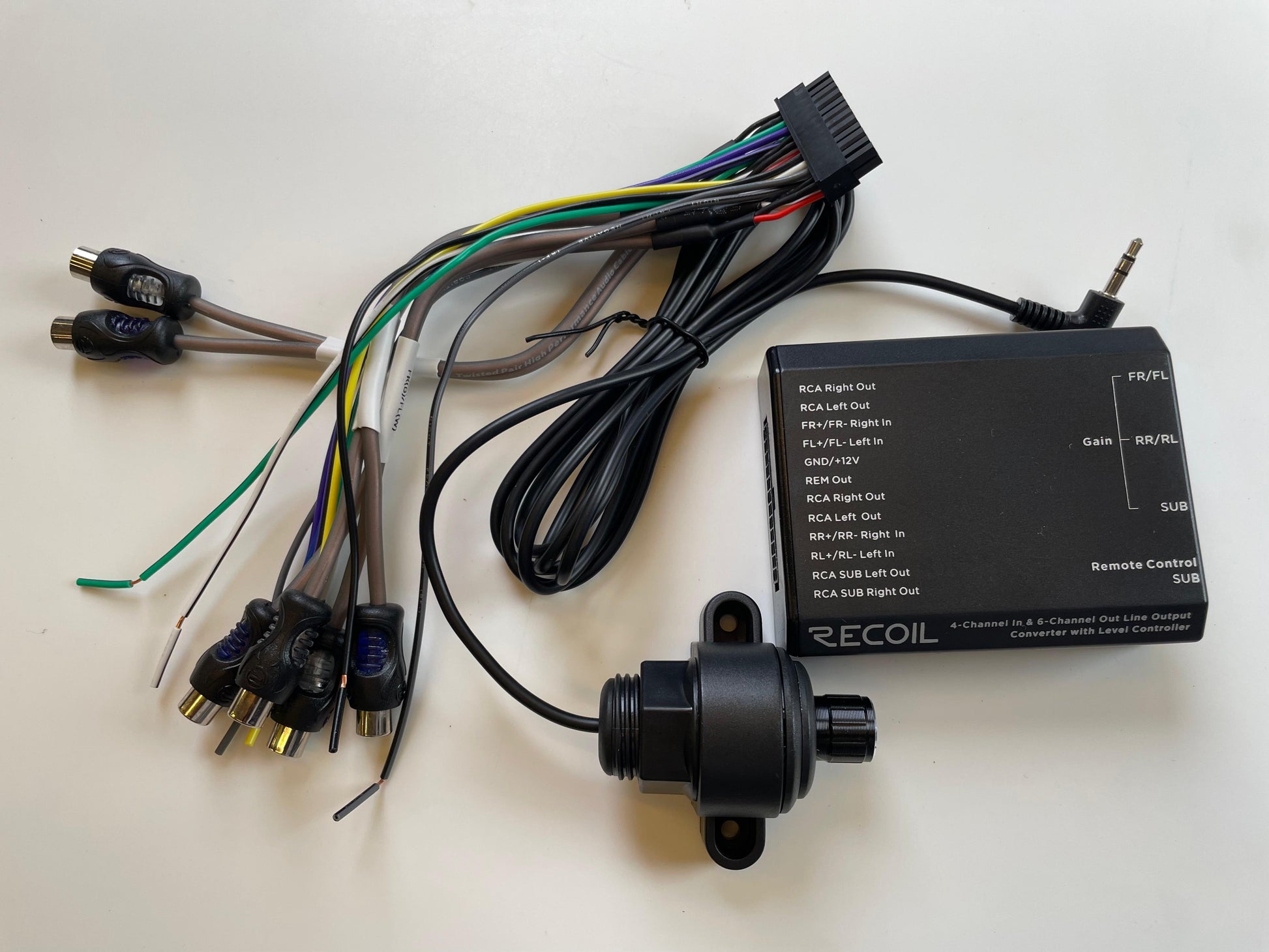

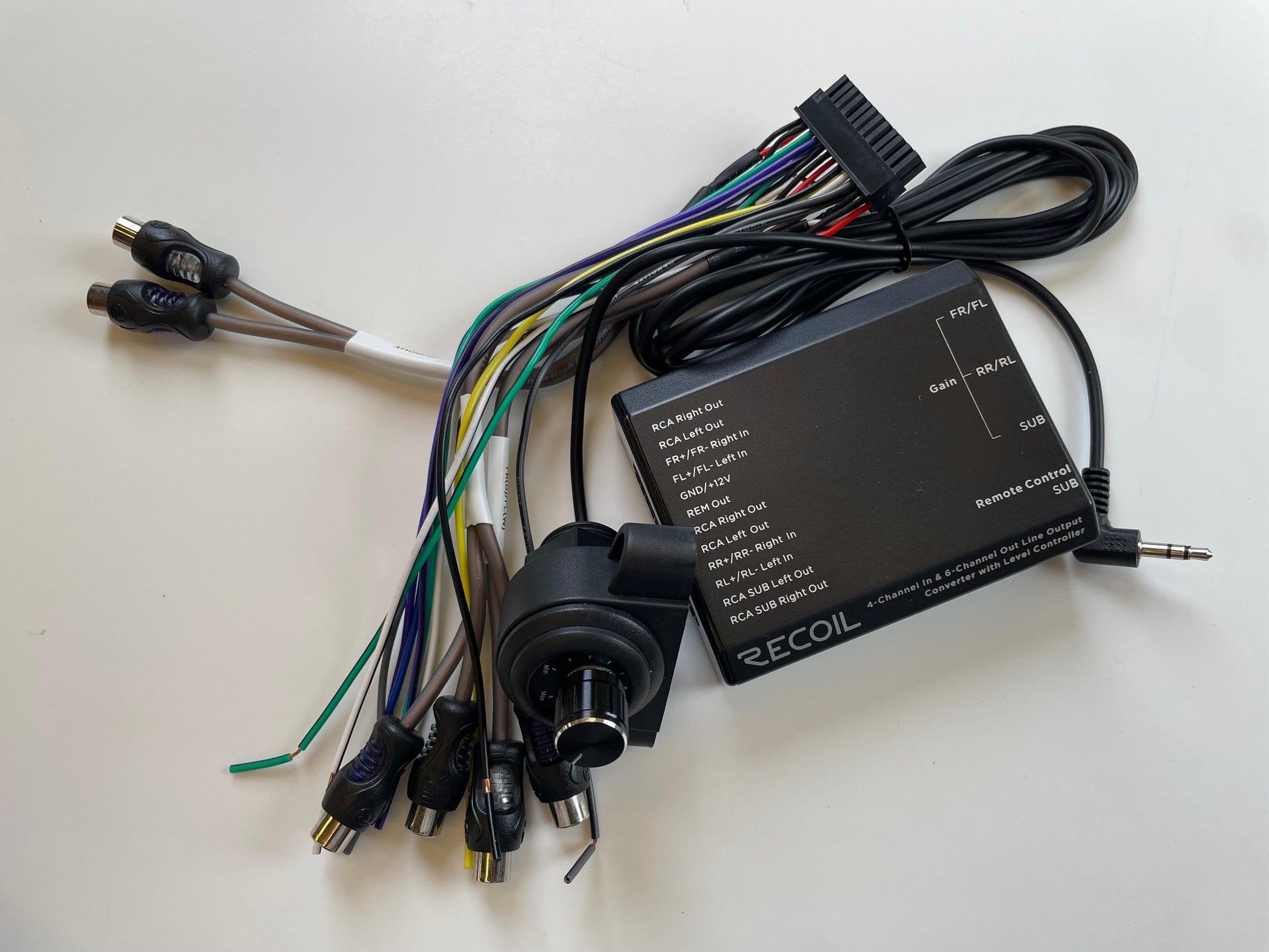

Recoil 6-Channel Active Hi-Lo Converter with Remote Bass Control Knob

Master OEM Integration: Recoil 6-Channel Active Line Output Converter

Integrate multi-channel aftermarket amplifiers, powered subwoofers, or sound processors with your vehicle's factory head unit using the Recoil 6-Channel Active Line Output Converter. Engineered to convert 6 channels of high-level speaker wire inputs into ultra-clean, high-voltage RCA pre-out signals, this active converter eliminates signal distortion, ground loop hums, and turn-on pops. Complete with a remote bass control knob, it allows seamless integration for complete multi-speaker + subwoofer car audio system upgrades.

Key Features & Highlights

• Ultra-Clean 6-Channel Active Signal Processing: Converts up to 6 high-level speaker inputs (Front, Rear, and Subwoofer) into high-voltage RCA pre-out signals (up to 9.5V RMS), maximizing amplifier dynamic range while keeping noise floor near zero.

• Remote Bass Level Control Knob Included: Includes a dash-mountable wired remote control knob to adjust subwoofer channel output independently right from your driver's seat.

• Automatic Remote Turn-On Output (12V Trigger): Built-in DC offset and audio sensing circuit automatically generates a +12V remote turn-on trigger to switch your external amplifiers ON and OFF with your factory radio.

• Internal Channel Summing & Signal Matrix: Built-in summing circuit allows you to merge factory-amplified multi-way speaker signals (like factory tweeters and door woofers) into a clean, full-range 2-channel, 4-channel, or 6-channel RCA output.

• Selectable Ground Isolation Circuitry: Integrated ground isolation modes (ISO / Ground / 200 Ohm) prevent alternator whine, engine noise, and loop hums.

Technical Specifications

• Type: 6-Channel Active Line Output Converter (LOC)

• Maximum Speaker Input Power: 80 Watts RMS per channel

• Maximum RCA Output Level: Up to 9.5V RMS

• Frequency Response: 10 Hz – 30,000 Hz

• Total Harmonic Distortion (THD): < 0.01%

• Signal-to-Noise Ratio (SNR): > 110 dB

• Input / Output Configuration: 6-Channel High-Level Speaker Inputs $\to$ 6-Channel Low-Level RCA Outputs

• Turn-On Trigger Modes: DC Offset / Audio Signal Sensing (12V Output Remote Wire)

• Remote Control: Dash-Mountable Bass Knob Included

• Operating Voltage: 11V – 15V DC

Warranty Details

• 1 Year Official Brand Warranty:

Frequently Asked Questions

1. Why do I need a 6-channel line output converter instead of a 2-channel one?

A 6-channel converter allows you to feed a full 4-channel amplifier (for front and rear door speakers) PLUS a dedicated mono block amplifier (for subwoofers) while retaining full front-to-rear fader control from your factory head unit.

2. Can this 6-channel converter sum factory bi-amped signals?

Yes! If your car comes with a factory premium sound system where high frequencies (tweeters) and low frequencies (woofers) are split on different wires, the Recoil 6-channel converter can sum those separate channels back into a single full-range RCA signal.

3. Why Choose Recoil Audio Signal Processors?

• Zero Battery Drain: Intelligent automatic signal detection turns on your external amplifiers only when the radio plays, eliminating battery drain risk.

• Extreme High Output Voltage: Delivers up to 9.5V RMS RCA output, allowing your power amplifiers to run cooler with minimal gain adjustment.

• Designed for Premium OEM Upgrades: Perfect solution for upgrading modern touchscreens and complex OEM factory wiring without replacing original dashboard units.

Technical Integration & Sourcing Assurance

• 100% Genuine Sourcing: Guaranteed original, factory-fresh Recoil audio equipment directly backed by official channel warranty.

• Wiring & Installation Support: Need guidance on channel summing jumpers, speaker input wiring, or ground selection? Our internal technical team is available to assist you.
