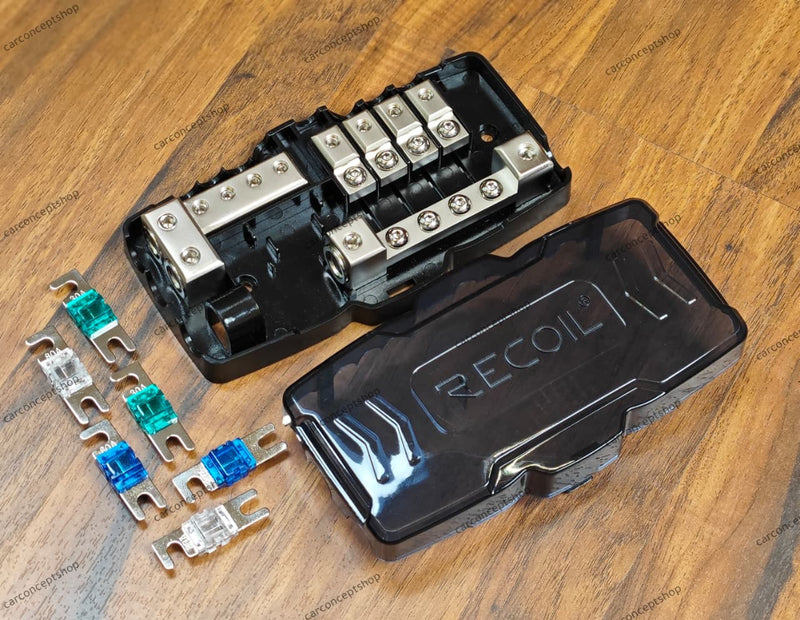

Recoil ZMPG4 High-Performance 4-Way Power Distribution & Ground Block

Product Overview

Simplify your multi-amp installation with the Recoil ZMPG4, a professional-grade 2-in-1 power and ground distribution solution. Engineered for high-current car audio systems, this block ensures your amplifiers receive consistent power while staying protected by high-quality Mini ANL fuses.

Built with a heavy-duty zinc alloy construction, the ZMPG4 is designed for maximum conductivity and corrosion resistance. Its compact, transparent housing allows for easy inspection of fuses and connections, making it the perfect "A-Grade" hub for a clean, show-quality trunk setup.

Key Features

• Dual Functionality: Combined Power Distribution and Ground Block in a single, space-saving unit.

• 4-Way Power Output: Distribute power from your main battery line to up to four separate amplifiers.

• Fused Protection: Pre-loaded with premium Zinc Mini ANL fuses to prevent overcurrent damage to your expensive gear.

• High-Efficiency Wiring: Features 2 Input and 4 Output ports, allowing for 0/4 gauge main lines and 4/8 gauge output runs.

• Industrial Build: Made from high-conductivity zinc alloy with a heat-resistant, impact-proof polycarbonate cover.

Technical Specifications

• Brand: Recoil

• Model: ZMPG4

• Type: 4-Way Fused Distribution Block

• Fuse Type: Mini ANL (Included)

• Configuration: 2-In / 4-Out

• Material: Nickel-Plated Zinc Alloy

Frequently Asked Questions (FAQ)

Q: Is the Recoil ZMPG4 a fused or non-fused distribution block?

A: The ZMPG4 is a non-fused distribution block. It is designed primarily as a ground collection block or as a primary power splitter. If used for power splitting, ensure inline fuse holders are installed on individual output lines to protect smaller gauge wires, or place an appropriately rated main fuse near the battery.

Q: Can I use this block for both power and ground at the same time?

A: No, a single ZMPG4 block distributes one polarity at a time. You will need two separate ZMPG4 blocks if you want to set up both a centralized 4-way power distribution hub and a 4-way ground hub for your multi-amp system.

Q: Do I need wire reducers to connect smaller 8 AWG wire to the outputs?

A: No. The output terminals are stepped to fit both 4 AWG and 8 AWG wires directly without needing additional adapter sleeves.
